HDPE geocell ground grid paver for road construction erosion control
- Category: Geocells >>>
- Supplier: Taian Ranger Engineering Material Co. Ltd.
Share on (11000000572070):
Product Overview
Description
Product Description
Geocell ground grid paver for road construction

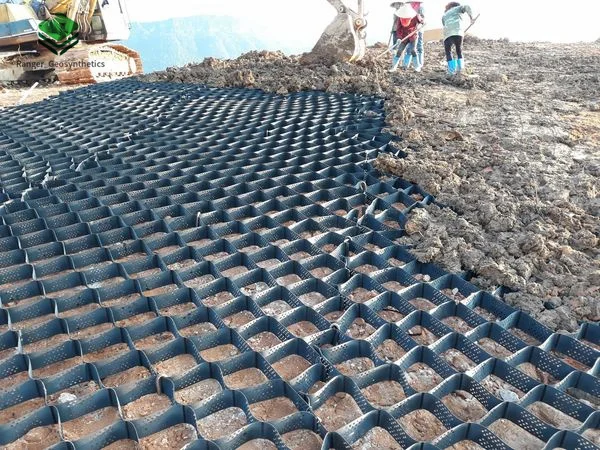

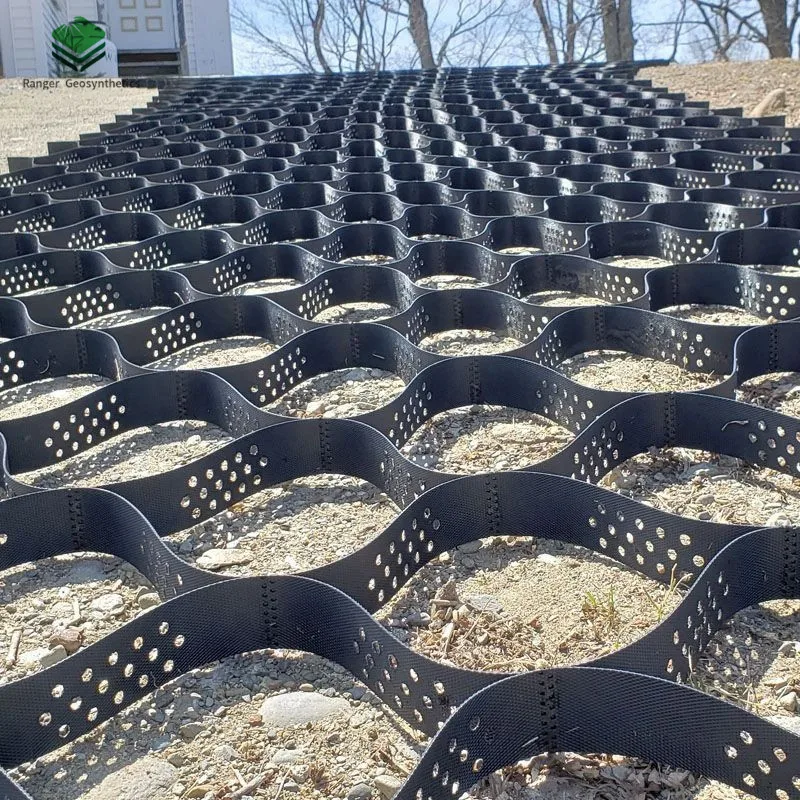

Geocell is widely used in construction for erosion control, soil stabilization on flat ground and steep slopes, channel protection, and structural reinforcement for load support and earth retention. It is made with ultrasonically welded high-density polyethylene (HDPE) strips and expanded on-site to form a honeycomb-like structure, and filled with sand, soil, rock, gravel or concrete.geocell
Specification
Material | 100% Virgin HDPE |
Color | Black |
Standard | ASTM GRI-GM13 |
Thickness | 1.0mm,1.2mm,1.5mm,1.75mm |
Width | 75-100-150-200mm |
Length | 33-100cm |
Application | Earthwork Apllication |
Product Paramenters
* Light material, resistant to wear, stable in chemical properties, anti-aging,
resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.
* High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance
the supporting ability and scattered load function of roadbed.
* High carrying capacity and good dynamic performance and high erosion ability
* The geometry size can be changed to meet different needs of the project, such as
height and welding distance of geocell.
* Retractable and small loading volume, convenient joint, speed construction.
* Local material can be used during construction, reduce the construction cost, easy to
be transported after folding together.
resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.
* High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance
the supporting ability and scattered load function of roadbed.
* High carrying capacity and good dynamic performance and high erosion ability
* The geometry size can be changed to meet different needs of the project, such as
height and welding distance of geocell.
* Retractable and small loading volume, convenient joint, speed construction.
* Local material can be used during construction, reduce the construction cost, easy to
be transported after folding together.
Applications

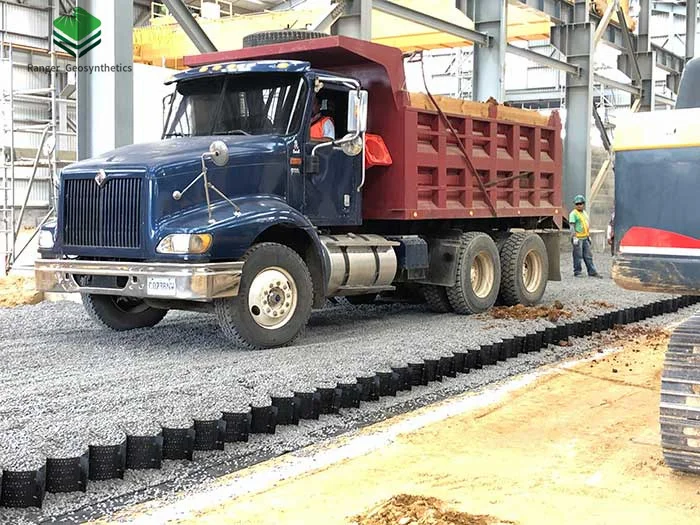

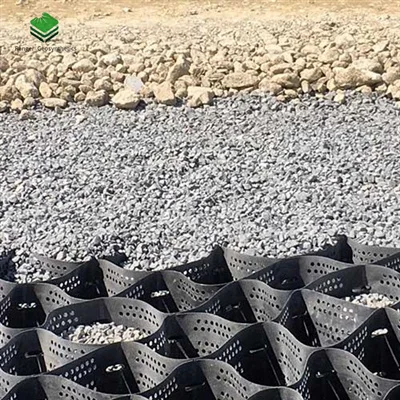

1.Base Stabilization
RANGER GeoCell is a confinement system that performs better than conventional crushed stone sections, and it provides an expedient construction technique for access roads over soft ground without being adversely affected by wet weather conditions. GeoCell can also be used to strengthen paved areas.

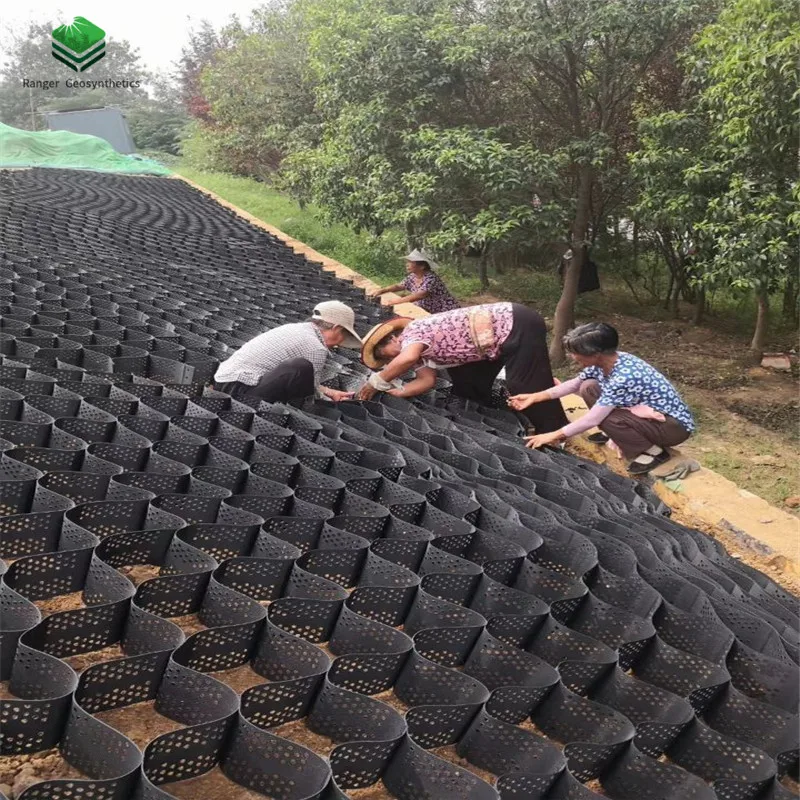

2.Slope Reinforcement
On slope applications, RANGER GeoCell can be filled with angular rock, concrete or with vegetated soil. The cells confine the infill material, creating a stable layer protecting the slope from erosion. GeoCell is a flexible system that will contour to the subgrade of a slope, reducing preparation time. When filled with vegetated soil or rock, the system is permeable - reducing water runoff.

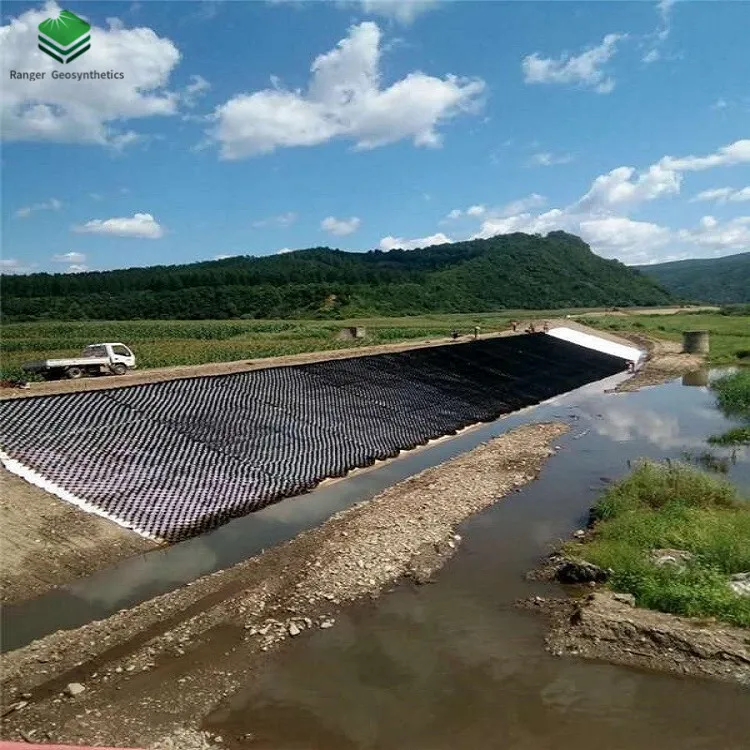

3.Channel Protection
RANGER GeoCell can be installed on slopes as steep as 60 degrees and on channels with flow velocities greater than 25 ft/s (7.6m/s), depending on infill material. Angular rock is used for velocities up to 10 ft/s (3 m/s), vegetated soil up to 20 ft/s (6m/s) and concrete for velocities greater than 20 ft/s (6 m/s).
4. Retaining Walls
RANGER GeoCell can be used for both cut and fill applications on retaining walls. The flexible HDPE panels are custom made to the front to back dimensions required by the project engineer. GeoCell can be easily installed around curves, pipes or other structures. The panels are constructed with the front facing strip colored green or tan to blend in with the surroundings. GeoCell panels can be stacked to create a 90 degree wall, or they can be stair stepped at every layer to create exposed cell for vegetation. RANGER GeoCell is the perfect green wall solution.
Packing & Delivery
Company Profile
Taian Ranger Engineering Material Co., Ltd. is located inTaian City, Shandong Province, China. It is a comprehensive service provider and solution provider integrating design, production and construction. The products provided by Ranger company include geotextile, geomembrane, composite geomembrane warp knitted geogrid, glass fiber geogrid, plastic geogrid, steel plastic geogrid, mining geogrid, high strength mining polyester fiber mesh, geocell and other geosynthetics.
Ranger has three production bases and perfect quality control system, and its product quality, technology and equipment are in the forefront of the industry.Our goal is to be a world-class company committed to providing comprehensive, reliable and high-quality services and solutions to our customers.
