Защита склона дорожной дорожки, HDPE сотовая дорожка, пластиковый гравийный Стабилизатор geocell

Product Overview

Description



Properties	Test method	Units	Values
			GC0735	GC0744	GC0771	GC1035	GC1044	GC1071
Polymer	-	-	HDPE
Carbon Black content	ASTM  D1603	%	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5
Density	ASTM  D1505	g/cm3	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94
Sheet Thickness before texturing	ASTM D 5199	mm	1.1	1.1	1.1	1.1	1.1	1.1
Sheet Thickness after texturing	ASTM D 5199	mm	1.5	1.5	1.5	1.5	1.5	1.5
Seam Peel Strength	-	N	1060	1060	1060	1420	1420	1420
Weld Spacing	-	mm	356	445	711	356	445	711
Cell Depth	-	mm	75	75	75	100	100	100
DIMENSIONS	-
Expanded Cell Size(Width×Length)	-	mm	259×224	320×287	508×475	259×224	320×287	508×475
Expanded Panel Size(Width×Length)	-	m	2.56×6.52	2.56×8.35	2.56×13.72	2.56×6.52	2.56×8.35	2.56×13.72
Expanded Panel Area	-	m2	16.7±1%	21.4±1%	35.12±1%	16.7±1%	21.4±1%	35.12±1%





Properties	Test method		Values
		Units	GC1535	GC1544	GC1571	GC2035	GC2044	GC2071
Polymer	-	-	HDPE
Carbon Black content	ASTM  D 1603	%	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5
Density	ASTM  D 1505	g/cm3	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94
Sheet Thickness before texturing	ASTM D 5199	mm	1.1	1.1	1.1	1.1	1.1	1.1
Sheet Thickness after texturing	ASTM D 5199	mm	1.5	1.5	1.5	1.5	1.5	1.5
Seam Peel Strength	-	N	2130	2130	2130	2840	2840	2840
Weld Spacing	-	mm	356	445	711	356	445	711
Cell Depth	-	mm	150	150	150	200	200	200
DIMENSIONS	-
Expanded Cell Size(Width×Length)	-	mm	259×224	320×287	508×475	259×224	320×287	508×475
Expanded Panel Size(Width×Length)	-	m	2.56×6.52	2.56×8.35	2.56×13.72	2.56×6.52	2.56×8.35	2.56×13.72
Expanded Panel Area	-	m2	16.7±1%	21.4±1%	35.12±1%	16.7±1%	21.4±1%	35.12±1%

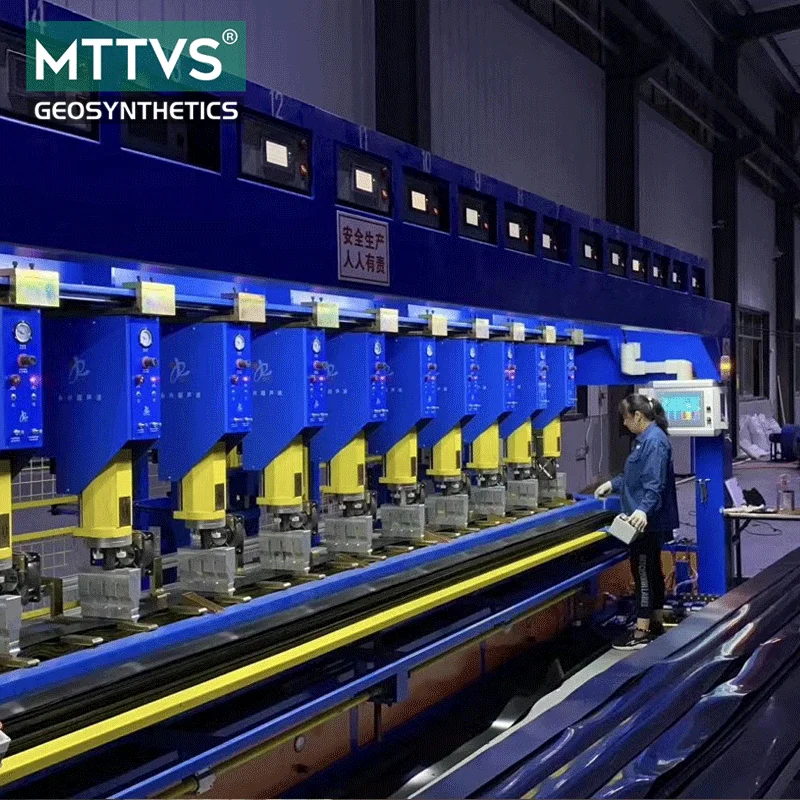

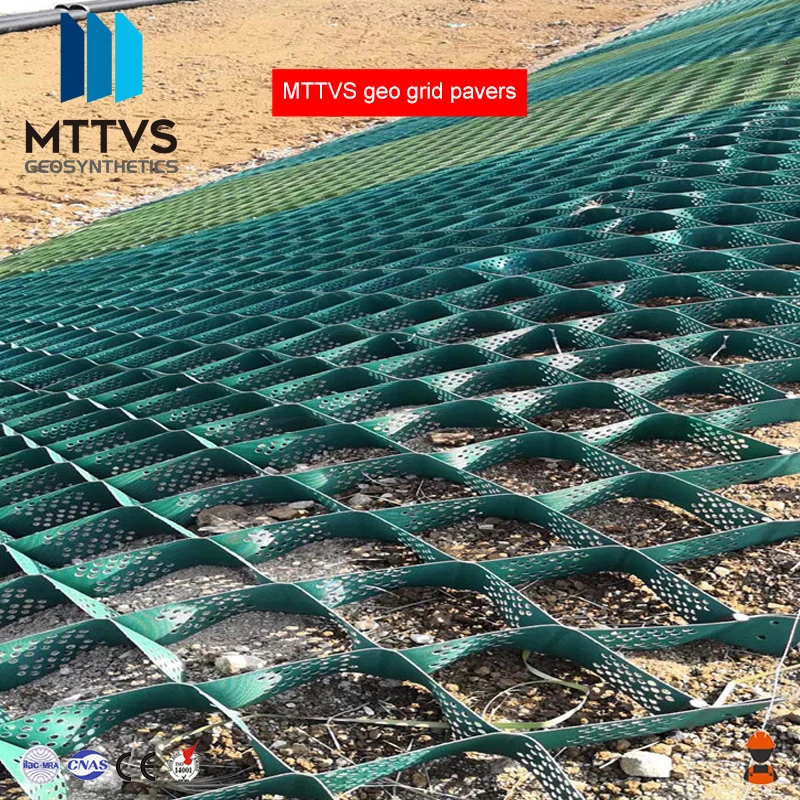

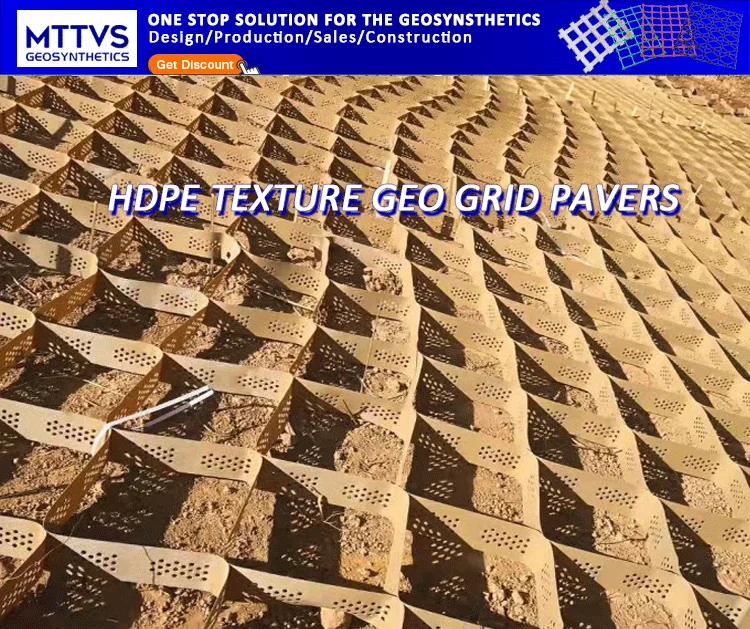

MTTVS Geocell is a three-dimensional mesh cell structure formed by reinforced HDPE sheet material through high-strength welding. It is generally formed by ultrasonic needle welding. Due to engineering needs, some holes are punched in the diaphragm. Use loose materials such as soil, gravel, concrete, etc. to form a structure with strong lateral restriction and great grace.



Features of MTTVS Geocell



• It can be expanded and contracted freely, the volume can be reduced during transportation, and it can be stretched into a mesh during construction.


• The material is light, abrasion-resistant, chemically stable, resistant to photooxidation, acid and alkali resistance, and is suitable for different soils and deserts and other soil conditions.


• High lateral restriction and anti-skid, anti-deformation, effectively enhance the bearing capacity of the roadbed and disperse the load;


• The use of geocells when encountering soft foundations can greatly reduce the labor intensity of construction, reduce the thickness of the roadbed, the construction speed is fast, the performance is good, and the project cost is greatly reduced;

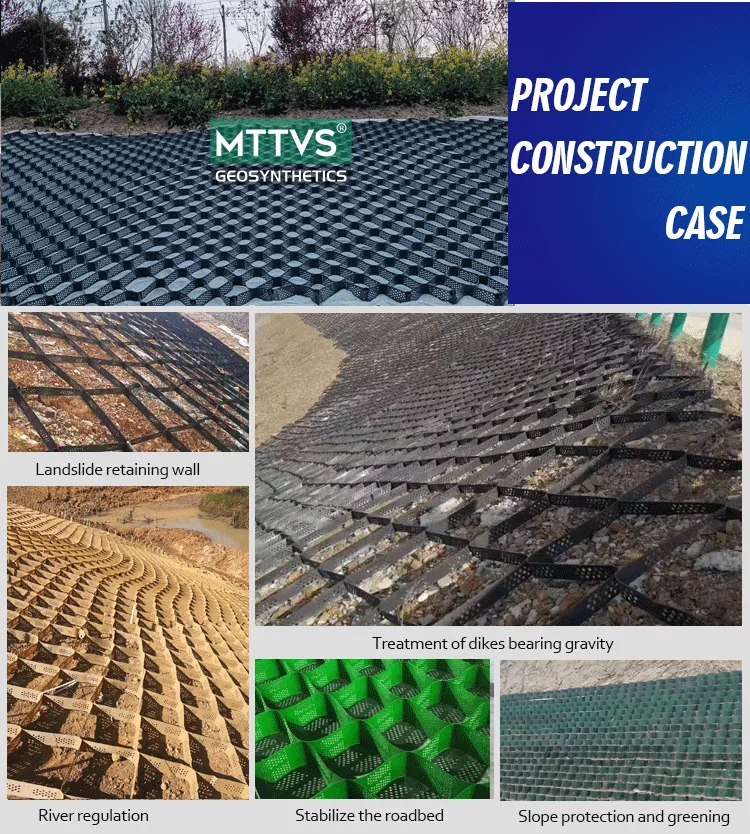

Application of MTTVS Geocell:



• Suitable for stabilizing road and railway subgrade;

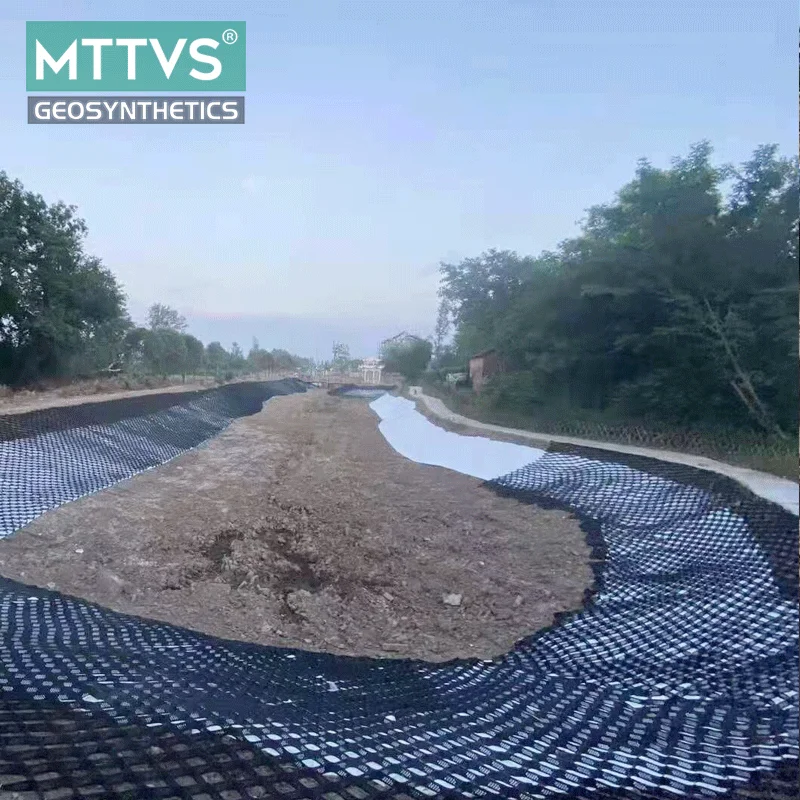

• It is suitable for the treatment of dikes and shallow rivers that bear the load;

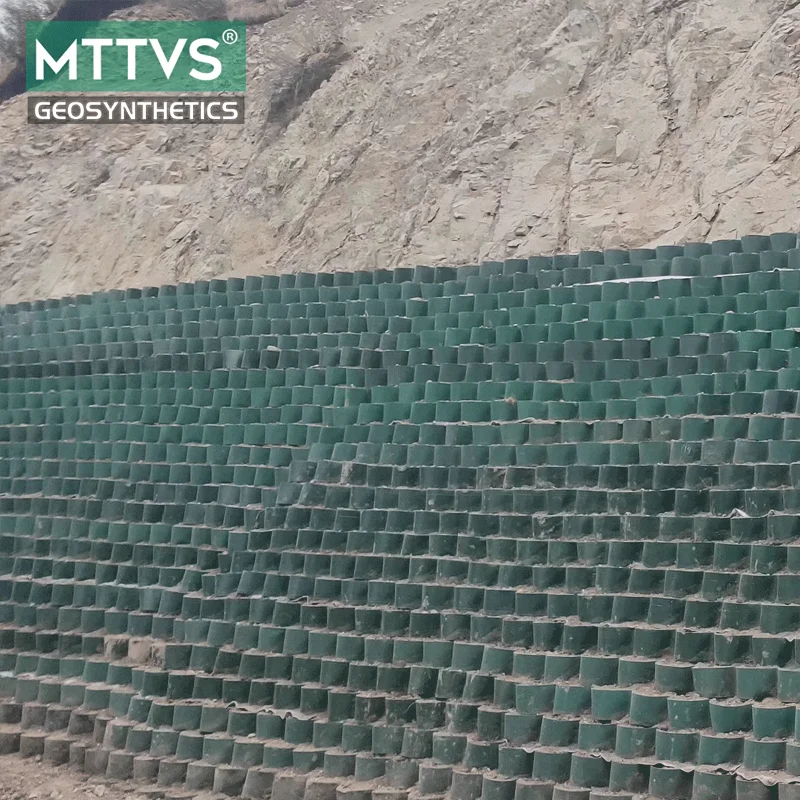

• Suitable for mixed retaining walls to prevent landslides and loaded gravity;











Q1:Are you trading company or manufacturer?

A1:We are manufacturer.So wo have a lower price than trading company.and guaranteed quality.



Q2:Where is your company?

A2:Taian shandong province, China. Welcome to our company.



Q3:What is your delivery time?

A3:Generally in stock, the delivery period is within 1-3 days. If customized, the delivery period is 3-10 days according to the order quantity.



Q4:What is your payment method?

A4:T/T, Western Union, L/C,PAYPAL...



Q5:Do you provid samples?Is it free or extra?

A5:Yes, we can offer the PP plastic geogrid sample for free charge but do not pay the cost of freigh.



Q6:What is your terms of payment?

A6:Payment<=1000USD,100% in advance.Payment>=1000USD, 30%T/T in advance, balance before shippment. If you have another question, please to contact me.
