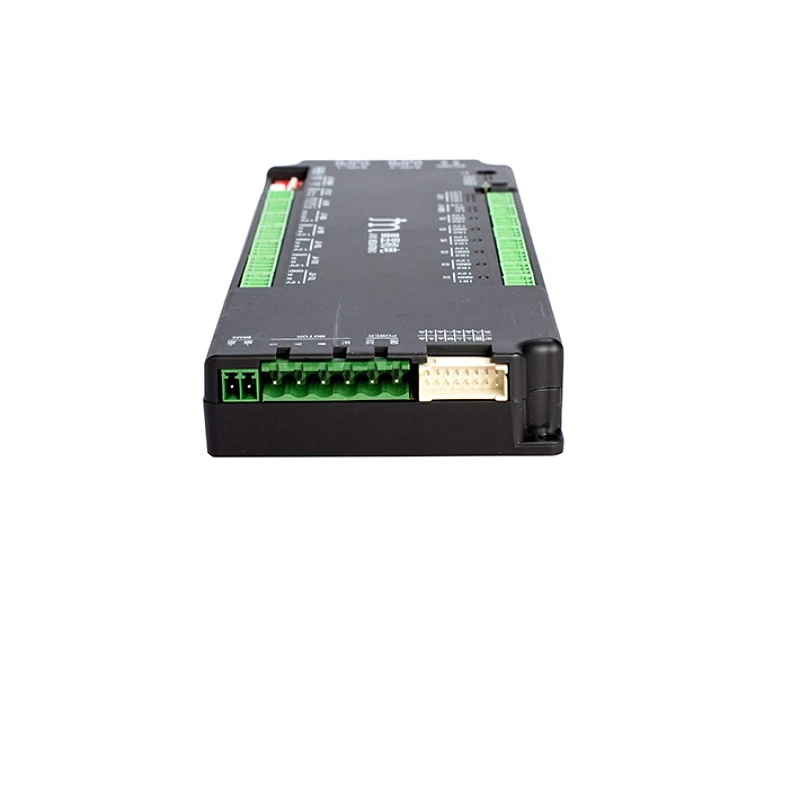

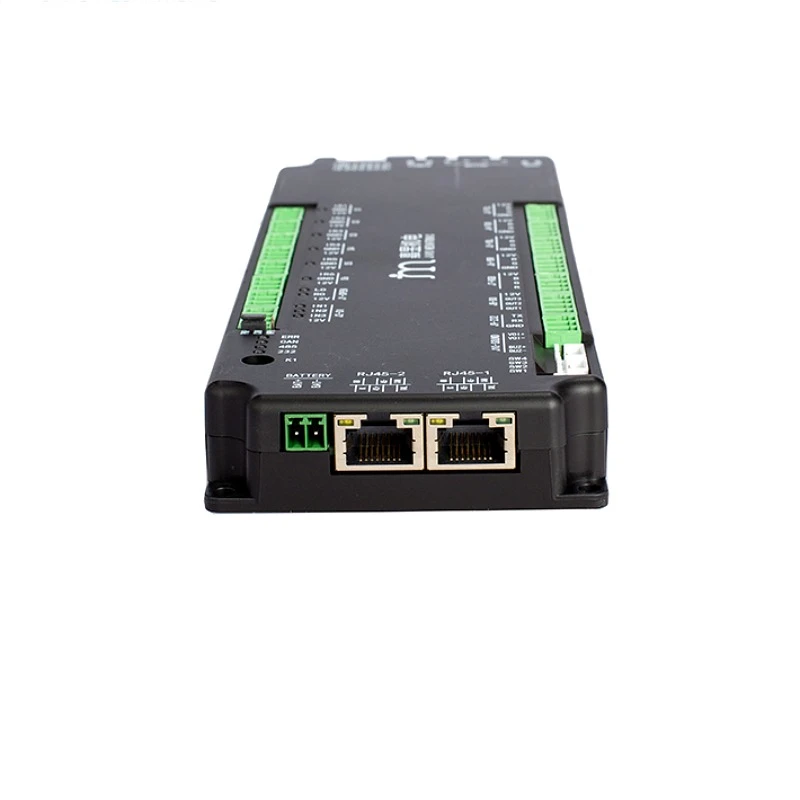

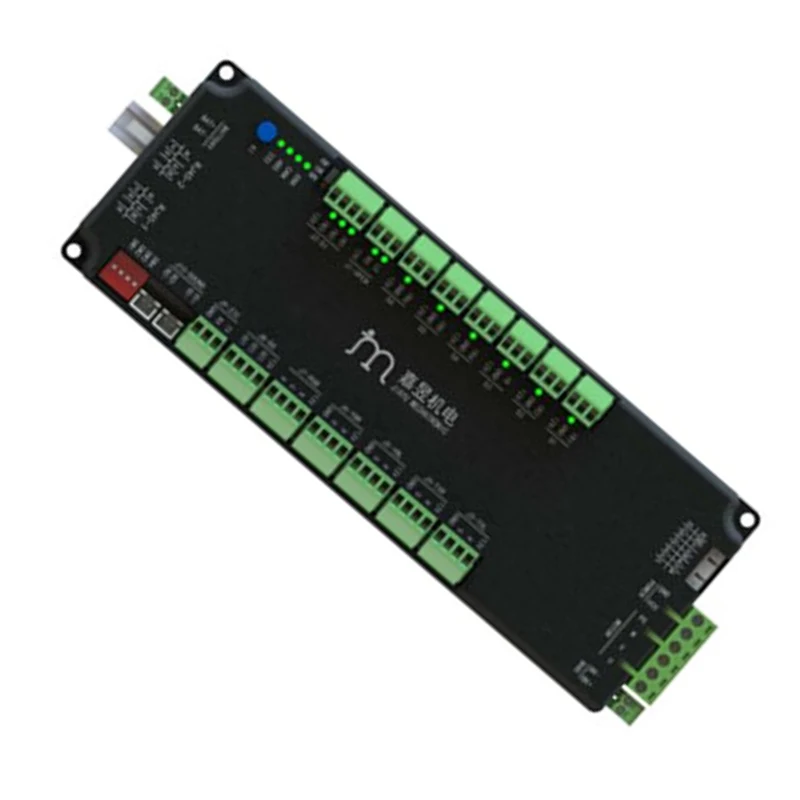

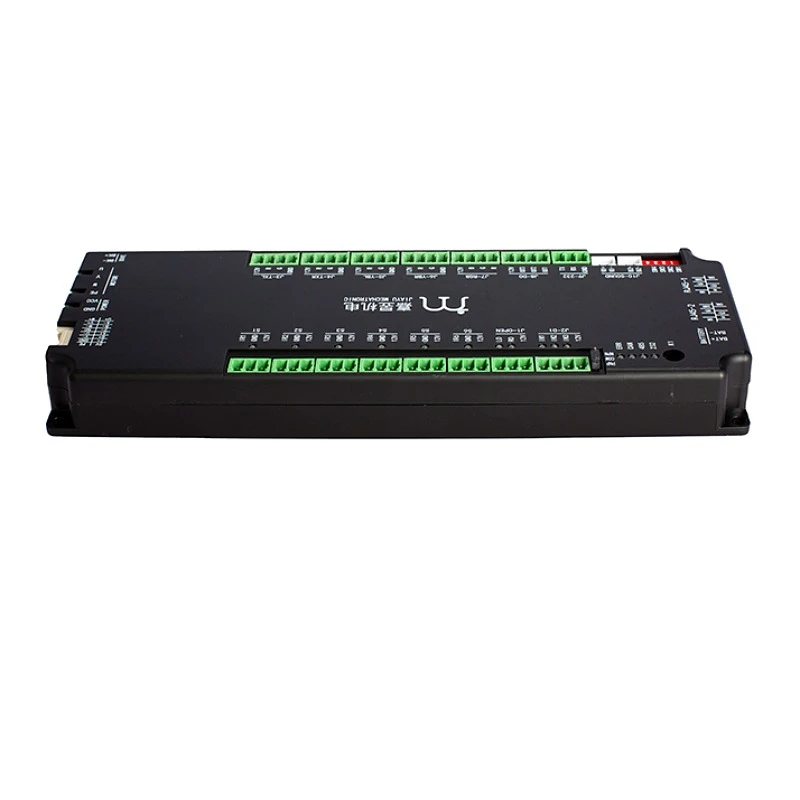

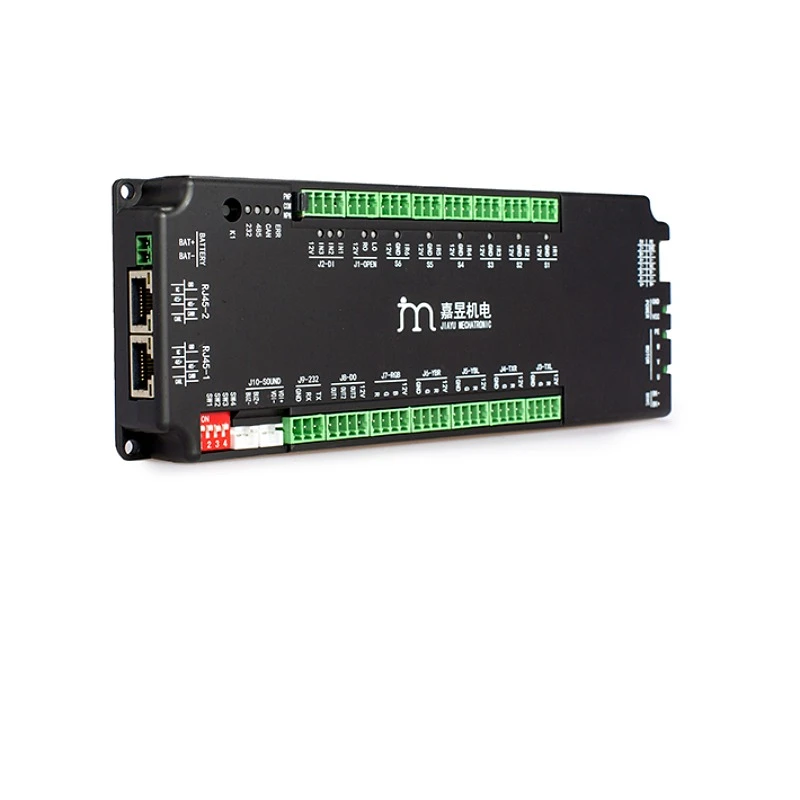

swing barrier gate turnstile integrated servo drive and controller function with RS232/RS485/CAN
- Category: Motor Controller >>>
- Supplier: Shenzhen Jiayu Mechatronic Co. Ltd.
Share on (11000000627715):
Product Overview
Description
Product Description
JMC4805 Channel Gate Controller, it is a servo electronic control product of motor drive+traffic logic that Jiayu introduces or pedestrian gate equipment. It supports speed gate, swing gate,wing gate, translation gate and other equipment types, which can meet the requirements of bus stations, commercial buildings,hospitals, schools and other exit control application scenarios.
Specification
item | value |
Warranty | 3months-1year |
Place of Origin | China |
Brand Name | jiayu |
Model Number | JMC4805 |
Input voltage | DC24/48V |
Rated/Peak current | 5A/15A |
Suitable motor | Low voltage servo motor |
Encoder feedback type | Incremental (pulse type) |
Communication interface | RS232/RS485/CAN |
Hardware protection | Over-current protection |
hardware protection | Short-circuit protection |
protection | Reverse polarity protection |
Application | SWING BARRIER GATE |
Packing & Delivery
standard package
Company Profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable.
The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.
Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.
In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.
The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable.
The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.
Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.
In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.
