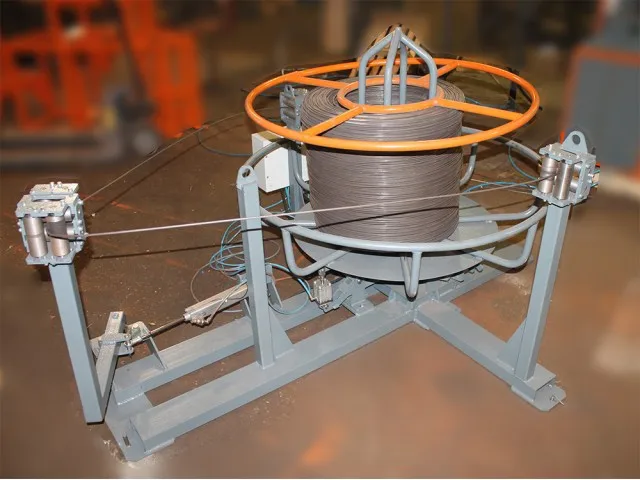

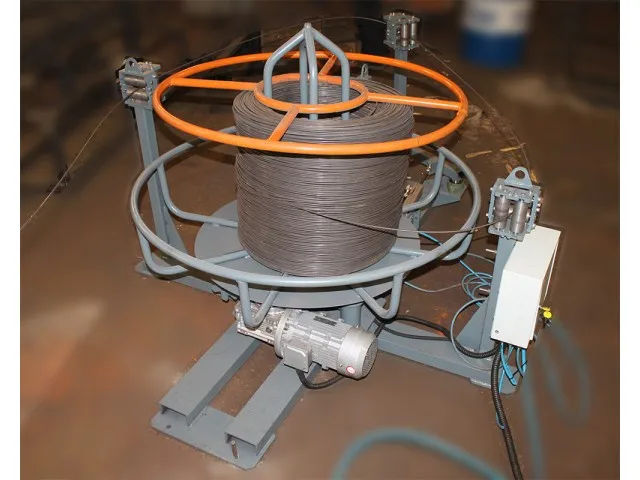

Automatic Uncoiler AU-1000


The Automatic Uncoiler is designed primarily to handle large quantities of low tensile wire on carriers. Using a combination of control methods of inverter technology help to improve the accuracy and speed of production of the rods, but also can be used as the other machines feed use.

Optimal wire diameter range is 3 to 6mm however diameters up to 8mm have been successfully handled on this machine.

Automatic uncoiler consists of: welded frame 1; electric drive of coil rotator 2; engagement device for gear of the drive 3; coilholder 4; coilholder’s cover 5;  movable frame 6; pneumatic damper with sensors of wire tension 7; pneumatic brake 8; guide roller blocks 9.

//rstgroup.pro/image/data/smz-1/uncoiler-scheme.jpg

Performance

The model is designed for applications with relatively high feed requirements of less than 110 m/min such as straightening and cutting machines, automatic wire crimpers and so on.



Power supply voltage, V
380
Motor capacity, kW
2,2
Load capacity, kg
1000
Coil height, mm
up to 600
Inner coil diameter, mm
from 380
External coil diameter, mm
up to 850
Speed range, m/min
up to 150
