Product Overview

Description

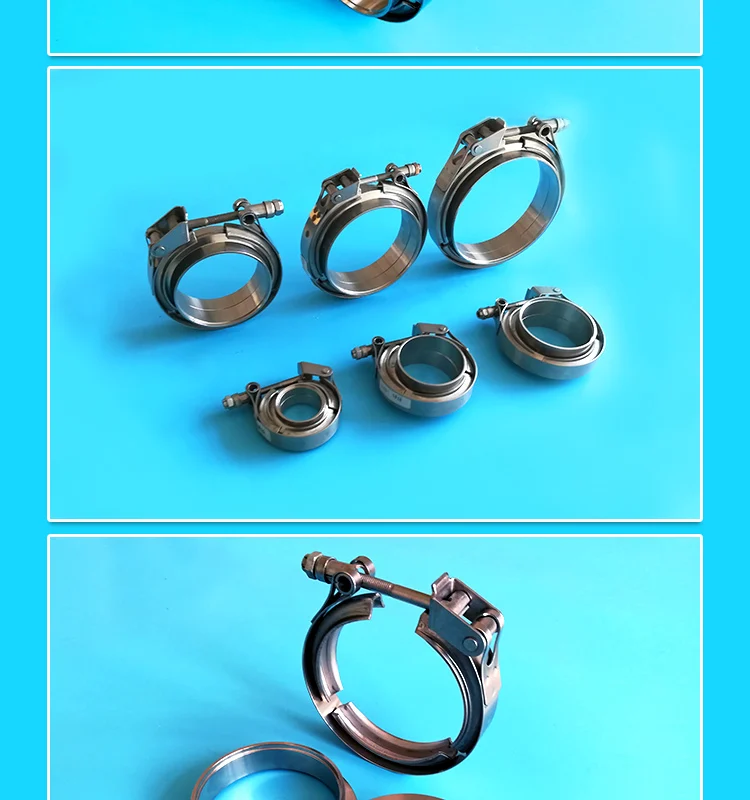

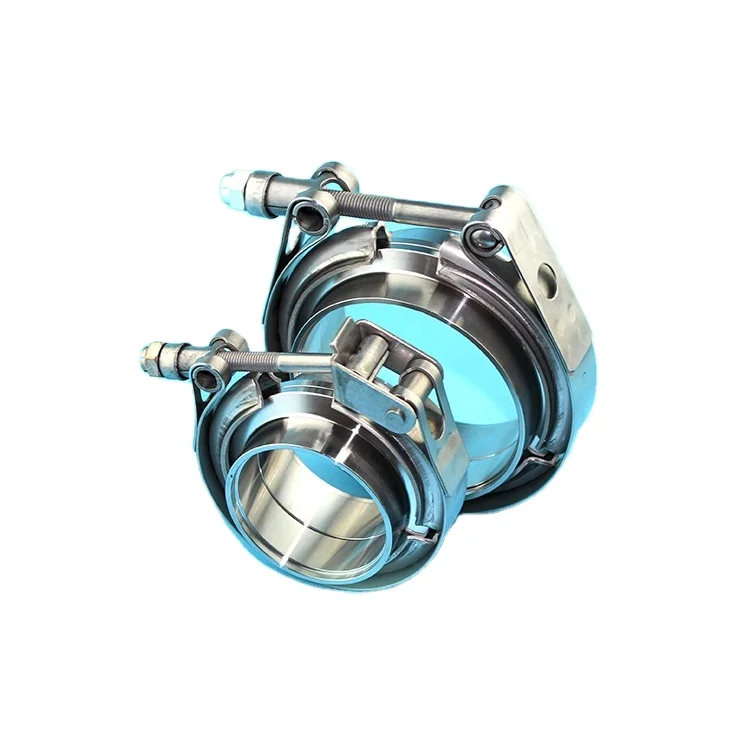

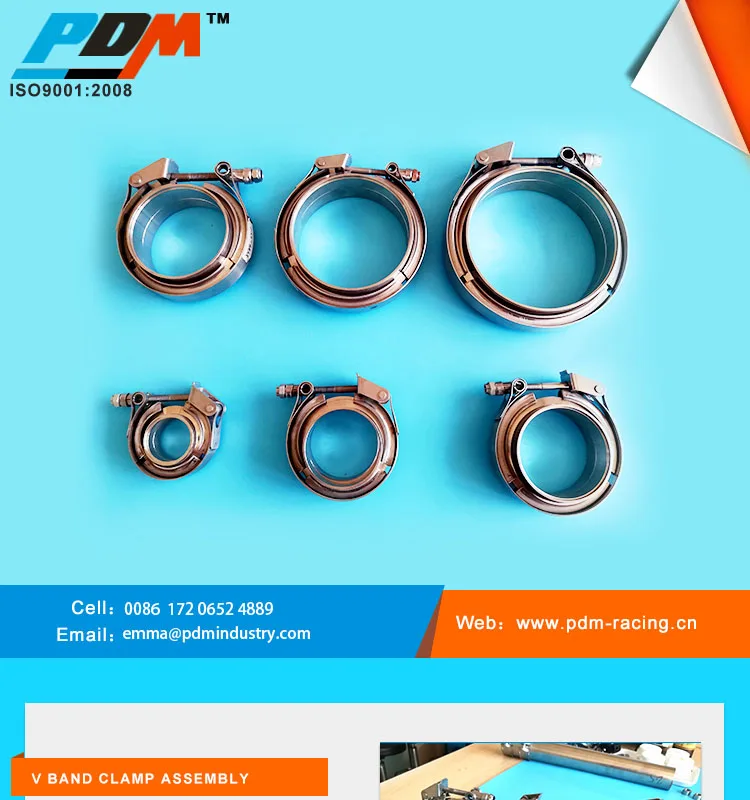

V Band Clamp Kits

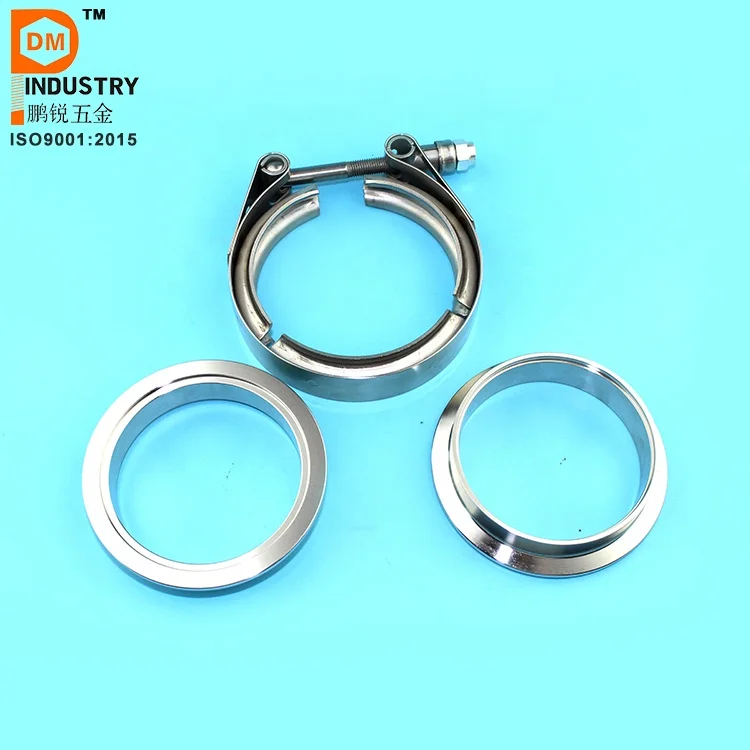

PDM V Band Clamp Kits Includes 3 Individual parts


1. V Band Clamp


2. Male Flanges


3. Female Flanges


We use special lock nut : High Quality Alloy Slotted Lock Nut (Made In USA)


S.S 420 Stronger T Bolt wit stronger tension than normal stainless steel T Bolt

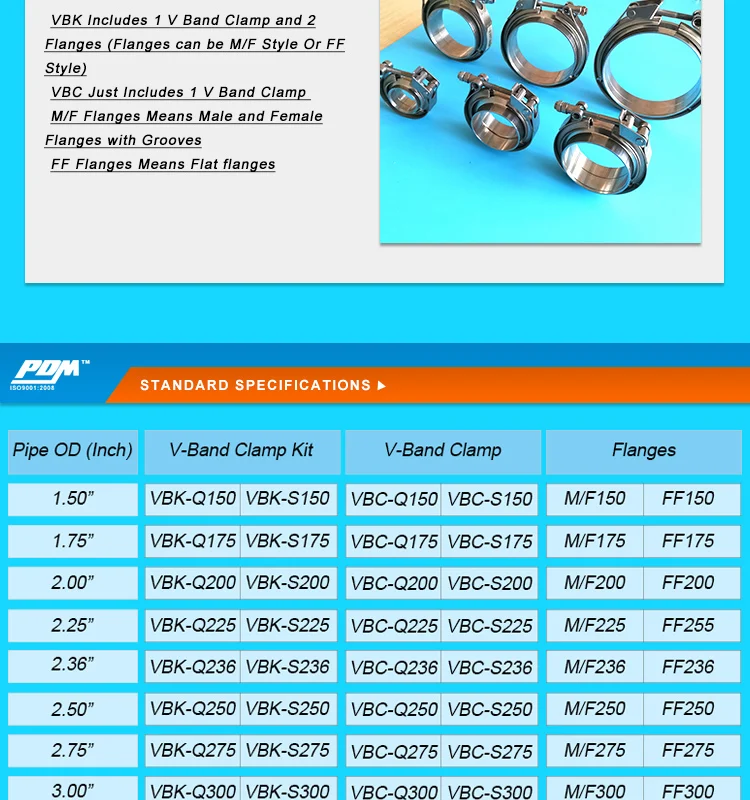

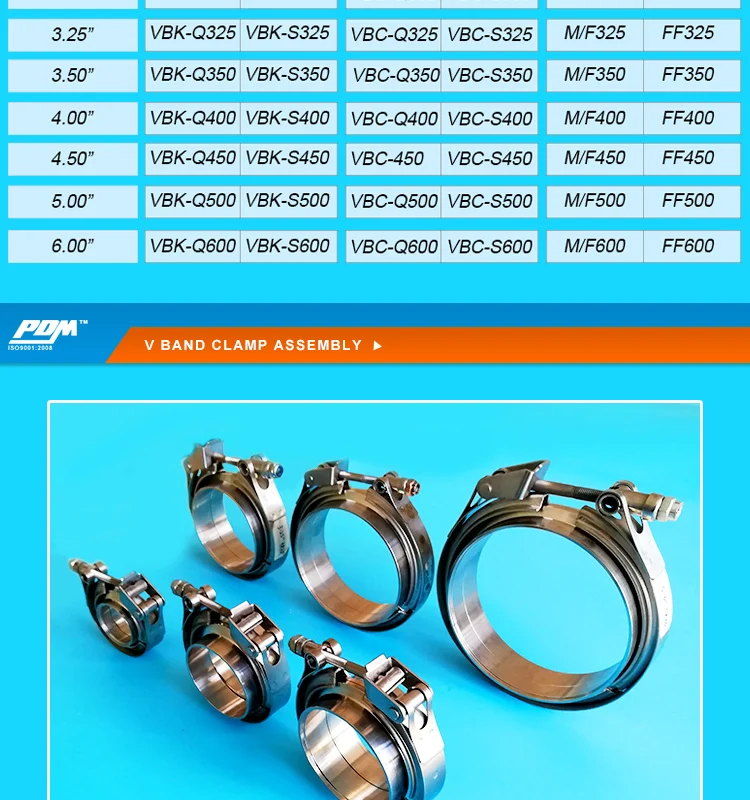

Specification

Specification






















































































Item


Material


Spec.(inch)


Clamp ID(mm)


Flange ID(mm)















V band clamps



( both standard latch and quick release latch)
















Superior Grade Stainless steel 304



1.5”


60


38.9


1.75”


66.4


45.3


2”


72.8


51.6


2.25”


79.1


57.9


2.36”


81.6


64.3


2.5”


85.5


70.6


2.75”


91.8


77


3”


98.2


83.3


3.25”


104.5


89.7


3.5


110.9


96.1


4”


123.5


102.4


4.5”


136.3


115.1


5”


149


127.8


6”


174.4


153.2

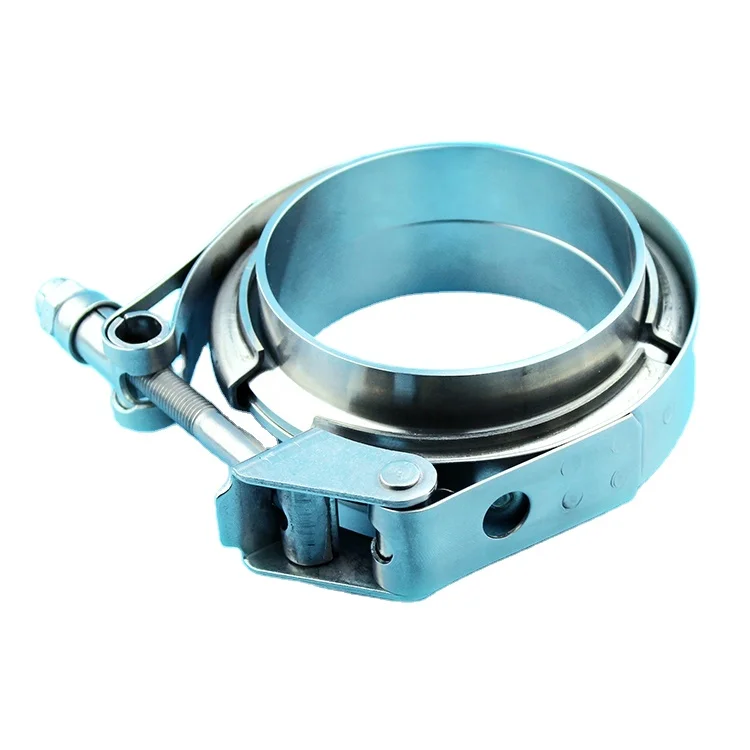

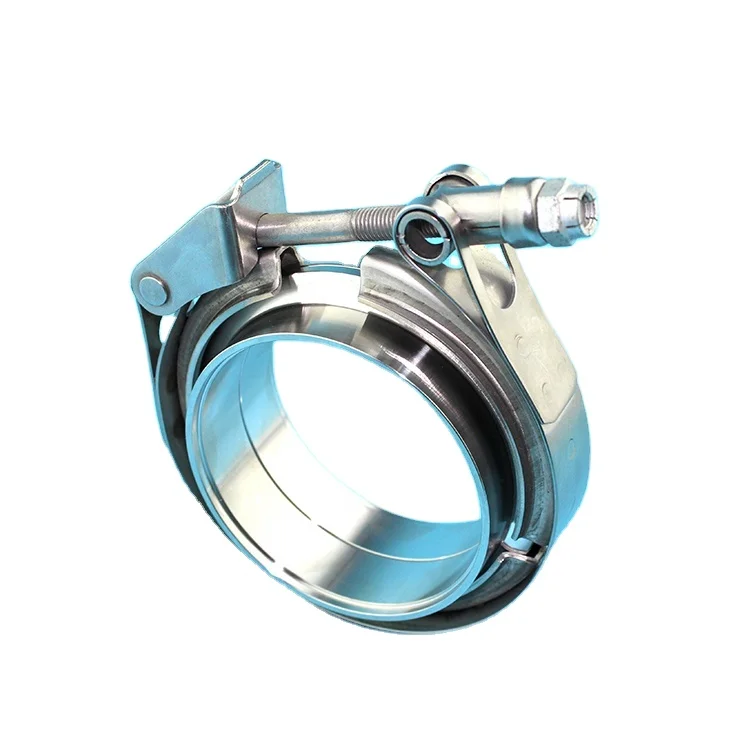

The quick release latch mechanism makes connect and disconnect in seconds.






3" exhaust quick release v band clamp


3" exhaust flexible pipe clamp quick release v band clamp, quick release pipe clamp,vibrant performance quick release V band clamp
3inch Stainless steel quick release V band clamp with male and female flanges
3inch Stainless steel quick release V band clamp kits
V band clamps, quick release v band clamps, auto exhaust v band clamps with flanges
stainless steel quick release v band clamp, stainless steel 304 quick release V band clamps 2.5 inch(2.5"), 2.5 inch(2.5") quick release V band clamps, stainless steel v band clamp kit, stainless steel 304 v band clamp with flanges, V band clamps, quick release v band clamps, auto exhaust v band clamps with flanges










How to use V Band Clamp Kits


1. Each flanges need to b placed on the end of the tubes


2. Weld Flanges to the tubes


3. Joint both tubes with male and female flanges interlocking together and sesure them with V band Clamp
