Product Overview
Description
How to use recycling line get rubber powder?
Product Description

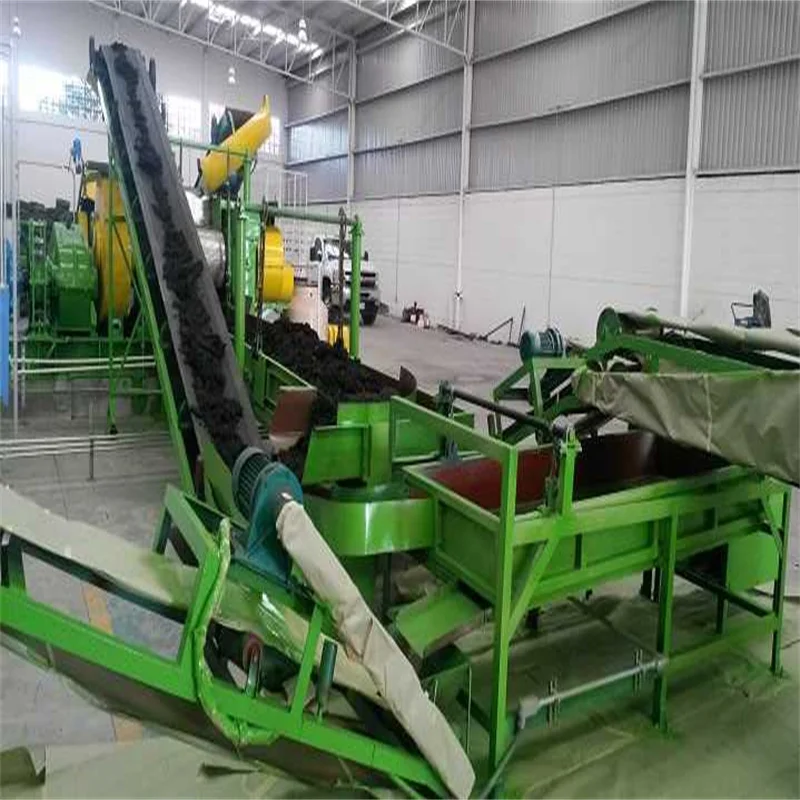

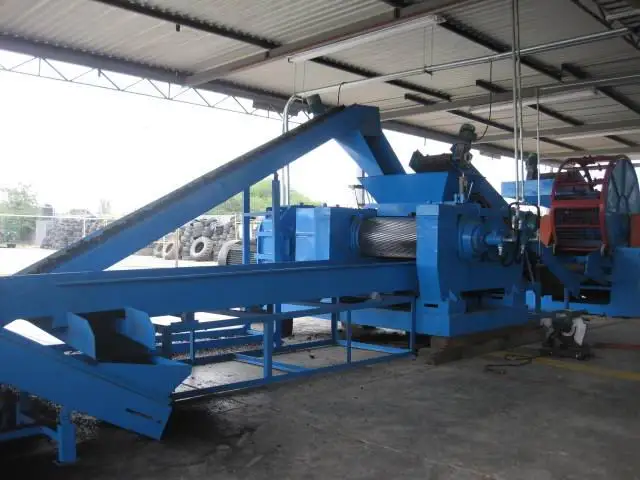

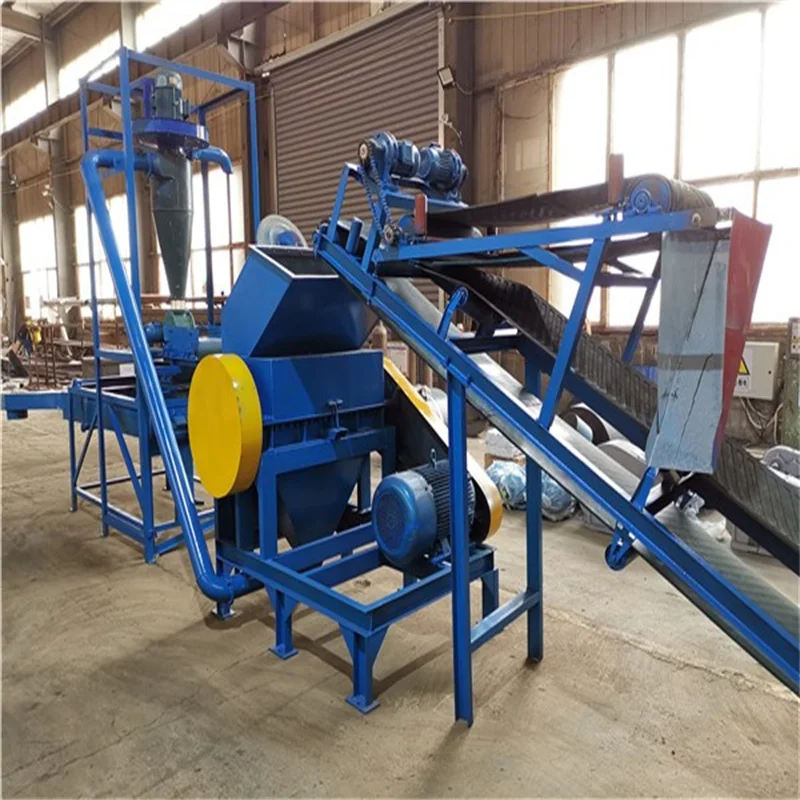

Automatic waste tire recycling machine
Use tire wire drawing machine draw wire, put tire into the tire crusher, process 5cm*5cm pieces, put pieces into rubber granule production line make 15-30 mesh powder

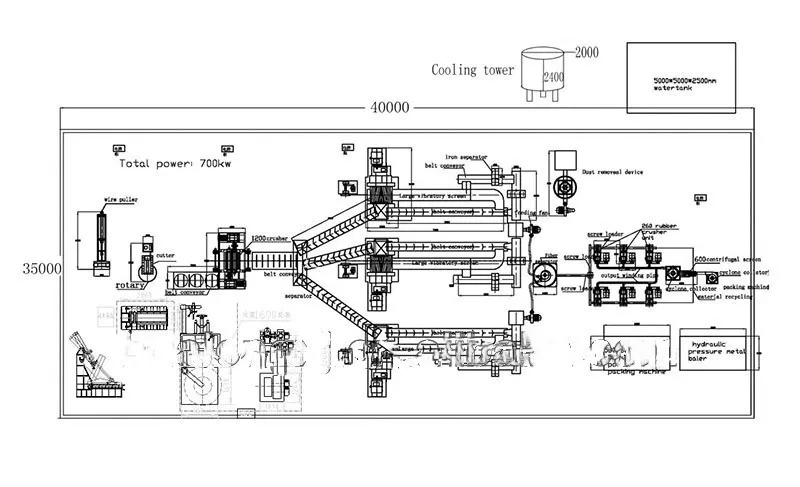

Automatic waste tire recycling machine plan 1500 kg/h .

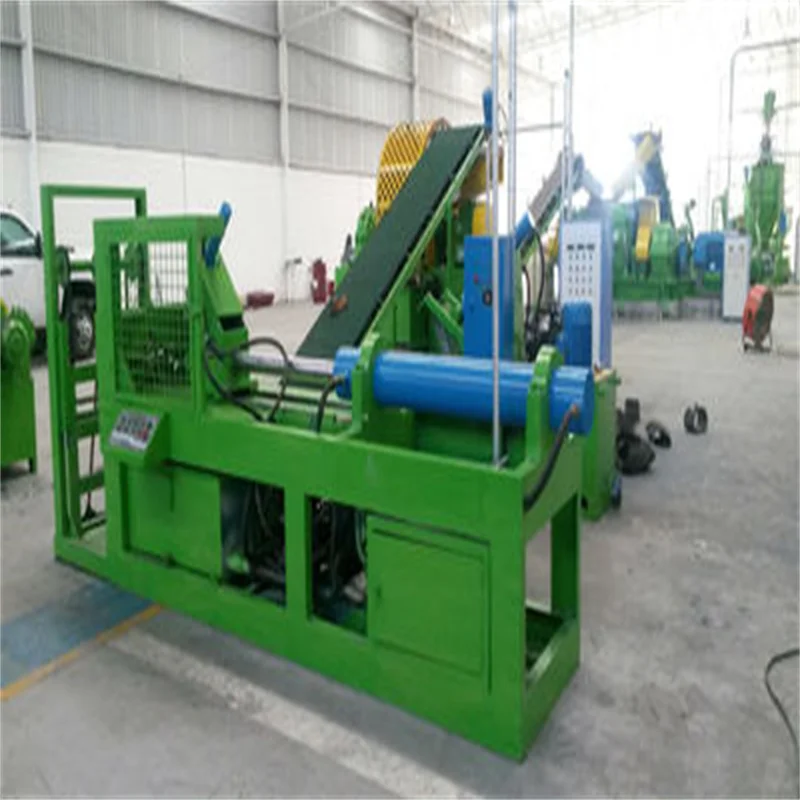

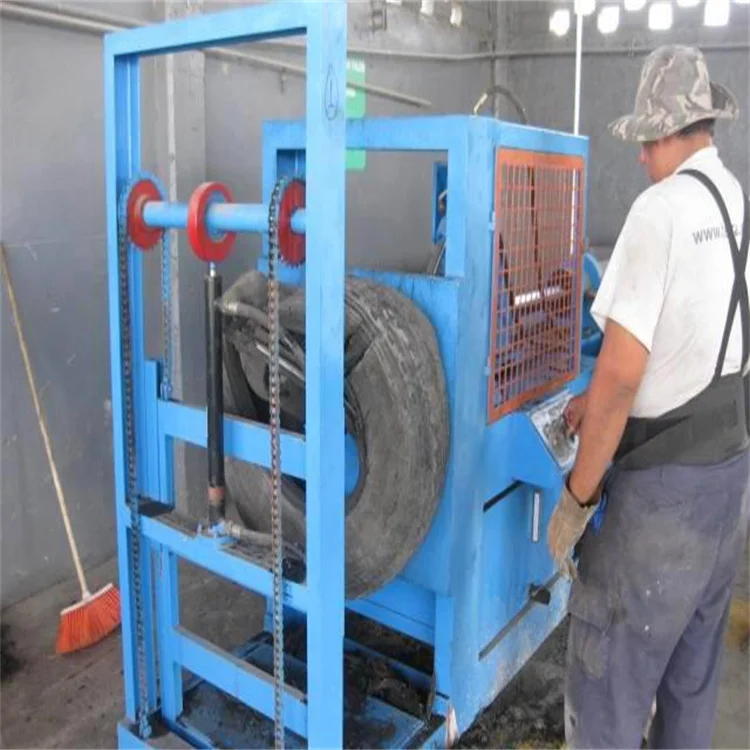

1.Tire wire draw machine
Technical Parameter
Model | 1200Y |
Motor Power (kw) | 7.5 |
Capacity (tires/h) | 80-100 |
Overall Dimensions (L×W×H) | 4700×900×1700 |
Weight (T) | 2.8 |

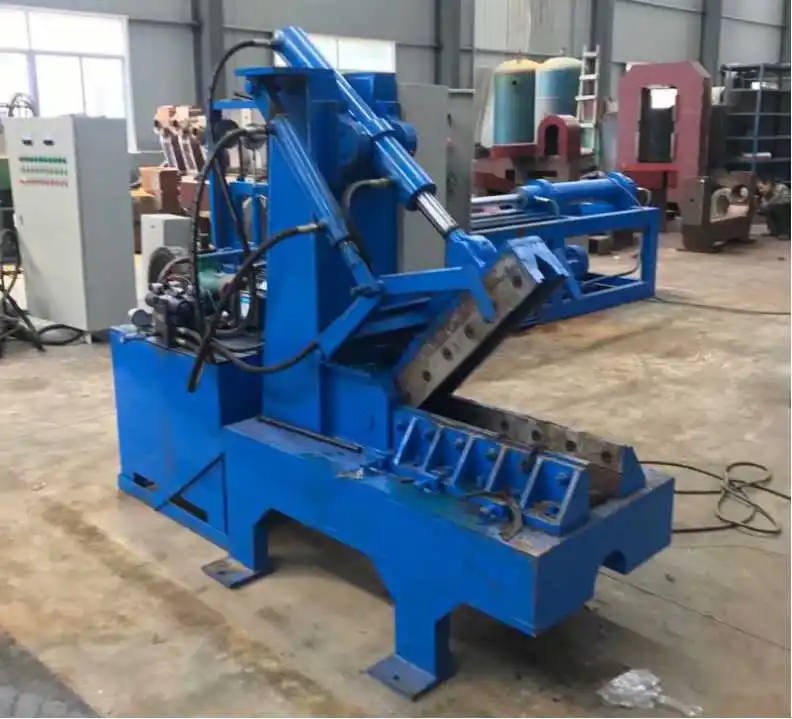

2. Tire Cutter
Technical parameter:
Type | 1200 |
Motor (kw) | 5.5 |
Fitted size of the tire (mm) | ≤1200 |
Overall Dimension (mm) | 2200×800×1500 |
Weight (T) | 1.2 |

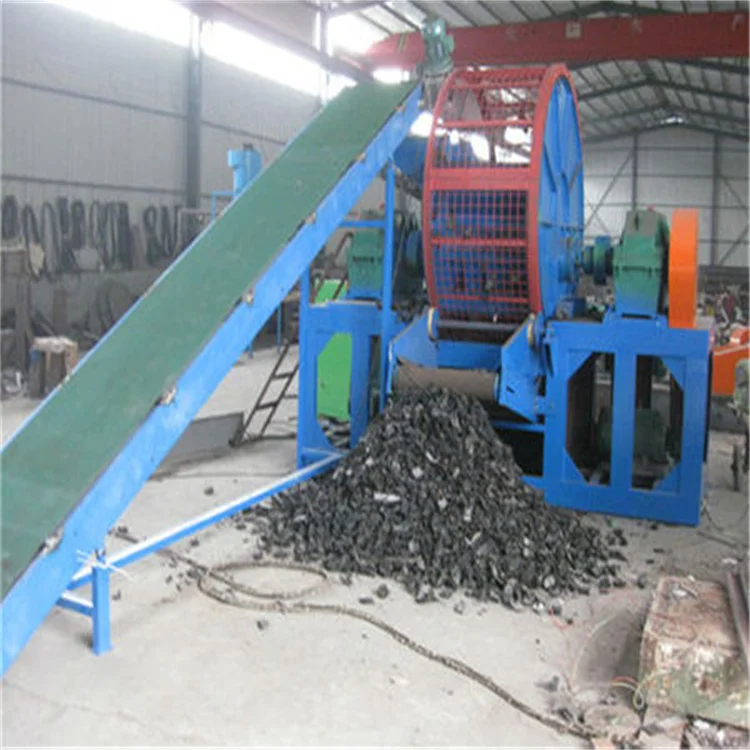

3.Tire Shredder
Technical Parameter
Type | LP-400 | LP-800 | LP-1200 |
Quantity of cutter head | 10 | 16 | 20 |
Dimension of cutter head (diameter*thickness)mm | 300*45 | 460*60 | 560*60 |
Size of charge-in(mm) | 400 | 800 | 1200 |
Size of charge-out(mm) | 45 | 50-60 | 50-60 |
Handling Capacity (t/h) | 700 | 1500 | 3000 |
Motor Power (kw) | 35 | 40*2 | 60*2 |
Dimension(m) | 2.1×0.9×1.9 | 4.2×2.1×2.3 | 6×2.8×3.7 |
Weight (T) | 3 | 8 | 16 |
4.Rubber Granulator Production Line

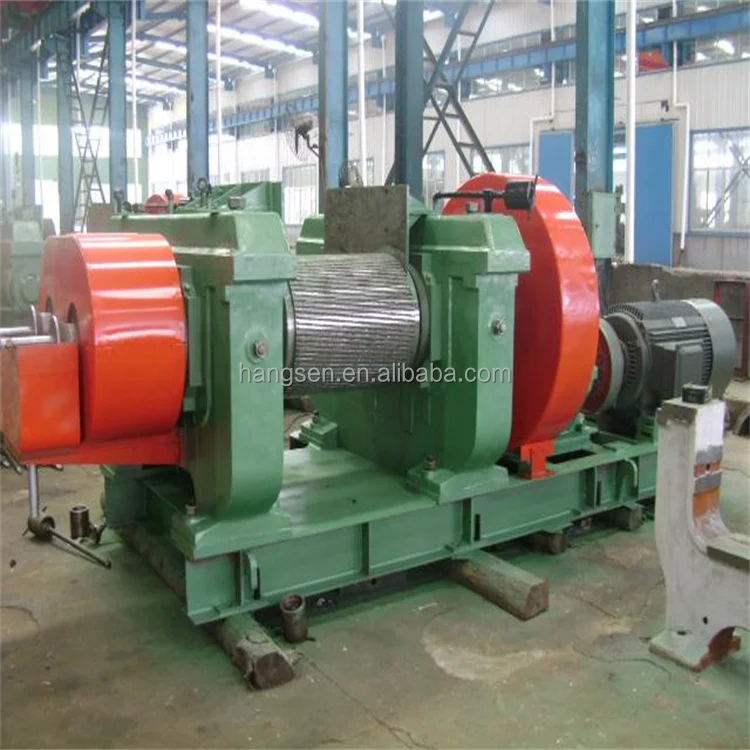

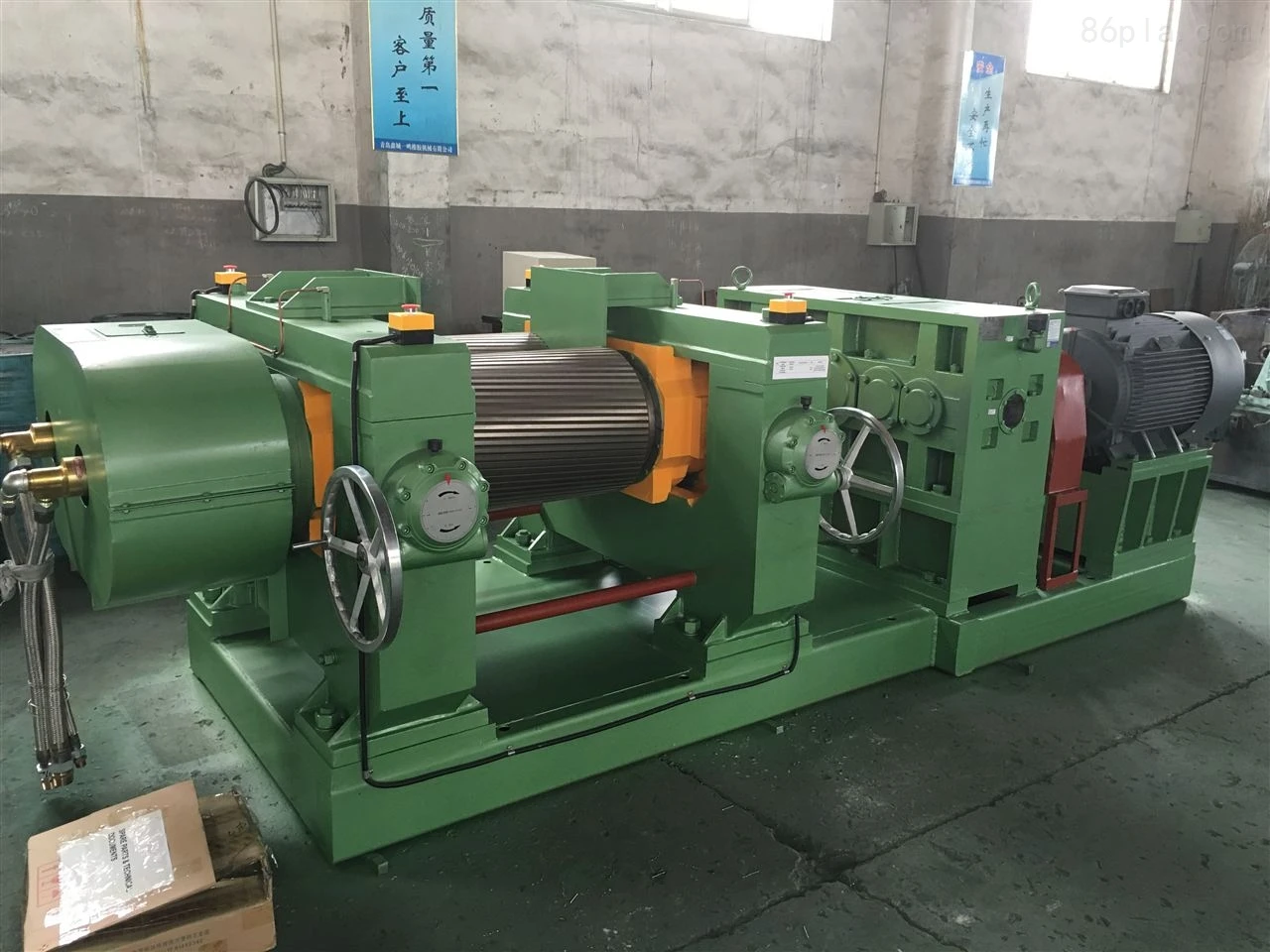

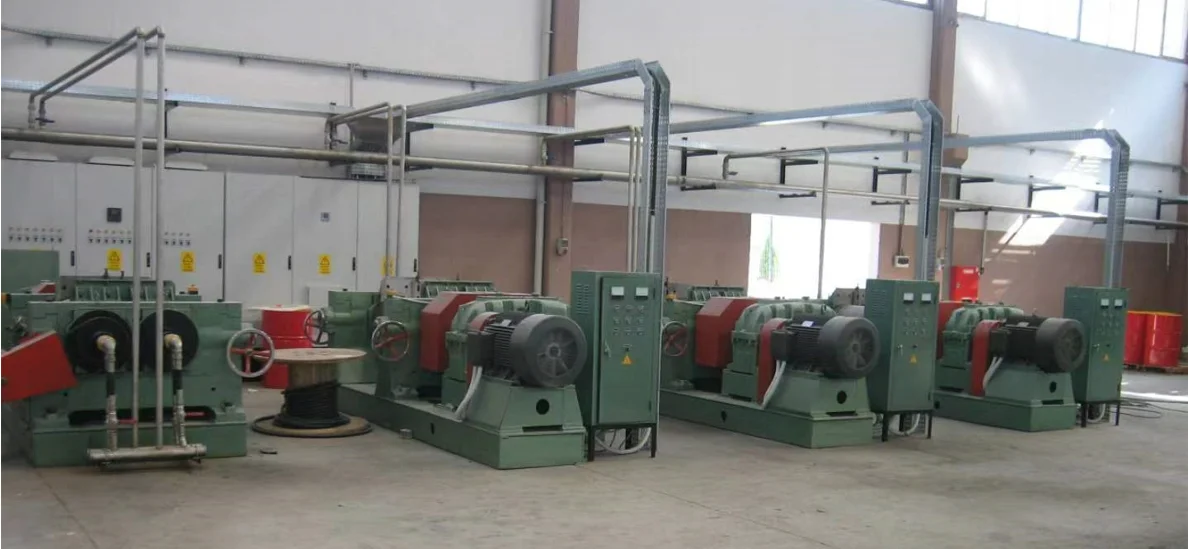

4-1. Rubber Crusher: This is waste tire recycling main machine
Type | Type | XKP-400 | XKP-450 | XKP-560 | XKP-610 |
| Front roll diameter (mm) | 400 | 450 | 510 | 560 | |
| Rear roll diameter (mm) | 400 Groove roller | 450 Groove roller | 560 Groove roller | 610 | |
| Working length of rolls (mm) | 600 | 650 | 800 | 1000 | |
| Front roll surface speed (m/min) | 17.32 | 23.2 | 25.56 | 26 | |
| Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 | 1:1.30 | |
| Max. nip (mm) | 8 | 8 | 15 | 15 | |
| Motor power (KW) | 45 | 55 | 110 | 160 | |
| Size (L*W*H) (mm) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 | 6000*2300*2100 |

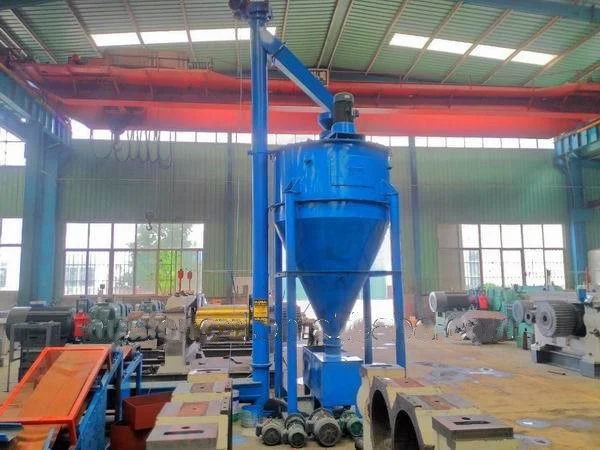

4-2. Fiber separator
Technical Parameter
Parameter | 1100×8 |
Impeller number | 8 |
Impeller diameter | 1100mm |
Speed of main shaft | 377 or 464/min |
Power | 5.5kw |
Speed of feeder | 29 r/min |
Feeder power | 0.4kw |
Overall dimension | 1600xH3400(mm) |
4-3. Fine powder machine rubber grinder machine
Parameter | Rubber Grinder Machine | ||
Size of feed-in materials(mesh) | ≥5 | ||
Size of discharged materials(mesh) | 30-40 | 40-60 | 60-120 |
Capacity(kg/h) | 140-180 | 120-150 | 100 |
Power(kw) | 37 | ||
Dimesion(mm) | 2100 | 1700 | 1650 |
Weight(kg) | 2200 | ||
