Industrial 50 inch Exhaust Fan Poultry Farm Ventilation Cooling Fan
- Category: >>>
- Supplier: Dongguan Minxin Industry Co. Ltd.
Share on (11000002024151):
Product Overview
Description
Product Description

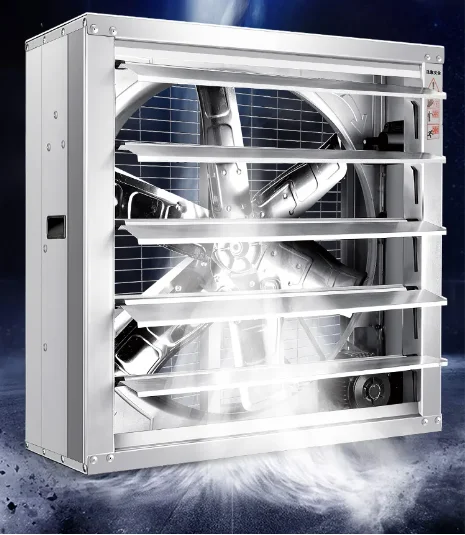

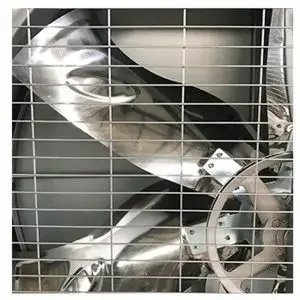

The 1380mm industrial ventilation poultry farm cooling exhaust fan for factory poultry farm is very powerful, pulls in the air and cools spaces up to 160㎡, the louvers keep the rain and cold out when not in use.
Contact us to get the quotation for 50inch container of assembling and disassembing
industrial 50 inch exhaust fan poultry farm ventilation fan Technical Details
Type: | Standard | OEM |
Fan Size | 1380mmx1380mmx350mm (54" x 54"x 14") | Any size |
Fan Diameter(inch) | 50 | 50 |
Fan Color | Silver | Painted or coating in any color |
Fan Blade Material: | 1mm/20 gauge galvanized steel | as per customers’ requirements |
Fan Frame Material: | 0.7mm/24 gauge galvanized steel | 0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel |
Details Images

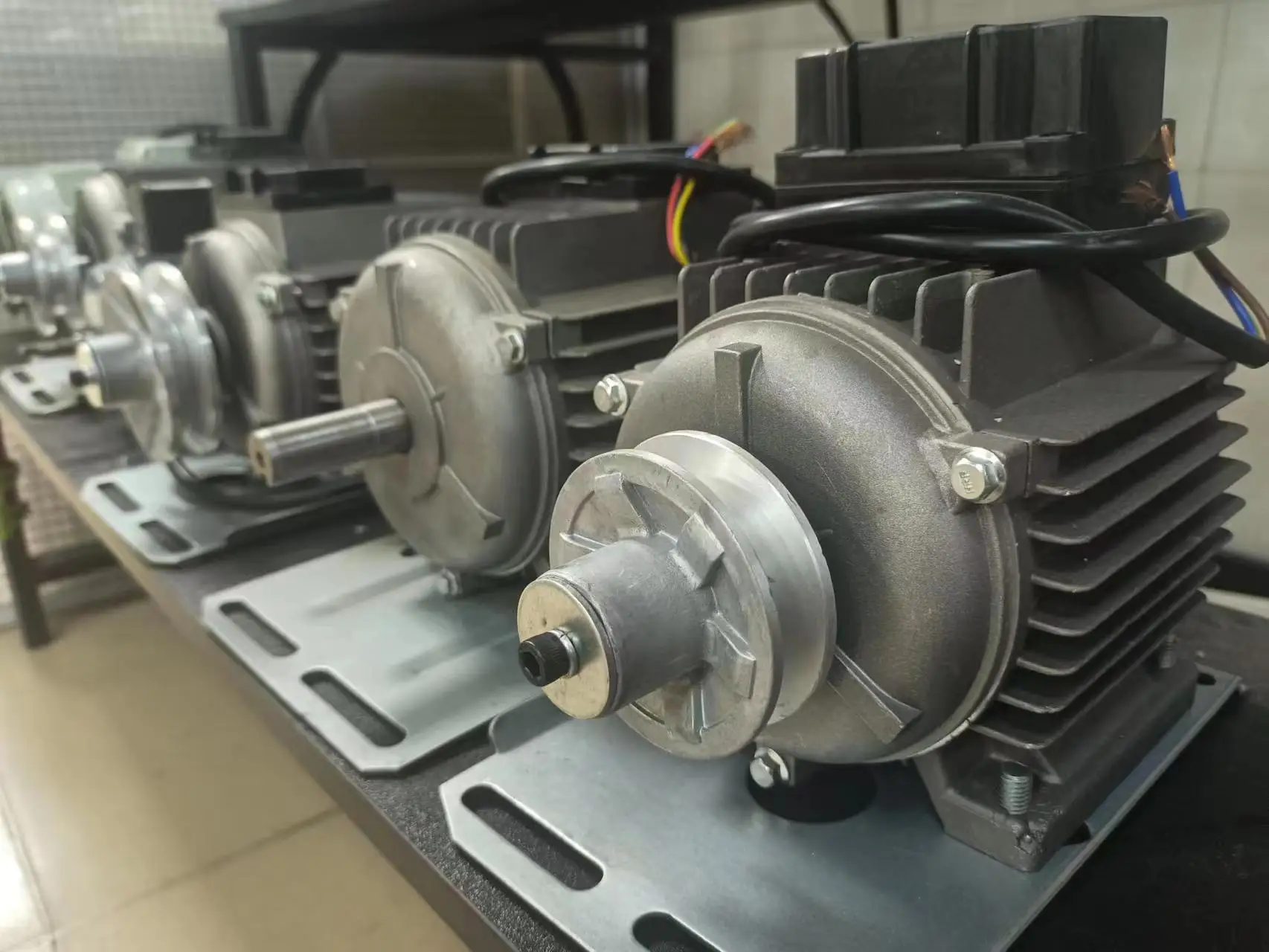

Motor
Brand: Chinese motor and Siemens motor
Brand: Chinese motor and Siemens motor
Protection Grade: IP55
Isulation Class: F grade
Advantage: Pure copper wired, with strong output power, high efficiency, energy saving,and could be customized.
Isulation Class: F grade
Advantage: Pure copper wired, with strong output power, high efficiency, energy saving,and could be customized.

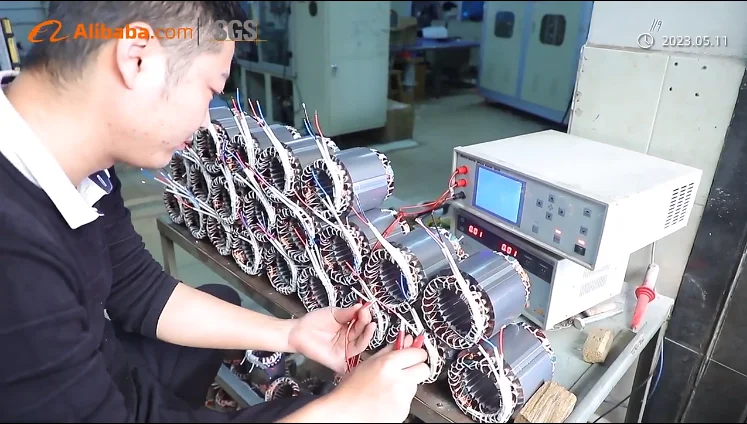

Each motor is individually tested for 100% quality control

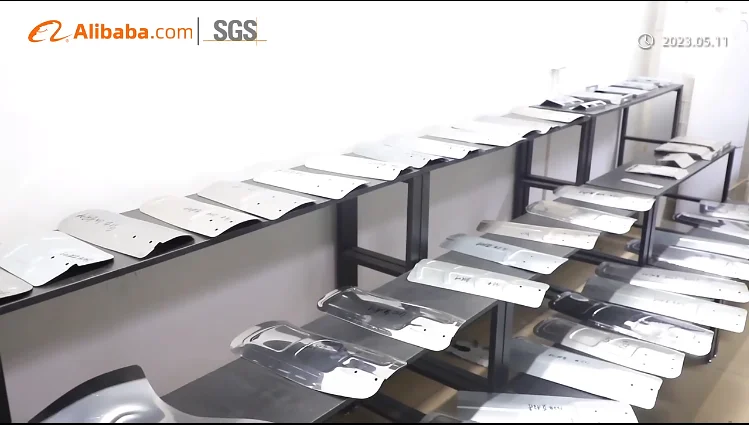

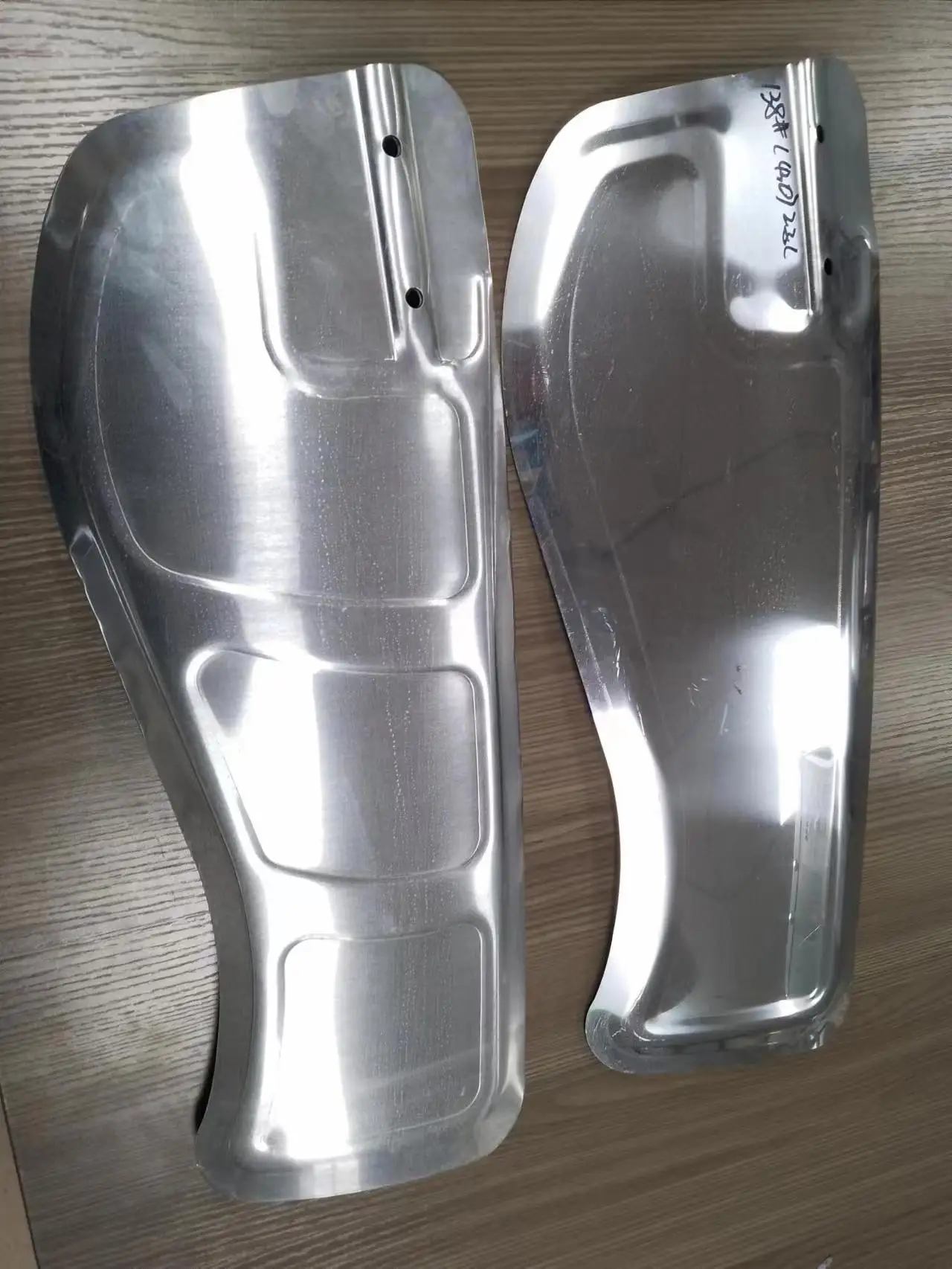

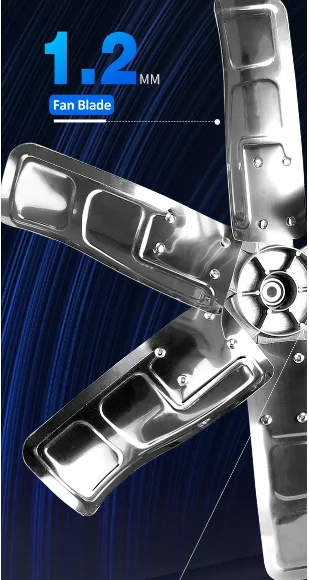

Blade
Material:430 stainless steel, 304 stainless steel or galvanized is optional, thickness 1.2mm Diameter: 1270mm
Advantage: Large air flow and automatic closed resistance to deformation, pressure,rust and corrosion , no pest or rain
Advantage: Large air flow and automatic closed resistance to deformation, pressure,rust and corrosion , no pest or rain
Shutter
Material: 304 stainless steel or pure galvanized is customized

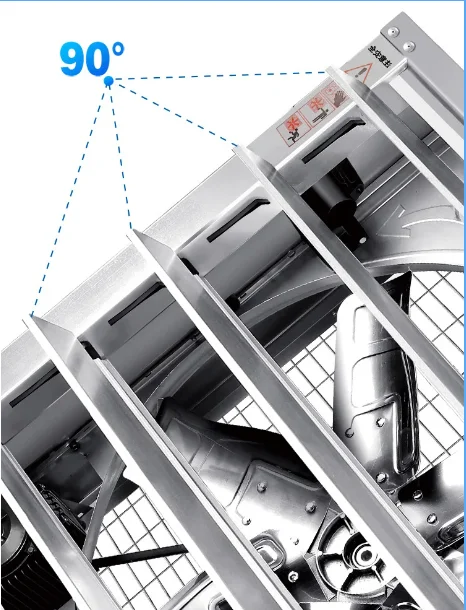

Open method: Centrifugal system make the shutters 90°fully open, maximum guaranteed high air volume and low resistance. Switching mode automation keeps machine away from pest, dust and rain.
Size Information
Model | Dimensions | Air Flow | Power | Workable Areas | Fan Speed | Noise |
200# | 200mmx200mmx170mm | 588CFM | 150W | 5~20㎡ | 2000rpm | <45db |
300# | 300mmx300mmx200mm | 1200CFM | 150W | 5~20㎡ | 2200rpm | <50db |
400# | 400mmx400mmx300mm | 1500CFM | 250W | 20~40㎡ | 1400rpm | <55db |
500# | 500mmx500mmx300mm | 3000CFM | 250W | 25~50㎡ | 1400rpm | <55db |
600# | 600mmx600mmx300mm | 4700CFM | 250W | 50~60㎡ | 960rpm | <55db |
700# | 700mmx700mmx300mm | 6000CFM | 250W | 60~70㎡ | 960rpm | <60db |
800# | 800mmx800mmx300mm | 7650CFM | 250W | 70~80㎡ | 960rpm | <60db |
800# | 800mmx800mmx350mm | 13000CFM | 370 W | 70~80㎡ | 450rpm | <60db |
900# | 900mmx900mmx350mm | 16000CFM | 370 W | 80~90㎡ | 450rpm | <55db |
1000# | 1000mmx1000mmx350mm | 17650CFM | 550 W | 90~100㎡ | 450rpm | <60db |
1060# | 1060mmx1060mmx350mm | 19000CFM | 550 W | 100~120㎡ | 450rpm | <60db |
1100# | 1100mmx1100mmx350mm | 20000CFM | 550 W | 110~130㎡ | 450rpm | <60db |
1220# | 1220mmx1220mmx350mm | 22000CFM | 750 W | 120~140㎡ | 450rpm | <60db |
1380# | 1380mmx1380mmx350mm | 26000CFM) | 1100 W | 140~160㎡ | 450rpm | <65db |
1530# | 1530mmx1530mmx400mm | 32800CFM | 1500W | 160~200㎡ | 450rpm | <70db |
1750# | 1750mmx1750mmx450mm | 40000CFM | 1800W | 180~220㎡ | 350rpm | <70db |

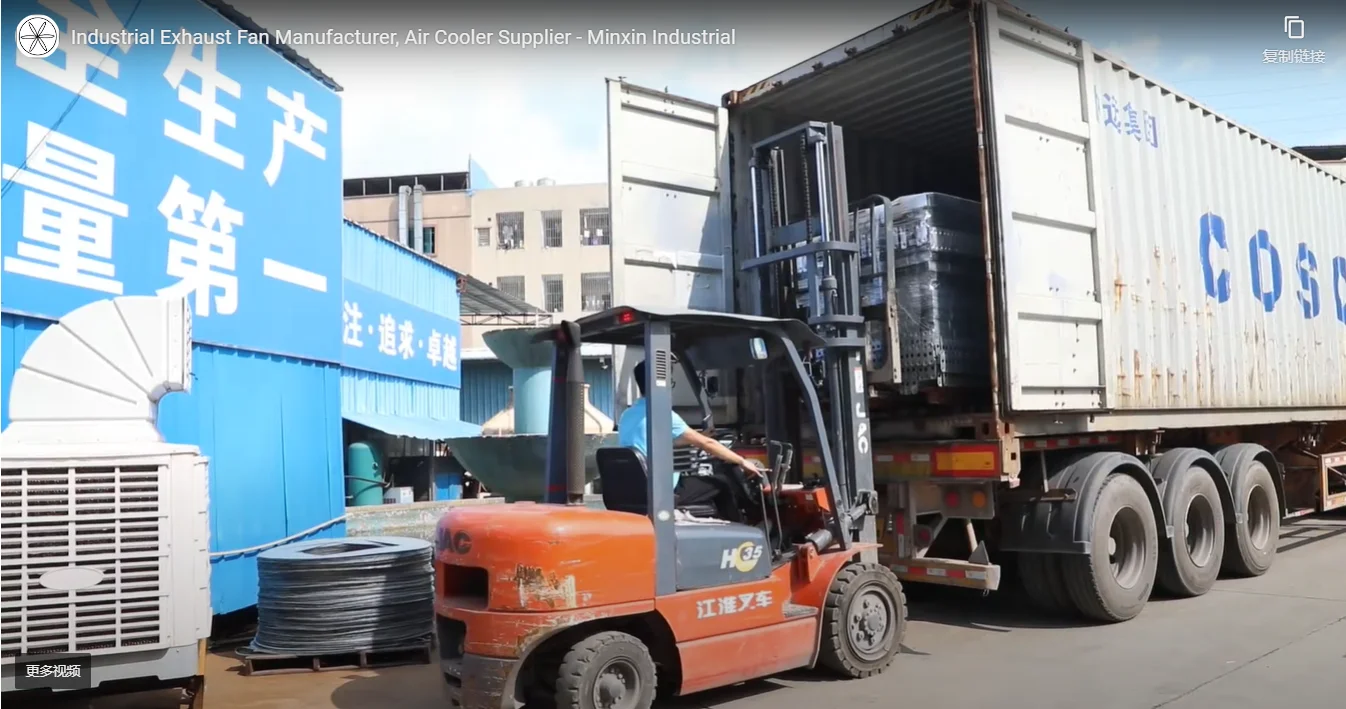

Packing&Shipping
The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.
Unassembled Exhaust Fan Parts
The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.
Welcome detailed consultation
Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
Why Chose Us
Long Standing History
10 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
10 years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 200mm to 1750mm, ventilation capacity ranges from 600CFM to 40000CFM
Fast Delivery
Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of
the exhaust fans
the exhaust fans
Company Introduction
MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.
Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler

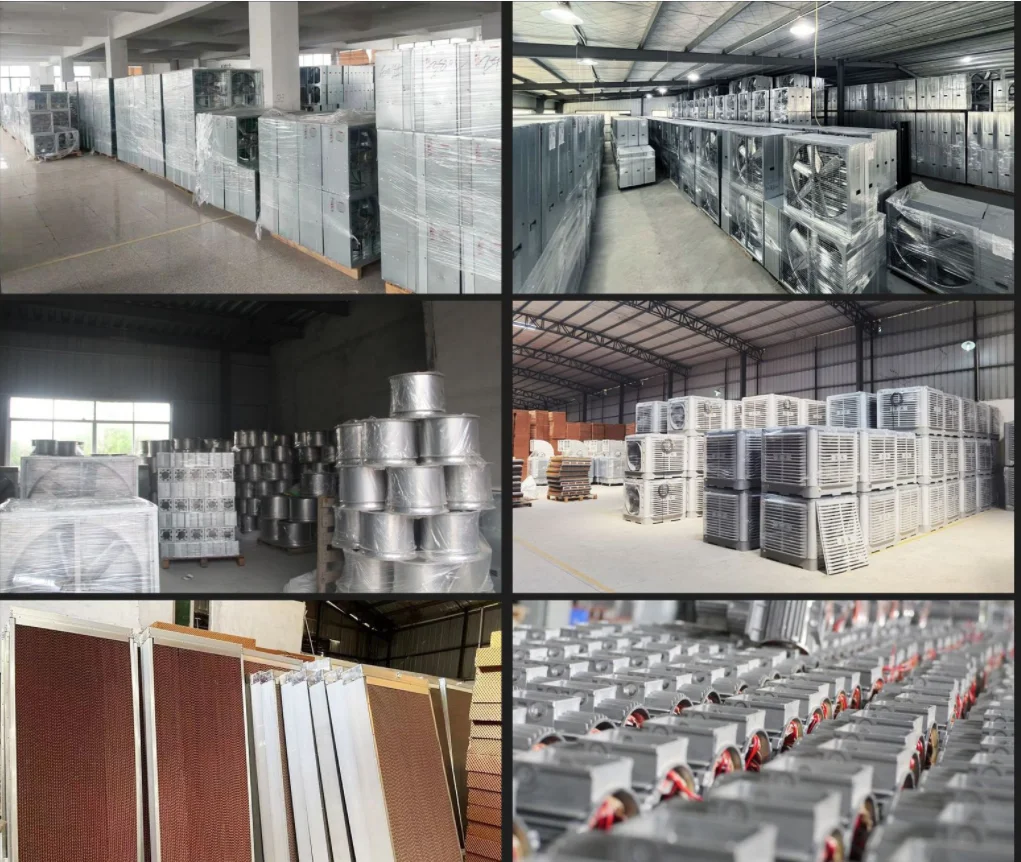

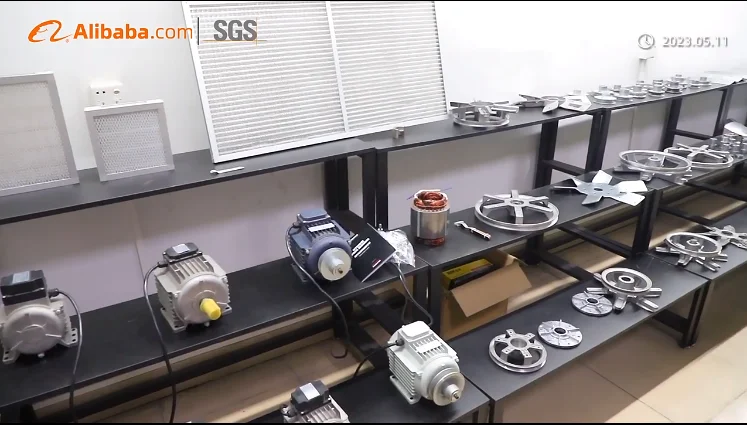

Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
Steel coil sliding and cutting line, steel pipe cutting line
Aluminum Die Cast Tooling & Casting
Plastic Molding & Injection workshop
Steel coil sliding and cutting line, steel pipe cutting line
Aluminum Die Cast Tooling & Casting
Plastic Molding & Injection workshop
Motor Copper Coil Winding Line
Motor Assembly Workshop
Stamping Workshop
FAQ
Welcome send us inquiry,we'll give you best price for 40ft container for unassembly.
If you'll come to China recently, welcome visit our factory in Dongguang near Guangzhou or Shenzhen.
