Hydraulic electric wall panel installation machine, wall panel lifting and handling machine
- Category: Hoists >>>
- Supplier: Henan Wishes Machinery Equipment Co. Ltd.
Share on (11000002680077):
Product Overview
Description
Product Overview

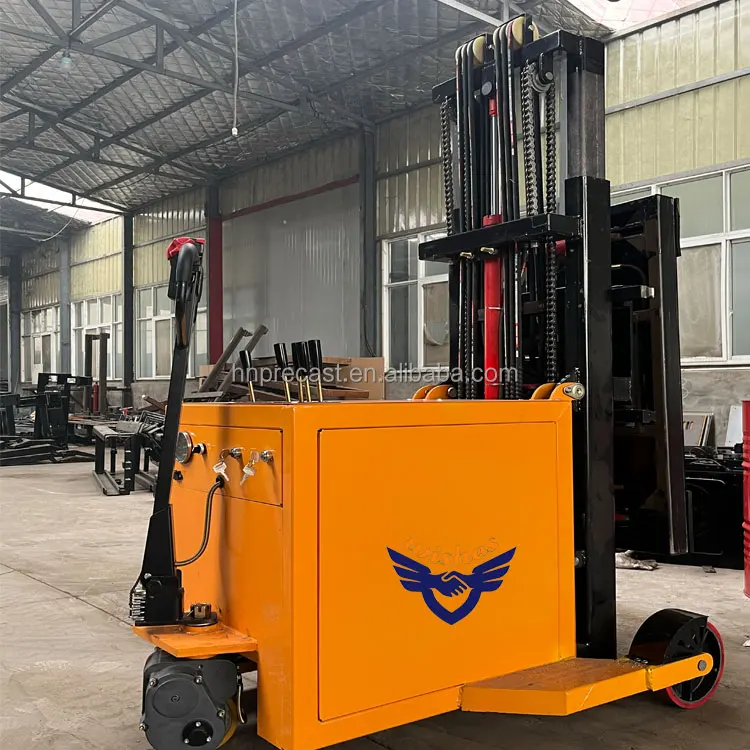

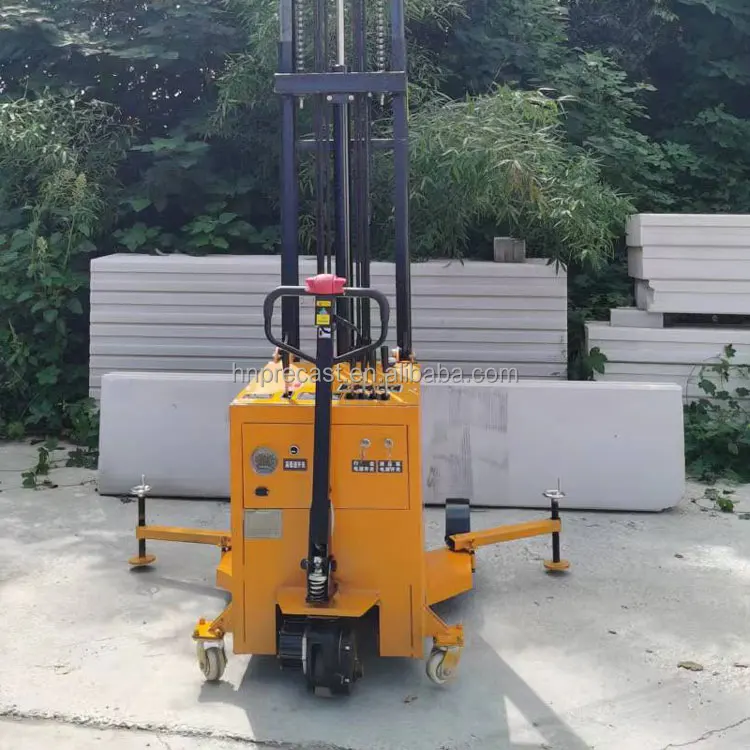

Hydraulic Wall Panel Installation Machine
The machine can automatically pick up wall panels ,moves the wall panels ,lift,rotate, and then put the wall panels in a right installation position. The machine work for the common wall panels installtion , such as acotec wall panels, EPS wall panels, Alc wall panels so on.
FEATURES AT A GLANCE
Advantages of wall panel installing machine
* Reduce the labor intensity by using hydraulic oil cylinders to complete the grasping, handling, and installation of the panel.
* Reduce the damage to the panel by using hydraulic clamps and left and right hydraulic side shift systems to complete the
installation and splicing at the same time.
* Improve work efficiency, save labor
* Ensure the personal safety of installation workers
* Reduce the labor intensity by using hydraulic oil cylinders to complete the grasping, handling, and installation of the panel.
* Reduce the damage to the panel by using hydraulic clamps and left and right hydraulic side shift systems to complete the
installation and splicing at the same time.
* Improve work efficiency, save labor
* Ensure the personal safety of installation workers
PRODUCT CONFIGURATION
These hydraulic handles control the tightening, lifting, flipping, tilting back and forth, and side shifting of the wall panels respectively.
The hydraulic cylinder produces high-pressure oil to operate the five-link hydraulic directional valve to control the lifting,support, left and right side shift, 360- degree rotation, and the hydraulic clamp of the wall panel installation machine.
The 360-degree rotating device enables the panels to be installed horizontally or vertically. So the wall panel installation
machine works more flexibly
machine works more flexibly
PRODUCT SPECIFICATIONS
Model | Max. Panel length | Max. Panel Weight | Machine Dimesnion | Machine Weight | Remark |
WZY-3 | 3.3 meters | 350KGs | 1600*850*1500mm | 600KGS | |
WZY-4 | 4 meters | 400KGS | 1600*850*1650mm | 650KGS | |
WZY-4A | 4 meters | 400kgs | 1600*800*1450mm | 600Kgs | Upper and lower panel jointing functions |
WZY-5 | 5 meters | 450KGS | 1850*1050*1780mm | 800KGS | |
WZY-6 | 6metrers | 500KGS | 1850*1050*1810mm | 1000KGS | |
WZY-6A | 6 meters | 500KGS | 1850*1050*1810mm | 1000KGS | Upper and lower panel jointing functions |
WZY-7 | 7.2 meters | 750KGS | 2800*1200*1800mm | 1200KGS | Upper and lower panel jointing functions |

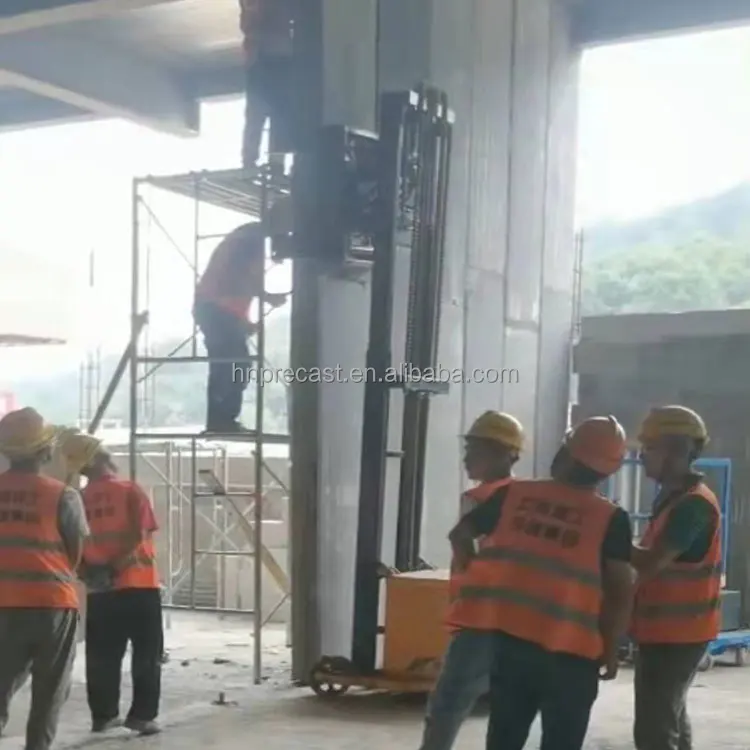

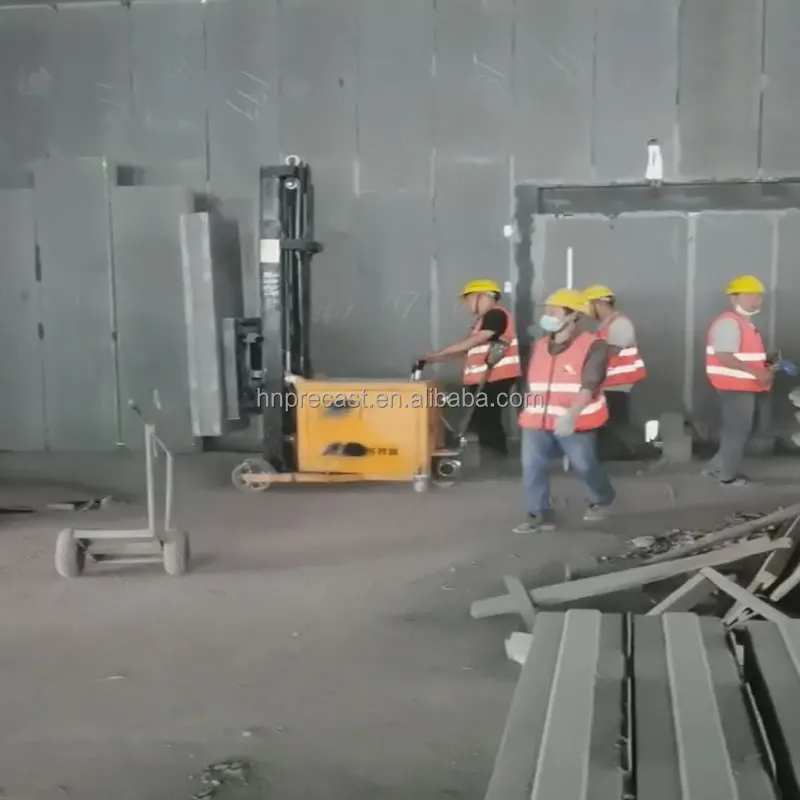

Successful Project
SALES AND SERVICE NETWORK
FAQ
Q1：What type of wall panel your machine can work fore ?
A1： Acotec panel ,EPS panels, ALC panels, AAc panels etc.
Q2: What is your delivery time ?
A2：0-15days depend on the model of machines ordered
Q3: How is this machine packed and shipped
A3：wood case for LCL or nude packed in the container
A2：0-15days depend on the model of machines ordered
Q3: How is this machine packed and shipped
A3：wood case for LCL or nude packed in the container
For more questions, please inquiry to us , we will reply you immediately .
