Automotive Driving Computing Platform AWU401 Car Computer Customization of Self driving Vehicles Embedded AGX Xavier Module
Automotive Driving Computing Platform AWU401 Car Computer Customization of Self-driving Vehicles Embedded AGX Xavier Module
Automotive Driving Computing Platform AWU401 Car Computer Customization of Self-driving Vehicles Embedded AGX Xavier Module
Automotive Driving Computing Platform AWU401 Car Computer Customization of Self-driving Vehicles Embedded AGX Xavier Module
Automotive Driving Computing Platform AWU401 Car Computer Customization of Self-driving Vehicles Embedded AGX Xavier Module
Automotive Driving Computing Platform AWU401 Car Computer Customization of Self-driving Vehicles Embedded AGX Xavier Module

Automotive Driving Computing Platform AWU401 Car Computer Customization of Self driving Vehicles Embedded AGX Xavier Module

Share on (11000003412114):


Price:$2,536.00

Quantity:


Product Overview

Description



Products Description


AWU401-A01 Self-driving computing platform based on NVIDIA Jetson AGX Xavier module, equipped with NXP MPC5746R Safety MCU, NXP S32K144 MCU. AGX module is responsible for camera and laser radar data processing, combined with millimeter wave radar, ultrasonic radar, inertial navigation + high precision positioning (GNSS/IMU) and other data, can realize environment perception and decision-making layer of self-driving.Safety MCU is responsible for interaction by-wire in execution layer, and S32K144 is specifically responsible for ultrasonic radar data processing. It can be used to achieve all levels of autonomous driving functions, suitable for customization and modification of self-driving vehicles.
Application Scenarios: Intelligent Passenger Vehicles, Unmanned Sanitation Vehicles, Unmanned Mining Vehicles, Unmanned Ferry Vehicles, Scientific Research & Teaching.





Specifications


Item
Description
SOC
NVIDIA Jetson AGX Xavier
MCU
NXP MPC5746R，ASIL-D；NXP S32K144，ASIL-B
AI Power
32 TOPS
GPU
512-core Volta GPU with 64 Tensor Cores 11 TFLOPS (FP16) , 22 TOPS (INT8)
CPU
8-core Carmel ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3
Memory
32GB 256-bit LPDDR4
Storage
32GB e.MMC 5.1
Visual Accelerator
7-line VLIW vision processor
DL Accelerator
2 pieces NVDLA engine
Video Coding
2x1000MP/sec, 4x 4K @ 60 (HEVC), 8x 4K @ 30 (HEVC), 16x 1080p @ 60 (HEVC), 32x 1080p @ 30 (HEVC)
Video Decoding
2x1500MP/sec, 2x 8K @ 30 (HEVC), 6x 4K @ 60 (HEVC), 12x 4K @ 30 (HEVC), 26x 1080p @ 60 (HEVC), 52x 1080p @ 30 (HEVC), 30x 1080p @
30 (H.264)
OS
Ubuntu 18.04


Name
Description

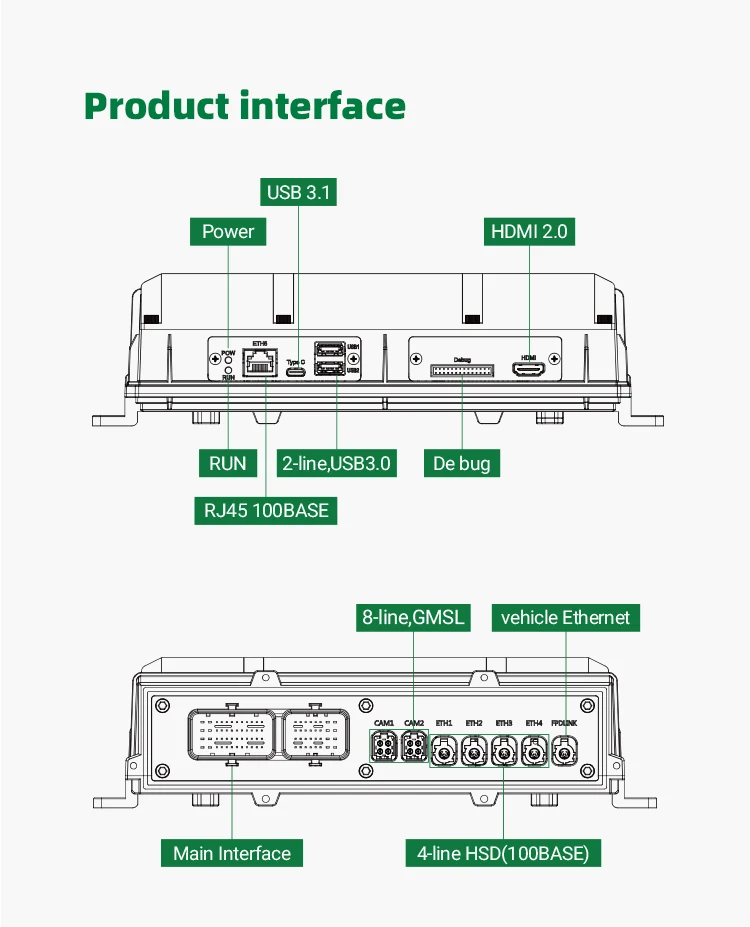

GMSL
8-line coaxial digital camera FAKRA input interfaces
CAN
9-line，Hi-Speed CAN，compatible CANFD
RS232
2-line communication，1-line bidirectional and 1-line monodirectional
USB
2-line USB 3.1 ,1-line Type-A,1-line Type-C（for programming）
Ethernet
6-line 100BASE-T,4-line HSD,1-line RJ45,1-line vehicle Ethernet
I/O
4-line voltage 0~16V,2-line 12V GPI,2-line 12V GPO
LIN
2-line
Ultrasonic Radar
12-line 12V I/O
Power Input
3-line 12V 2.8A ,1-line 12V 1A,2-line 12V 0.2A
FPD-Link
1-line 1080P 60fps
HDMI
1-line HDMI 2.0,TYPE-A
Storage Extension
1-line，M2.M SSD solid-state disc
Recovery Button
1 piece,use for developing and debugging
Indicator
166 pieces，power status indicator and operating status indicator


Name
Description
Voltage
Rated input DC 12V
Power Consumption
≤32W
Operating Temperature
-20°C~+70°C
IP
(IP43)

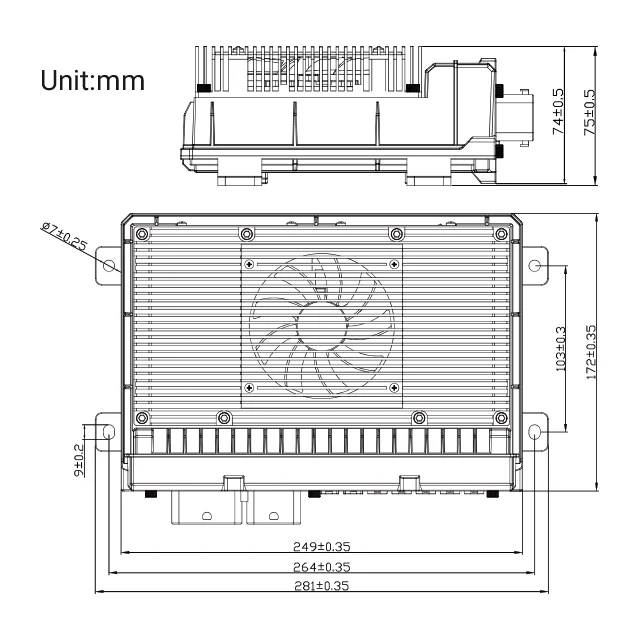

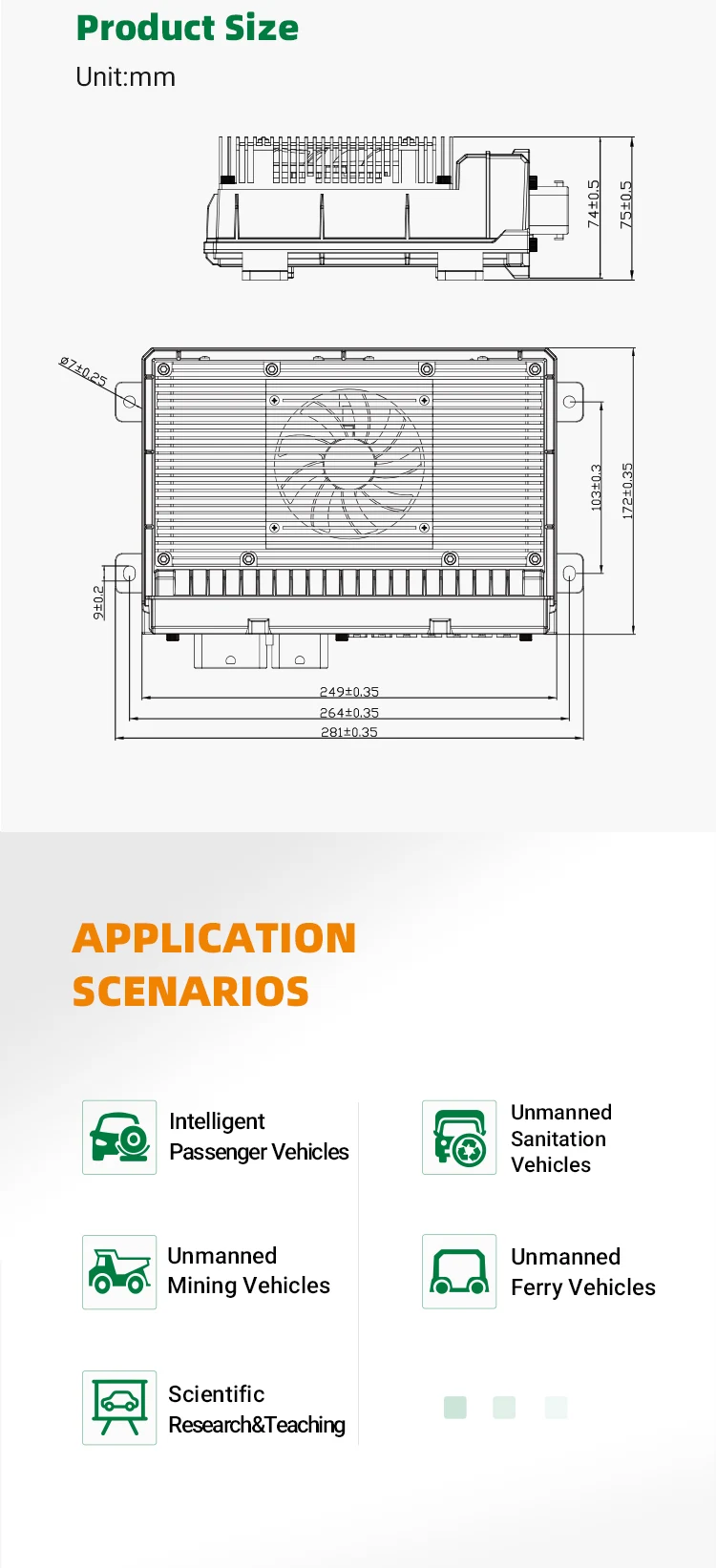

Size
249*172 *76mm（L*W*H）








FAQ


Q1. What is your terms of packing?
A: Packing products in cartons. If you have OEM package, please let us know.

Q2: Are you manufacturer with your own factory or trading company?
A: We are manufacturer with our own factory located in Shenzhen and Susong,engaged in the research and development, production,sale and service of artificial intelligent edge computing products,,intelligent cockpit domain controller,automatic driving domain controller and system solutions,automotive parts,etc. If you are available, welcome to visit us.

Q3: How does your factory do products quality control?
A: We edicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Q4: How can I get some samples?
A: We are honored to offer you samples, please contact us directly.

Q5. Do you test all your goods before delivery?
A: Yes, please don't worry. we have 100% test before delivery.

If any qustion, pls send your message to us !
