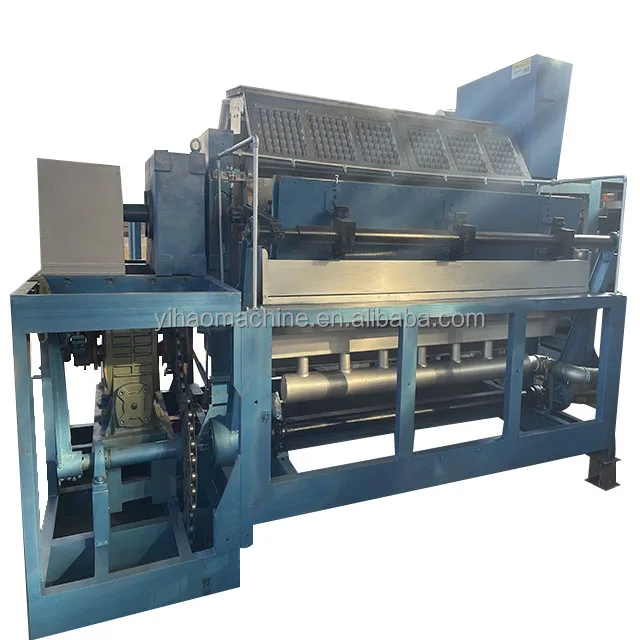

Automatic egg box machine environmentally friendly waste pulp paper recycle line egg tray making machine
- Category: Paper Production Machinery >>>
- Supplier: Longkou Yihao Machinery Equipment Co. Ltd.
Share on (11000004468656):
Product Overview
Description
Our company is specialized in the paper pulp molding machine for 40 years , have mastered the core technology and gained more than 10 patent technology (intellectual property )----- patent subsidy allocation . We have rich experience and professional technology and best service ! Our machine use the waste paper or carton to produce different paper products .like egg trays , egg box , apple trays , coffee trays ,. industrial trays , Under the strictest ban on plastic,the paper products are bigger markets, it is green and environmental , paper pulp products business is a prospective.

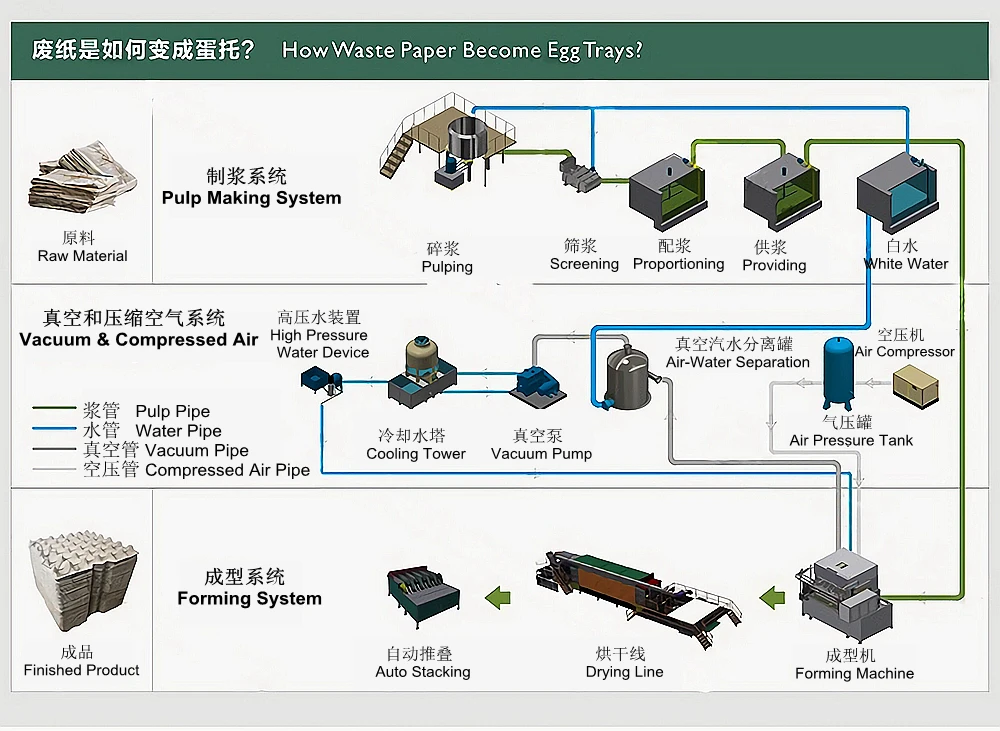

The pulp molding machine divided into Four Part :
First: The pulping system,
the main function of the entire production line is to pass our raw material waste paper through this system to make a certain concentration of pulp
Second:The forming system,
transfer the finished paper pulp into forming machine ,By the negative pressure to absorb the finished paper pulp and form
fruit/egg tray/paper products on the mold,transfer the wet paper products to the drying line
transfer the finished paper pulp into forming machine ,By the negative pressure to absorb the finished paper pulp and form
fruit/egg tray/paper products on the mold,transfer the wet paper products to the drying line
Third:The Drying system，
After the first step of our main molding system, we must carry out a one-time and thorough drying process for our molded wet fruit/ egg trays/wet products , use the coal , natural gas , diesel , LPG ,oil , or wood ..... as the fuel , it is up to your
choice .
Fourth: Packing system,
After the first step of our main molding system, we must carry out a one-time and thorough drying process for our molded wet fruit/ egg trays/wet products , use the coal , natural gas , diesel , LPG ,oil , or wood ..... as the fuel , it is up to your
choice .
Fourth: Packing system,
after drying, the fruit/egg trays/wet paper products can be directly packed or used after being compressed by the packing system
Introduction and pictures of the four parts of the machine

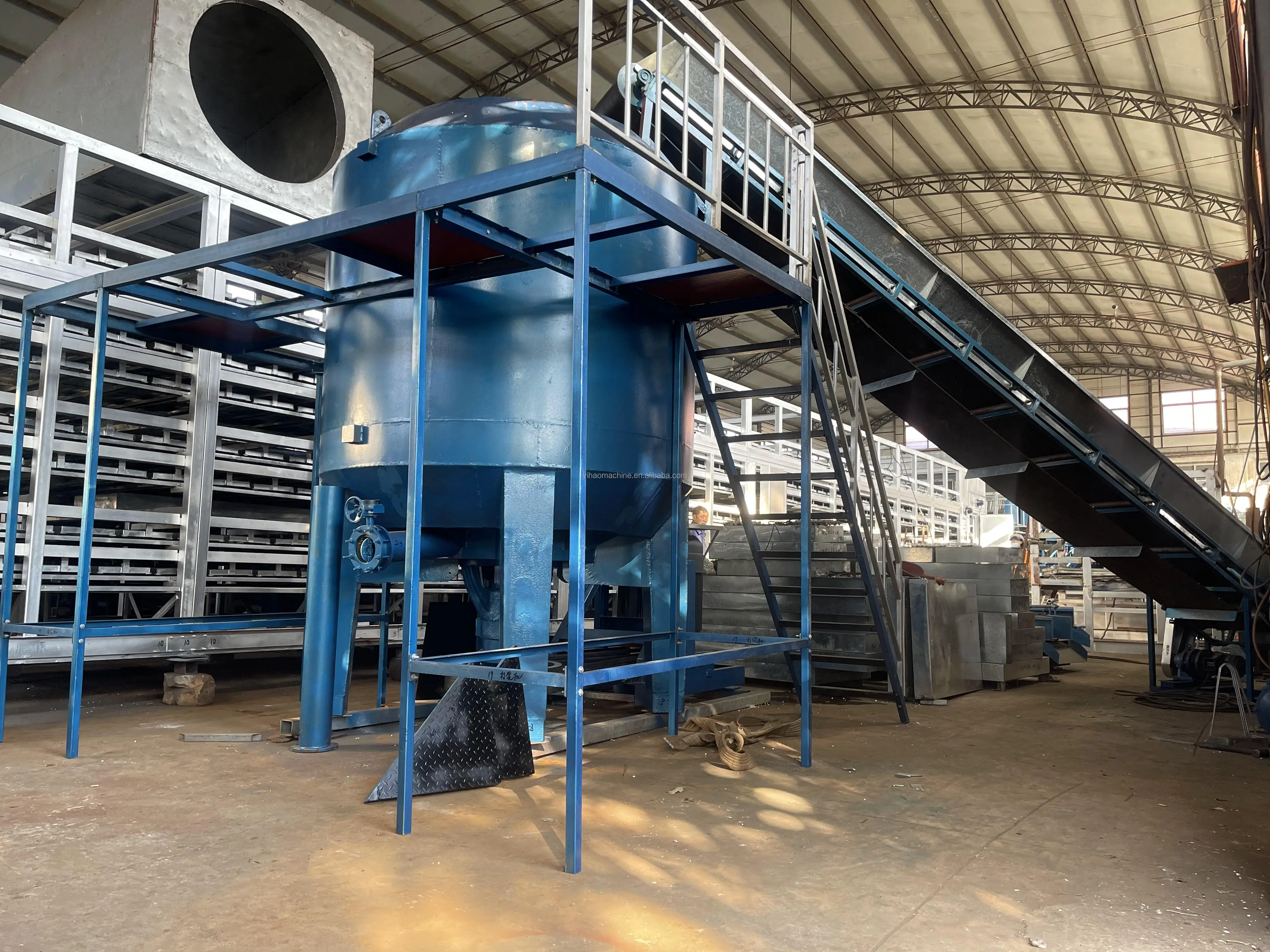

Pulping System

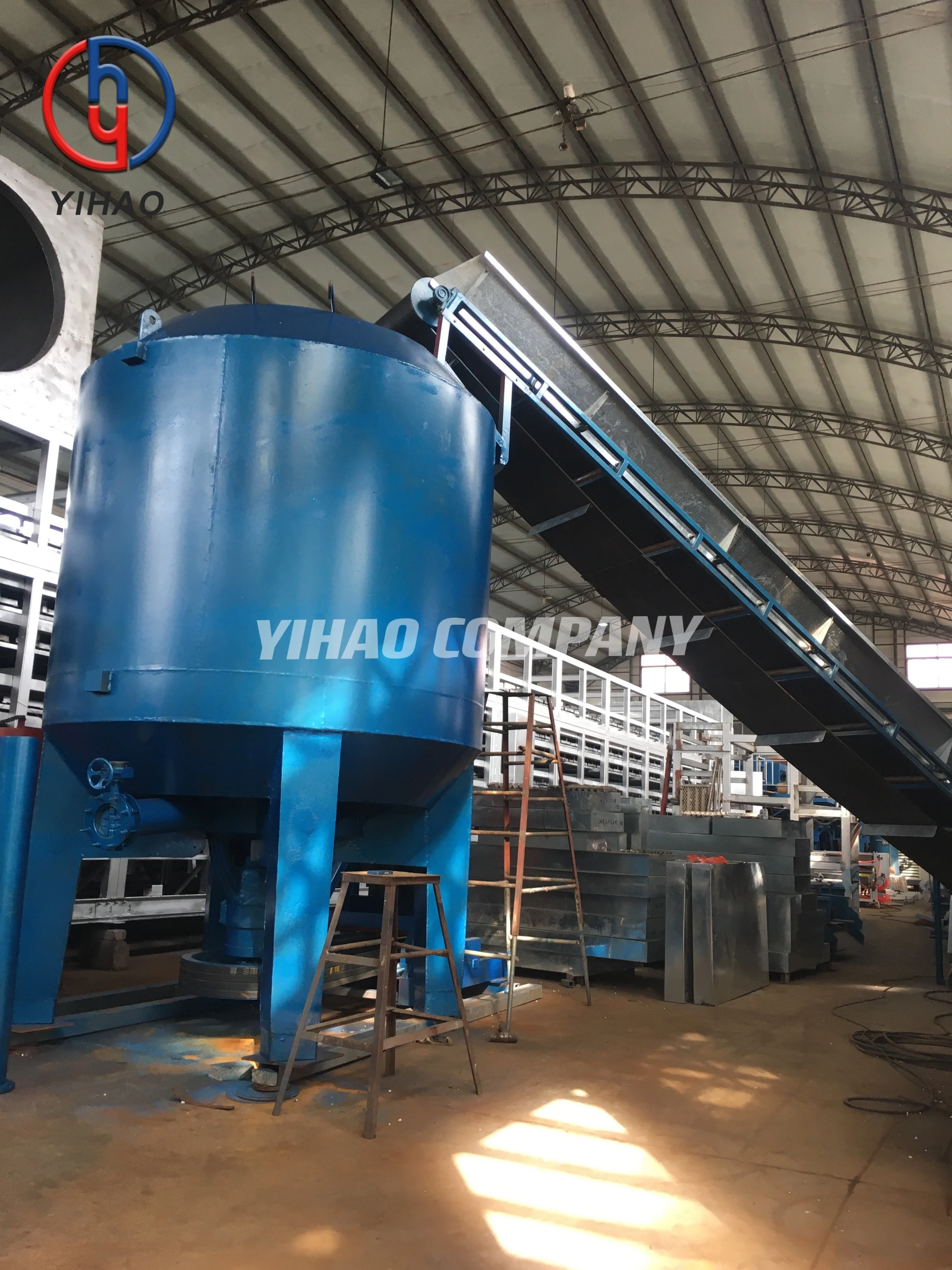

This is our new pulper with feeding machine ,using the feeder to pour the waste paper and water into the pulper to make the pulping , can save the labor cost , achieve the automation of the machine .

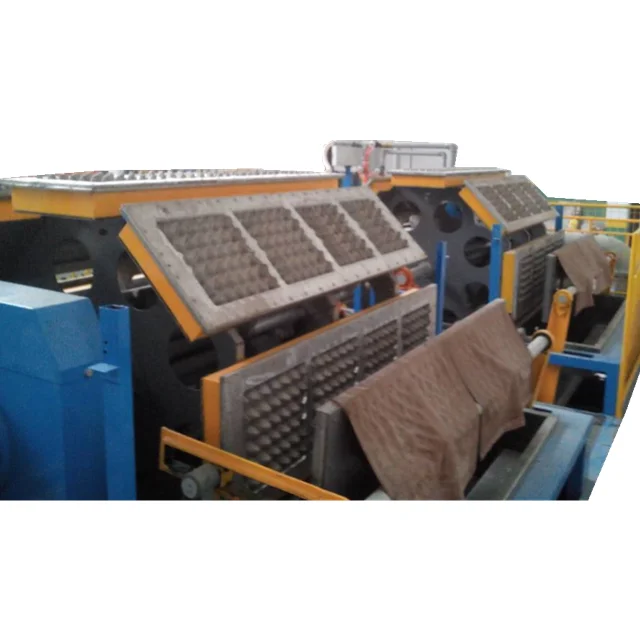

Forming system

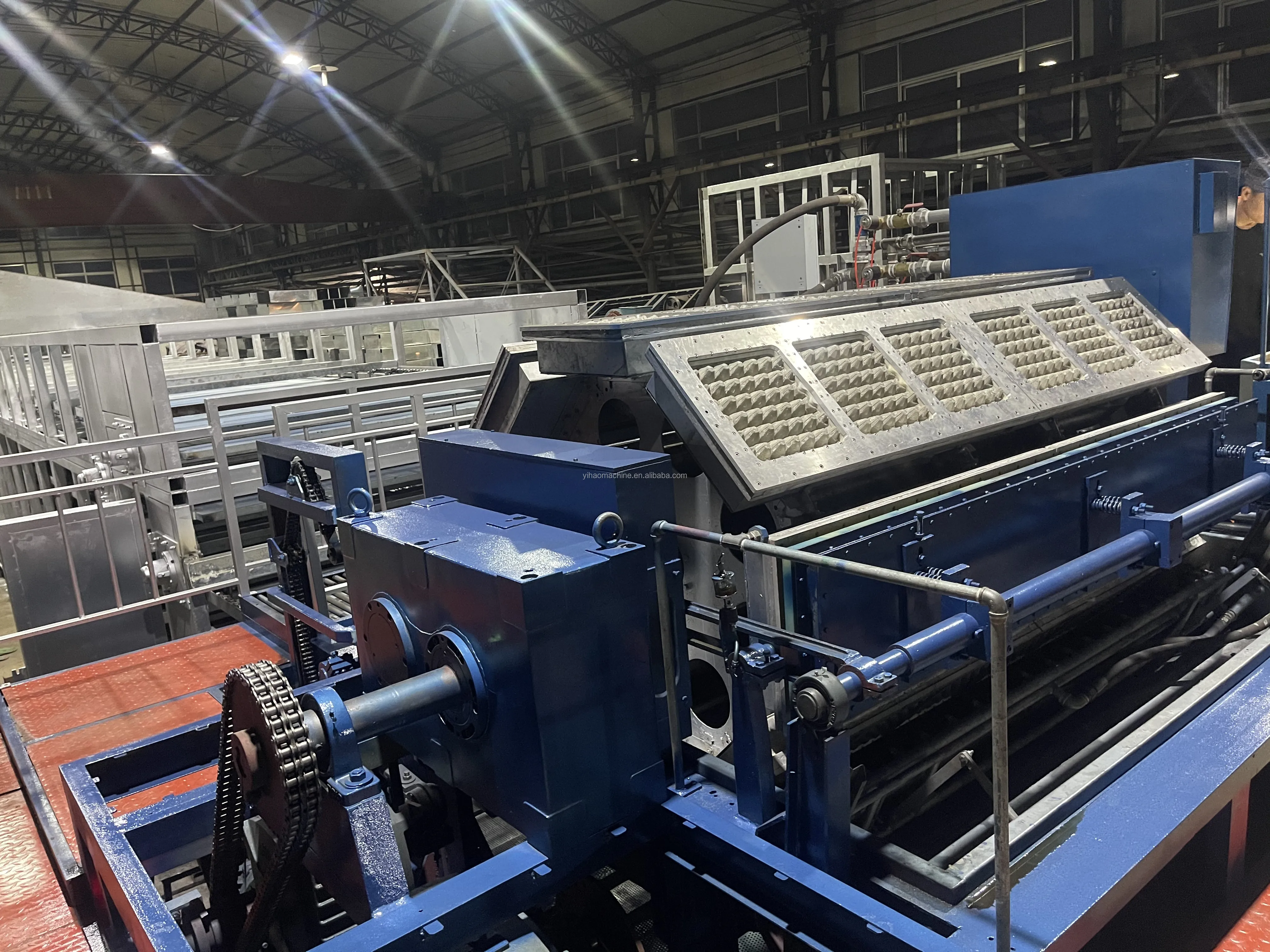

Transfer the finished paper pulp into forming machine to make different paper products by the different mold .

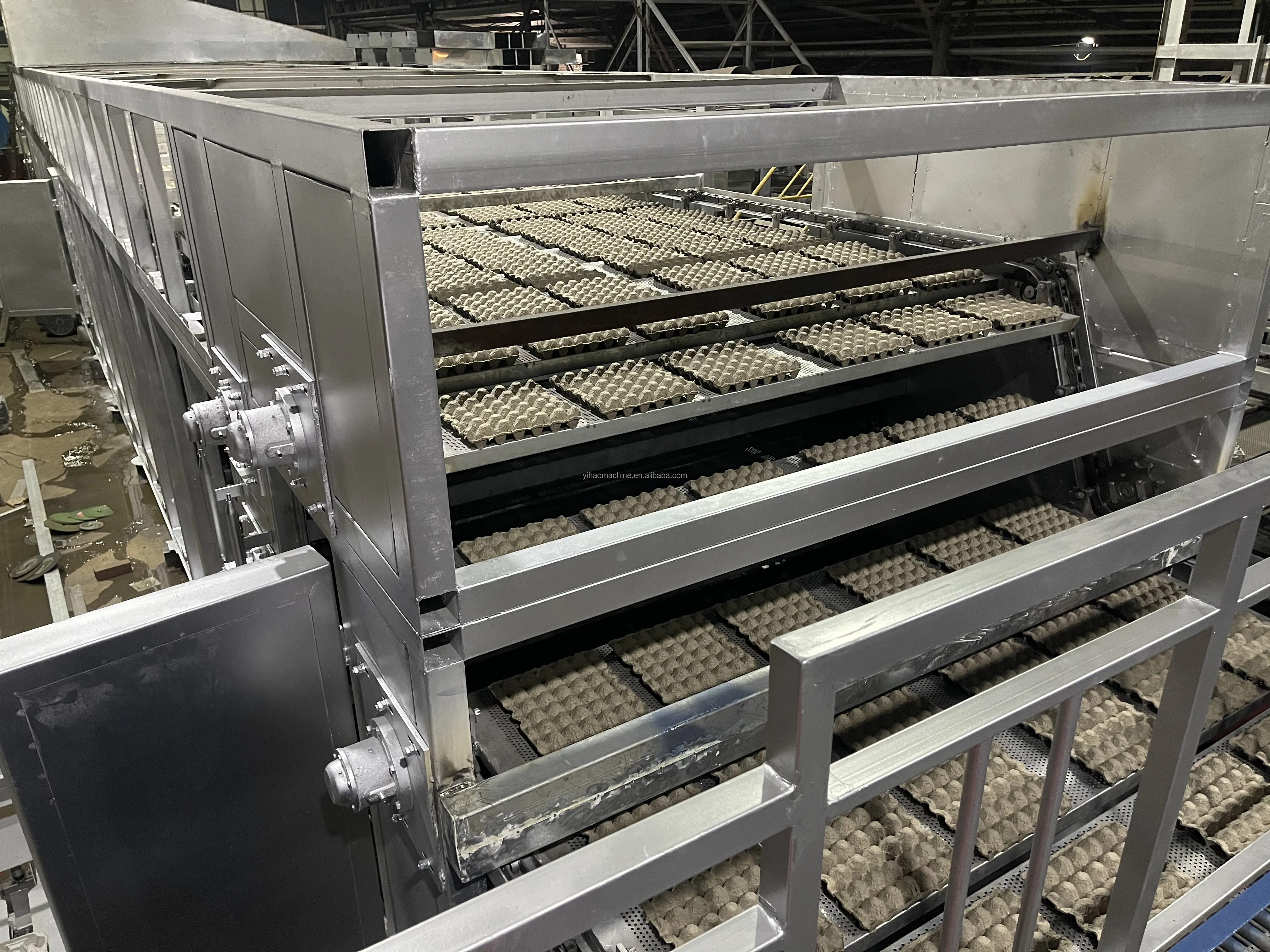

Drying system

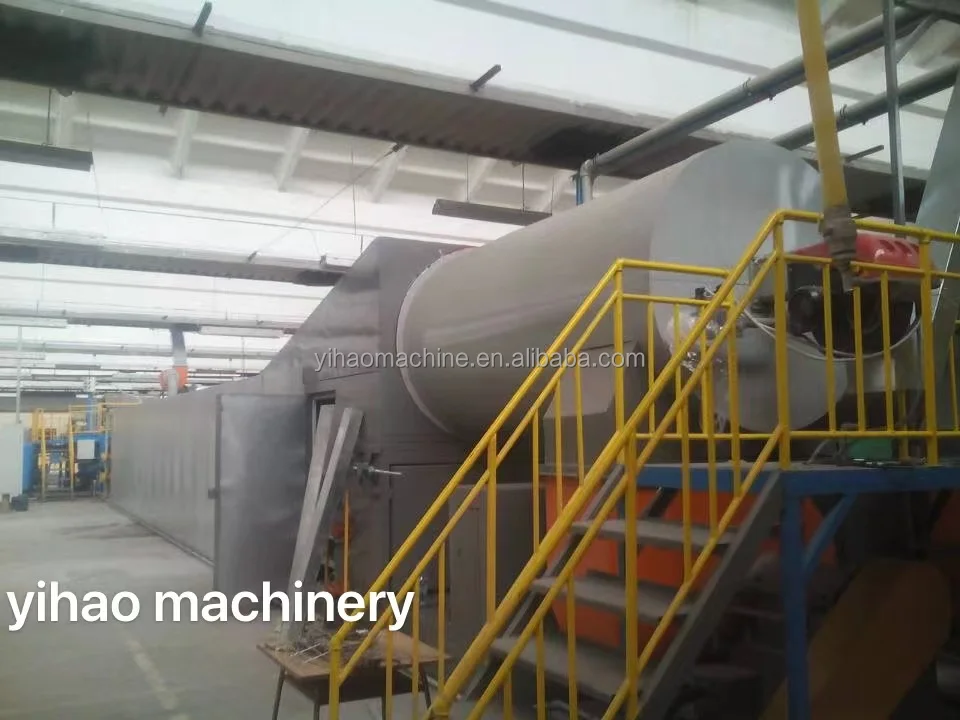

Transfer the wet paper products to the drying line to dry . Use the big blower and small fan to make the hot air recycle running and discharge the moisture from wet products.
Packing System
After drying , the paper products need to be stacked , then need to be directly packed or used after being compressed by the packing system
Egg Tray Machine Model Table
Model | Capacity | Forming Machine | Drying System | Workshop Space |
SC3-3 | 1000pcs/hr | 3mold x 1 side | Natual drying by sun | 6m x 6m x 3m |
SC4-4 | 1500pcs/h | 4mold x 1 side | Natual drying by sun | 6m x 6m x 3m |
TD4-4 | 1200-1500pcs/h | 4 mold x 1 side Reciprocating (Single station) | 4-Layer ×12m metal | 18m x 6m x 3m |
TB4+4-4 | 1800pcs/h | 3 mold x 2 side Roller reciprocating | 4-Layer ×12m metal | 18m x 6m x 3m |
TA24-3-3(2880) | 3000pcs/h | 3 mold x 8 side - 3 pcs Press Mold Single Rotary Roller | 6-Layer ×18m metal | 35m x 10m x 3.8m |
TA32-4-4-4(3880) | 4000pcs/h | 4 mold x 8 side - 4 pcs Press Mold-4 pcs Turnover Mold Single Rotary Roller | 6-Layer ×18m metal | 35m x 10m x 3.8m |
TA40-5-5(4880) | 5000pcs/h | 5 mold x 8 side -5 pcs Press Mold Single Rotary Roller | 6-Layer ×20m metal | 35m x 10m x 3.8m |
TA48-6-6(5880) | 6000pcs/h | 6 mold x 8 side - 6 pcs Press Mold Single Rotary Roller | 6-Layer ×20m metal | 35m x 10m x 3.8m |
TAAA36-24-24 | 120000p/hr | 3 mold x 12 side-3 mold x 8 side-3 mould x 8 side Three Rotary Roller | 8-Layer ×36m metal | 45m x 15m x 4.5m |
TAAA72-48-48 | 28000pcs/h | 6 mold x 12 side-6 mold x 8 side-6 mould x 8 side Three Rotary Roller | 8-Layer ×36m metal | 45m x 15m x 4.5m |
Advantages of the machine
Double reducer
Adopt double reducer, big one drives drying line, and small one drives forming machine.Ensure the machine runs smoothly， reduce the maintenance rate.
Pressing mold
The wet pressing unit can close up the forming mold with the wet egg trays automatically when the intermittent drum stop immediately , help the forming egg trays polish, shape and dehydrate. It can increase the egg trays density, light deformation;
make the uneven places and wrinkles on the back of the wet egg trays smooth ; can improve the roughness of the egg trays’ appearance ,increase the quality of the inner and exterior ,and
improve the competitiveness of the egg trays in the market .
make the uneven places and wrinkles on the back of the wet egg trays smooth ; can improve the roughness of the egg trays’ appearance ,increase the quality of the inner and exterior ,and
improve the competitiveness of the egg trays in the market .

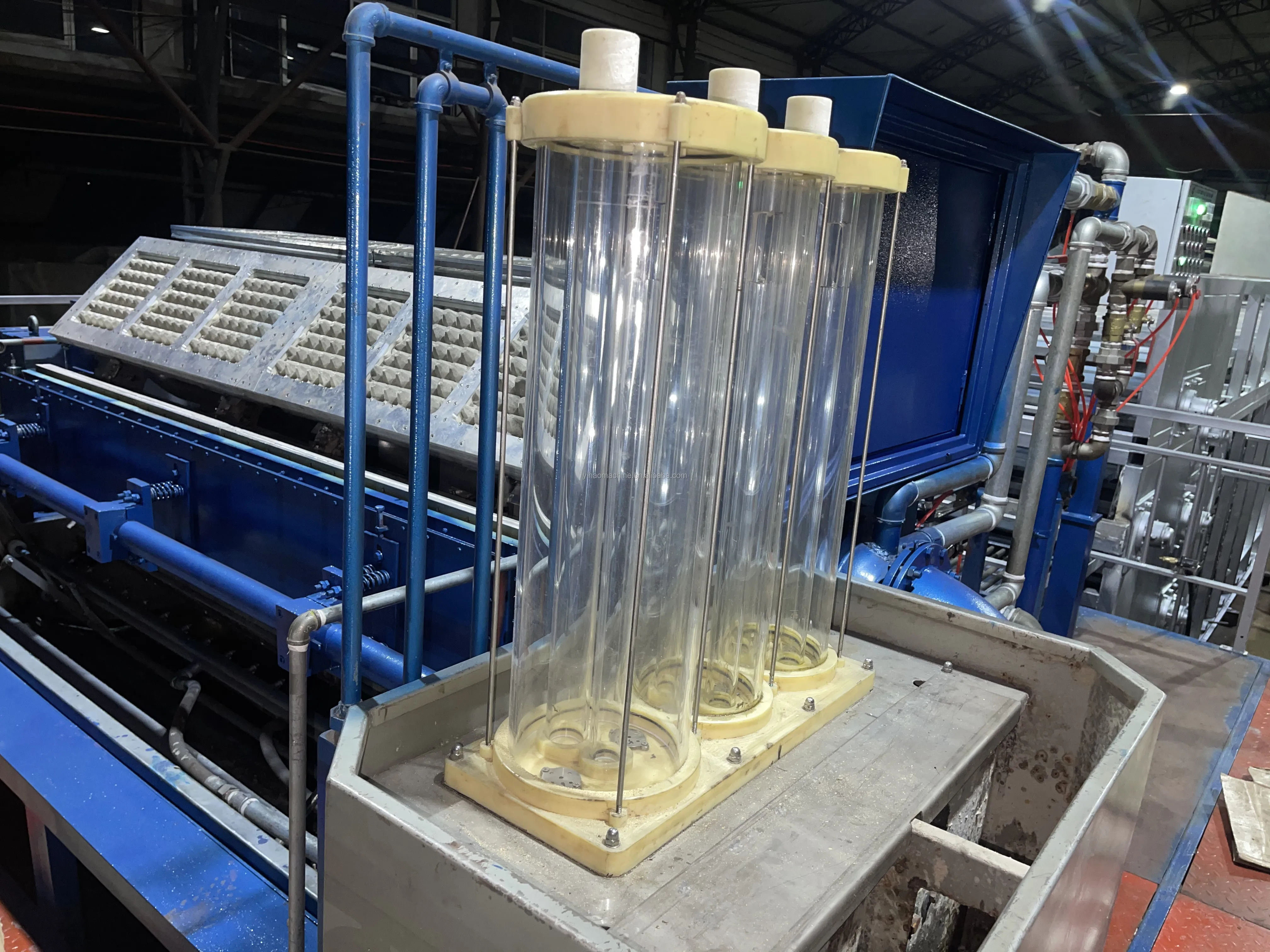

Automatic pulp water separating device
The production of egg trays can produce a large amount of slurry water and negative pressure gas, which are all connected to the
vacuum pump through the pipeline. In order to reduce the resistance of water to the rotor of the vacuum pump, the water is
separated and discharged before entering the vacuum pump, which greatly reduces the resistance of the water to the rotor. It saves electric energy and improves the vacuum degree, which is conducive to the full
dehydration of the egg tray.
vacuum pump through the pipeline. In order to reduce the resistance of water to the rotor of the vacuum pump, the water is
separated and discharged before entering the vacuum pump, which greatly reduces the resistance of the water to the rotor. It saves electric energy and improves the vacuum degree, which is conducive to the full
dehydration of the egg tray.
Vacuum pump water seal device
Install a vacuum pump water seal device , the pressure of the negative pressure will be lifted from 0.04 Mpa to 0.065-0.075 Mpa, The vacuum degree is improved, the egg tray is well dehydrated, the deformation is light, and the drying energy is saved
Transfer mold balance device
our company design a balance device to guide and adjust on the seats of traditional transfer mold ,
make the forming mold and the transfer mold accurately match and it’s successful to transfer the wet egg trays , super light and super wet egg trays
make the forming mold and the transfer mold accurately match and it’s successful to transfer the wet egg trays , super light and super wet egg trays

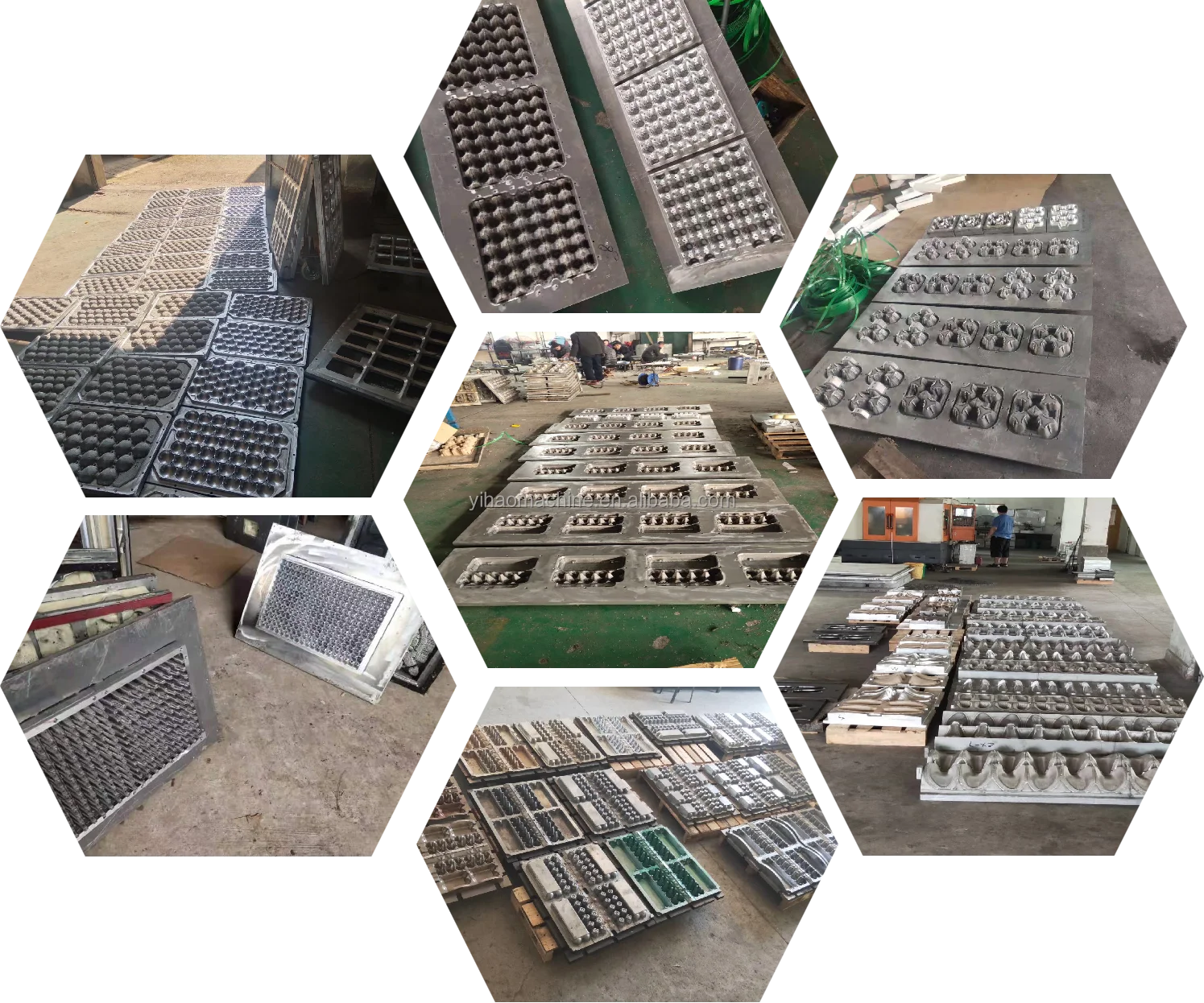

All Kinds of Molds
We can make the different mold according to customer's requests , can produce different paper products , can help customer to expand the market .

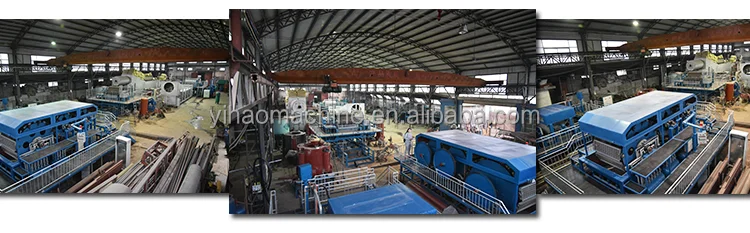

Company Introduction
COMPANY PROFILE
LONGKOU YIHAO COMPANY specialized in manufacturing the pulp moulding machine, including Continuous Rotary type, Intermittent Rotary type, Reciprocating type, Reciprocating Turnover Single Working Position, Reciprocating Turnover Double Working Position and so on. Pulp moulding machine can be used for making all kinds of egg tray, egg carton, fruit tray, cup carrier, Disposable
Medical product, all kinds of industrial packaging etc. Company has nearly 40 years experience in manufacture and has professional
researching and designing level, specialized in R&D of egg tray machine,there are more than 30 items reformation and improvements on the basis of defects and disadvantage in the old type egg tray machine, gained more than 10 items patents and the patented certification issued by Nation Patent Bureau (Intellectual Property).
The top grade egg tray machine equipped with the patented subsidy devices can produce the first class egg tray, machine running is more stable and reliable, long service life and safe operation.
Company is located in beautiful port city, LONGKOU City, SHANDONG Province, about 40minutes far from the Yantai Penglai International Airport, about one hour and thirty minutes far from Beijing airport and Shanghai airport.
The top grade egg tray machine produced by our company has exported to South Eastern Asia, Middle East, Africa, Europe and South America etc., like Turkey, Jordan, India, Cote d’lvoire, Nigeria, Russia, Poland, Yemen, Mexico, Argentina, Colombia etc.Our company’s aim is quality is the first! Good reputation in the world! Open up the international market and mutual benefit and double win!
YIHAO Company will supply the top grade egg tray machine all the time and try our best to give our good service to old and new customers.
Welcome you to visit our company, wish you have a successful business and a happy family!
Medical product, all kinds of industrial packaging etc. Company has nearly 40 years experience in manufacture and has professional
researching and designing level, specialized in R&D of egg tray machine,there are more than 30 items reformation and improvements on the basis of defects and disadvantage in the old type egg tray machine, gained more than 10 items patents and the patented certification issued by Nation Patent Bureau (Intellectual Property).
The top grade egg tray machine equipped with the patented subsidy devices can produce the first class egg tray, machine running is more stable and reliable, long service life and safe operation.
Company is located in beautiful port city, LONGKOU City, SHANDONG Province, about 40minutes far from the Yantai Penglai International Airport, about one hour and thirty minutes far from Beijing airport and Shanghai airport.
The top grade egg tray machine produced by our company has exported to South Eastern Asia, Middle East, Africa, Europe and South America etc., like Turkey, Jordan, India, Cote d’lvoire, Nigeria, Russia, Poland, Yemen, Mexico, Argentina, Colombia etc.Our company’s aim is quality is the first! Good reputation in the world! Open up the international market and mutual benefit and double win!
YIHAO Company will supply the top grade egg tray machine all the time and try our best to give our good service to old and new customers.
Welcome you to visit our company, wish you have a successful business and a happy family!
CE certification and Patent Technology
Patent technology
Our machine have CE certification and patent technology (intellectual property ) , Our patented technology has become a patent subsidy configuration. Each patent subsidy configuration solves the shortcomings of the old-fashioned egg tray machine, makes our machine more stable and reliable, extends the service life of the machine, and produces products that meet EU standards. , The maintenance rate of the machine is reduced, and it is also very helpful in saving energy.
