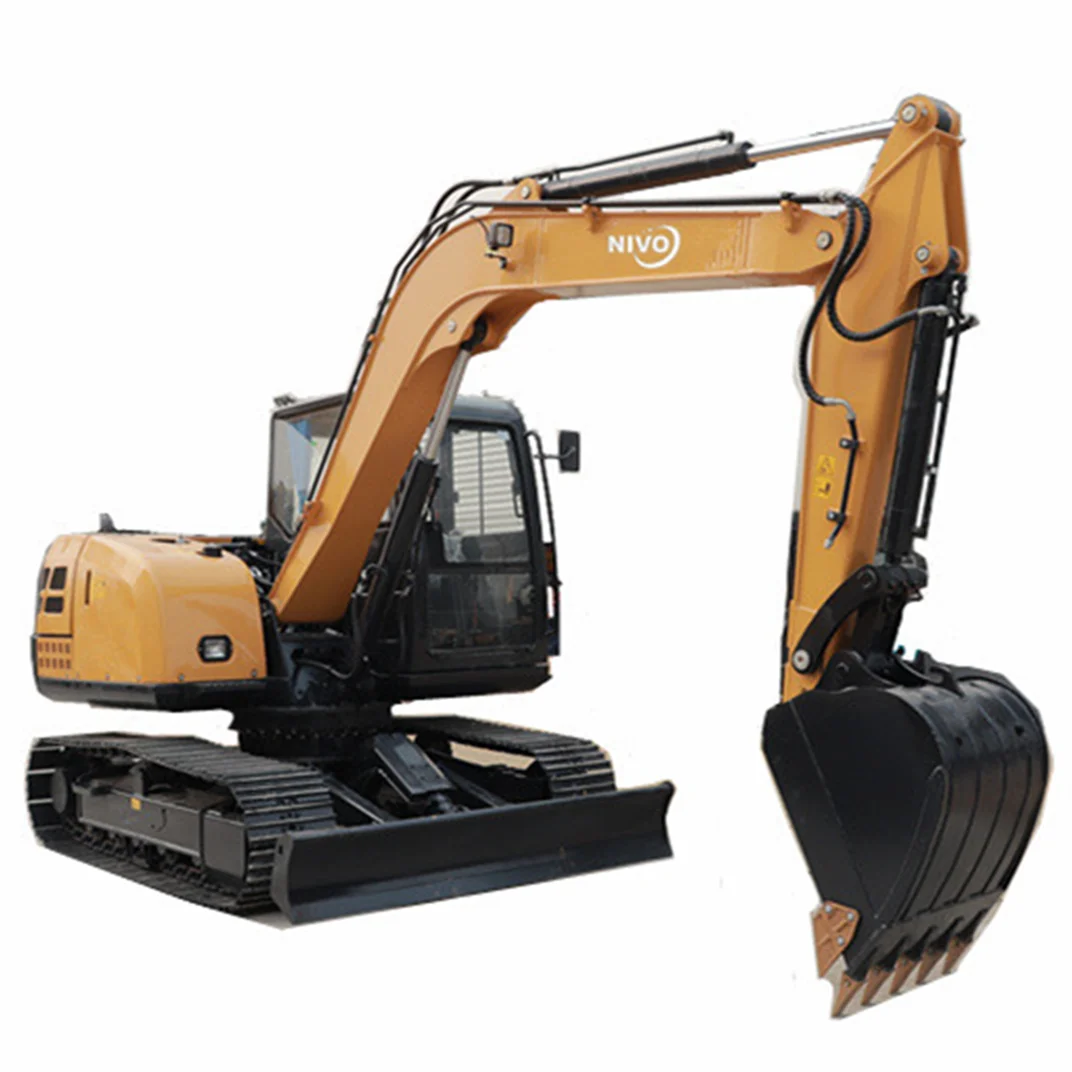

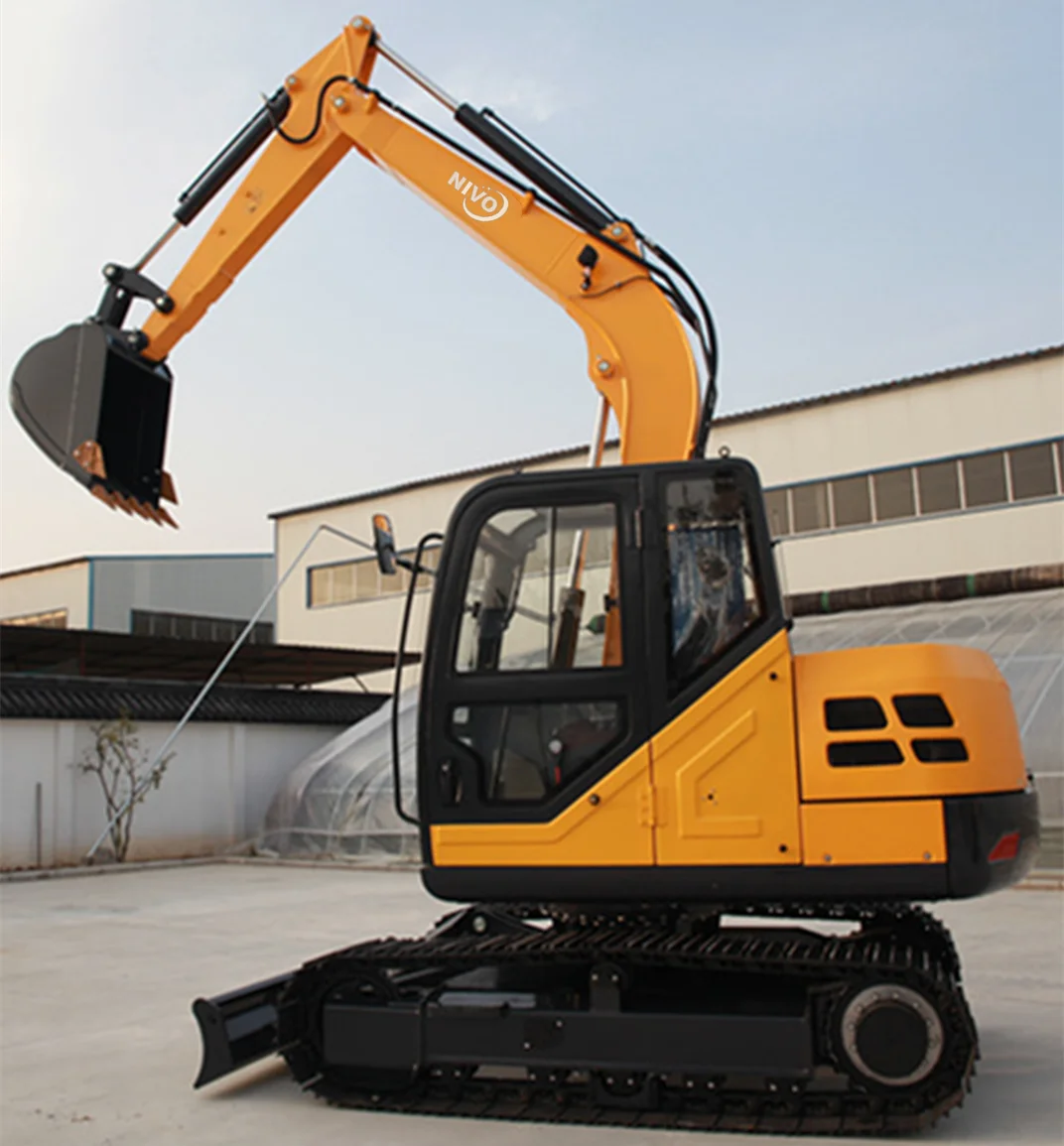

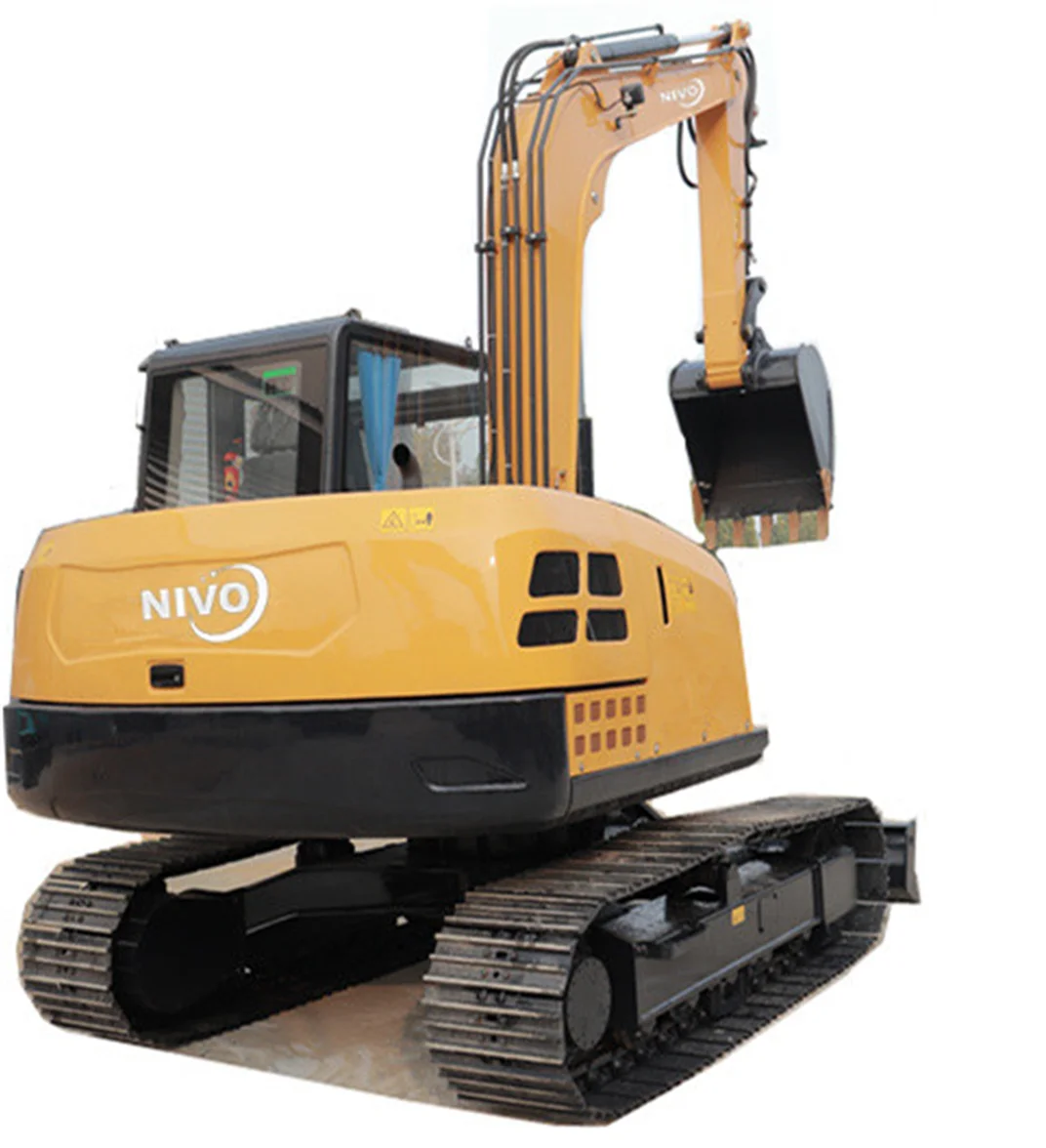

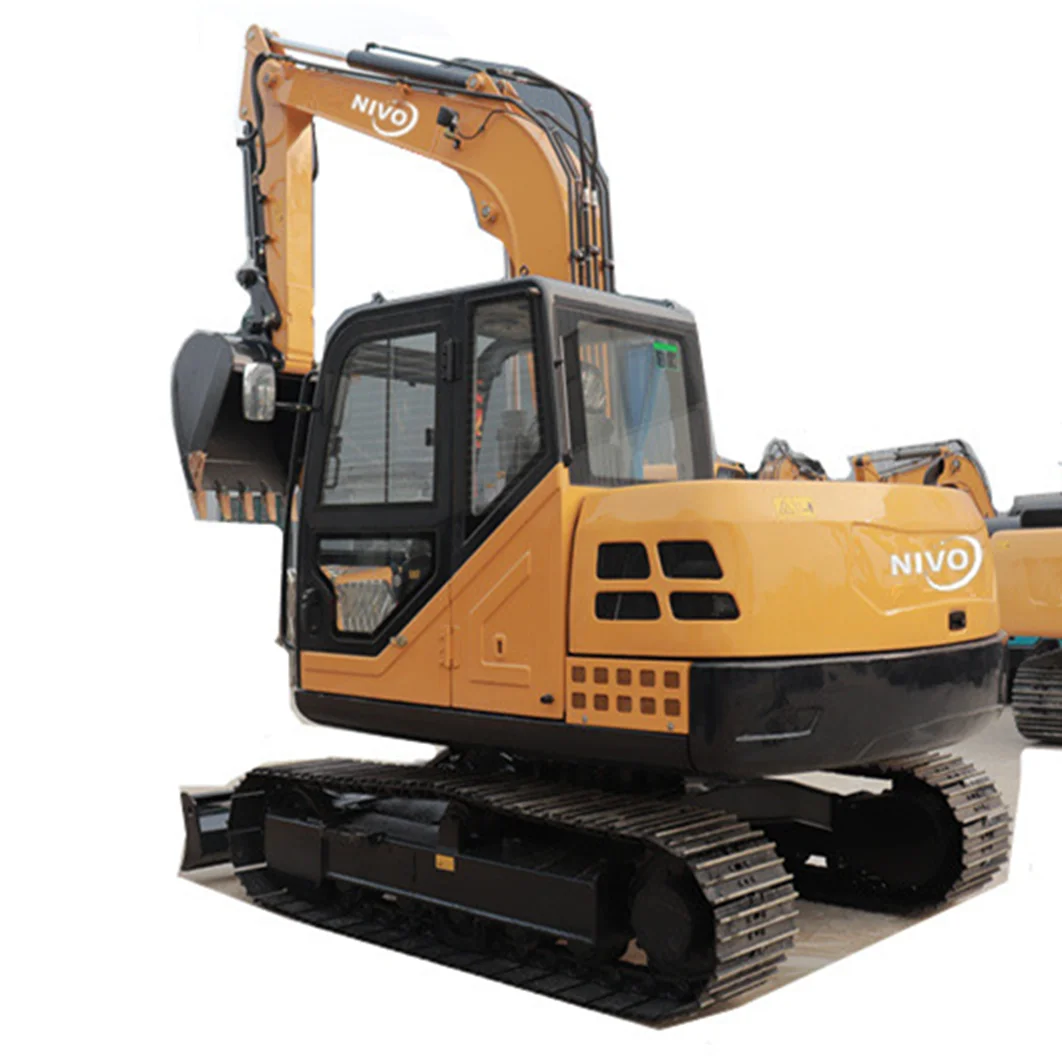

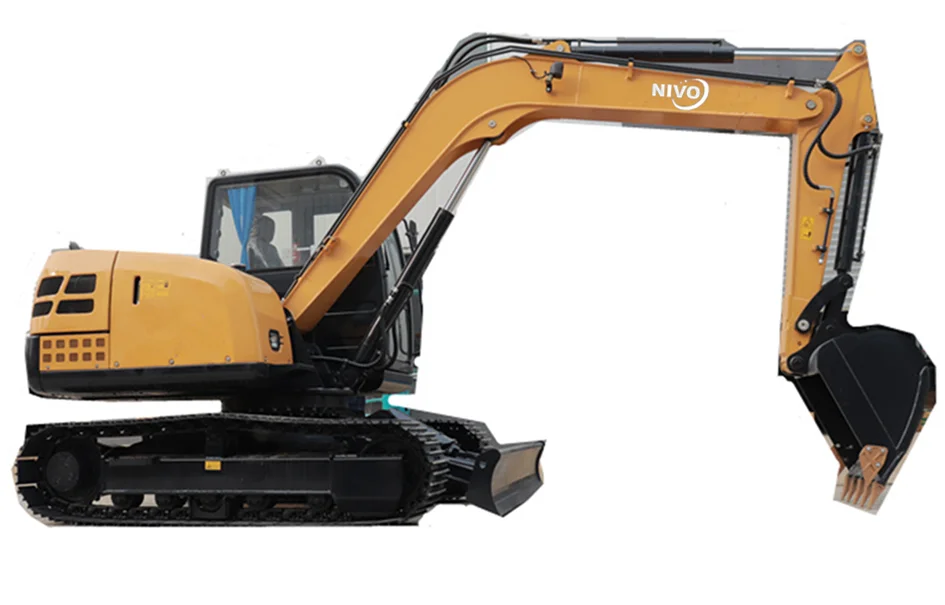

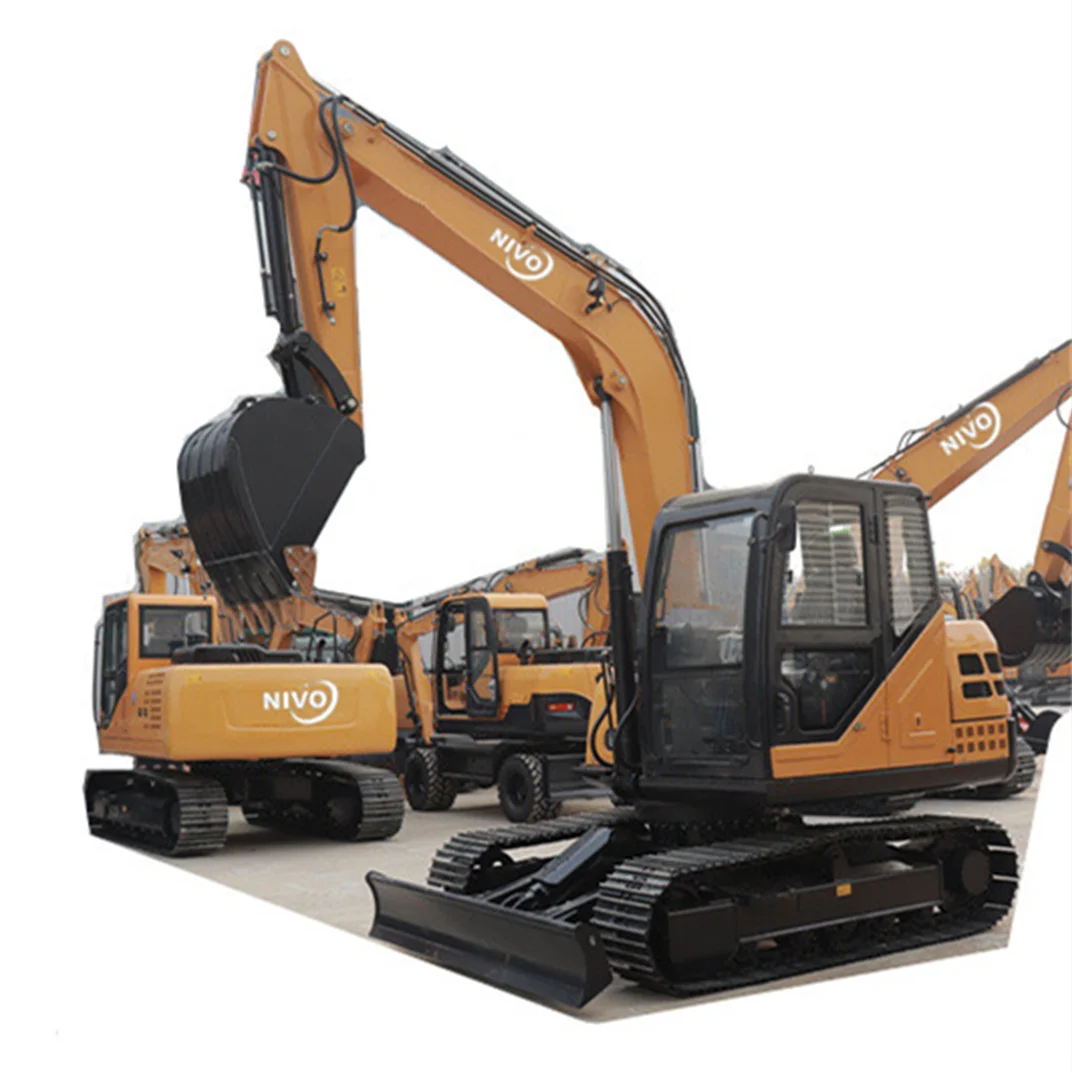

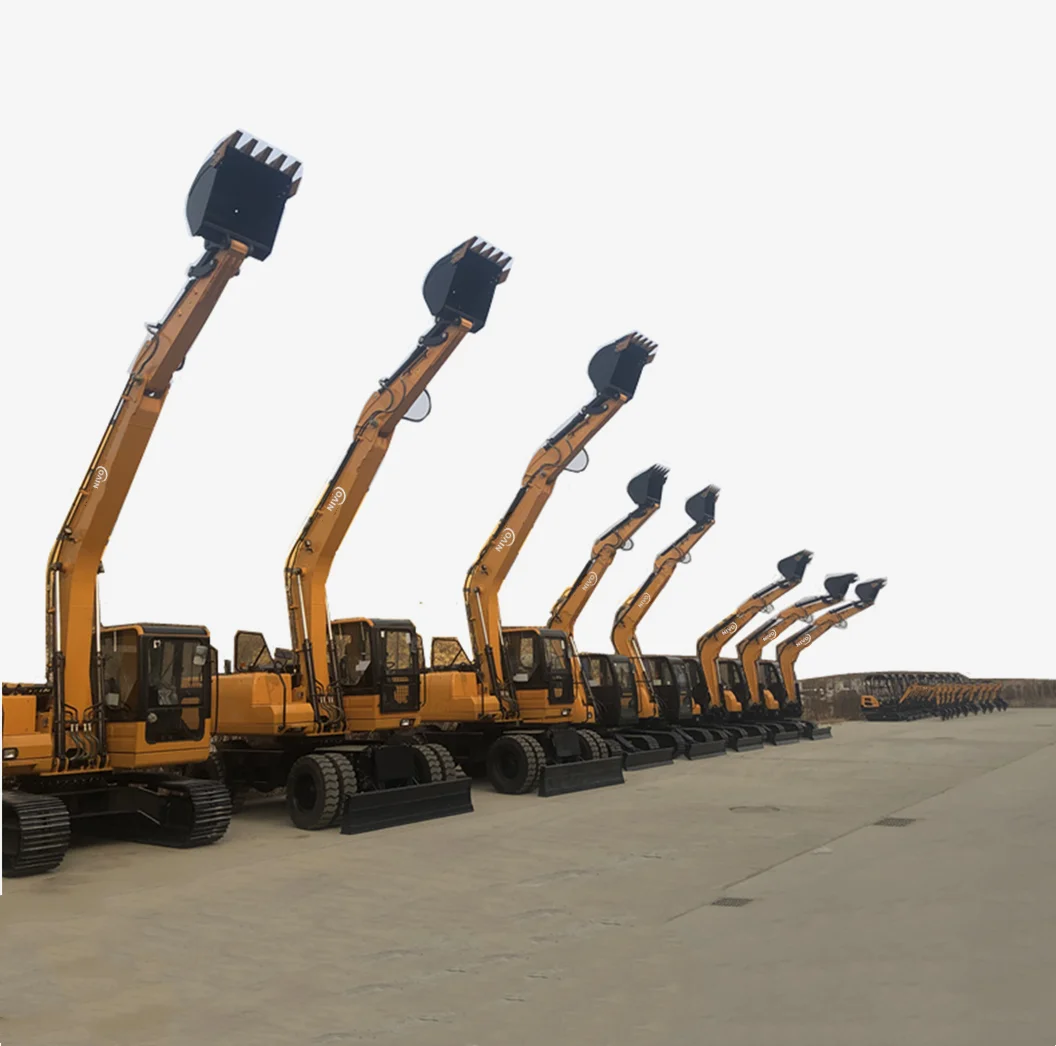

China NIVO High Quality Excavator 9 Ton Diggers hydraulic Crawler Excavators with cummins engine or parts
- Category: >>>
- Supplier: Nivo Machinery (jingjiang) Co. Ltd.
Share on (11000004485659):
Product Overview
Description
Product Description

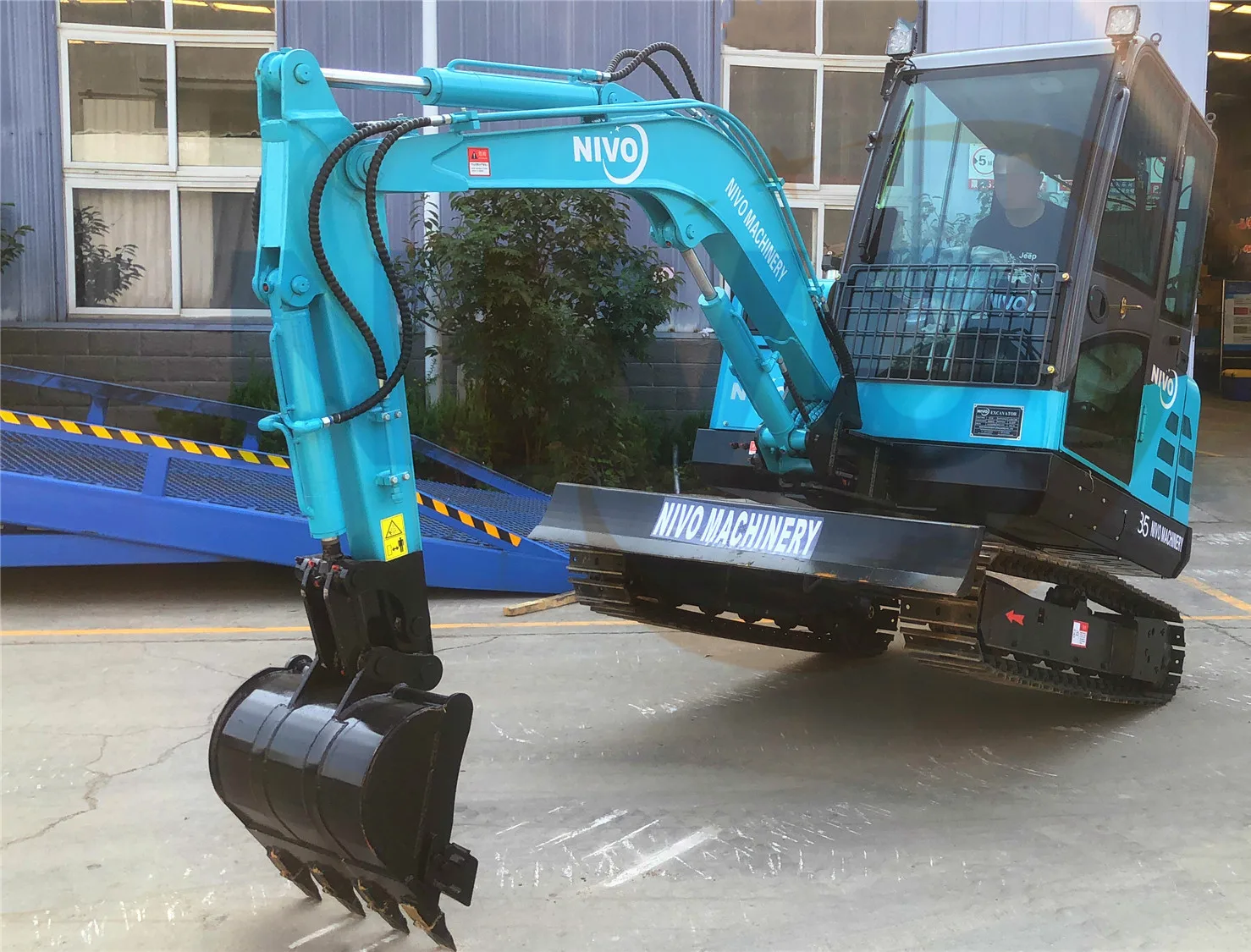

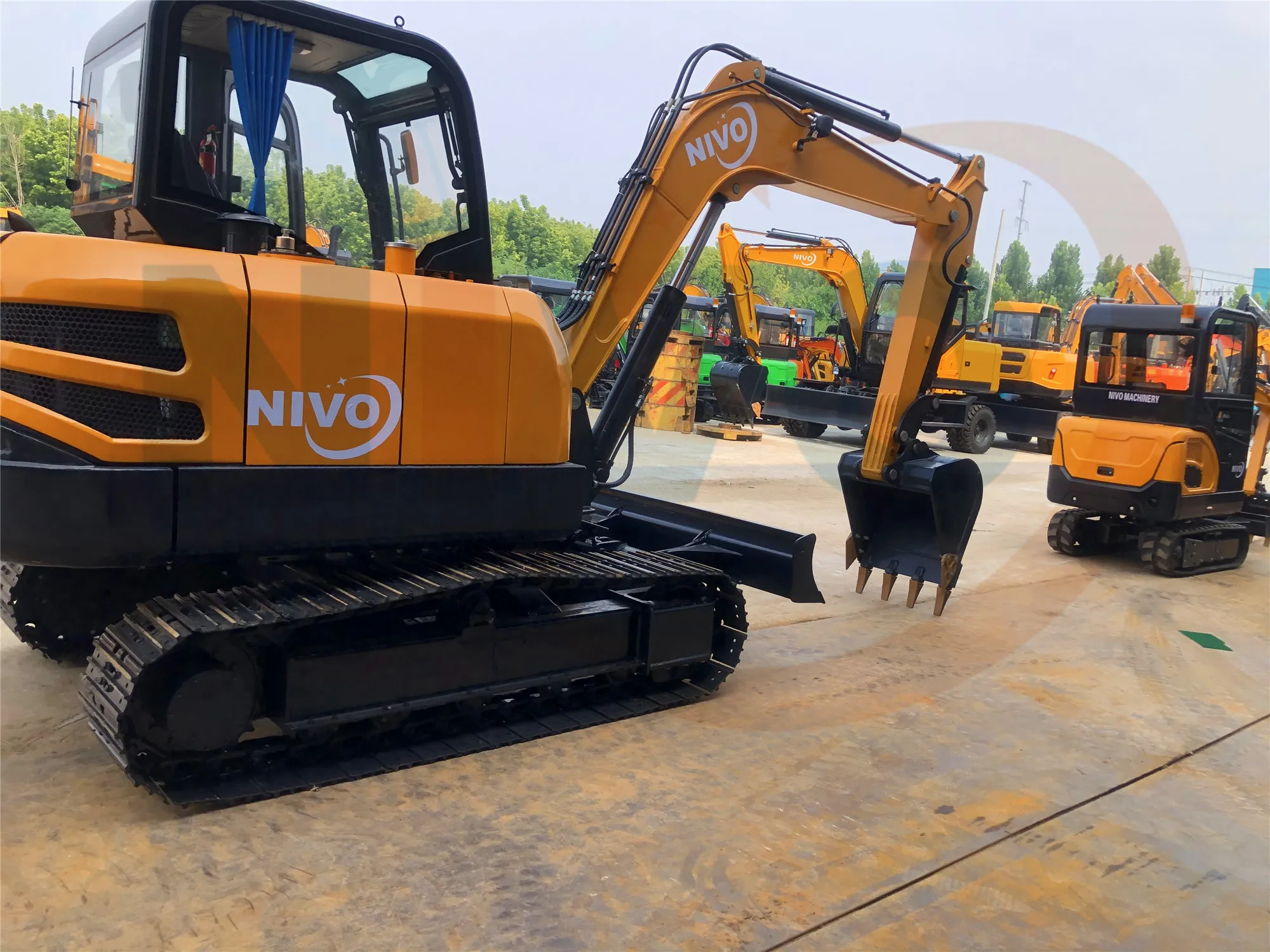

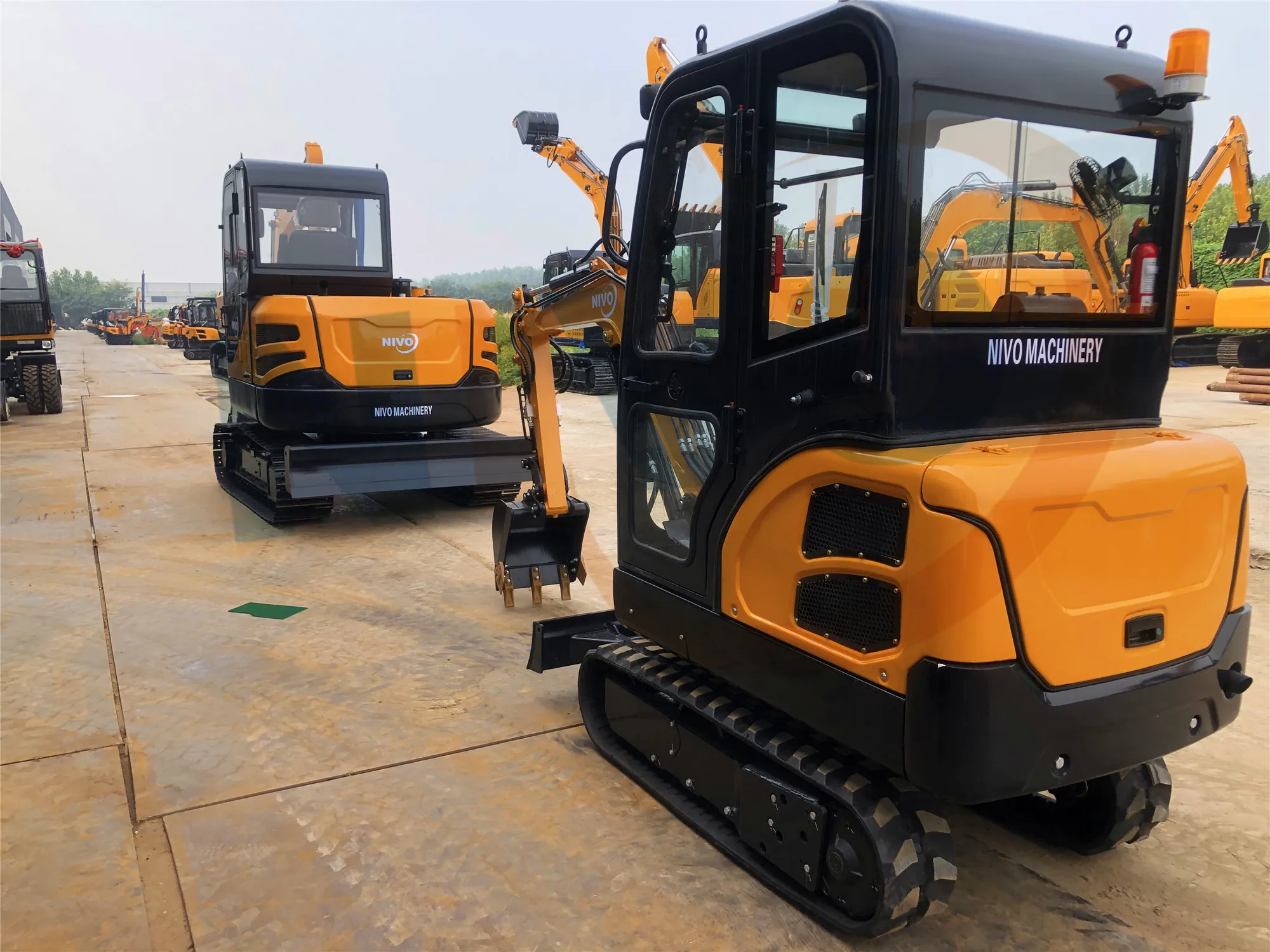

we have models from 800to 50ton can be optional
Specification
Engine | ||
Model | Cummins QSF2.8 | |
Type | Direct injection, water cooled, supercharge | |
Power | Kw/rpm | 53/2200 |
No. of cylinder | 4 | |
Operation Weight | KG | 9000 |
Bucket Capacity | m3 | 0.4 |
Max. Digging Radius | mm | 6540 |
Max. Digging Depth | mm | 4020 |
Max. Digging Height | mm | 7050 |
Max. Dumping Height | mm | 5190 |
Max. Dozer Cutting | mm | 350 |
Max. Dozer Lifting | mm | 370 |
Tail Swing Radius | mm | 1815 |
Swing Speed | r/min | 0-12 |
Traveling Speed | km/H | 2.8 |
Grade ability | % | 70(35°) |
Bucket Digging Force | kN | 60 |
Arm Digging Force | kN | 40 |
Mini Ground clearance | mm | 375 |
Track width | mm | 450 |
Undercarriage width | mm | 2200 |
Undercarriage ground clearance | mm | 800 |
Dimension | mm | 6400*2300*2700 |
Large excavators
21tons, 34tons...
Related Products
NE18
NE20
NE10
YVC135
YWE215
YVE70
PY130V Motor grader
NV504,NV904 Tractor
NV30-25 Backhoe loader
YNT1016H
NSP60
YNP9000
Road roller bulk export

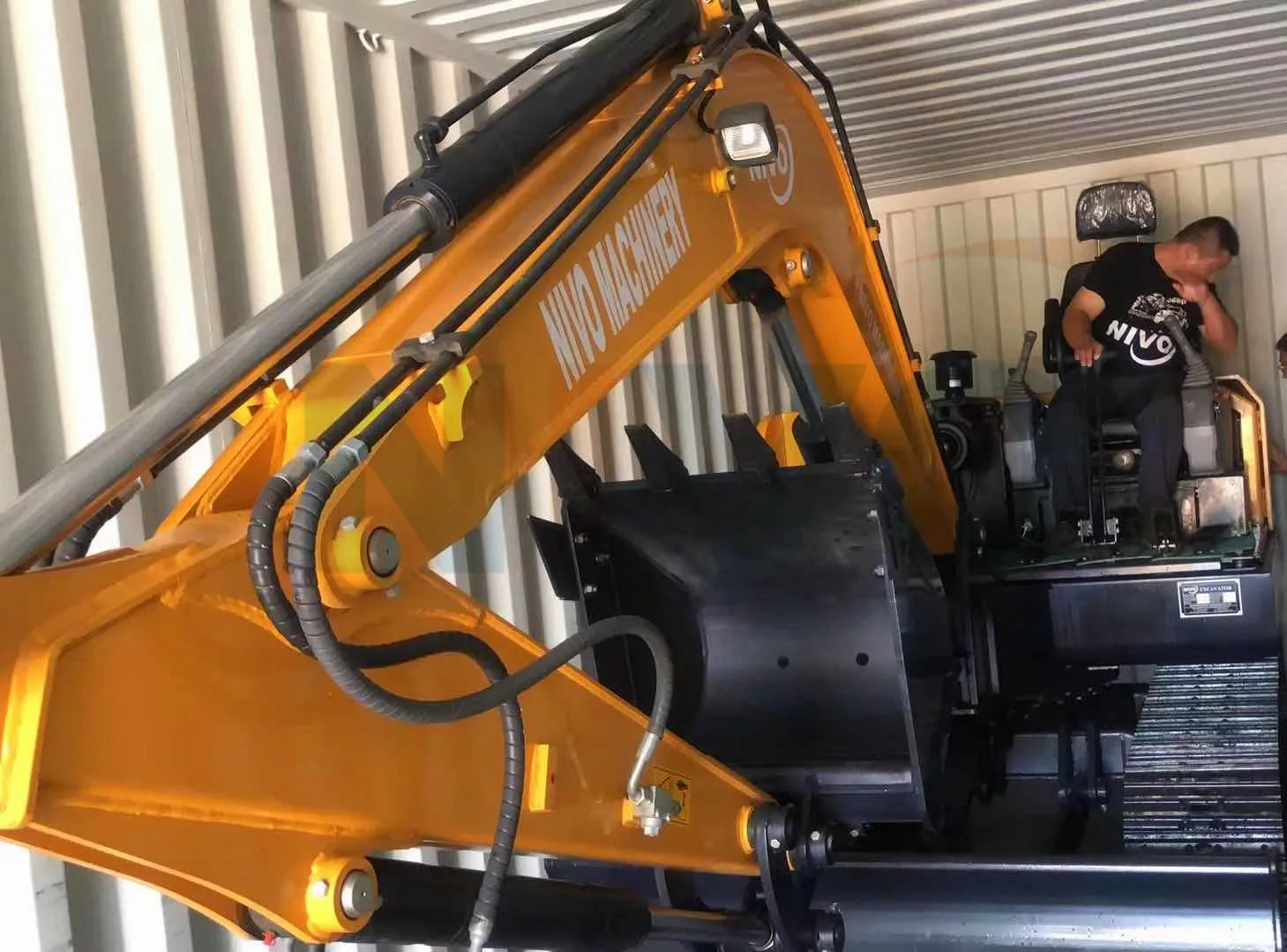

Bulk Export

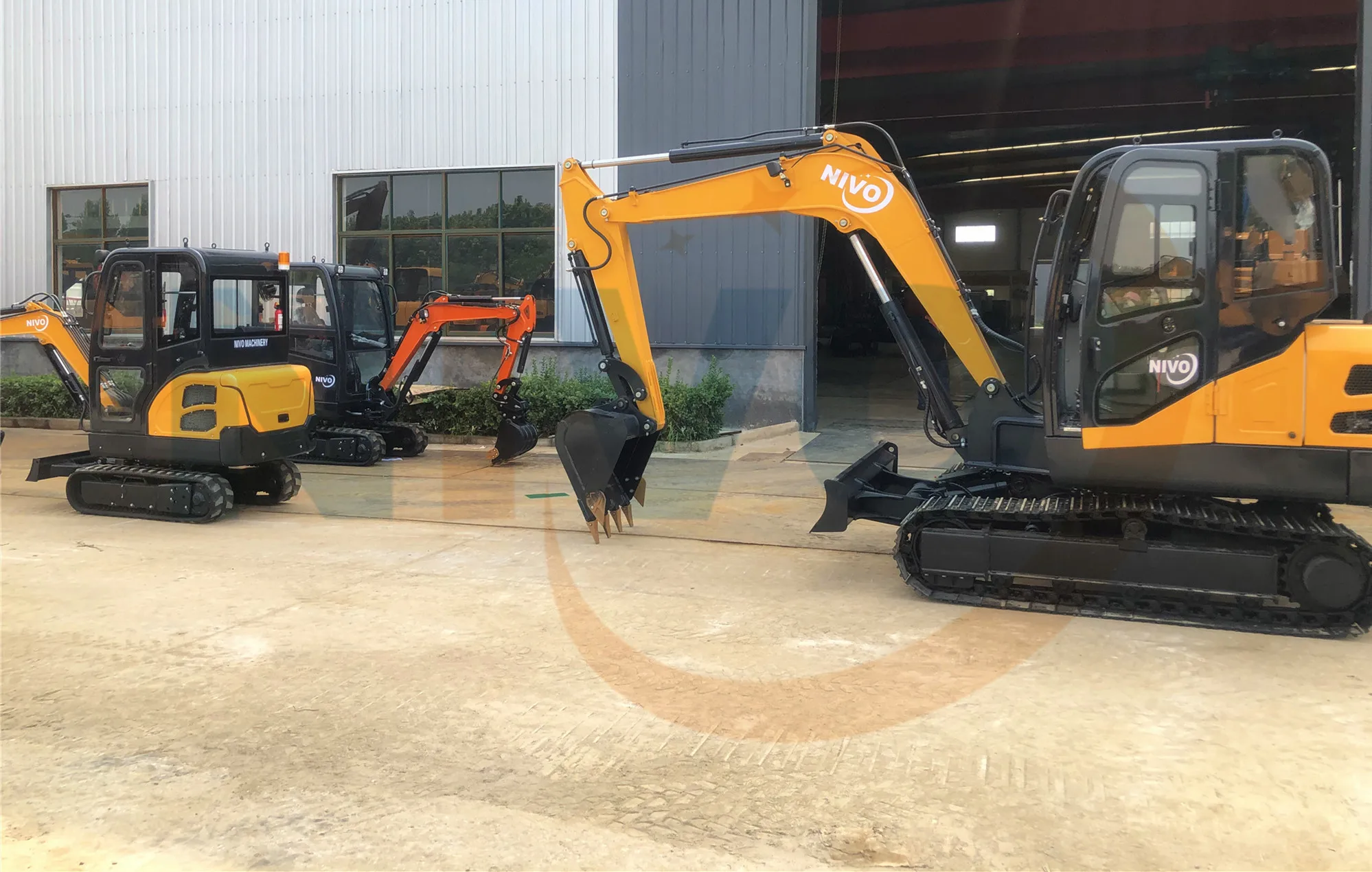

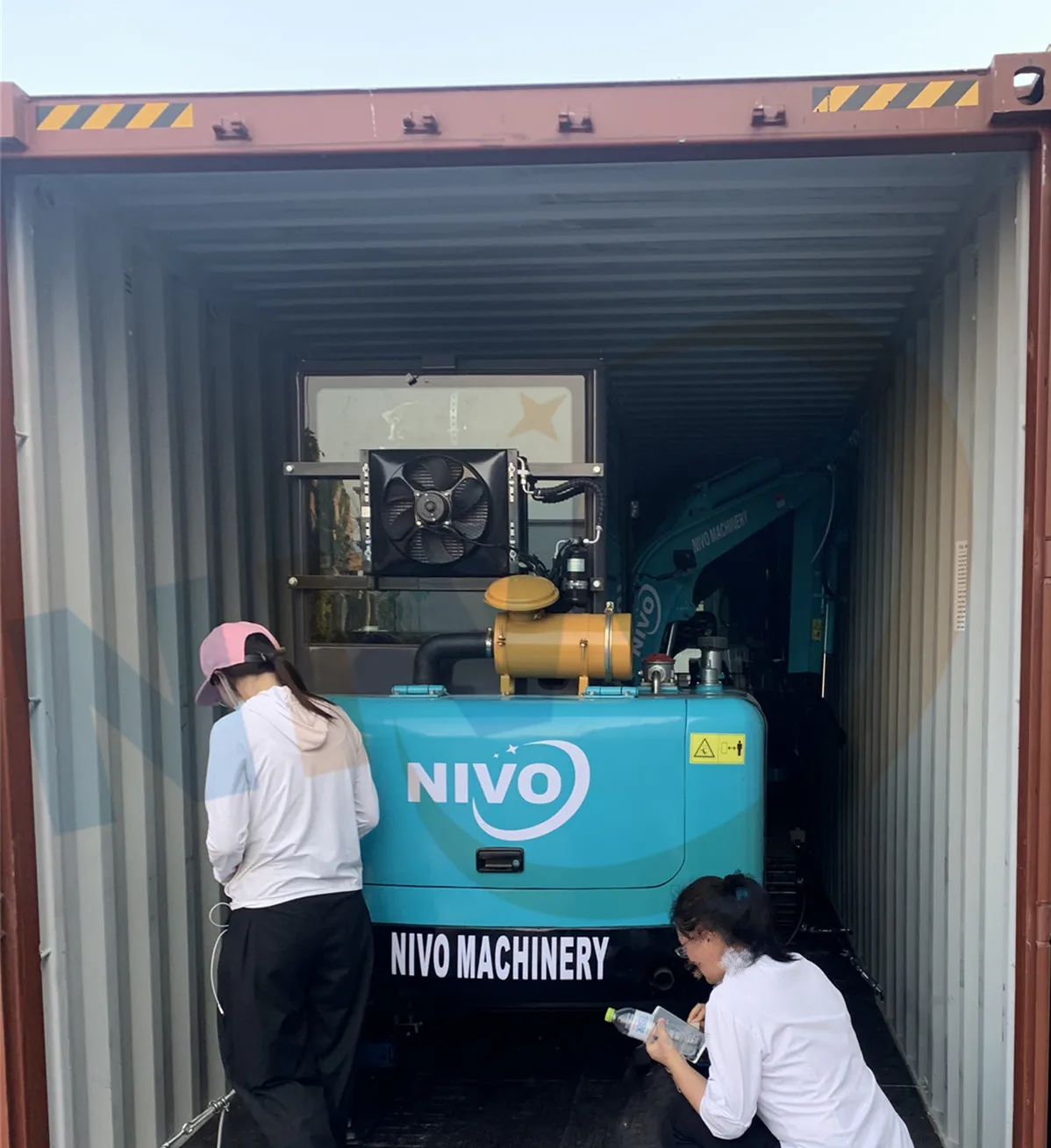

Delivery site

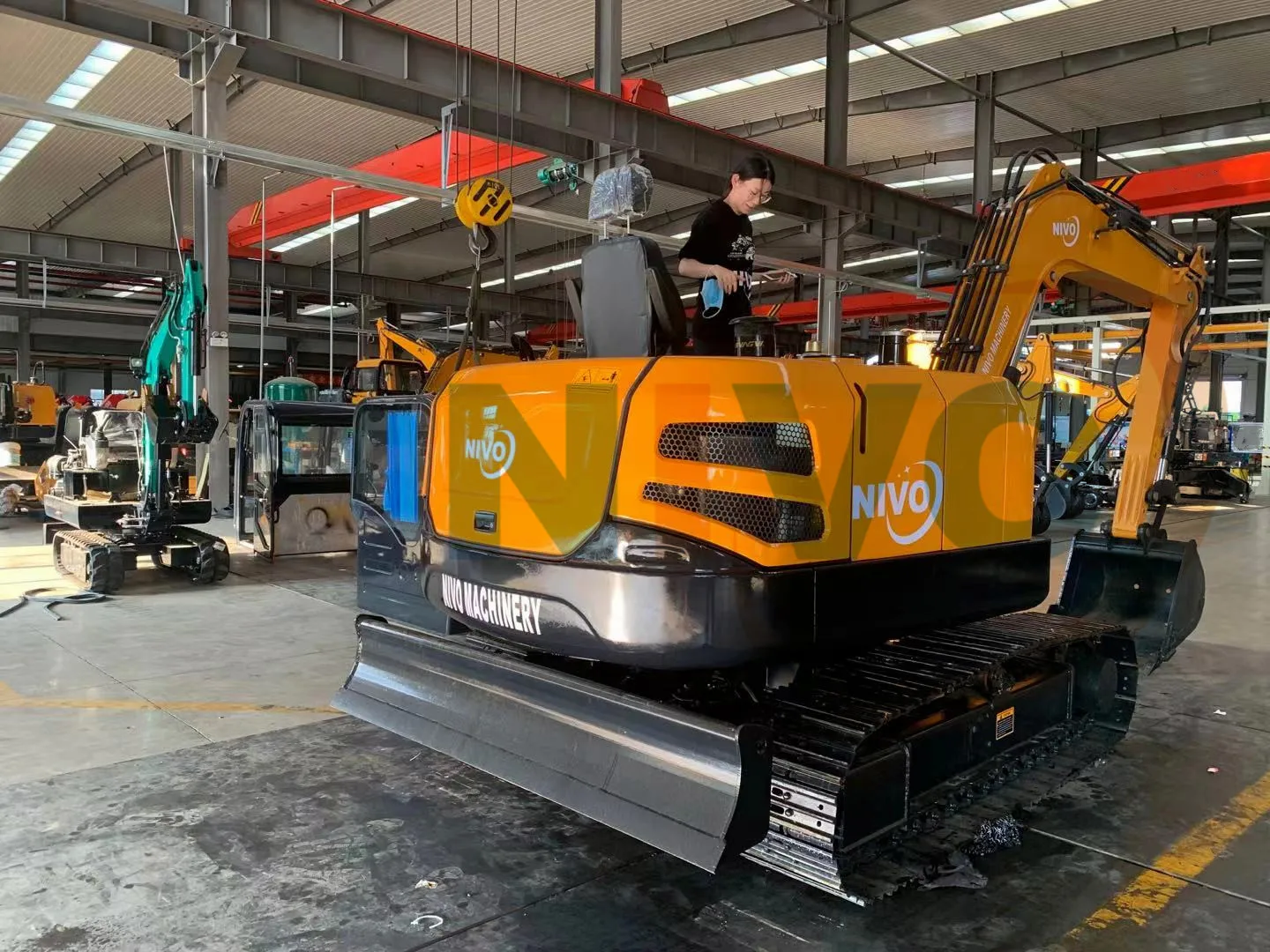

producing departments
Our Service
After-Sales Service details
Warranty
At NIVO,we provide 1year warranty for any machine of us. During the period of warranty, the defective part will be repaired or replaced free of charge, in case the defect of material or workmanship has occured with spare parts in normal operation at our discretion.Warranty
Spare parts
NIVO maintain an extensive and high quality spare parts inventory for every of our equipment. From the small bearing to the complex circuit board, world Equipment is committed to having all parts on hand to keep your project running. Welcome submit your spart parts request, list product name, model, equipment serial number, description of required parts.
Uptime Solutions
To expedite delivery time for our customers, booking of vessels are made way in advance; together with the production department to optimise resources with the extra hours involved in order to complete the production so as to be ahead of schedule.
Field Service
NIVO provides our customers with a single point of contact and accountability for product support from telephonic, e-mail and web-based inquiries to the dispatch of field engineers and technicians for on-site repairs.
Training
NIVO program adopts a competency-based training approach. Classroom teaching and hands-on practice-oriented training combine to enhance the learning of concepts and acquisition of technical skills. This will aid them in operating our machines, pick up, drill and upgrade their skills for proper operation, maintenance and breakdown repair.
