OTS New Style Laboratory Intelligent Salt Spray Corrosion Tester,Salt Fog Spray Test Chamber/salt spray device
- Category: >>>
- Supplier: Dongguan Xinbao Instrument Co. Ltd.
Share on (11000004830668):
Product Overview
Description
Products Description
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
Product Paramenters
Model | XB-OTS-60 | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 | ||||
Inner size (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x100x50 | ||||
External size(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x120x140 | 270x150x150 | ||||
Inside temp | Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method. | ||||||||
Brine temp | 35°C±1°C 50°C±1°C | ||||||||
Test chamber volume | 108L | 270L | 480L | 800L | 1440L | ||||
Brine chamber volume | 15L | 25L | 40L | 40L | 40L | ||||
Spray method | Programmable spray (including the continuous spray interrupted spray) | ||||||||
Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||||||
PH | 6.5~7.2 or 3.0~3.2 | ||||||||
Test room relative humidity | 85%RH or more | ||||||||
Compressed air pressure | 1.00±0.01kgf/cm2 | ||||||||

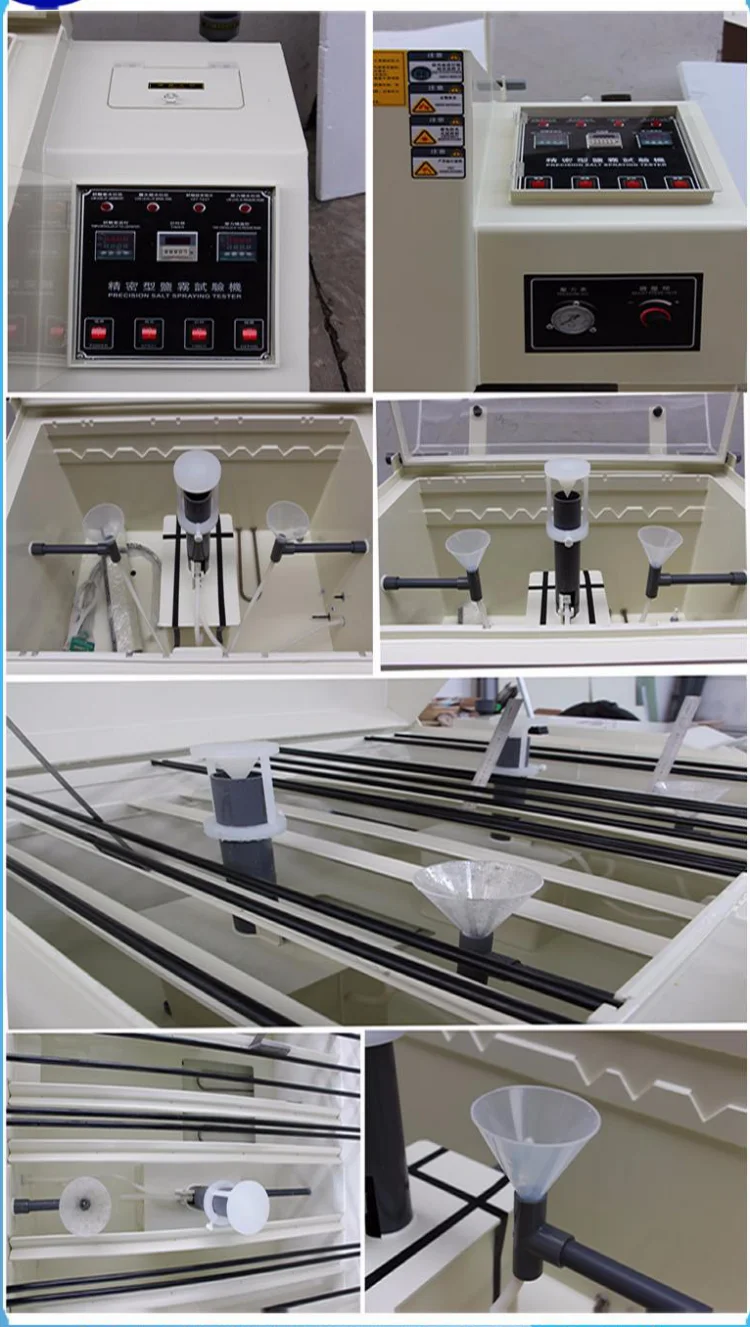

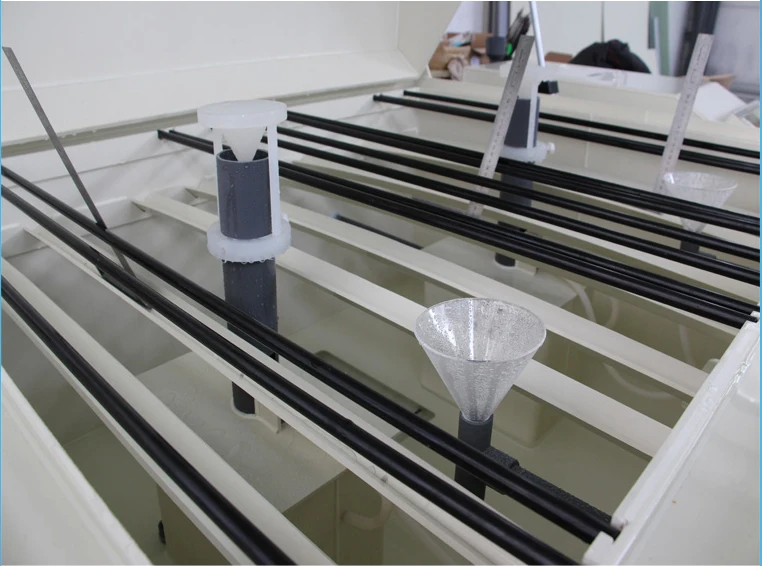

Details Images
Product packaging
Company Profile
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or sky video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
