Wire Joint Tubular Lugs Uninsulated Butt Splice Tinned Copper Long Barrel Compression Splices Butt Splicers
- Category: Terminals >>>
- Supplier: Jiangsu Maxdao Technology Limited
Share on (11000004897416):
Product Overview
Description
Product Description
Cable Lugs
Copper lug made of tin-plated copper.
These lugs are used for severe-duty applications and have thicker walls for greater strength and conductivity.
UL Listed and CSA certified.
Customized labels, color printing, size and so on.
These lugs are used for severe-duty applications and have thicker walls for greater strength and conductivity.
UL Listed and CSA certified.
Customized labels, color printing, size and so on.
Specification
Code Conductor, Long Barrel, Butt Splice

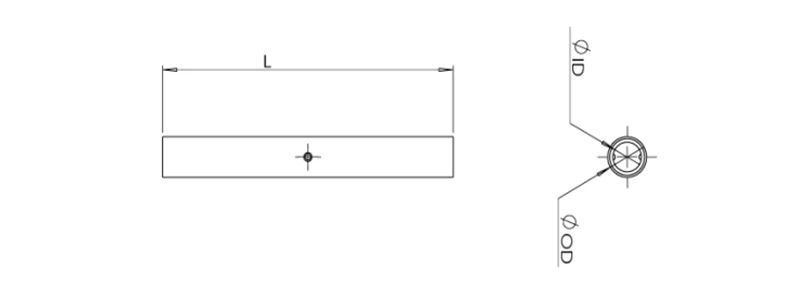

Over all length | Inner diameter | Outer diameter | ||||||
ITEM # | Part No# | DIE COLOR | WIRE SIZE | New L | New ID | New OD | ||
STR | mm² | ±0.06 | ±0.02 | ±0.02 | ||||
1 | MD8STR | RED | 8AWG | 10 | 2.0 | 0.18 | 0.27 | |
2 | MD6STR | BLUE | 6AWG | 16 | 2.29 | 0.22 | 0.31 | |
3 | MD4STR | GRAY | 4AWG | 25 | 2.86 | 0.28 | 0.38 | |
4 | MD2STR | BROWN | 2AWG | 38 | 2.99 | 0.31 | 0.42 | |
5 | MD1STR | GERRN | 1AWG | 50 | 3.07 | 0.36 | 0.47 | |
6 | MD1/0STR | PINK | 1/0AWG | 60 | 3.08 | 0.39 | 0.52 | |
7 | MD2/0STR | BLACK | 2/0AWG | 70 | 3.30 | 0.45 | 0.58 | |
8 | MD4/0STR | PULPLE | 4/0AWG | 120 | 3.57 | 0.55 | 0.71 | |

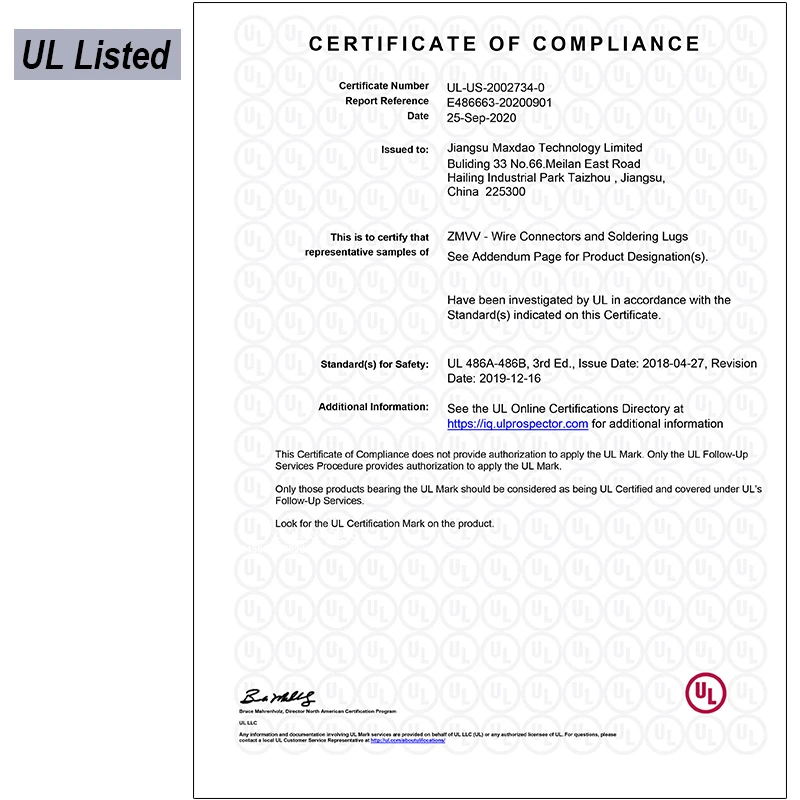

Product Certificates
UL
RoHS
Recommend Products
Company Profile
Build A Better World
Maxdao designs and manufactures telecom & electrical components to build a better world.

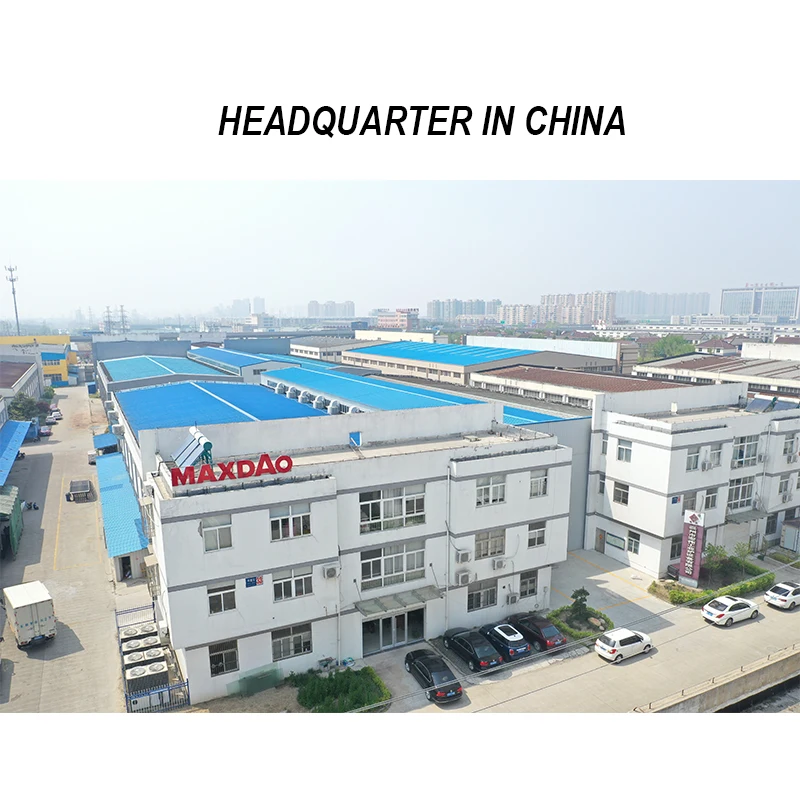

HEADQUARTER IN CHINA
33 Hailing Industrial Zone, Taizhou, Jiangsu 225300, China

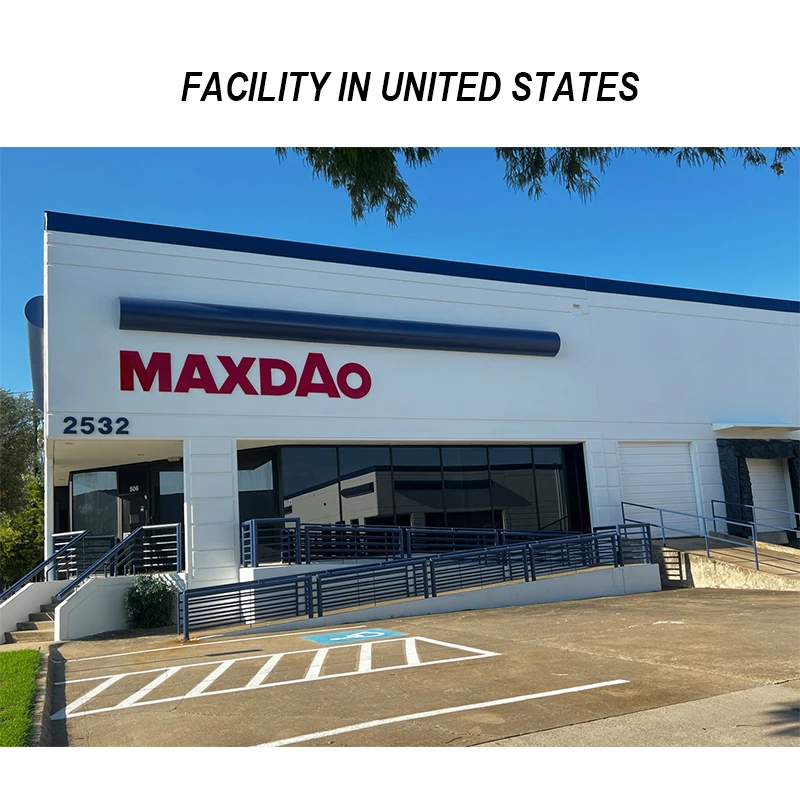

FACILITY IN UNITED STATES
2532 Summit Ave #506, Plano, TX 75074, USA
Workshop & Production Equipments
Maxdao design, manufacture, test the product in our self-owned 6000 square meters workshop.
100+ employees focus on their respective positions. 50+ sets of professional production equipment.

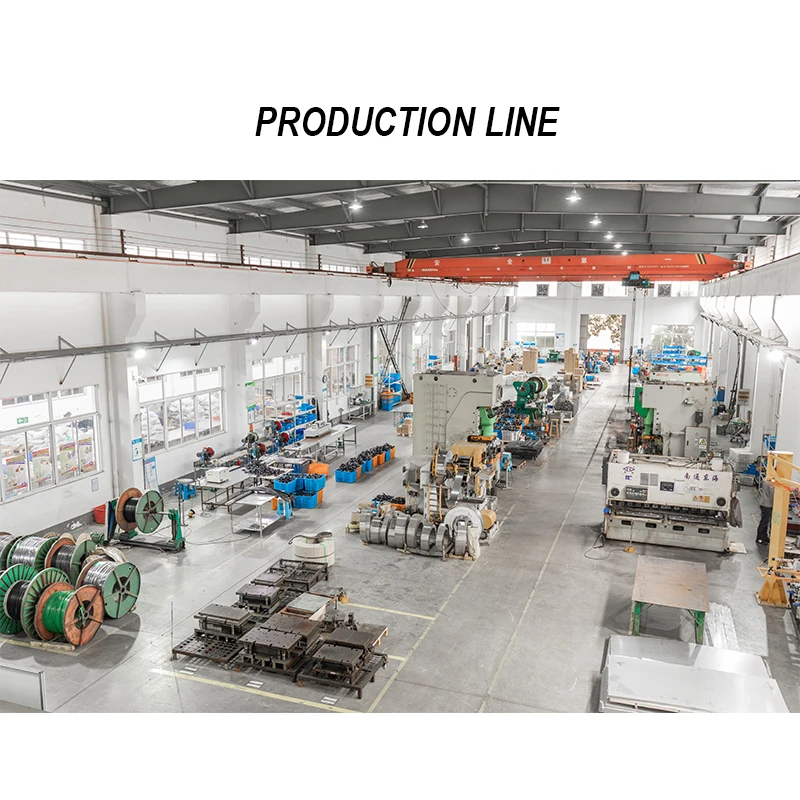

Production Line

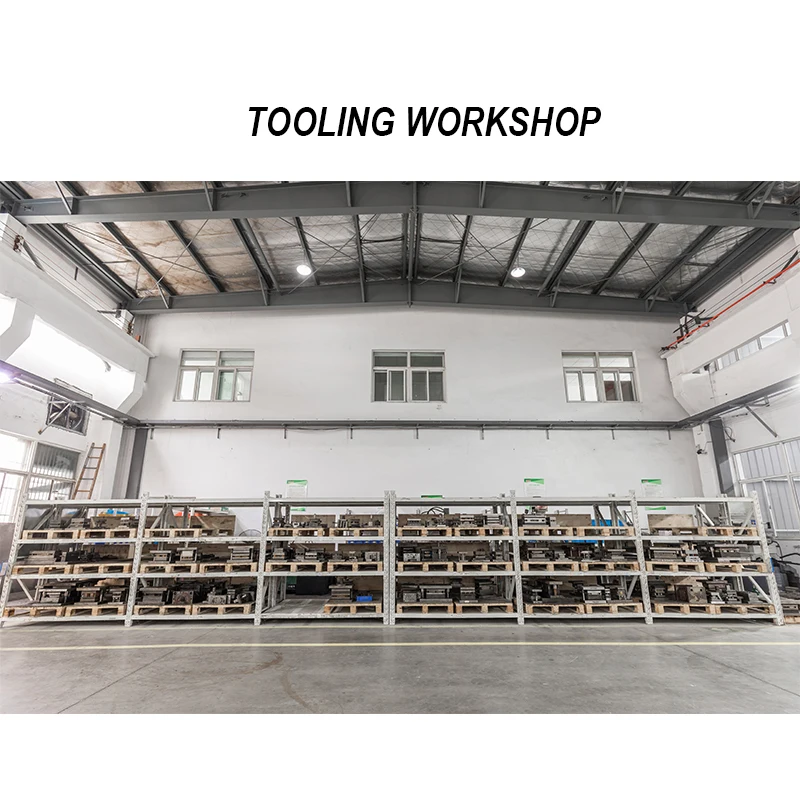

Tooling Workshop
Temperature & Humility Controlled Warehouse
R&D Offifice
Automatic Pressing Machine
Automatic Wire Cutting Machine
CNC
Automatic Cable Cutting & Stripping Machine
Testing Equipments
10+ Testing Equipments. 100+ Test Reports.
3D Printer
Salt Spray Test
Pulling Test
UV Test
High/Low-Temprature Test
Vibration Test
Certifications
13+ Patents. 6+ UL & CE Certificates. 3+ ISO Certificates.
Patents
ISO9001/ISO14001/ISO45001
UL/CE/RoHS/SGS
