Водонепроницаемое уплотнение, среднее припой, Стыковая Клемма, уплотнение для пайки, термоусадочный стыковой соединитель
- Category: Terminals >>>
- Supplier: Wenzhou,Puzhu,Electrical,Technology,Co.,Ltd.
Share on:
Product Overview
Description

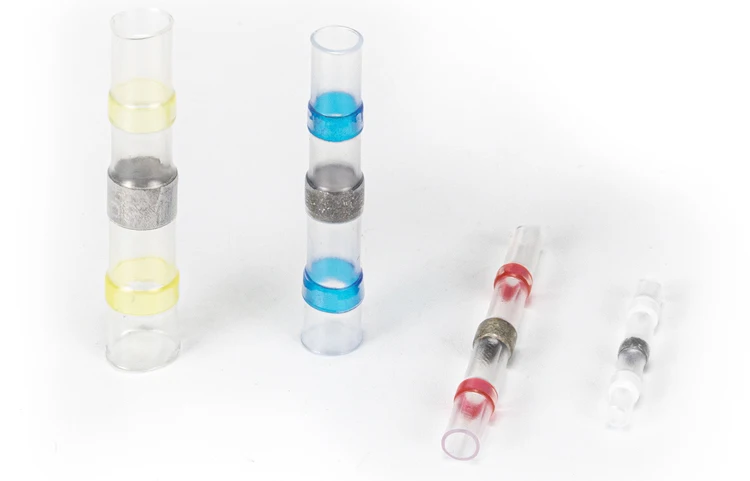

Waterproof seal middle solder ring butt terminal solder seal heat shrink butt wire connector
Related
 |  |  |  |  |
 |  |  |  |  |
| Item type | Heat Shrink Solder Connectors |
| Minimum temperature for solder to melt | 138°C |
| Minimum shrink temperature | 80°C |
| Operating temperature | -55℃ - 125℃ |
| Shrink temperature | >160℃ |
| Dielectric strength | 1kv |
| Protection class | IP 67 |
| Color | White/Red/Blue/Yellow |
| Application | Wire connection |
 | ||||
 | Heat shrinkable sleeve |  | Low temperature solder ring |  |
 | ||||

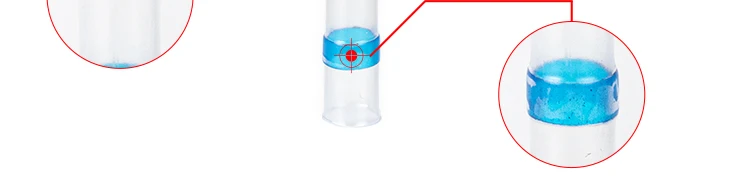

 | Waterproof hot melt adhesive |  | ||
 | ||||
Length(mm) | Threading hole diameter | Cable Size | Color |
26  | Φ1.7 | 0.25-0.5mm² 24-20AWG | White |
40  | Φ2.7 | 0.5-1.5mm² 20-16AWG | Red |
40  | Φ4.5 | 1.5-2.5mm² 16-14AWG | Blue |
40  | Φ6.0 | 4-6mm² 12-10AWG | Yellow |
