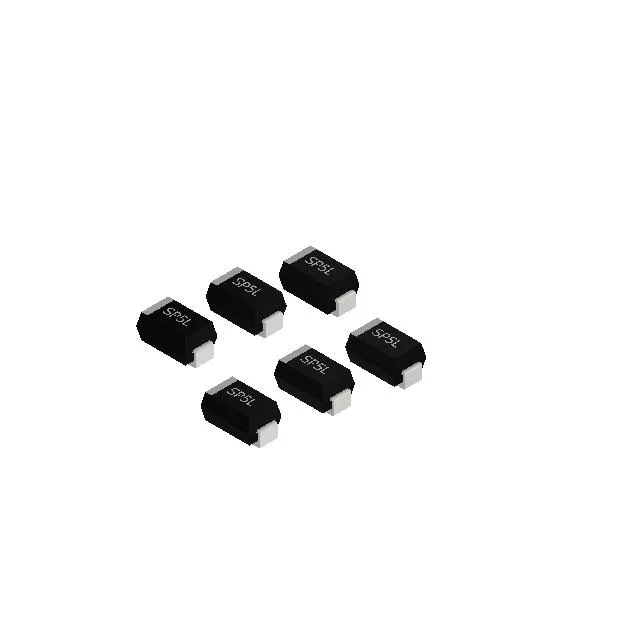

270mA 5KV High Voltage Surface Mount Diode SP5L
- Category: Diodes >>>
- Supplier: Yangxin Huantai Technology Co. Ltd.
Share on (11000004921354):
Product Overview
Description
Product Description
▼High Voltage Surface Mount Diode
Type | Repetitive peak reverse voltage | Average forward current | Surge(Non-repetitive) forward current | Peak reverse current(Ta=25°C) | Peak forward voltage | Reverse recovery time | Size |
VRRM | IF | IFSM | IRRM | VFM | trr | ||
KV | mA | A | µA | V | ns | mm | |
MT08 | 8 | 5 | 0.5 | 0.1 | 25 | 80 | 4x2.6x2.2 |
MT0850 | 8 | 50 | 3 | 0.1 | 15 | 80 | 4x2.6x2.2 |
MT5L/SP5L | 5 | 270 | 10 | 0.1 | 14 | 75 | 4x2.6x2.2 |
▼Features
● High reliability
● High speed switching
● Surface corrosion resistance
● High surge resisitivity for CRT discharge
▼Applications
● X light Power supply
● Laser
● Voltage dubler circuit
● Microwave emission power
● Laser
● Voltage dubler circuit
● Microwave emission power
