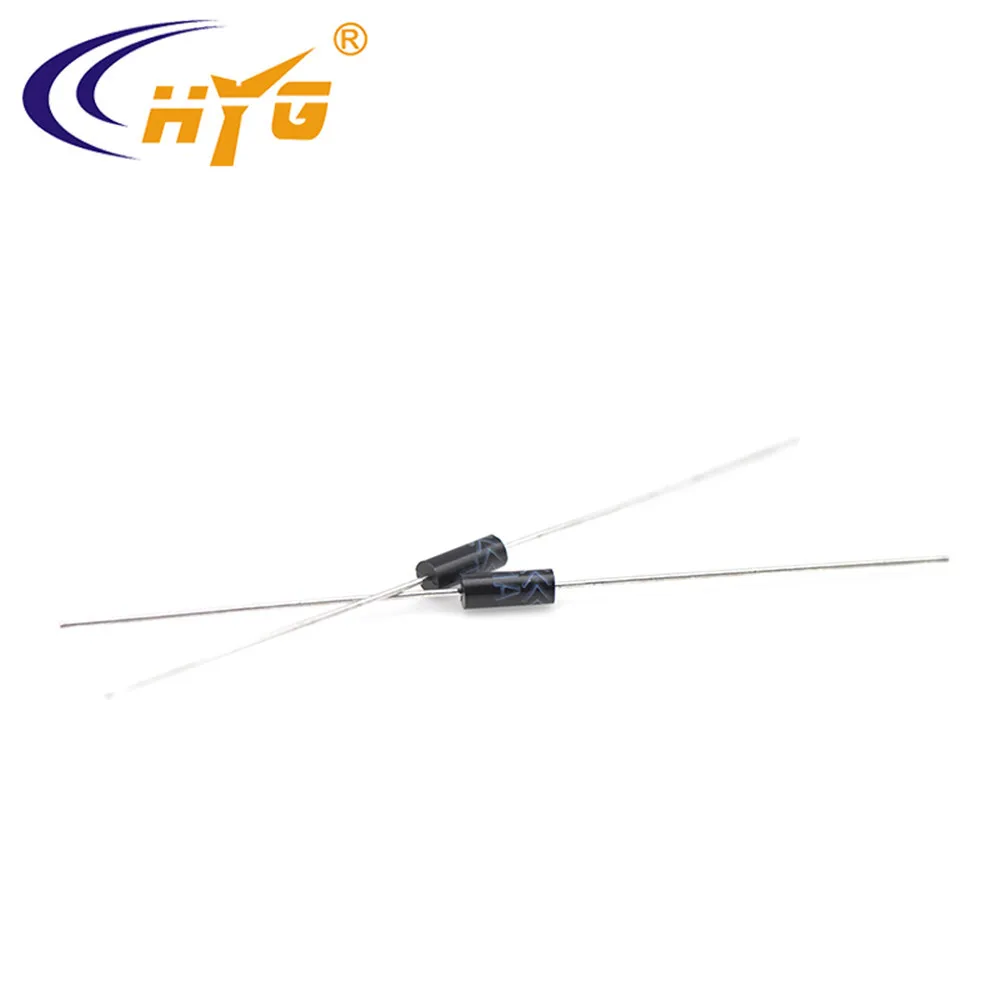

2CL73A High voltage and high frequency silicon reactor Diodes 12KV 5MA High Voltage 2CL73 fast recovery diodes (60755641940)

Share on:


Price:$42.91 - $44.78
Price in USD:Details

Quantity:


Product Overview

Description


2CL73A High voltage and high frequency silicon reactor Diodes 12KV 5MA High Voltage fast 2CL73 recovery diodes



Popular products




Picture Show


2CL73A HYG (2)2CL73A HYG (3)2CL73A-2








Product Description







Specification:

























2CL73A
Plastic Fast Recover High Voltage RectifierReverse Voltage 12KV
Forward Current 5mA

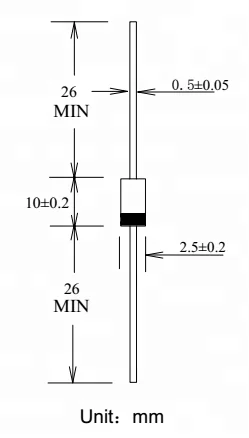

Features2CL73A-1


  • Supersmall size

  • High reliability

  • High speed switching

  • RoHS corresponding products


Purpose


  • Rectification for high voltage power supply of color T.V.

  • Rectification for high voltage power supply of CRT display

  • Air Cleaner

  • Others

















































































Maximum Ratings Thermal Characteristics & Electrical Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified
CHARACTERISTICSSYMBOL2CL73AUNITS
Repetitive Peak Reverse VoltageVRRM12V
Average Forward CurrentIF(AV)5
(50HZ half-sine wave,Resistance load Ta=25℃)
V
Non-Repetitive Forward Surge CurrentIFSM0.5
(50HZ half-sine wave,1/2 cycle, Ta = 25 ℃)
V
Ambient TemperatureTamb"-40 to +100
Maximum Junction TemperatureT(VJ)120A
 Storage TemperatureTSTG"-40 to +120V
 Forward  Voltage Drop
IF =10mA
VF37.5μA

Normal Temperature


Reverse Current VR=VRRM


IRM12mA
High Temperature Reverse Current
TA=100℃ VR=VRRM
IRM25
Reverse Recovery Time
IF =2mA,Irp=4mA
1mA recovery
Trr100




2CL73A-2
