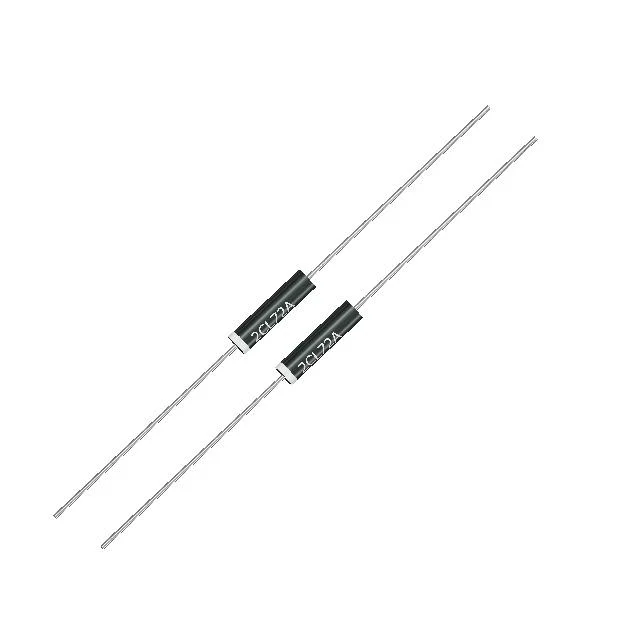

10mA/5mA 10KV Fast Recovery High Voltage Diode 2CL72A
- Category: Diodes >>>
- Supplier: Yangxin Huantai Technology Co. Ltd.
Share on (11000005074438):
Product Overview
Description
Product Description

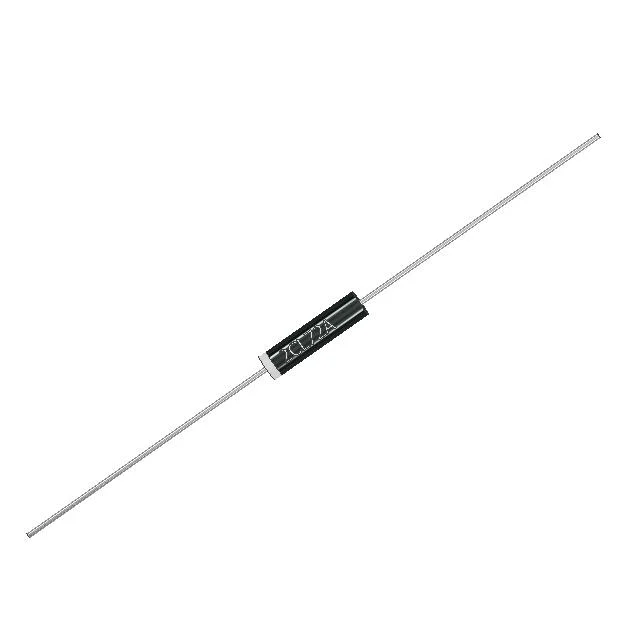

▼Fast Recovery High Voltage Diode
2CL72A
Type | Repetitive peak reverse voltage | Average forward current | Surge(Non-repetitive) forward current | Peak reverse current(Ta=25°C) | Peak forward voltage | Reverse recovery time | Size |
VRRM | IF | IFSM | IRRM | VFM | trr | ||
KV | mA | A | µA | V | ns | mm | |
2CL70A | 6 | 5/10 | 0.5 | 2 | 20 | 80 | ∅2.5x6.5 |
2CL71A | 8 | 5/10 | 25 | ∅2.5x6.5 | |||
2CL72A | 10 | 5/10 | 32 | ∅2.5x10.0 | |||
2CL73A | 12 | 5/10 | 35 | ∅2.5x12.0 | |||
2CL74A | 14 | 5/10 | 40 | ∅2.5x12.0 | |||
2CL75A | 16 | 5/10 | 45 | ∅2.5x12.0 |
▼Features
● High reliability
● High speed switching
● Surface corrosion resistance
● High surge resisitivity for CRT discharge
▼Applications
● X light Power supply
● Laser
● Voltage dubler circuit
● Microwave emission power
● Laser
● Voltage dubler circuit
● Microwave emission power
More Products
Certifications
Company Profile
Yangxin Huantai Technology Co., Ltd. The company's main products include power device chip, a full series of high frequency high voltage diode, high voltage rectifier bridge. Accept the customization of various high-voltage components.
The company covers an area of 40,000 square meters, with 120 employees, including 12 R & D engineers and 8 quality engineers.
The company has been carrying out technical cooperation with universities and professionals. At present, it carries out Industry-University-Research cooperation around chip, package testingand process automation equipmentwith Jiangsu University, Fudan University and University of Electronic Science and Technology of China, targeting at new applications and miniaturization of high-frequency high-voltage diodes.
We now hold 6 production lines of different models.It has a monthly production of 600 million pieces including various high-frequency high-voltage diodes high- voltage rectifier bridges. The market share has reached 43%.
The application areas of the product are as follows: high-frequency electrostatic dust-removal, negative ion generator , medical X-ray machine, high-frequency high-voltage test power supply, microwave energy application, etc.
The company covers an area of 40,000 square meters, with 120 employees, including 12 R & D engineers and 8 quality engineers.
The company has been carrying out technical cooperation with universities and professionals. At present, it carries out Industry-University-Research cooperation around chip, package testingand process automation equipmentwith Jiangsu University, Fudan University and University of Electronic Science and Technology of China, targeting at new applications and miniaturization of high-frequency high-voltage diodes.
We now hold 6 production lines of different models.It has a monthly production of 600 million pieces including various high-frequency high-voltage diodes high- voltage rectifier bridges. The market share has reached 43%.
The application areas of the product are as follows: high-frequency electrostatic dust-removal, negative ion generator , medical X-ray machine, high-frequency high-voltage test power supply, microwave energy application, etc.
The specifications of high-frequency and high-voltage diodes and high- voltage rectifier bridges are as follows:
Operating Voltage: 3KV to 1000KV
Operating current: 1mA-100A
Operating Frequency: 50HZ-200KHZ
We have all kinds of reliable inspection equipment. Ensure the high quality of the product
We are looking forward to cooperating with you!
Operating current: 1mA-100A
Operating Frequency: 50HZ-200KHZ
We have all kinds of reliable inspection equipment. Ensure the high quality of the product
We are looking forward to cooperating with you!

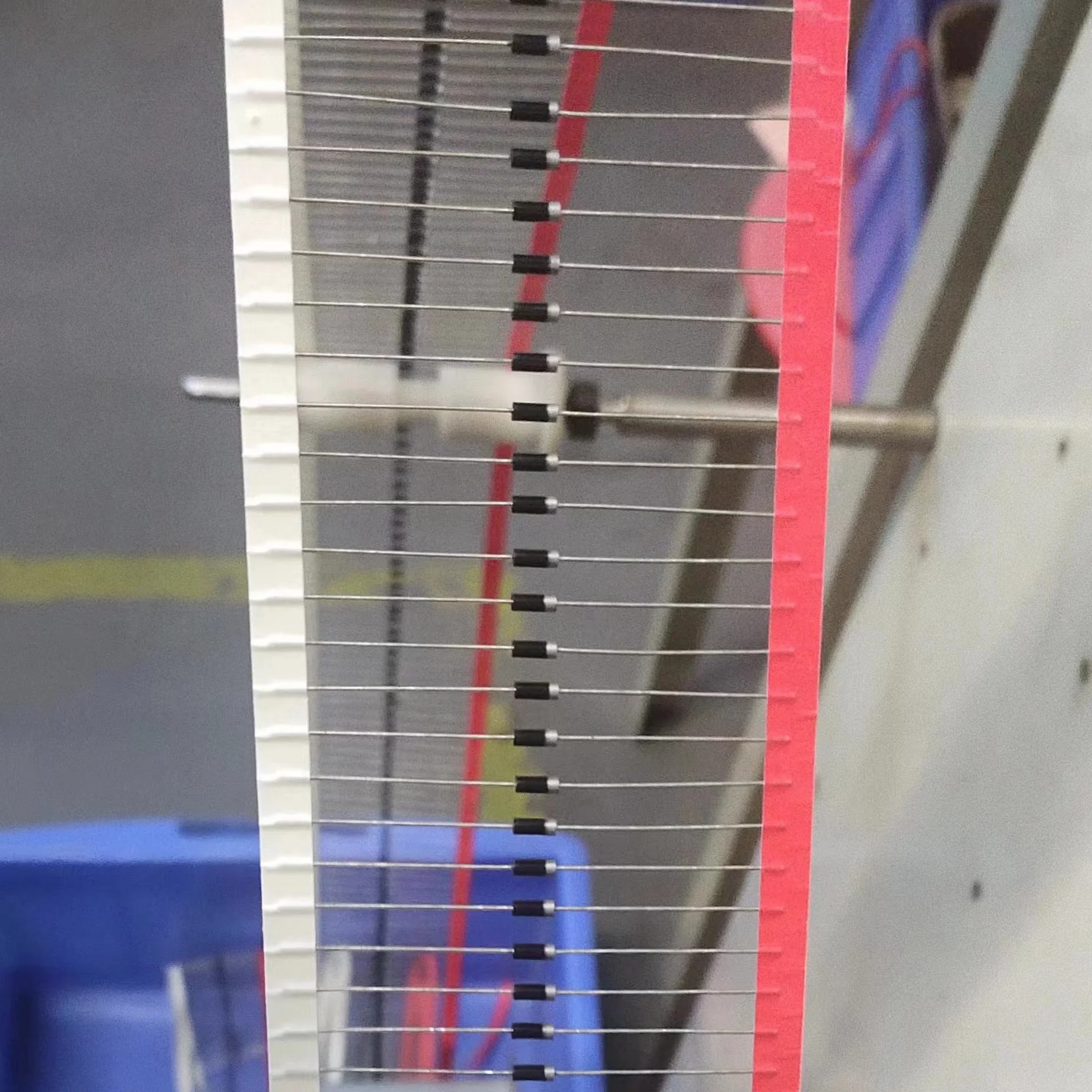

Packing & Delivery
● Regular packaging or custom packaging according to customized requirements
● We will recommend the most suitable shipping method based on your order quantity
