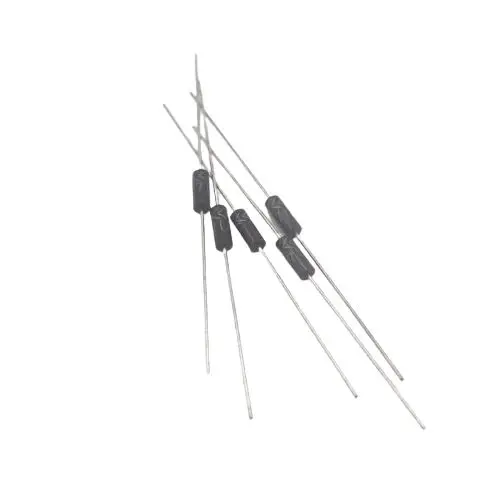

5mA 8KV Fast Recovery High Voltage Diode 2CL71A
- Category: Diodes >>>
- Supplier: Yangxin Huantai Technology Co. Ltd.
Share on (11000005507218):
Product Overview
Description
Product Description
▼Fast Recovery High Voltage Diode
2CL70A
Type | Repetitive peak reverse voltage | Average forward current | Surge(Non-repetitive) forward current | Peak reverse current(Ta=25°C) | Peak forward voltage | Reverse recovery time | Size |
VRRM | IF | IFSM | IRRM | VFM | trr | ||
KV | mA | A | µA | V | ns | mm | |
2CL70A | 6 | 5/10 | 0.5 | 2 | 20 | 80 | ∅2.5x6.5 |
2CL71A | 8 | 5/10 | 25 | ∅2.5x6.5 | |||
2CL72A | 10 | 5/10 | 32 | ∅2.5x10.0 | |||
2CL73A | 12 | 5/10 | 35 | ∅2.5x12.0 | |||
2CL74A | 14 | 5/10 | 40 | ∅2.5x12.0 | |||
2CL75A | 16 | 5/10 | 45 | ∅2.5x12.0 |
▼Features
● High reliability
● High speed switching
● Surface corrosion resistance
● High surge resisitivity for CRT discharge
▼Applications
● X light Power supply
● Laser
● Voltage dubler circuit
● Microwave emission power
● Laser
● Voltage dubler circuit
● Microwave emission power
More Products

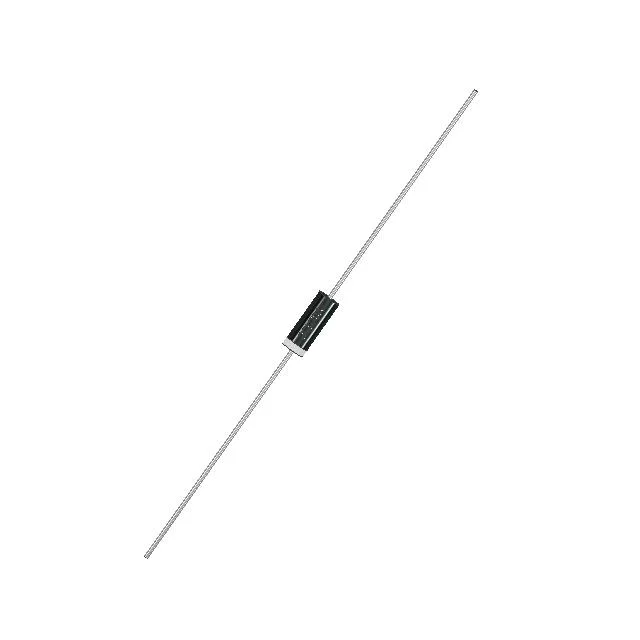

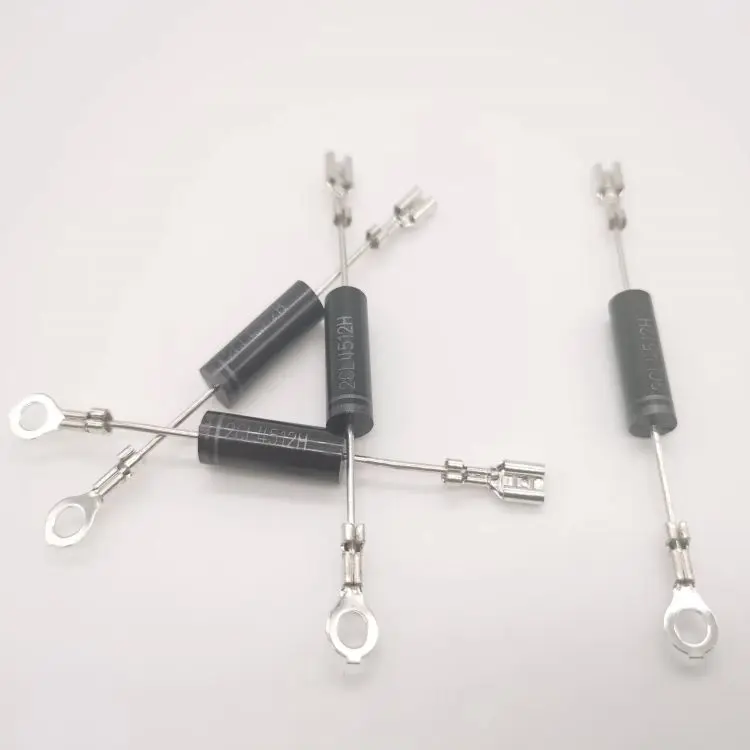

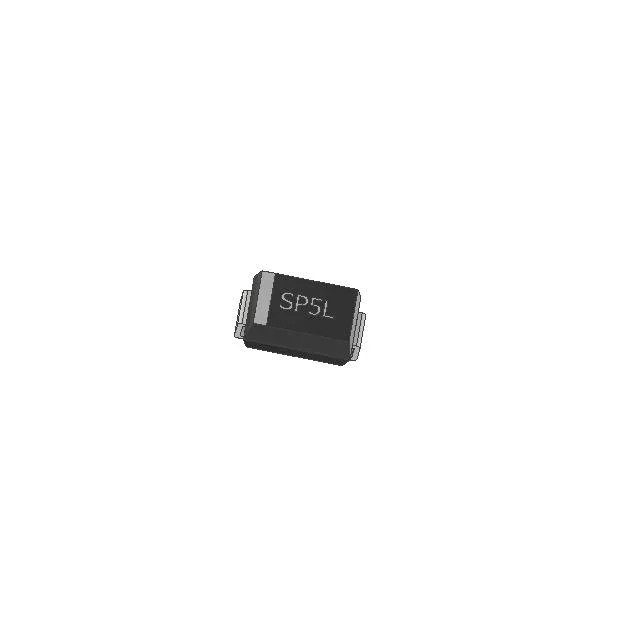

Microwave series SMT HV series 2CL2FM series
Packing & Delivery
● Regular packaging or custom packaging according to customized requirements
● We will recommend the most suitable shipping method based on your order quantity
