Share on (11000005546879):

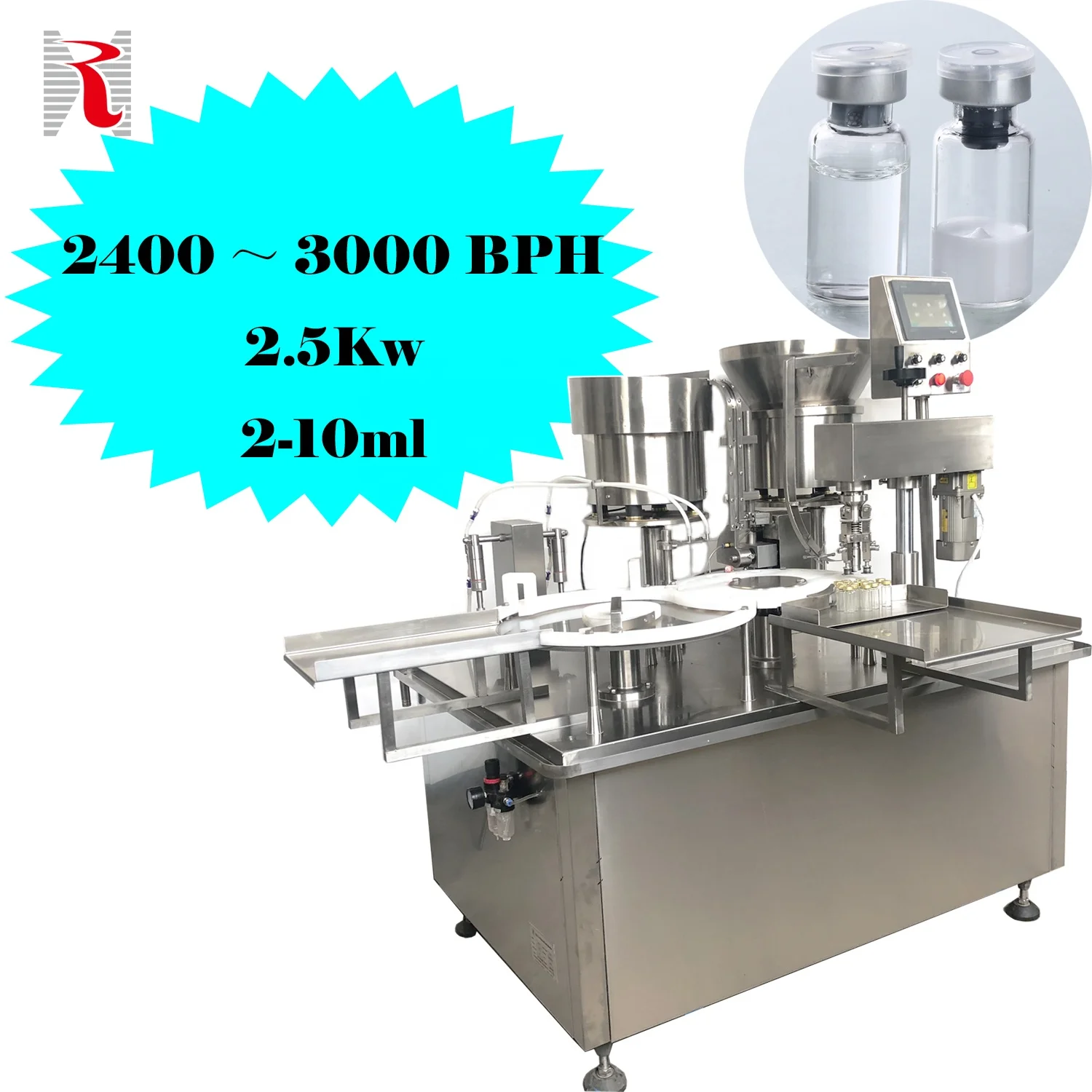

Production capacity: | 2600 ~ 3000 bottles / hour (frequency control) |
Applicable bottle: | 1-10ml vial |
On the way: | full stop |
Capping method: | three-knife compulsory |
Measurement accuracy: | ± 1% |
Power supply: | 380V, 50Hz, three-phase four-wire system |
Power: | 2.5Kw |
Dimensions: | 2500mm*900mm*1600mm |

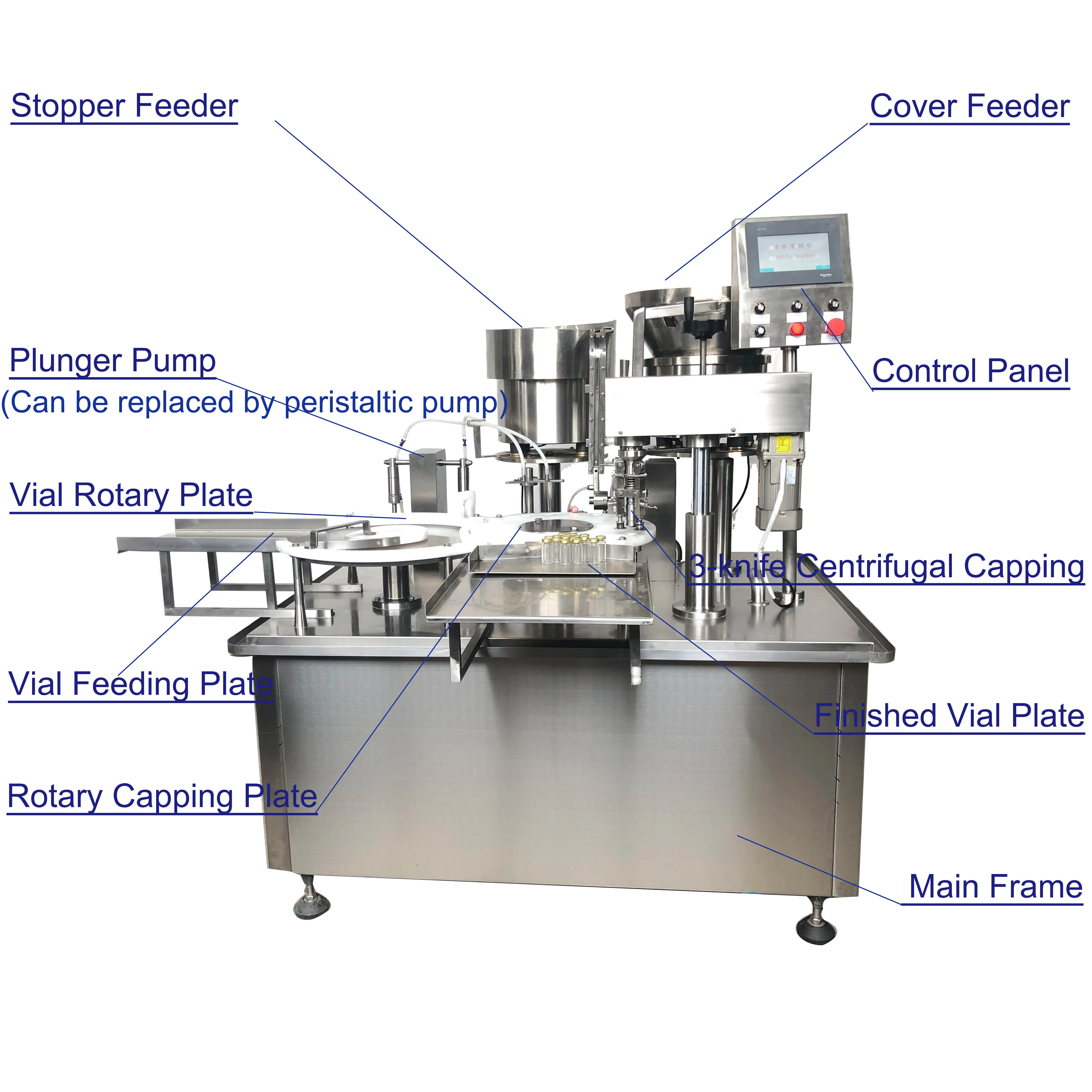

List | Component name | model | Manufacturer | Note |
1 | Filling machine body | KGF | HERUN | Shell stainless steel wire drawing board, others are stainless steel and 1010 nylon |
2 | Main control system | custom made | Chint Group | Stable performance and reliable movement |

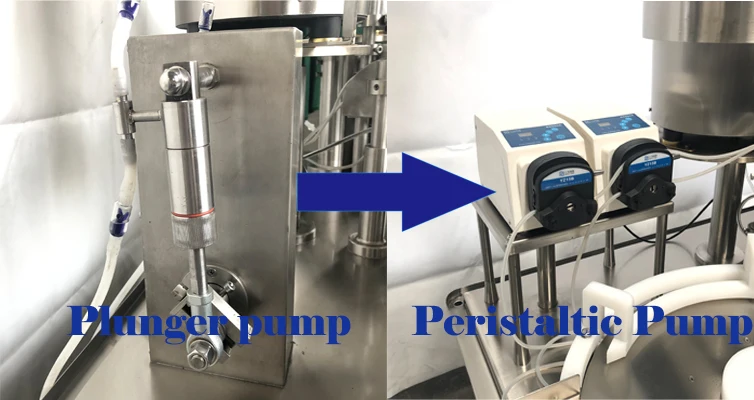

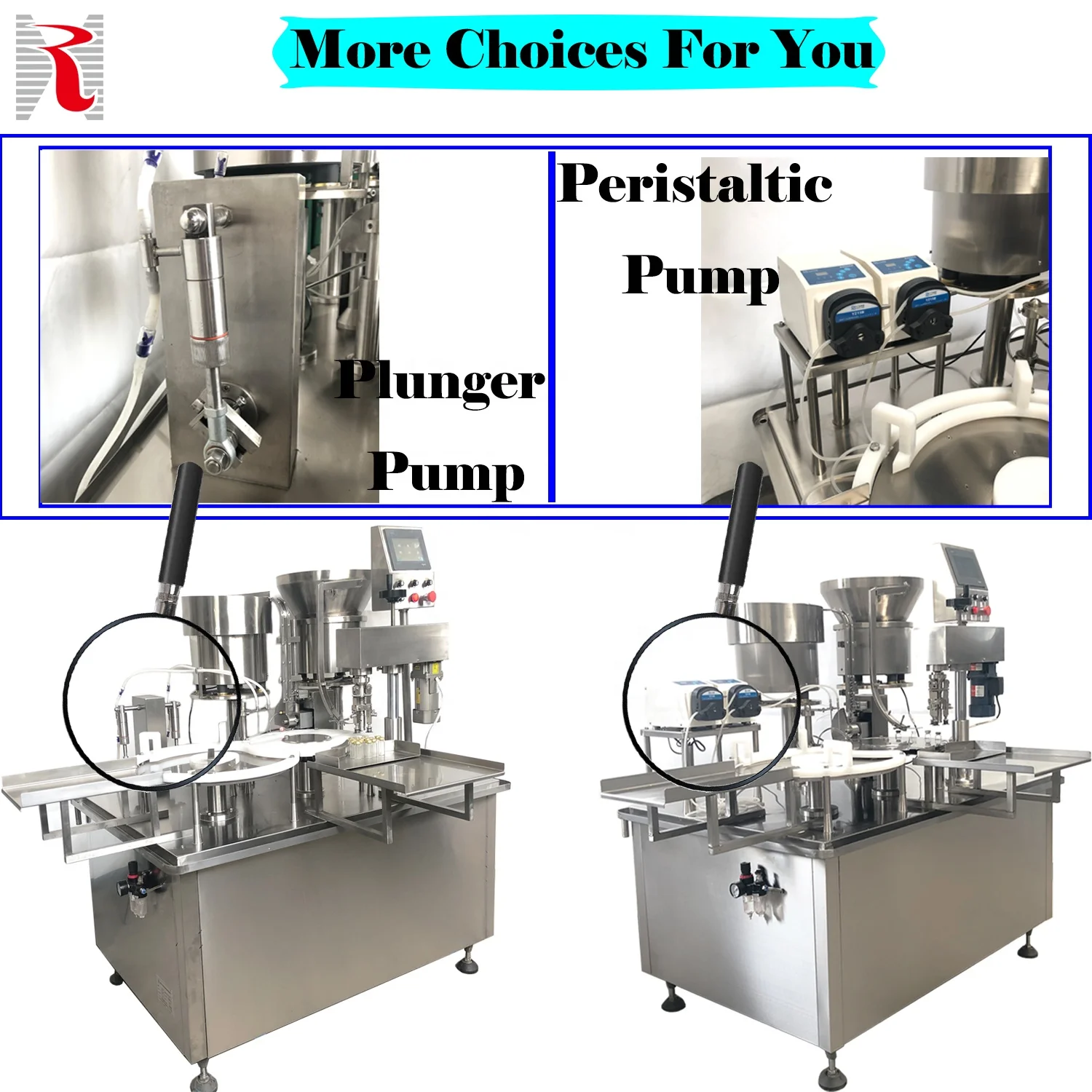

3 | Stainless steel pump | Smooth running and high precision. | ||
4 | Plug system | HERUN | ||
5 | Split | 12 divisions | HERUN | Nylon 1010 |
6 | Capping motor | 90YYJT90 | Wenzhou | Low noise and small temperature difference |
7 | Cover feeder | 400 type | HERUN | stainless steel |
8 | Cover feeding coil | 220V, 1.2KW | HERUN | Stable performance |
9 | Geared motor | 100YYJT120 | Shanghai | Low noise and small temperature difference |
10 | Main pneumatic components | Zhejiang | ||
11 | Main transmission parts | AirTAC | Made to standard | |
12 | Main parts | HERUN | Made to standard |
