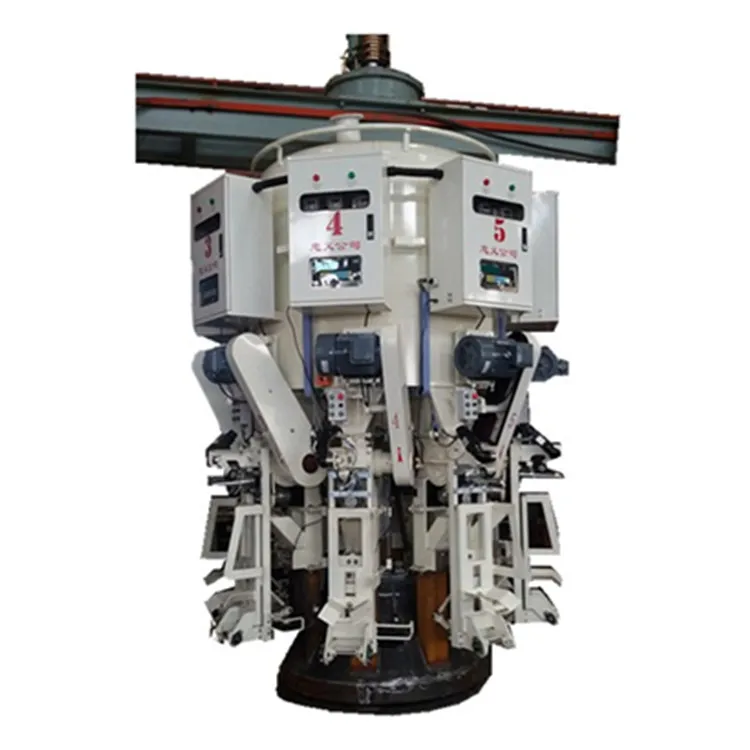

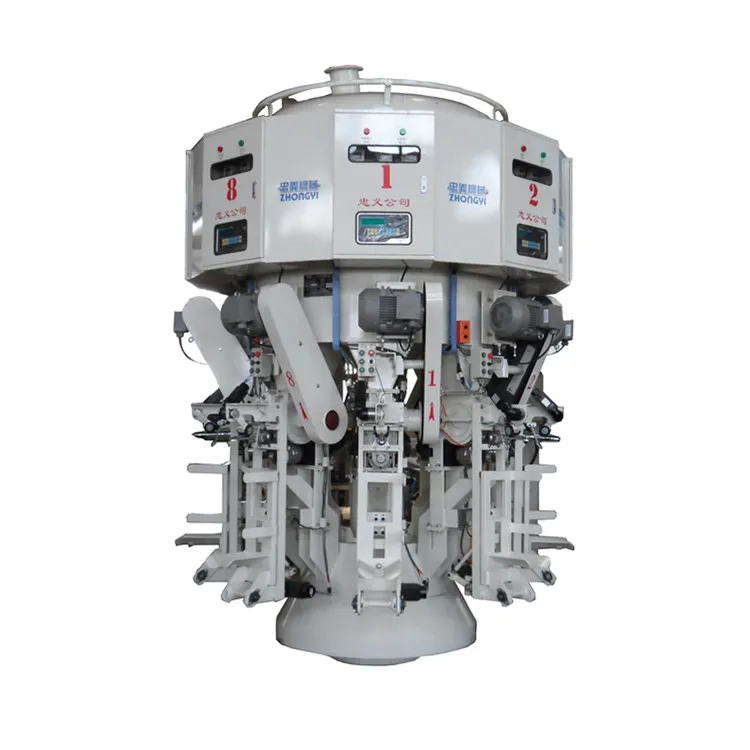

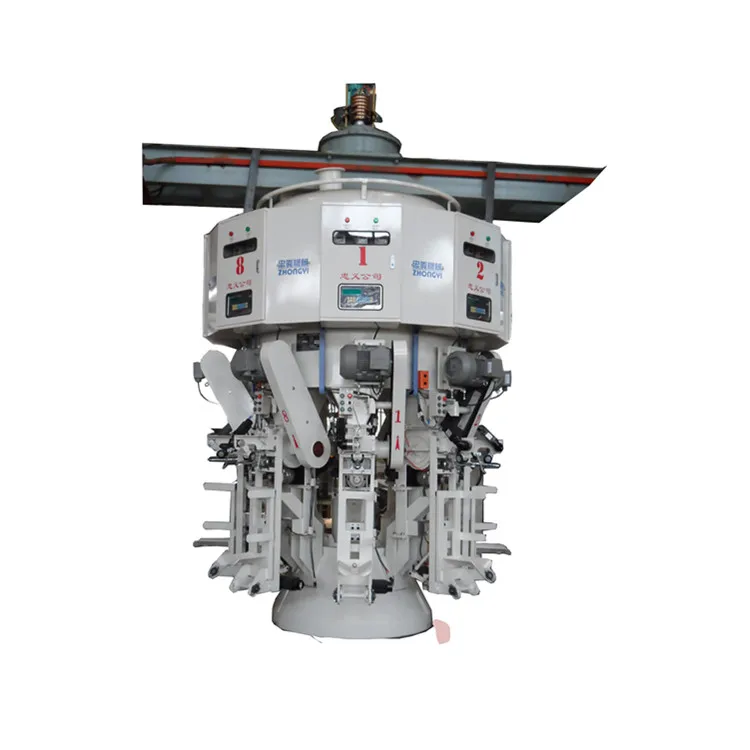

Valve Mouth Rotary Cement Filler Sand Packing Machine Powder Filling Bagging Equipment Cement Packaging Machine

Product Overview

Description

Valve Mouth Rotary Cement Filler Sand Packing Machine Powder Filling Bagging Equipment Cement Packaging Machine









ABOUT US



Tangshan Zhongyi Machinery Co.,LTD is the technology research center of cement packing equipment in Hebei Province. It’s the leader enterprise in cement packing machine throughout the country.

The company founded in 1994. He has independent research and development, design, manufacture and export sales ability. So far, it had over 3000 users around the country and also exported to many countries, such as Russia, Kazakhstan, Uzbekistan, Tajikistan, Ukraine, Georgia, Indonesia, Pakistan, Vietnam, Philipplines, Peru, Algeria, Ethiopia, Zimbabwe, Madagascar, Turkey, Saudi Arabia, Bangladesh, etc. They are not only enjoyed the reputation, but also earned credits from the customers.





PRODUCT DETAILS

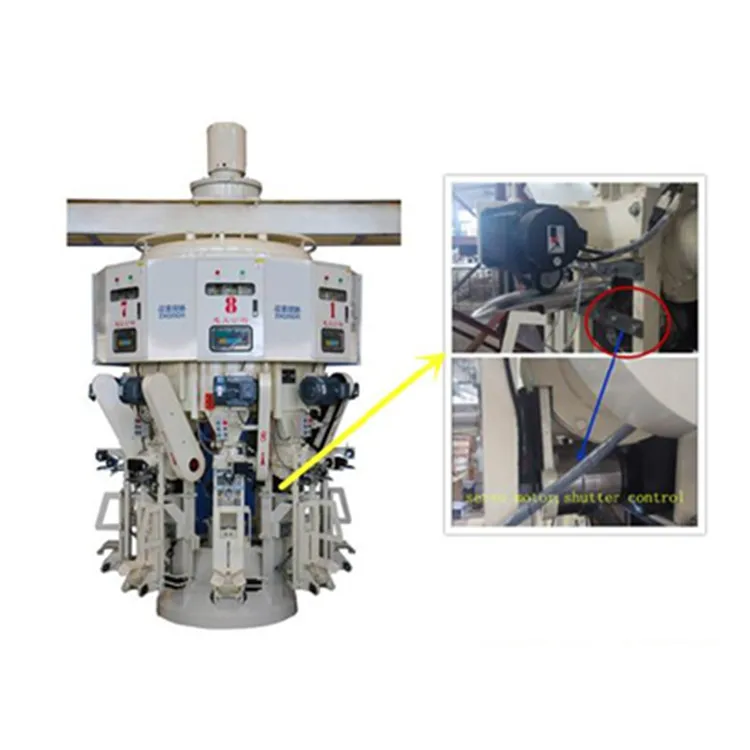

Model BHYW8S numerical control rotary cement packing machine,the main machine and its control system adopt technology of microcomputer and servo motor control, it realize automatic filling process except bag inserting manually.



Main feature:

(1) High output

(2) Low failure rate

(3) Enviromental

(4) Easy operation

Application scope:

Powder and granule less than 1mm

Power voltage: AC 380V -15~+10% 3N 50Hz

Operation environment:

(1) Temperature: -10~40°C

(2) Relative humidity: < 90%

(3) Altitude: < 2000m

Cement conditions:

(1) Moisture content: <1%

(2)Packing temperature: <120°C

(3) Density: Generic 1.1~1.3t/m30-160t/h)





TECHNICAL DATA



No	Name		Unit	Data	Remark
1	Type			8S
2	Qty of spouts		pc	8
3	Design capacity		t/h	120
4	Filling style			Side feeding
5	Discharging style			impeller
6	Weighing style			Microcomputer scale
7	Weighing precision	Single bag weight	kg	50
		Single bag weight tolerance of 95% bags	kg	+0.4 -0.2
		Total weight of  successive 20 bags	kg	1000-1004
8	Outer diameter of rotary bin		mm	Φ1560
9	Outer diameter of discharging spout		mm	φ2250
10	Distance from discharging spout to ground		mm	1300
11	Max rotary diameter		mm	φ2400
12	Control mode of complete machine			Mechanical, electric
13	Driver speed adjusting style			Frequency control	Siemens frequency  converter
14	Range of speed adjusting		r/min	0-6
15	Rated rotate rate of the machine		r/min	5
16	Power supply			AC 380V 3P 50Hz
	Fluctuation		%	+10,-15
17	Gross power of motors		kW	55.4
18	Dust collection airflow		m3/h	15000
19	Dust collection air pressure		Pa	-600
20	Rotary direction of the machine		Overhead view	Clockwise
21	Height of the machine		mm	5880
22	Total weight		kg	5500
23	Apply to bags			As per GB9774-1996

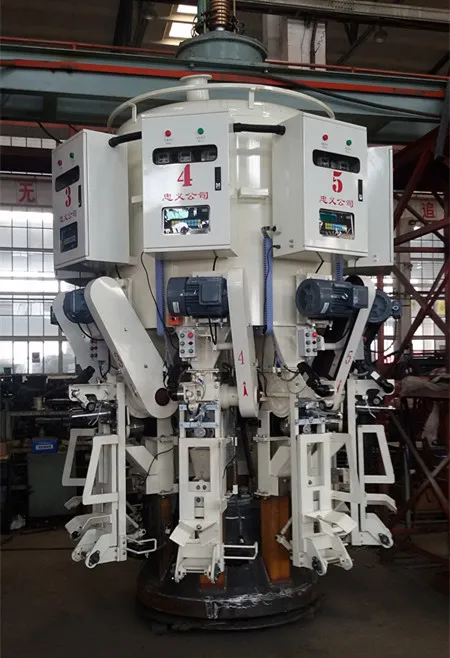

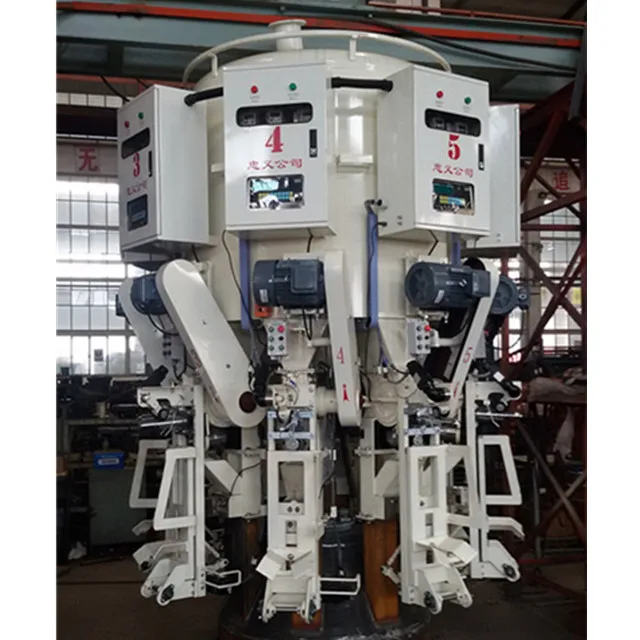

PRODUCT PICTURES

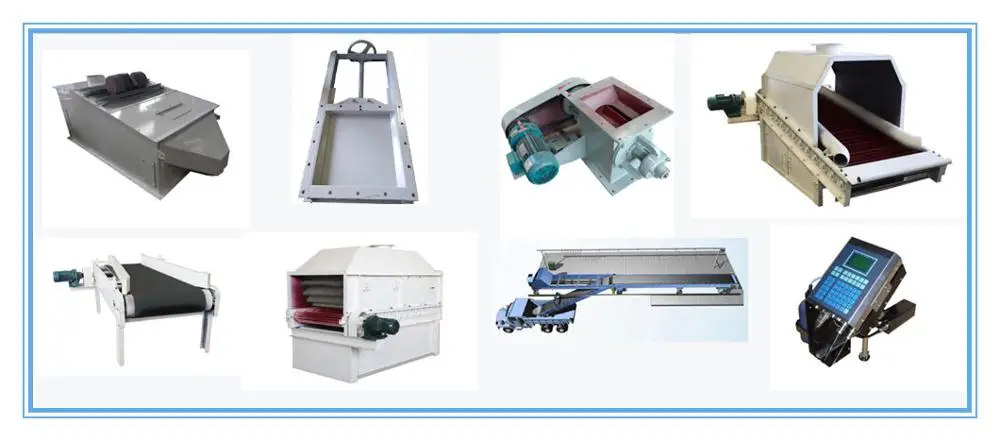

AUXILIARY EQUIPMENT





FAQ

1. What is the usage of this machine?

-- This machine mainly used for packing good mobility material like cement, gypsum powder and others powder, granule less than 7mm.

2. What is the voltage/phase for this machine?

-- We normally make voltage into 220V / 50HZ / Single phase or 380V / 50HZ / Three Phase. But it can be made according to clients' demand, like 415V / 50HZ / Three phase and so on.

3. What kind of packing box is?

-- We pack machines in a standard exporting plywood case, no vermin, germs. It can help to protect the machine while transporting.

4. How long is the guarantee?

-- For non-human damage factor, within 12 months after commissioning or within 18 months from the date of B/L, whichever comes first.

5. How should I do if meet some trouble while using?

-- Don't worry about that. We are always be pleased to provide using support to clients. We can take a video for showing how to resolve the problem, and write detail resolution to you.

6. What's the payment mode?

-- T/T, L/C.









 WHY CHOOSE US?



Pre-sale Service

1. Professional technical team offer comprehensive technical and business consultation services;

2. Proposing the most suitable scheme and equipment for our clients;

3. Designing and fabricating targeted products according to the special requirements of clients;

4. Training technician with high qualified service.

After-sale Service

1. Highly inspecting equipments in every working procedure, quality comes first;

2. Fast & Safe Delivery;

3. Assisting our clients for foundation construction of equipments;

4. Dispatching engineers to install and debug equipments if the client have requirement;

5. Training the first-line operators on site;

6. Providing technical exchanging.



CONTACT ME









Looking forward to the cooperation with you.

Together ,we make it better.
