flicker free 4 in 1 150w manufacturer 48v 24v 36v ip67 outdoor switching power supply lighting transformer dimmer led driver 12v
- Category: Lighting Accessories >>>
- Supplier: Shenzhenshi Zhenhuan Electronic Co. Ltd.
Share on (11000006618436):
Product Overview
Description
Products Description
flicker free 4 in 1 150w manufacturer 12v 24v 36v ip67 outdoor switching power supply 48v transformer dimmer led driver

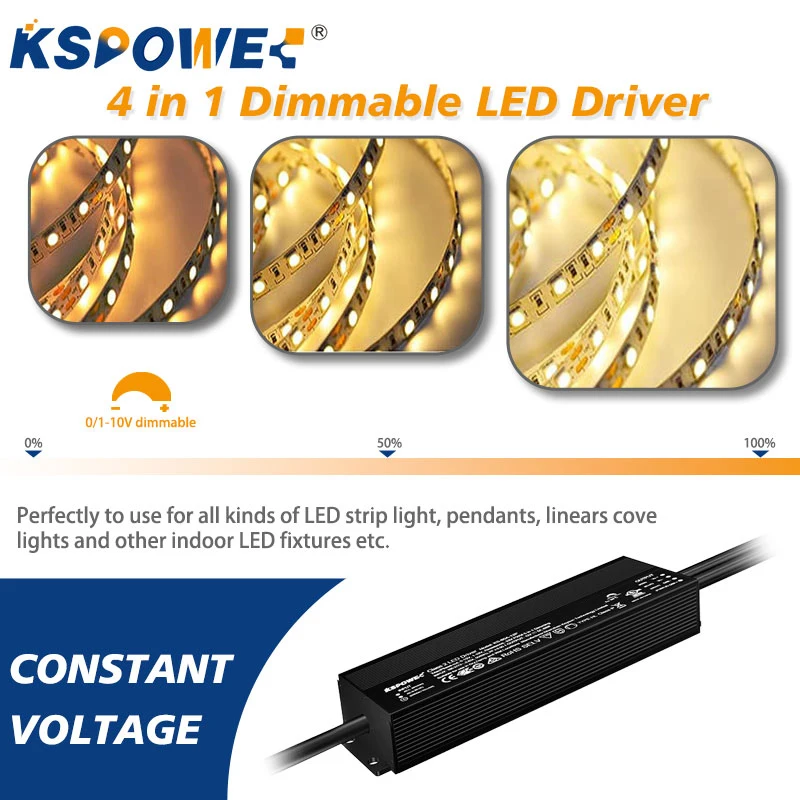

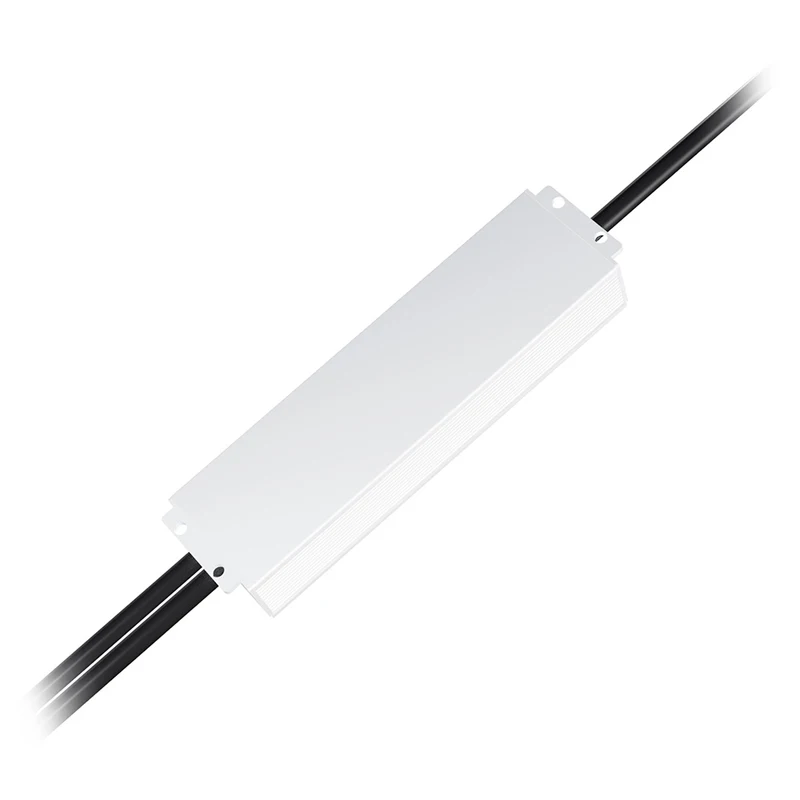

KSHO-150W is a versatile 150W 4-in-1 universal dimming driver that accepts 100-277VAC input voltage and provides 12V 24V 36V 48V constant voltage output. KSHO-150W delivers flicker free dimming to 1% on all dinning systems including 0-10V, 1-10V, PWM, Resistance, MLV, ELV and Incandescent. The high efficiency of the driver and sophisticated overload protection enables the electronics to run cooler and significantly improve reliability while extending product life.

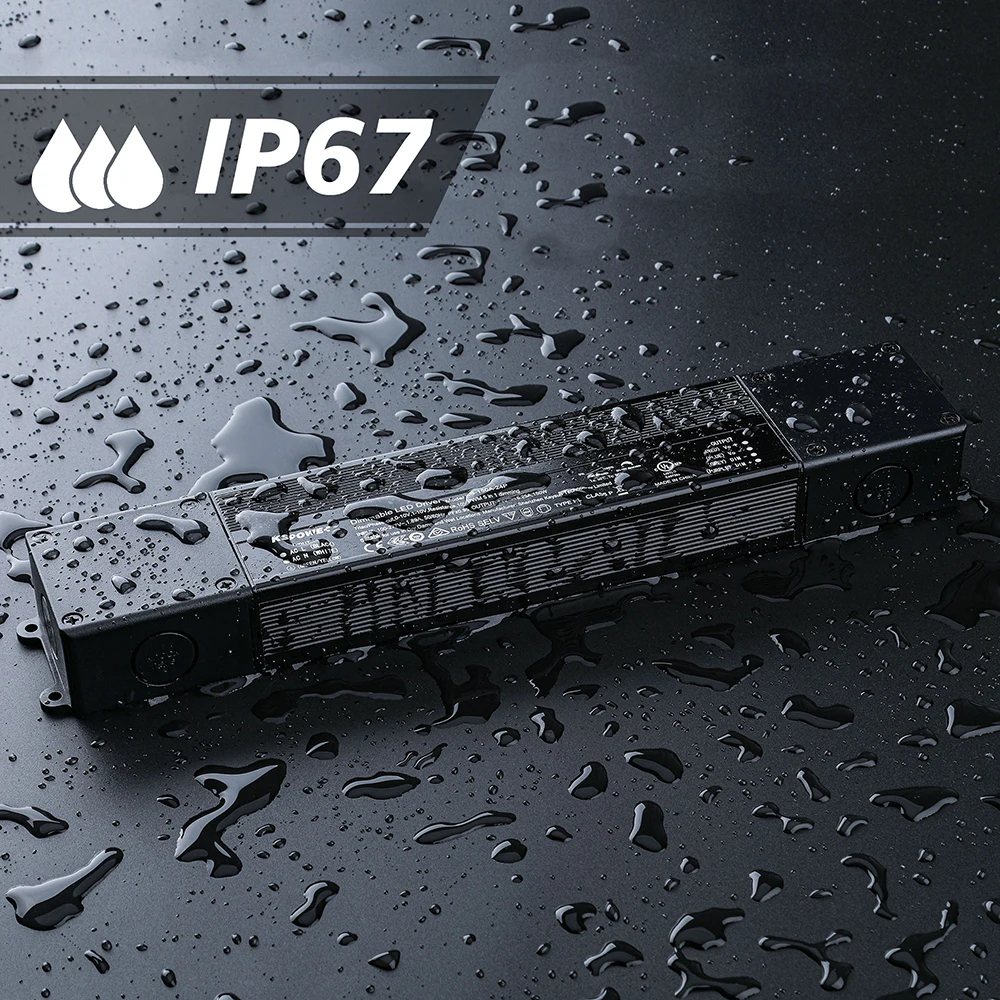

The compact metal case is dry/damp location listed and IP67 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications. KSHO-150W is available with or without integrated junction boxes on both the input and output side that have two knock outs each.
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class 2 Class P
* Dimming: 10V PWM, 0/1-10V or Resistor Dimmable Available
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class 2 Class P
* Dimming: 10V PWM, 0/1-10V or Resistor Dimmable Available
* Full Dimming Range: 0-100%
* Waterproof ,for Dry , Damp, Wet Location.
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Waterproof ,for Dry , Damp, Wet Location.
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* With Detachable Junction Box

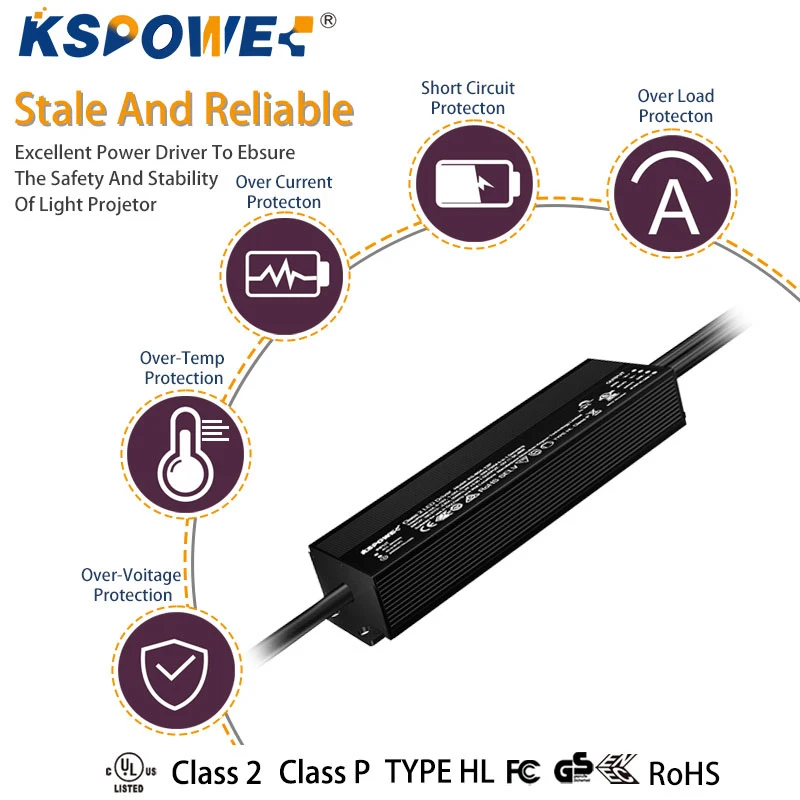

* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* 5-Years Warranty
* UL/cUL Class2 CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* 5-Years Warranty
* UL/cUL Class2 CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage | 100~277V AC 47~63Hz | ||||||
Power Factor | PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load | ||||||
NO. | KSHO-150W12 | KSHO-150W24 | KSHO-150W36 | KSHO-150W48 | |||
Output Voltage | 12V | 24V | 36V | 48V | |||
Rated Current | 12.5A | 6.25A | 4.16A | 3.13A | |||
Rated Power | 150W | ||||||
Ripple & Noise (max.) | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | |||
Dimension(L*W*H) | 322*58*36mm / 12.7*2.29*1.46in | ||||||
Show Details

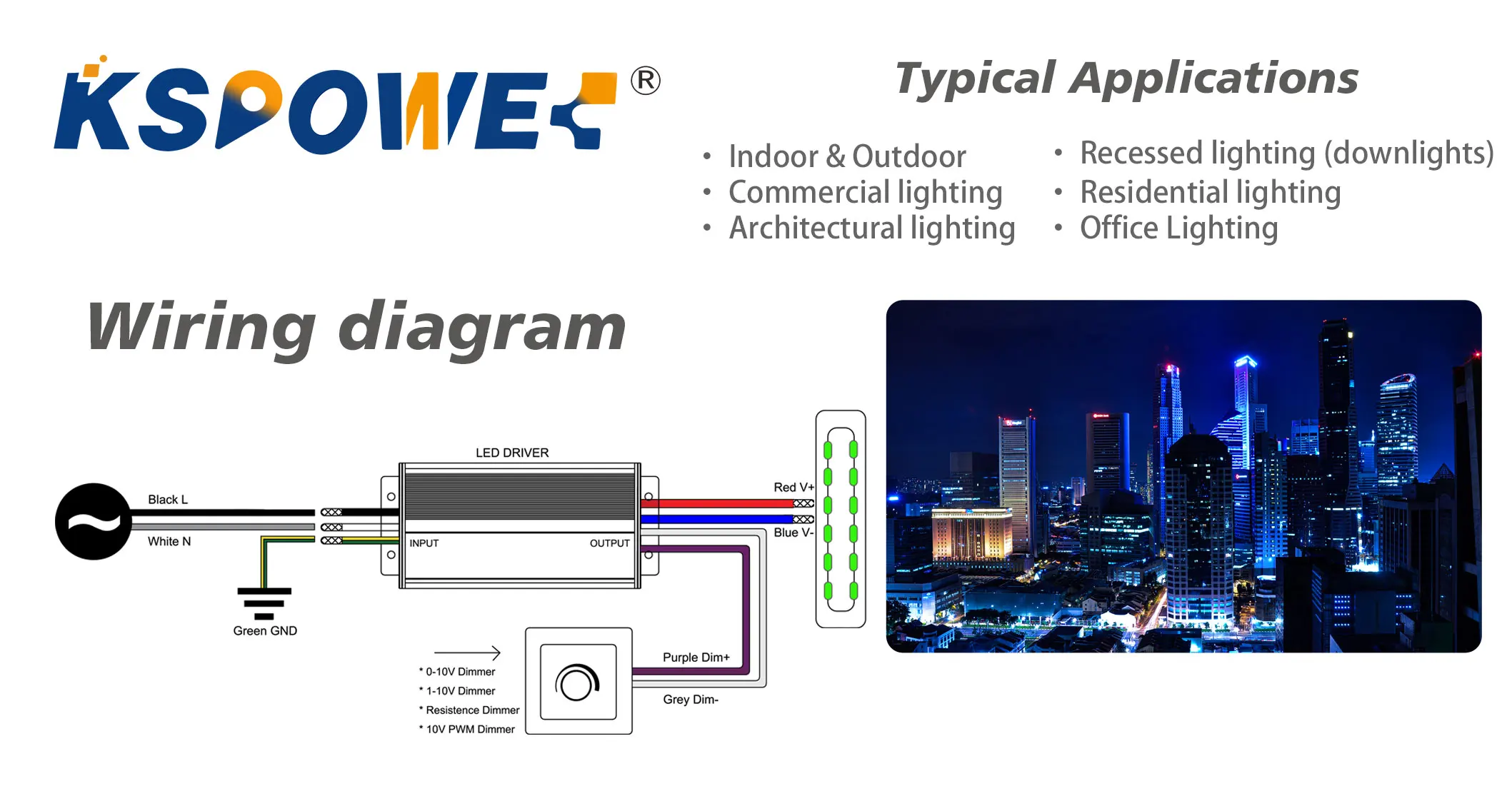

Dimming Connect Drawing
Dimension Drawing
Product packaging
1. Each one put in one small inner brown box, then 20 pcs put in one standard carton.
2. Sample is available.3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others
Package | Piece/Carton(pcs) | Piece Weight(KG) |
OEM package | 20 | 0.84 |
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) |
313*64*40 | 355*330*195 | 17.5 |
Applications
The HO series 0/1-10V PWM dimmable power supply use low profile metal aluminum case with or without junction box makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lightings.
