RoHS CE warranty 5 years white diffused super brightness 10mm round 4pin rgb led diode have Tab

Product Overview

Description

RoHS CE warranty 5 years white diffused diode led 10mm rgb  4 pin round 10mm led diode rgb led diode 10mm

Free sample: 20Pieces

Product advantage: Warranty 5 years

1.Gold wire:100% pure gold wire,Excellent stability,Thermostability

2.Chip:Imported chip,such as Epistar or Osram chip,Low light attenuation,High brightness

3.Metal PIN:Tin easily,Good head conduction,Copper material+Silver plated+Tin plated,not easy to oxidize

4.Colloid:Environmental protection epoxy resin,Thermostability,Anti-altraviolet

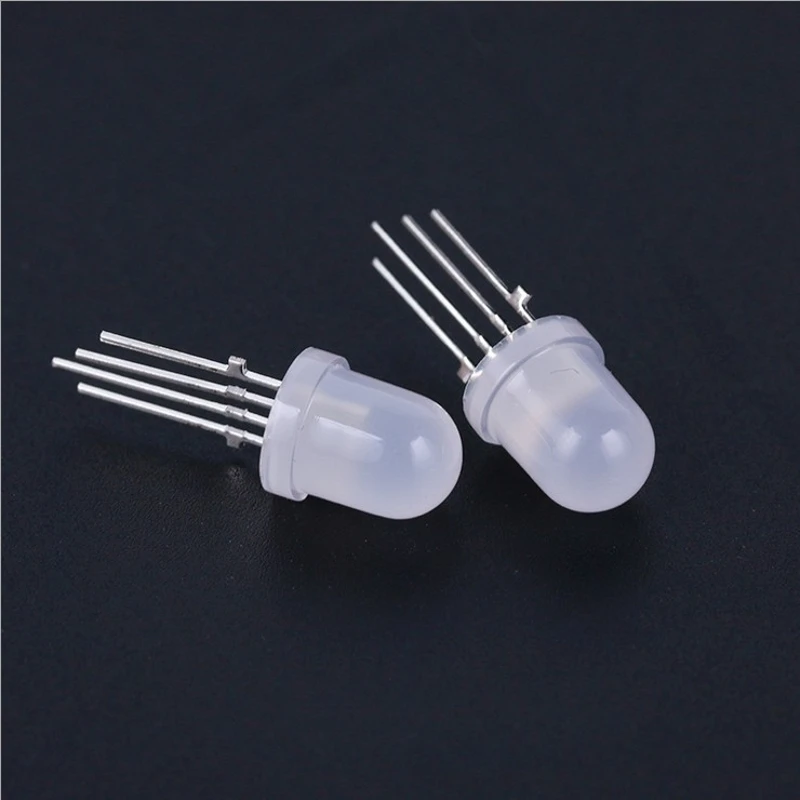

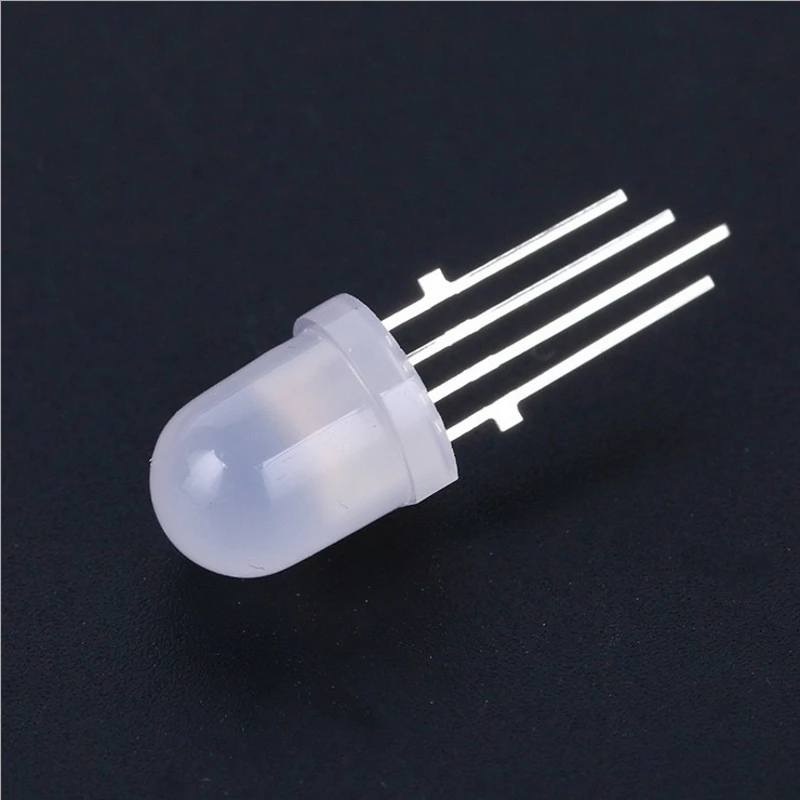

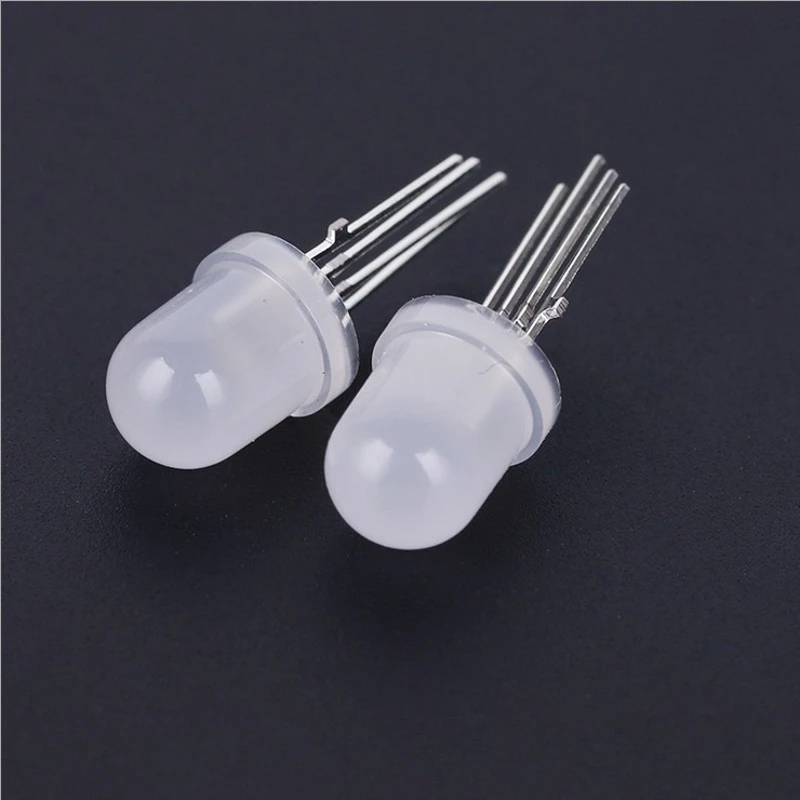

Real photo

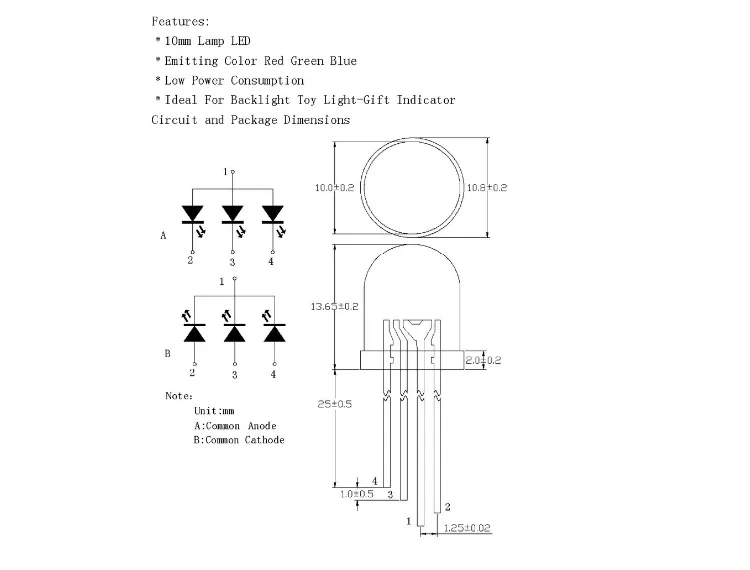

Product Size

Electrical and optical characteristics

 Absolute Maximum Ratings at Ta=25℃

Parameter	MAX.	Unit
Power Dissipation	80	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	100	mA
Continuous Forward Current	30	mA
Derating Linear From 50℃	0.4	mA/℃
Reverse Voltage	5	V
Electrostatic Discharge(HBM)   ESD	2000	V
Operating Temperature Range	-40℃ to +85℃
Storage Temperature Range	-40℃ to +100℃
Lead Soldering Temperature [4mm(.157”) From Body]	260℃ for 5 Seconds

 Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Emitting Color	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	IV	Red	1000	--	2000	mcd	IF=20mA (Note 1)
		Green	2000	--	4000
		Blue	1000	--	2000
Viewing Angle	2θ 1/2	Red	--	120	--	Deg	(Note 2)
		Green
		Blue
Dominant Wavelength	λd	Red	620	--	630	nm	IF=20mA (Note 3)
		Green	525	--	530
		Blue	465	--	470
Forward Voltage	VF	Red	1.8	--	2.2	V	IF=20mA
		Green	2.9	--	3.2
		Blue	2.9	--	3.2
Reverse Current	IR	Red	--	--	5	μA	VR=5V
		Green
		Blue



International famous brand cooperation.webp

Core technologies, Specialized manufacturer, Strict shipping

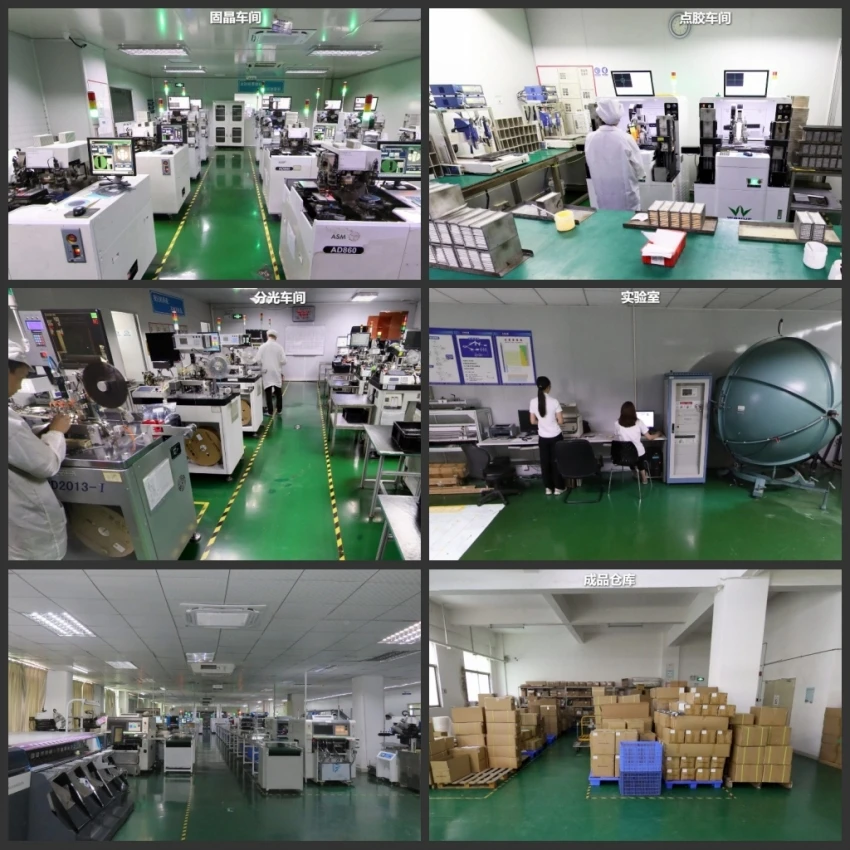

Our specialized manufacturer factory



About package



 FAQ:

1. Is there any discount for bulk order?

Yes, if you need bulk order or you want customized products, we can provide wholesale price.

2. How to place an order?

If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).

3. What payment terms are available?

T/T,PayPal, Western Union and Secure Payment are preferred.

4. Do you support drop shipping and how much is the shippping cost?

Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left.

The shipping cost are based on your order's volume and weight, and it can be calculated.

5. All the pictures are real photo?

Yes, the pictures of all products on this page are 100% real shoot by us.

6. How about the quality of the leds?

Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.

7. Is there any custom duty and import tax?

Due to different policy in different countries, there might be some custom duty and import tax, but it is not considered in the price and should be paid by yourself.

We are not responsible for any custom duty and import tax.



Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely welcome you to join us.

Welcome to visit our factory.
