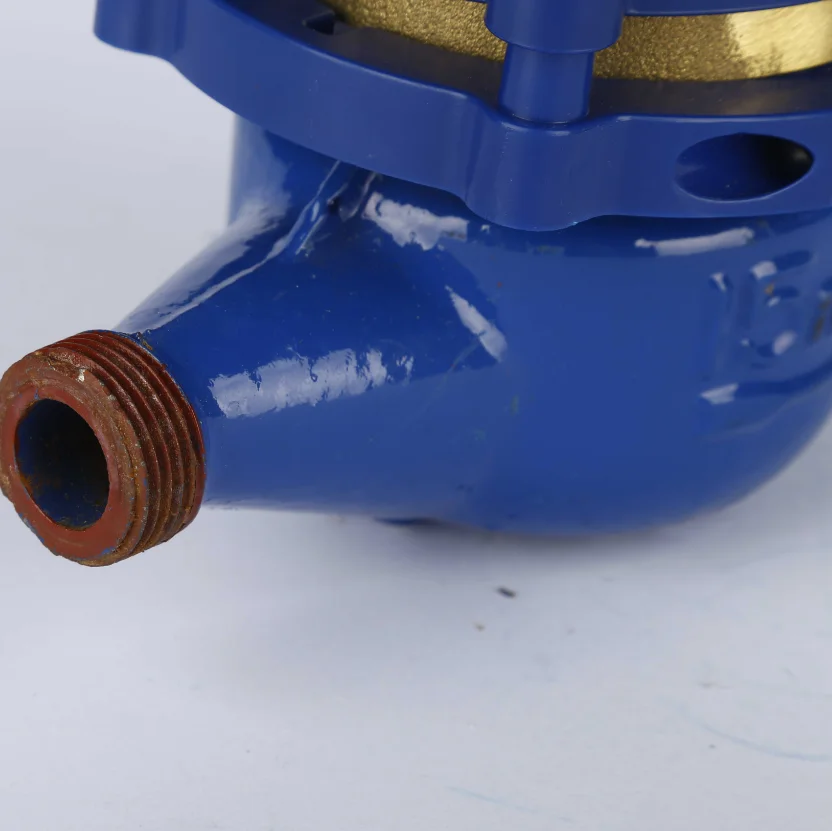

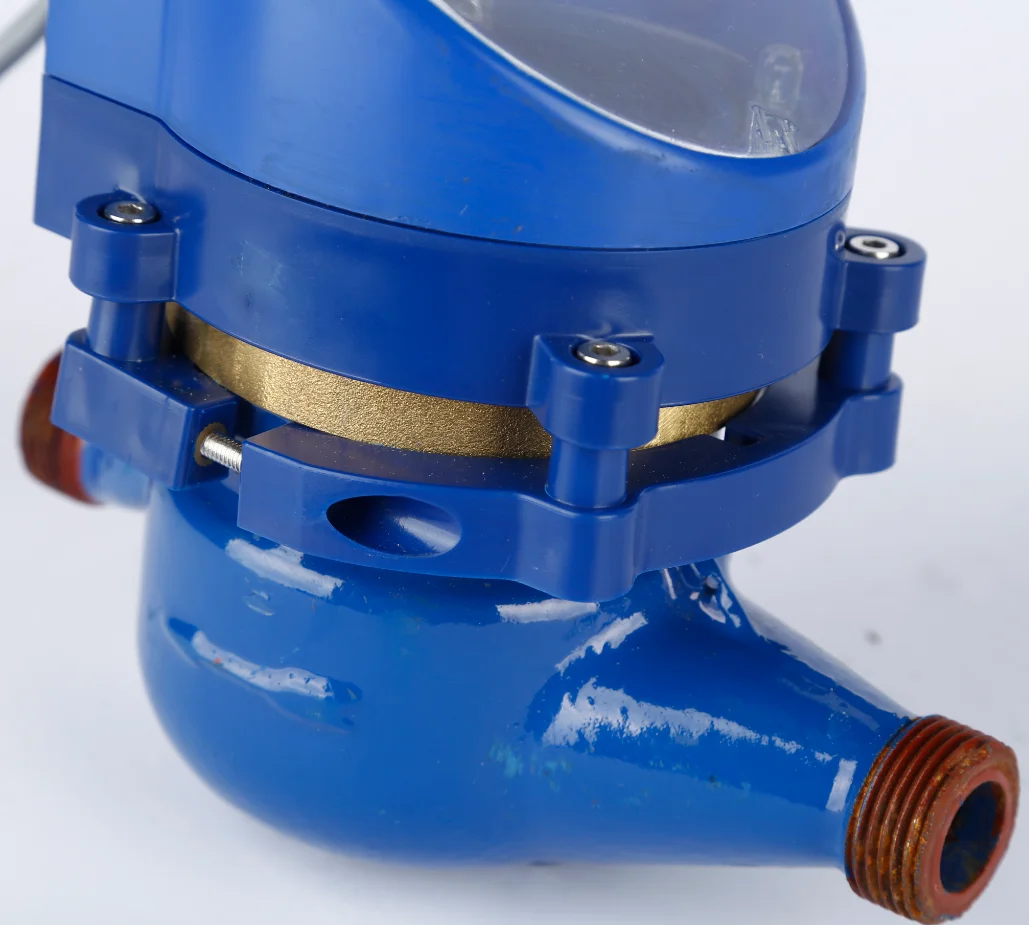

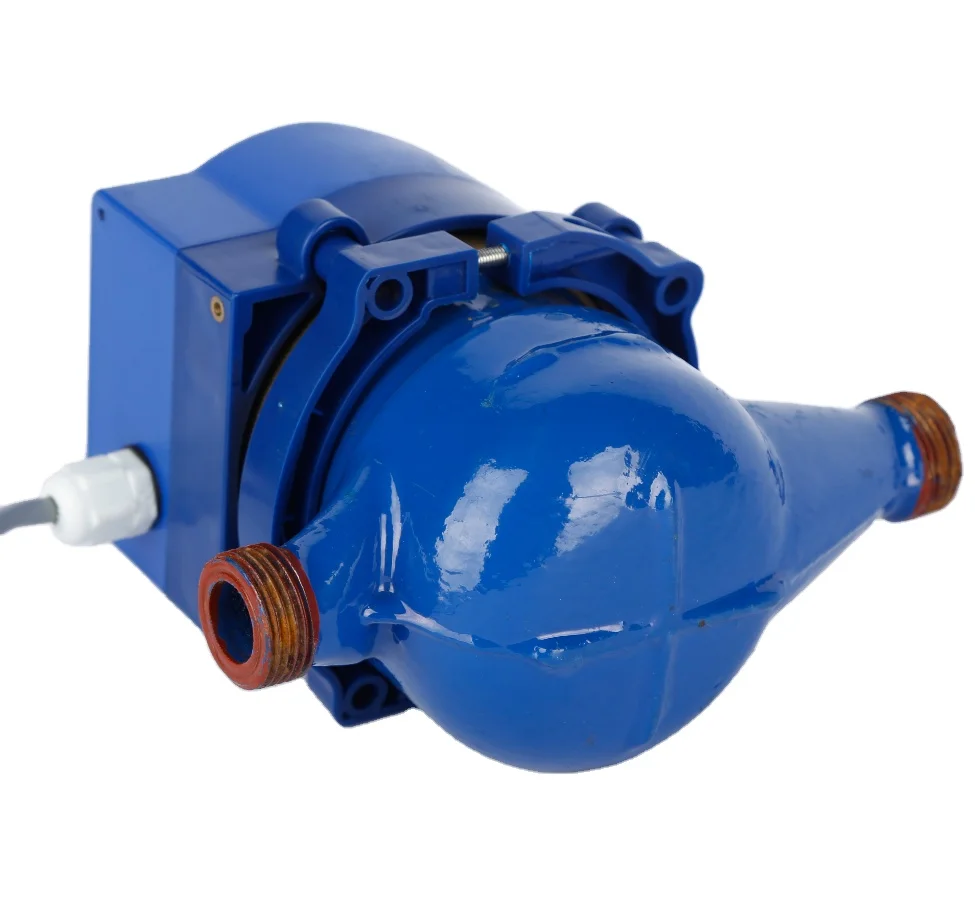

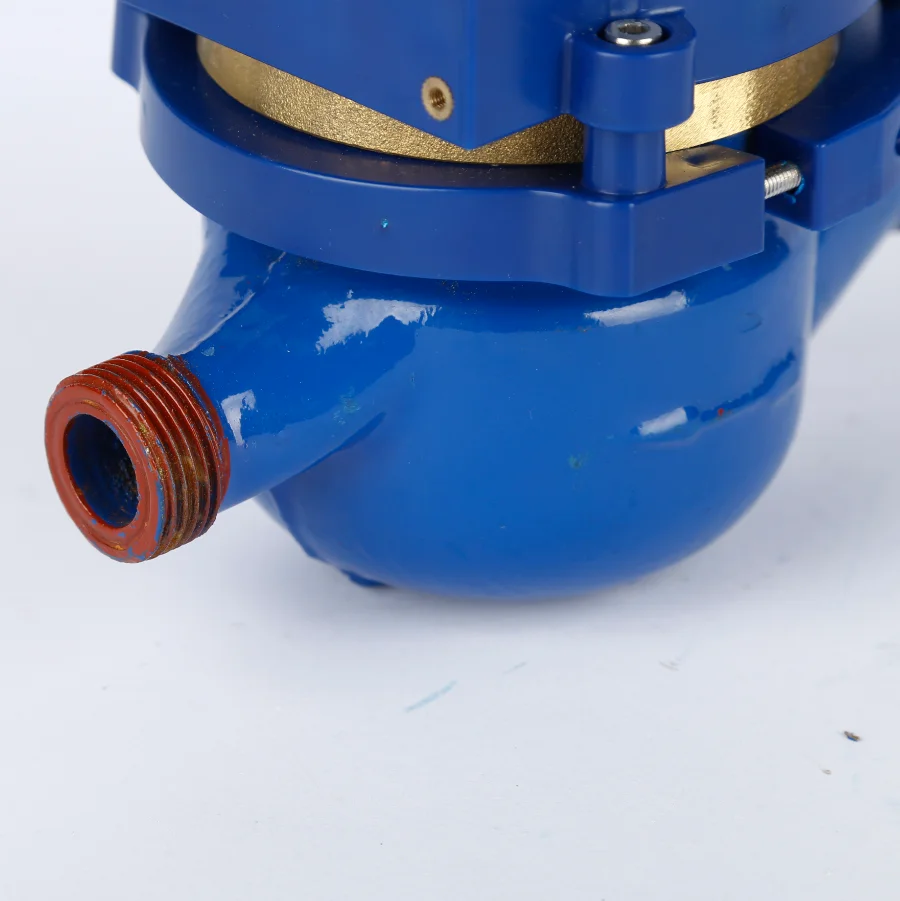

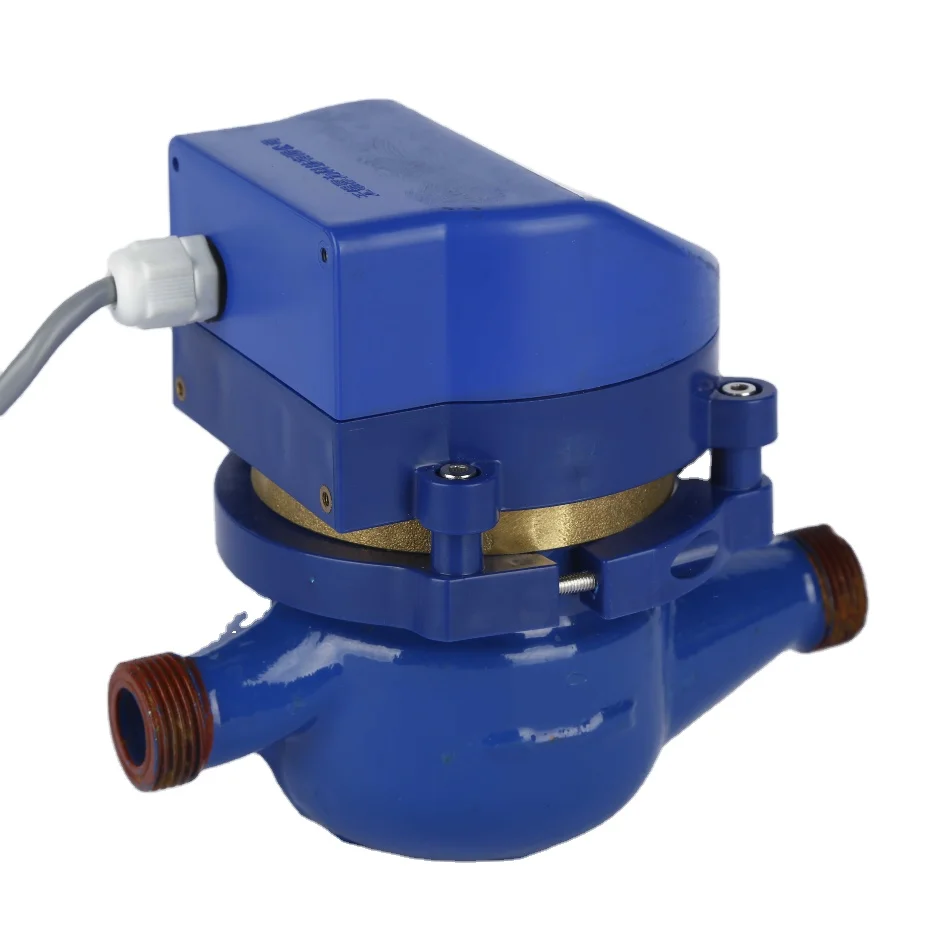

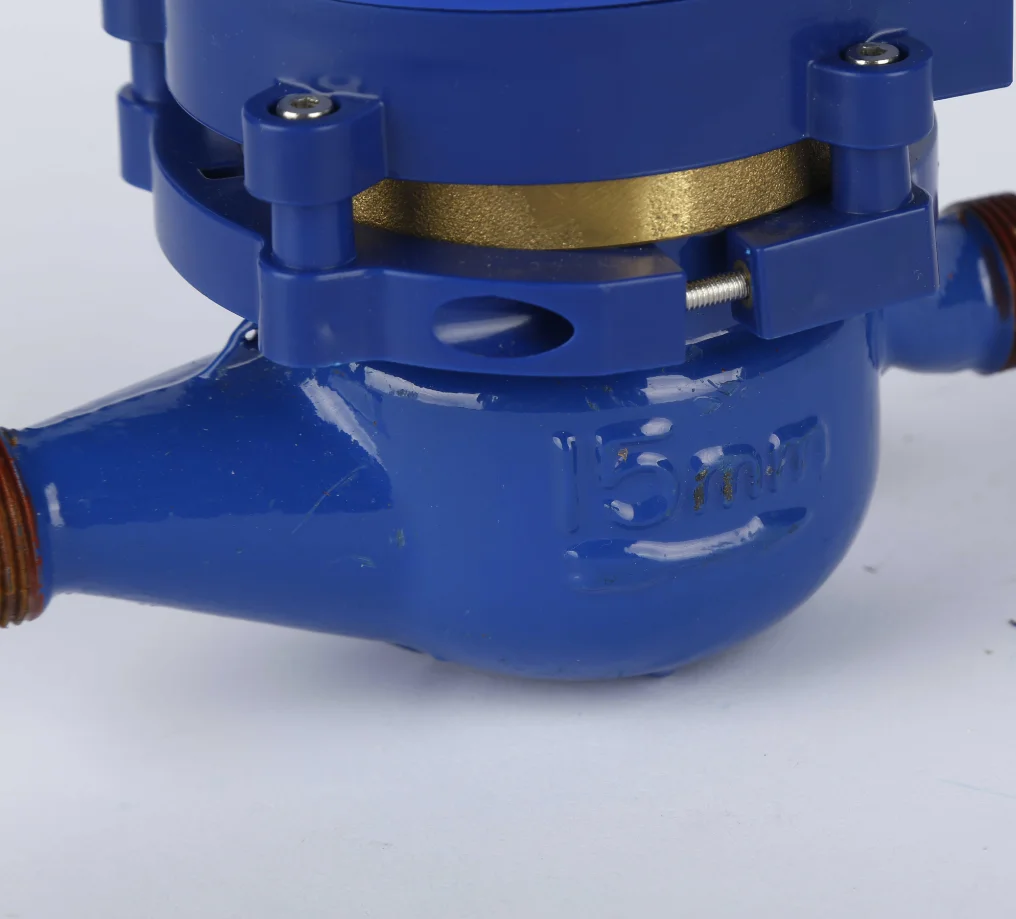

wet dial smart intelligent valved remote photoelectric water meter direct read flow meter
- Category: >>>
- Supplier: Kaifeng Xintai Valve Co. Ltd.
Share on (11000006715277):
Product Overview
Description
Product Description
Dimension
Model | Nominal Caliber | Length L | Length L1 | Width W | Height H | Thread Connection | Connection Hose | |||
mm | G | m | ||||||||
LXSG-15/ZD | 1/2" | 259 | 165 | 90 | 125 | G3/4 | 1.0/0.5 | |||
LXSG-20/ZD | 3/4" | 299 | 195 | 90 | 125 | G1 | ||||
LXSG-25/ZD | 1" | 345 | 225 | 94 | 140 | G1 1/4 | ||||
LXSG-32/ZD | 1 1/4" | 354 | 230 | 94 | 140 | G1 1/2 | ||||
LXSG-40/ZD | 1 1/2" | 373 | 245 | 125 | 162 | G2 | ||||
Specification
Nominal Caliber | Measured Grade | Overload Flow | Common Flow | Transitional Flow | Mini Flow | |
R80 (R100) | Q4 m³/h | Q3 m³/h | Q2 m³/h | Q1 m³/h | ||
LXSG-15/ZD | 1/2" | 3.125 | 2.5 | 0.05 | 0.031 | |
LXSG-20/ZD | 3/4" | 5 | 4 | 0.08 | 0.05 | |
LXSG-25/ZD | 1" | 7.875 | 6.3 | 0.126 | 0.079 | |
LXSG-32/ZD | 1 1/4' | 12.5 | 10 | 0.02 | 0.125 | |
LXSG-40/ZD | 1 1/2" | 20 | 16 | 0.32 | 0.2 |
♦Features
1.Reading wheel data directly, reduce the reading error to zero；
2. Power needed only for reading and valve opening；
3.Advanced data coding and validation technology, high communication reliability；
·4.Adopt dry type structure, strong reliability, easy installation and maintenance；
5. Performance conforms to GB/ T778.ISO 4064 standard;
6. Compatible with DL/T645, CJ/T188. Internal protocol or other customer specified;
7. Combined with the upper computer system
♦Work condition
• Temperature grade: T30 T50; Pressure class: MAP16; MAP10;
• Pressure loss class: △P63; Installation environment ：B;
• Electromagnetic environment : E1
1.Reading wheel data directly, reduce the reading error to zero；
2. Power needed only for reading and valve opening；
3.Advanced data coding and validation technology, high communication reliability；
·4.Adopt dry type structure, strong reliability, easy installation and maintenance；
5. Performance conforms to GB/ T778.ISO 4064 standard;
6. Compatible with DL/T645, CJ/T188. Internal protocol or other customer specified;
7. Combined with the upper computer system
♦Work condition
• Temperature grade: T30 T50; Pressure class: MAP16; MAP10;
• Pressure loss class: △P63; Installation environment ：B;
• Electromagnetic environment : E1
♦Max Permissible Erro
a.Q1≤Q≤Q2:±5%;
b.Q2≤Q≤Q4:±2%
a.Q1≤Q≤Q2:±5%;
b.Q2≤Q≤Q4:±2%
