Коммутационный модуль SH2200 TAA совместимый для HPE синергии 866573 B21 (11000006944395)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

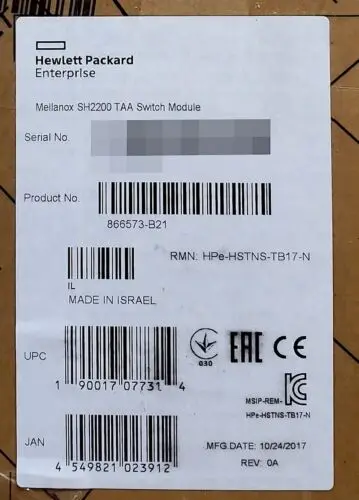

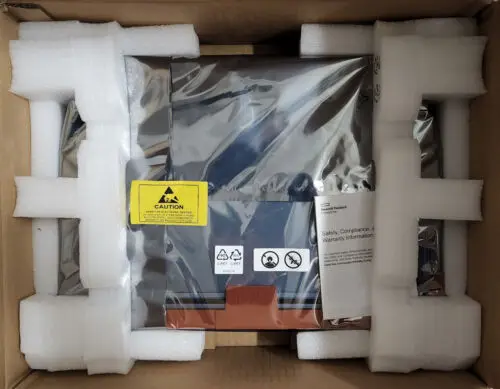

866573-B21 |Sh2200 TAA Switch Module for Synergy


866573-B21 Specification





























































































































































































































866573-B21 Specification


Capacity
TypeVLANs supported
Value4096
Dimensions & Weight
Weight8.82 lbs
Environmental Parameters
Min Operating Temperature50 °F
Max Operating Temperature104 °F
Humidity Range Operating5 - 95% (non-condensing)
Min Storage Temperature-22 °F
Max Storage Temperature140 °F
Humidity Range Storage5 - 95% (non-condensing)
Header
CompatibilityPC
ManufacturerData Center Networking Select
Packaged Quantity1
ModelSH2200 TAA-compliant
Interface Provided
Qty8
Type100Gbit/40Gbit LAN
Connector TypeQSFP28
CommentsUplink
Miscellaneous
Compliant StandardsWEEE
Authentication MethodRADIUS, Secure Shell v.2 (SSH2), TACACS+
TAA CompliantYes
Color CategoryGray
Networking
TypeSwitch
Remote Management ProtocolCLI, RMON 2, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
Compliant StandardsIEEE 802.11ab, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x
Status IndicatorsStatus
Ports Qty8
FeaturesAccess Control List (ACL) support, BPDU Filter, Data Center Bridging Exchange (DCBX) support, DHCP protection, Explicit Congestion Notification (ECN), Flow control, Internet Control Message Protocol (ICMP), LLDP support, Loop Guard, Multi Chassis Link Aggregation Group (MLAG), Network Timing Protocol (NTP), Port mirroring, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Root Guard, sFlow, STP Root Guard, Syslog support
Routing ProtocolBGP-4, Bidirectional PIM, ECMP, IGMP, IGMPv2, IGMPv3, OSPFv2, Static IPv4 routing, Static IPv6 routing, VRRPv2
SubcategoryNetwork hubs and switches
Advanced SwitchingLayer 3
ManageableYes
Form FactorPlug-in module
Jumbo Frame Support9216 bytes
Subtype100 Gigabit Ethernet
Performance
TypeFabric throughput
Value2.8 Tbps
Ports
Qty8
Type100 Gigabit QSFP28 / 40 Gigabit QSFP28 (uplink)
Ports (2nd)
Qty12
Type50 Gigabit / 25 Gigabit Ethernet (midplane downlink)
Service
Support Details TypeLimited warranty
Support Details Service IncludedParts and labor
Support Details LocationOn-site
Support Details Full Contract Period3 years
