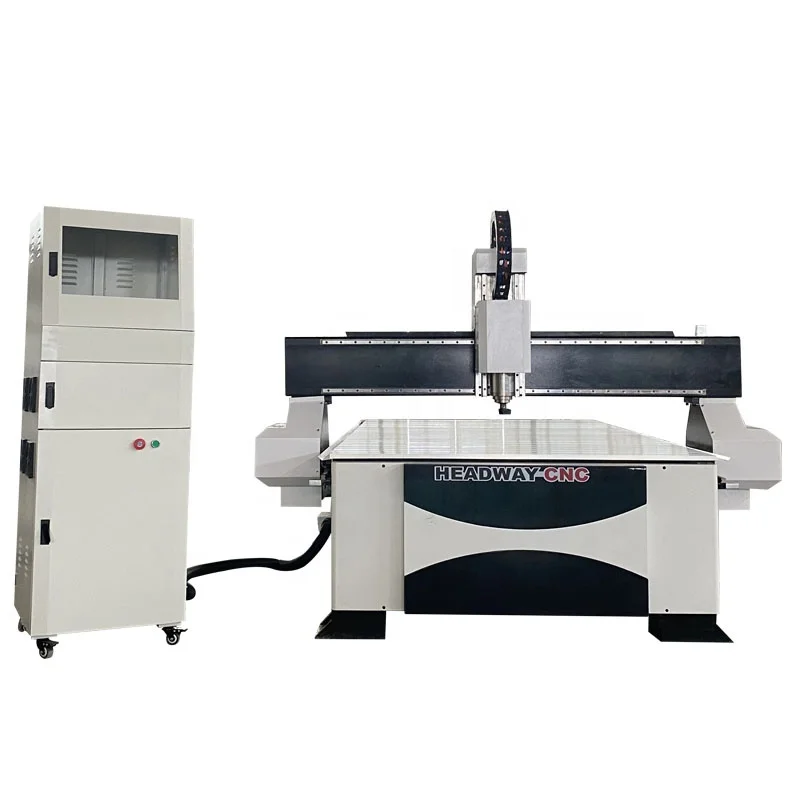

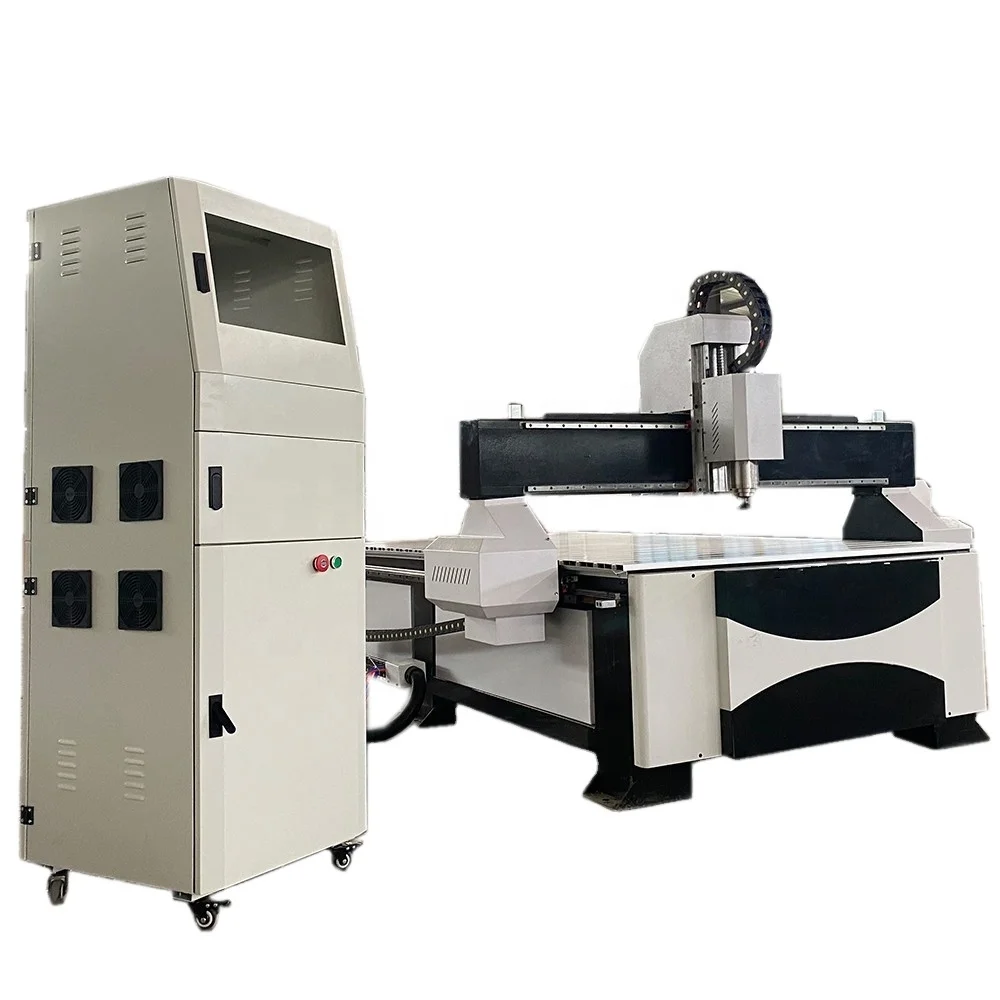

Custom size available 1325 1530 2040 CNC router machine for wood and PVC processing
- Category: Woodworking Machinery >>>
- Supplier: Qingdao Headway Industry And Trade Co. Ltd.
Share on (11000007673550):
Product Overview
Description
Normal configuration | High configuration | |
XYZ Working stroke | 1300*2500*200mm | 300mm |
Spindle power | 2.2kw/3.7kw | 4.5kw/5.5kw/7.0kw/9.0kw |
Max processing Speed | 10000mm | |
Repetitive positioning accuracy | ±0.05mm | |
Transmission mode | Square rail rack,Z-axis screw | |
Driver | DMA860H Stepper | Hybrid Servo/Pure Servo |
Spindle speed | 18000rpm | 24000rpm |
Voltage | 380V/220V | |
System | NC studio Card | DSP/95A/Shanlong |
Inverter | BEST | Fuling |
Spindle brand | UF/Changsheng | HQD |
Image format | DST/PLT/BMP/DXF/DWG |

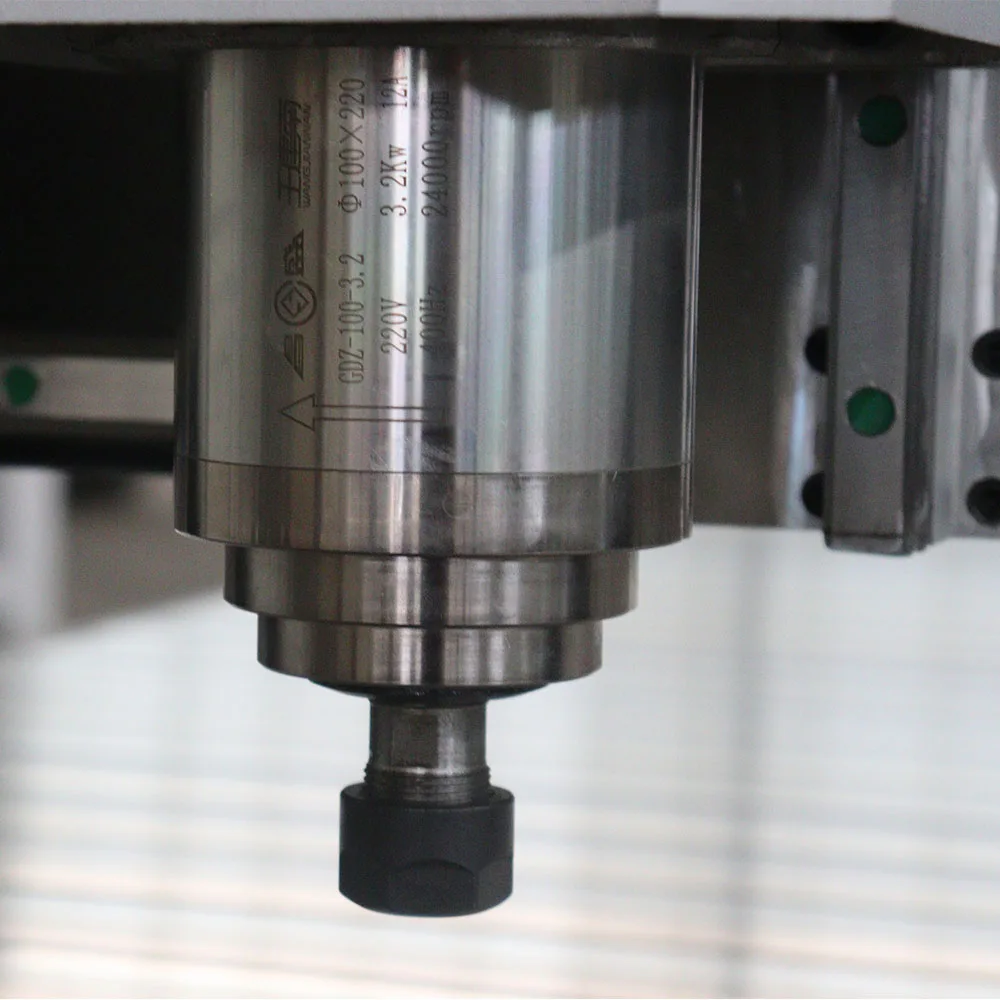

High power spindle motor, equipped with 4 bearings, increases the stability during operation. Increased speed. This increases accuracy.
Height motor, step motor 450B, not easy to lose step. The engraving accuracy of users is guaranteed.

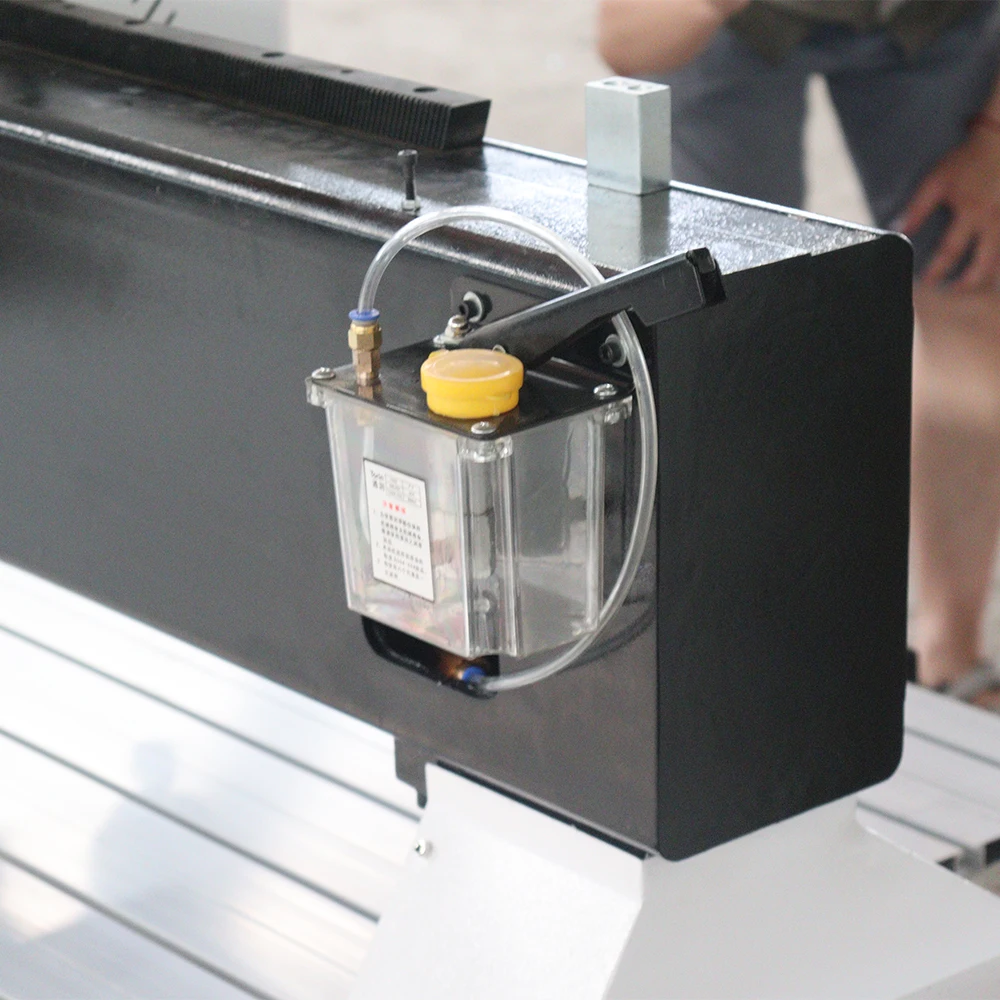

The oil injector plays the role of lubricating the machine. Used to lubricate transmission systems such as guide rails and racks. Ensure that the machine can operate for a long time.
A11 control system, which can be operated by hand-held handle. It is simple and convenient to insert a USB disk for operation.
#20 guide rail, helical rack. High strength guide rail, with stronger bearing capacity. The helical rack can effectively avoidstep loss. Higher machining accuracy
BEST frequency converter is adopted. Adjust the frequency conversion flexibly. Safe and durable, easy to use. Improve the stability of the machine, and the use time is long.
Buffering, damping and improving the dynamic performance of shafting, eliminating the inertia of radial force, connecting the motor spindle with the load, weakening the starting force.
Receive the signal from the main control box, then process the signal and transfer it to the motor and the sensor related to the motor, and feed back the working condition of the motor to the main control box
Our Customers
Packing & Shipping
Our Company
Headwaycnc Company is experts in CNC Metal Machine business since 2007 which is a global manufacturing company producing CNC wood router,laser cuttinging machines for various applications, such as woodworking furniture,Steel metallurgy, automotive industry,military electronics, machinery manufacturing, hardware tools and other industries.We have alarge cnc router equipment production workshop,as well as our own painting room,metal plate manufacturing workroom.
At the same time, a global service network centered on China has been established, and overseas responsible agencies coveringAsia,Europe, North America, South America, Africa, Oceania and other parts of the world have been established, serving more than 50 countries and regions around the world.
At the same time, a global service network centered on China has been established, and overseas responsible agencies coveringAsia,Europe, North America, South America, Africa, Oceania and other parts of the world have been established, serving more than 50 countries and regions around the world.

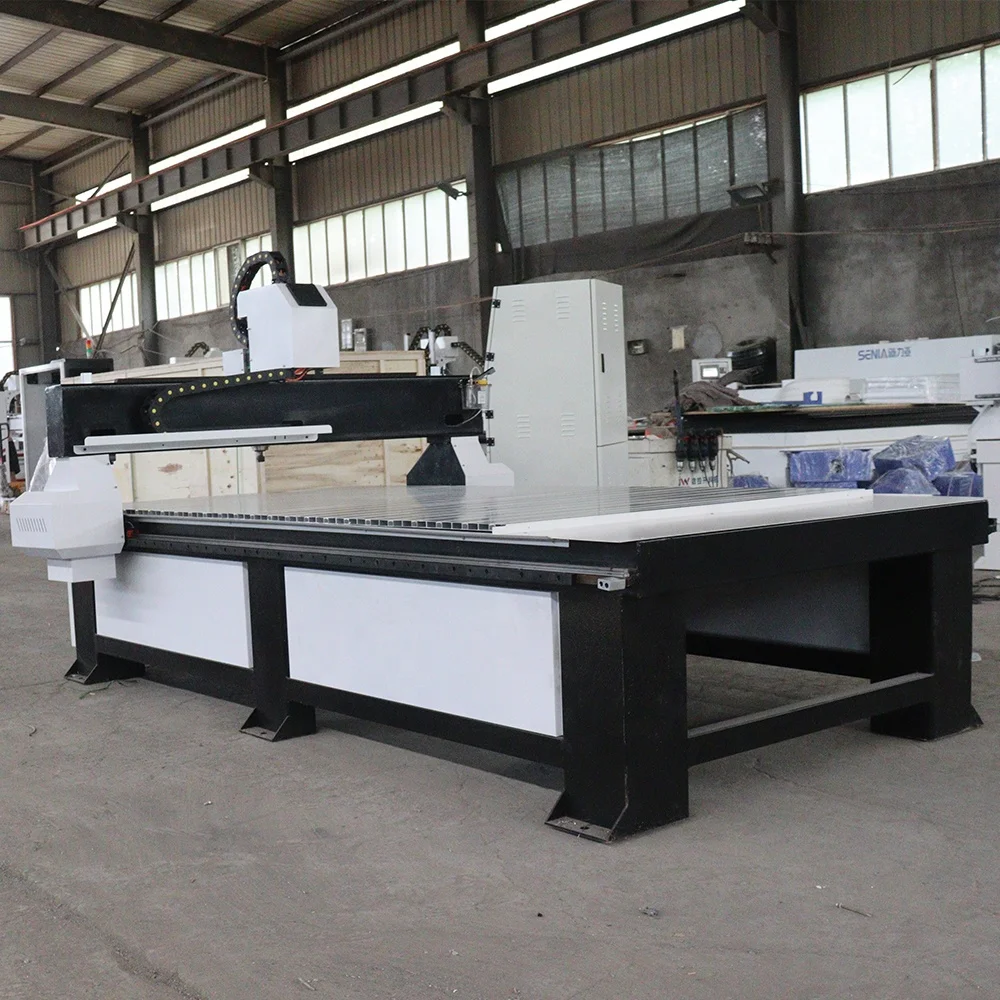

Machine in factory
