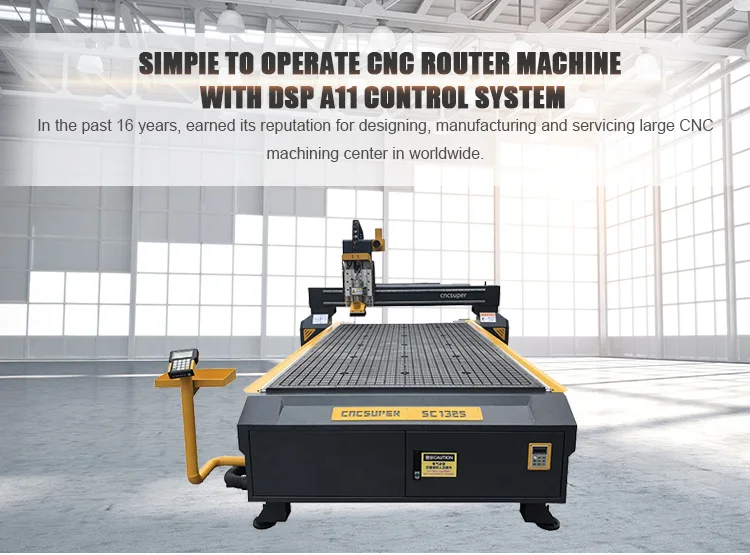

Professional Woodworking Machine 1300*2500mm 3 Axis 4 Axis Cnc Router Machine 1325 Wood Router for Wood and aluminum
- Category: Woodworking Machinery >>>
- Supplier: Guangdong Super Intelligent Equipment Co. Ltd.
Share on (1600467616138):
Product Overview
Description
Product Description
Product Parameters
Specification | Parameters | |||
Size | Working area | 1300*2500*200mm, 4*8ft | ||
1500*3000*200mm, 5*10ft | ||||
2000*3000*200mm, 6*10ft | ||||
2000*4000*200mm, 6*13ft | ||||
2000*6000*200mm, 6*20ft | ||||
Table | Vacuum table plus 5.5KW air vacuum pump | |||
Weight | 950kgs | |||
Accuracy | Positional accuracy | ±0.03/300mm | ||
Repeatability | ±0.03 | |||
Spindle motor | Power | 5.5KW water-cooling spindle | ||
NO. of revolution | 24000rpm | |||
Motor and drivers | Servo motor and drivers | |||
Traverse system | Rapid Traverse | 20000mm/min | ||
Cutting Speed | 15000mm/min | |||
Guide | Original TAIWAN HIWIN | |||
Control parts | Controller | DSP control system | ||
Software | Type3 | |||
Format | G code HPGL | |||
Lubrication system | Automatic lubrication system | |||
Tool diameter | 3.175-12.7mm | |||
Power supply | 220V/380V,50HZ | |||
Package dimension | 3.1LX2.23WX1.76H | |||
Options: | ||||
1. Aluminium plus PVC slot table 2. Dust collector 3. TAIWAN DELTA servo 4. JAPAN SHIPMO reducer 5.Removable rotary axis | ||||
