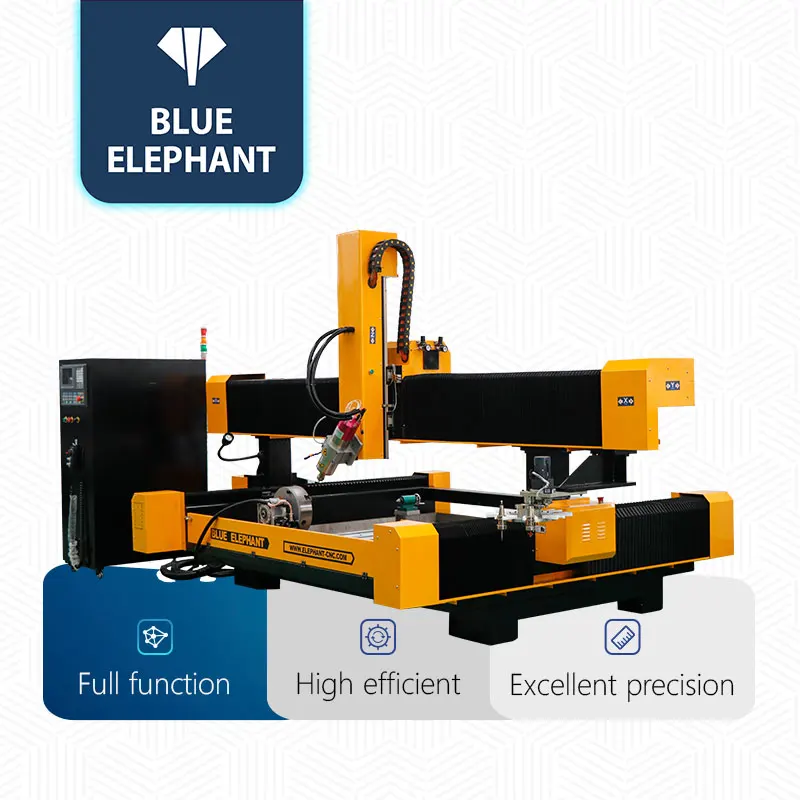

heavy duty automatic stone engraving machine marble granite cutting carving machine with quenching treatment for sale in Vietnam
- Category: >>>
- Supplier: Jinan Blue Elephant Cnc Machinery Co. Ltd.
Share on (11000008825265):
Product Overview
Description
Products Description
automatic 2113 ATC 3D CNC Stone Engraving Machine with Rotary Device for marble granite cutting for sale
Features:
Compared with other stone marble engraving machine, this ATC 3D CNC machine was designed with carousel automatic tool changer.Different knives can be installed in tool holder, the working efficiency can be greatly promoted.
* Distinguished with 4*8 CNC Router Stone Machine, this kind of machine was designed with rotary device. And the diameter, length and position of rotary device can be customized according to your requirements.
* Different knives can be installed in tool holder. In that case, the machine can change tools automatically in the engraving process. Besides, the working efficiency can be greatly promoted.
* Designed with Chang sheng ATC water cooling spindle, and the speed can be reached to 18000rpm for per minutes. and the spindle can swing 180 degrees.
* Please notice that all the specifications and working size can be designed with your requirements.
* Different knives can be installed in tool holder. In that case, the machine can change tools automatically in the engraving process. Besides, the working efficiency can be greatly promoted.
* Designed with Chang sheng ATC water cooling spindle, and the speed can be reached to 18000rpm for per minutes. and the spindle can swing 180 degrees.
* Please notice that all the specifications and working size can be designed with your requirements.
Technical parameters
Model | ELECNC-2113ATC-4 | ||||||
Color | According to your needs | ||||||
Effective Working Area | 2100*1300*600mm | ||||||
Tool Magazine | 8 tools Carousel magazines | ||||||
Working Voltage | 380V, 3Phase, 50Hz or option | ||||||
Control system | Taiwan SYNTEC 6MB control system with 1.8m control box | ||||||
Spindle | 5.5kw Chang sheng ATC water cooling spindle,18000rpm. The spindle can rotate 180,from -90 to 90 | ||||||
Inverter | 5.5kw Fuling inverter | ||||||
Motor & Driver | 850w Japan YASKAWA servo motor and 1kw servo driver with 3 pieces Japan Shimpo Reducer | ||||||
Lubrication System | Auto Lubrication System | ||||||
Gantry Structure | Gantry Moving | ||||||
Table Surface | T-slot work table with water tank; Sink work table | ||||||
Transmission | Taiwan ABBA/ PMI/ HIWIN square linear guide,#30 Taiwan TBI ball screw for Z axis Helical rack gear transmission for X,Y axis | ||||||
Tool Sensor | Auto tool sensor calibration | ||||||
Water mist cooling system | Water mist cooling spray | ||||||
Structure | Heavy duty stone machine body | ||||||
Features | Folding door on X axis; Removable Rotary device with YASKAWA servo motor and driver: diameter 300mm,length 1300mm; | ||||||
Sample & Application
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic
sheeting, PVC pipe, wooden planks and other non-metallic mold.
cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic
sheeting, PVC pipe, wooden planks and other non-metallic mold.
Details Images
5.5kw Chang sheng ATC water cooling spindle

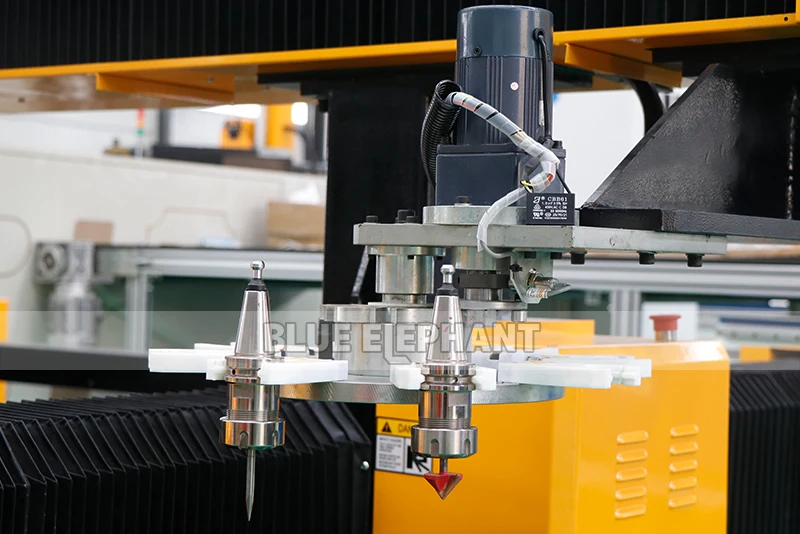

8 tools Carousel magazines
Hot Sale Products

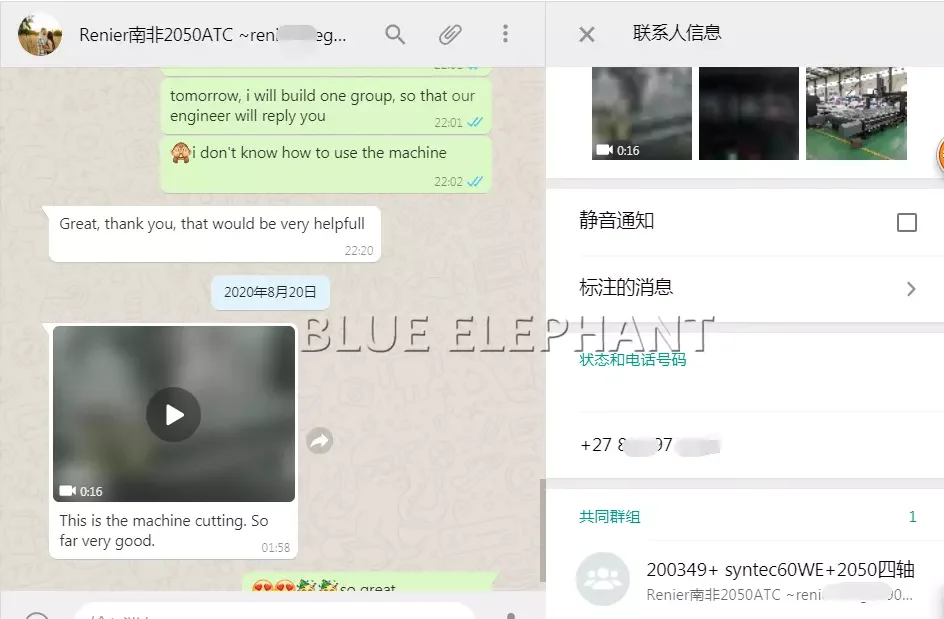

Customer feedback

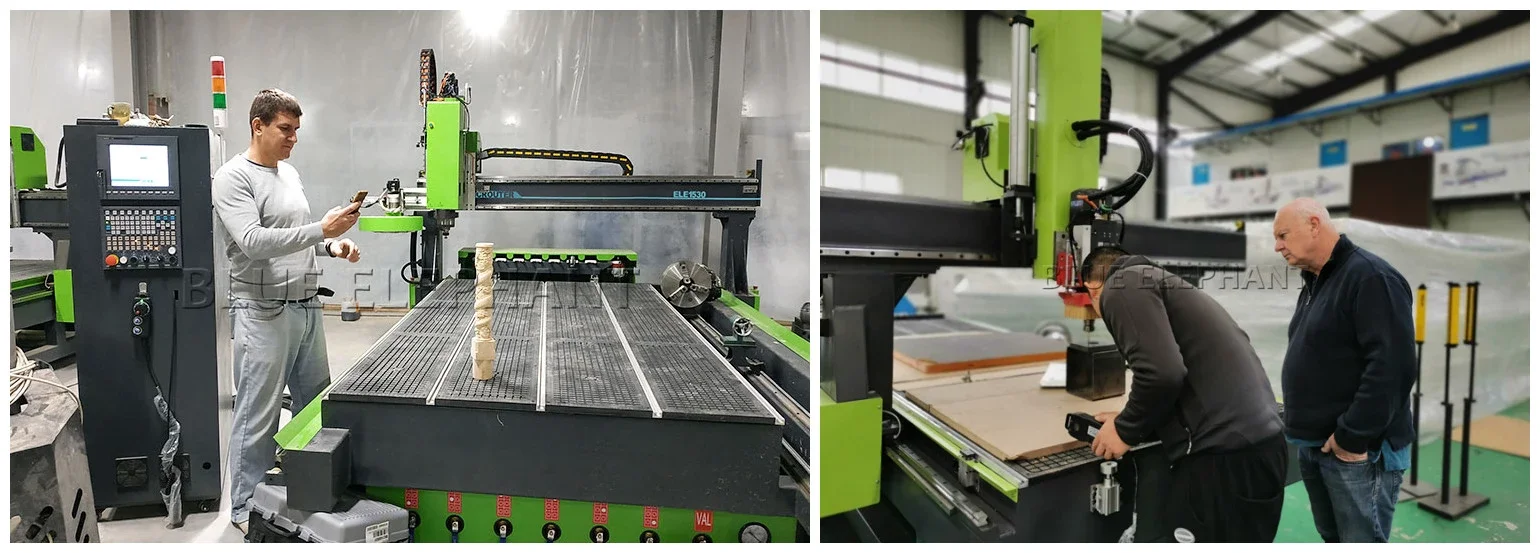

Canadian customer feedback
After-sales in Cyprus
Serbian customers visit the factory
After-sales in Sri Lanka
Our service
Customer receive our machine
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Delivery
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.

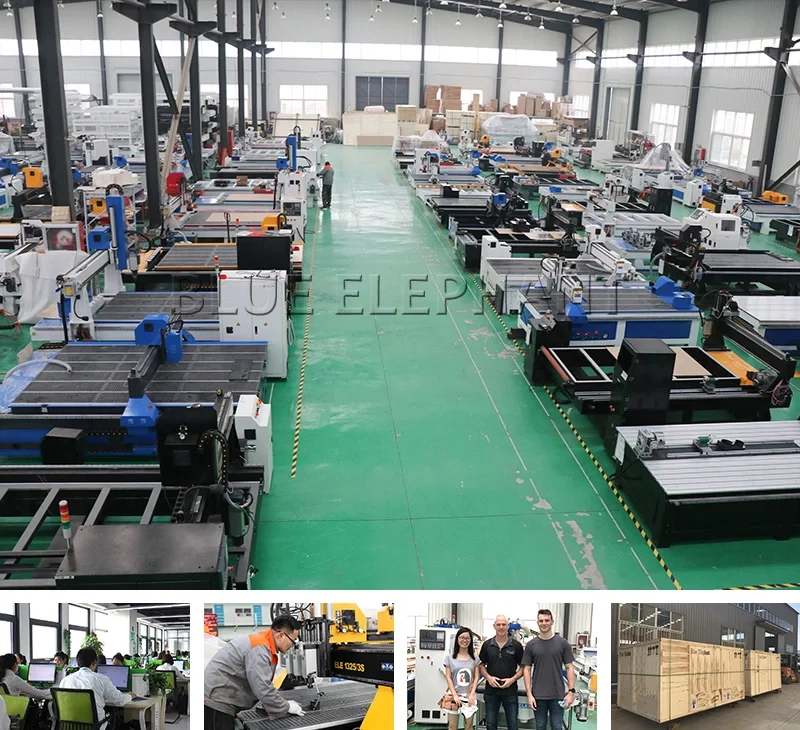

Company Informations
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC
router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting
Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely
used for advertising, woodworking, mould, stone, metal industry.
Learn more about us, welcome to click https://elecnclaser.en.alibaba.com/
router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting
Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely
used for advertising, woodworking, mould, stone, metal industry.
Learn more about us, welcome to click https://elecnclaser.en.alibaba.com/
