Automatic Component Gravimetric doser plastic pellet blender plastic granules masterbatch mixer color mixing machine
- Category: Plastic Raw Material Machinery >>>
- Supplier: Guangdong Liansu Machinery Manufacturing Co. Ltd.
Share on (11000008960990):
Product Overview
Description
Products Description
Model | Maximum processing capacity(kg/hr) | Batch processing capacity(kg) | Stirring motor(kw) | Compressed air(Bar) | Number of hoppers | Number of screw rods | ||||||
LSGB-200-4R1 | 260 | 3 | 0.15 | 4-6 | 4 | 1 | ||||||
LSGB-600-4R1 | 720 | 10 | 0.55 | 4-6 | 4 | 1 | ||||||
LSGB-1200-4R1 | 1500 | 20 | 1.1 | 4-6 | 4 | 1 | ||||||
LSGB-2000-4R1 | 2350 | 30 | 1.1 | 4-6 | 4 | / | ||||||
LSGB-3000-4R1 | 3700 | 50 | 1.5 | 4-6 | 4 | / | ||||||
LSGB-5000-4R1 | 4850 | 90 | 2.2 | 4-6 | 4 | / | ||||||
Voltage | 3¢, 380V, 50Hz | |||||||||||
Note: The above models are equipped with a support + storage hopper + material distribution station; PLC control, touch screen display; Siemens weighing sensor; The above models are only suitable for 3-6mm granules. | ||||||||||||
Features:
* PLC control, touch screen display, easy to operate and understand;
* Modular assembly structure, convenient disassembly and assembly, easy to clean and exchange;
* All materials are uniformly mixed by gravity measurement, and the micro-metering accuracy can be strictly controlled within the scope of ±0 5%;
* Automatic repeated calibration function, which automatically calibrates the program after each weighing to ensure the highest dosing accuracy;
* With the formula storage function, up to 100 formulas can be stored;
* With the alarm history function;
* With Ethernet communication function, realizing networking with the molding machine and centralized monitoring function.
* Modular assembly structure, convenient disassembly and assembly, easy to clean and exchange;
* All materials are uniformly mixed by gravity measurement, and the micro-metering accuracy can be strictly controlled within the scope of ±0 5%;
* Automatic repeated calibration function, which automatically calibrates the program after each weighing to ensure the highest dosing accuracy;
* With the formula storage function, up to 100 formulas can be stored;
* With the alarm history function;
* With Ethernet communication function, realizing networking with the molding machine and centralized monitoring function.
Mconvey provides overall solution for plastic material handling system：
1.Material storage system
2.Material drying&dehumitifing system
3.Dosing& weighting system
4.Compound & mixing system
5.Control system
2.Material drying&dehumitifing system
3.Dosing& weighting system
4.Compound & mixing system
5.Control system
If you want more details, please contact us .
Products Detail display

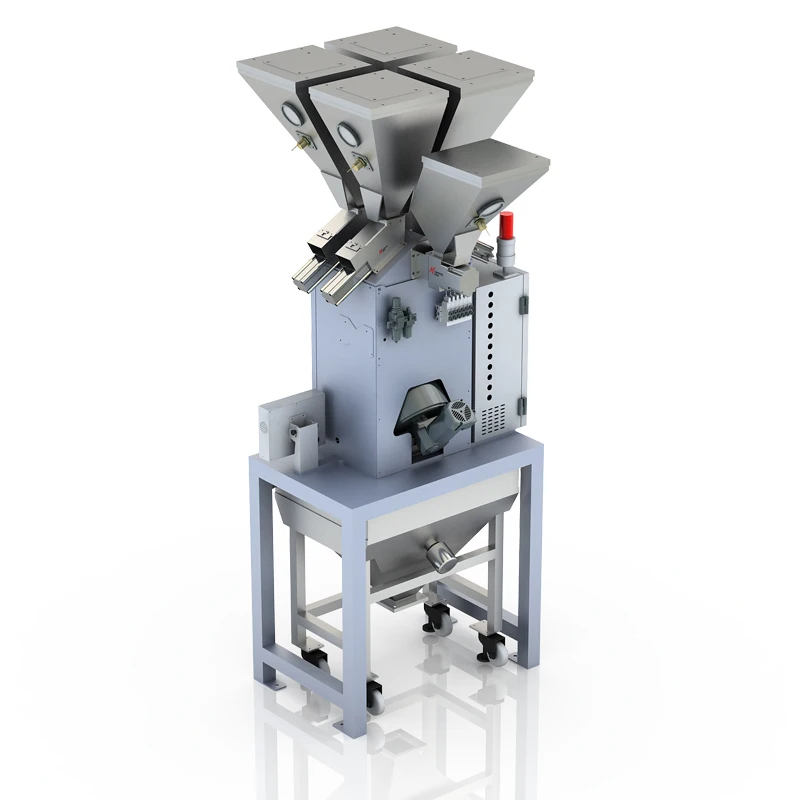

Modular structure design.
A: Each component adopts modular assembly structure.And most of the parts are inter changeable, like the hoppers, pneumatic valve gates. and screw feeding heard.
B: Most of components adopt quick disasembly design,which is convenient for material replacement
and cleaning.
B: Most of components adopt quick disasembly design,which is convenient for material replacement
and cleaning.

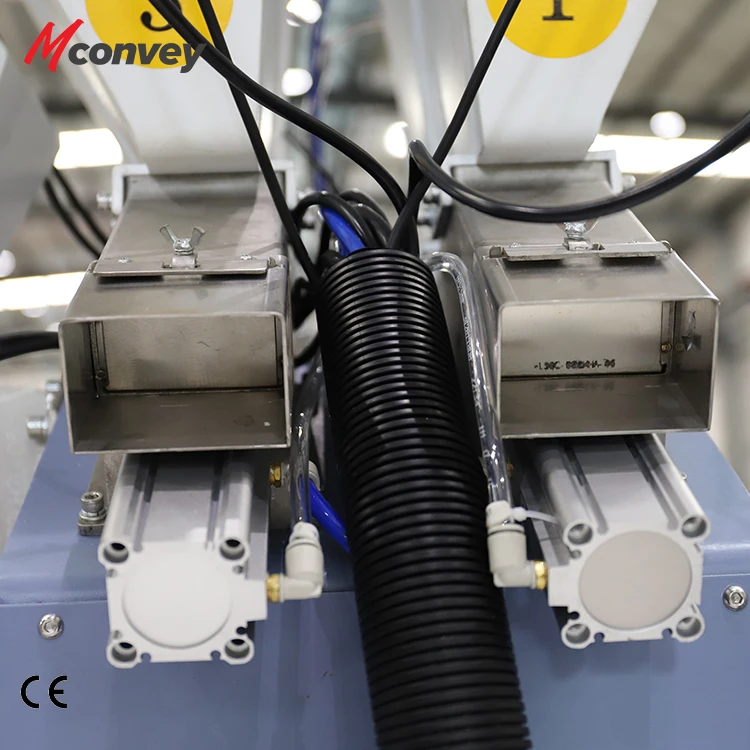

Casting component.
The key components are made by precison moulding. like the valve gates.The support and installation part of the screw feeding head, which improve the performance and durability.
Great data storage and equipped with networking port .
Up to 500 groups of fomulas can be stored
The blenders are equipped wwith RJ45 Ethernet Communication port. which is convenient for date
networking.
The blenders are equipped wwith RJ45 Ethernet Communication port. which is convenient for date
networking.

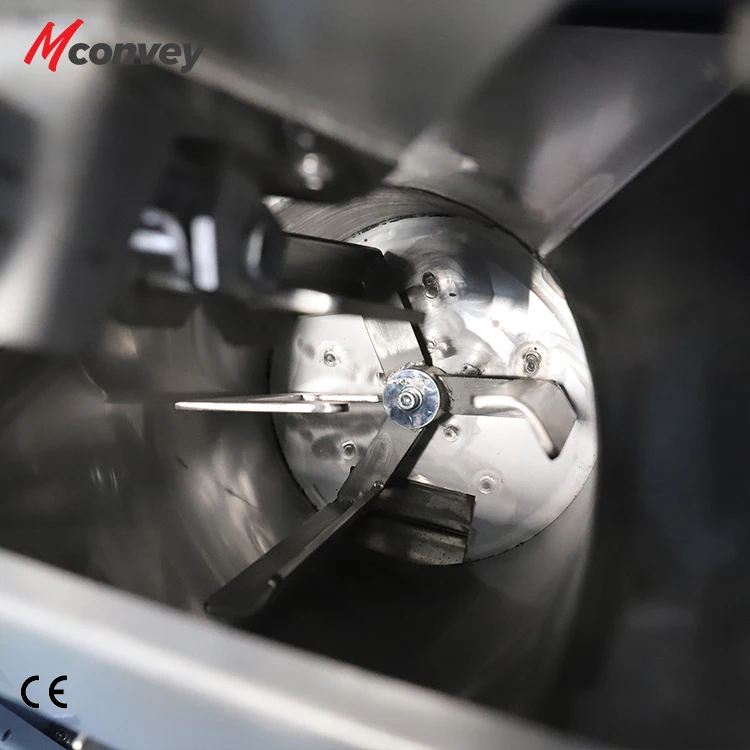

Mixing without dead zones.
Material bin is 45 degree inclined and the stirring device is smartly designed to cover all the corners, No dead zones and are well mixed.

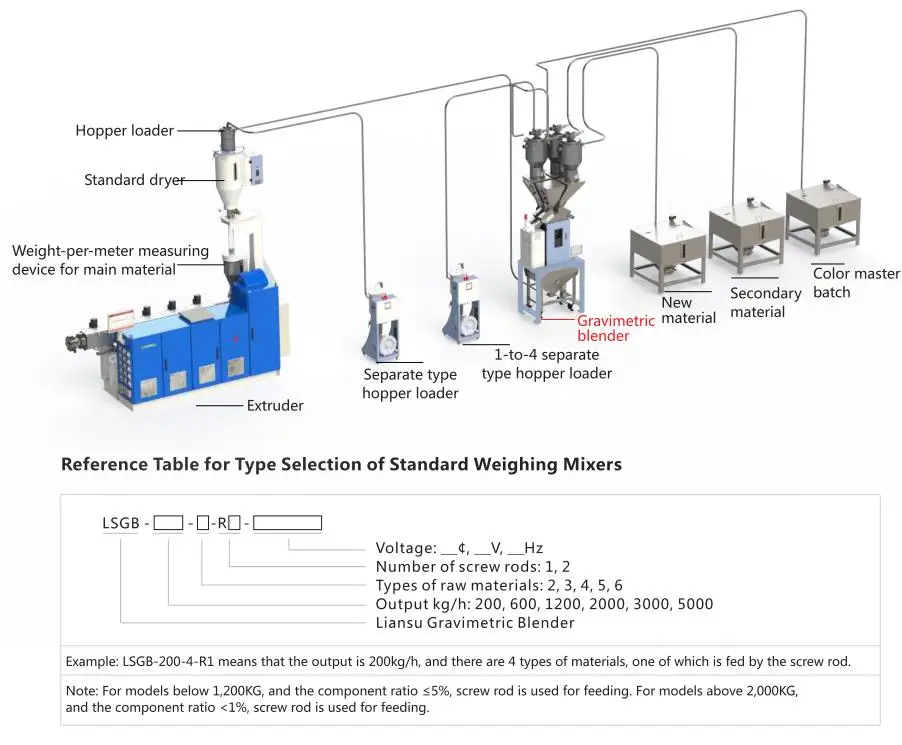

Product Schematic diagram

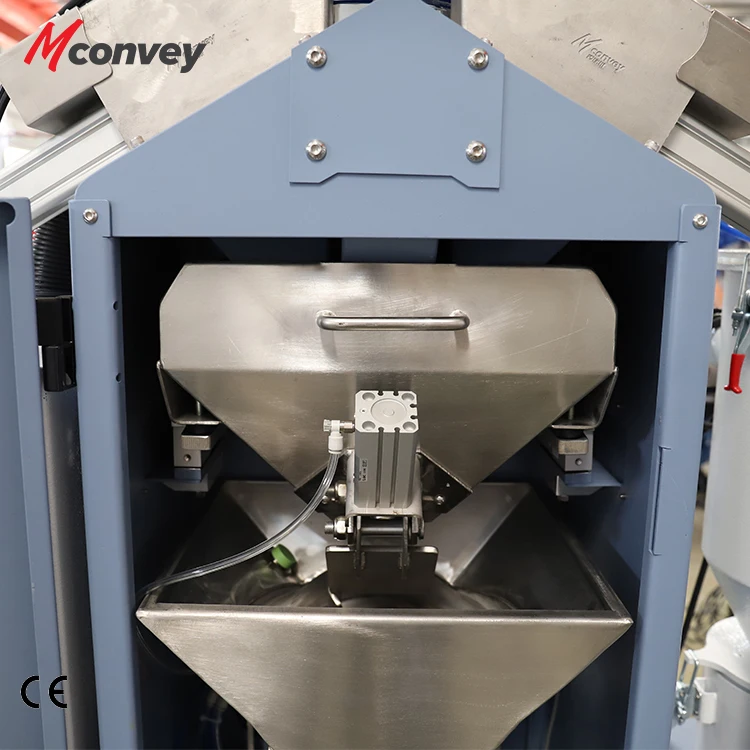

Working principle:
* When the metering valve is started, the hopper metering valve opens according to the time value
calculated by the preset weight value and the unit feeding volume of the metering valve. When the feeding
time is up, the metering valve closes and the weighing pan is checked. If within the specified error range,
it goes to the next hopper for weighing and check;
calculated by the preset weight value and the unit feeding volume of the metering valve. When the feeding
time is up, the metering valve closes and the weighing pan is checked. If within the specified error range,
it goes to the next hopper for weighing and check;
* When the raw materials in all the hoppers have been weighed and checked, they will fall into the mixing
bucket for stirring and mixing. When the mixing time is up, they will be automatically discharged into the
bottom storage hopper.
bucket for stirring and mixing. When the mixing time is up, they will be automatically discharged into the
bottom storage hopper.
Scope of application:
* Equipped with a magnetic base, it can be directly installed on the injection molding machine/extruder;
* Equipped with a weighing machine support and material distribution station, it can be connected to the feeding system.
Product display
