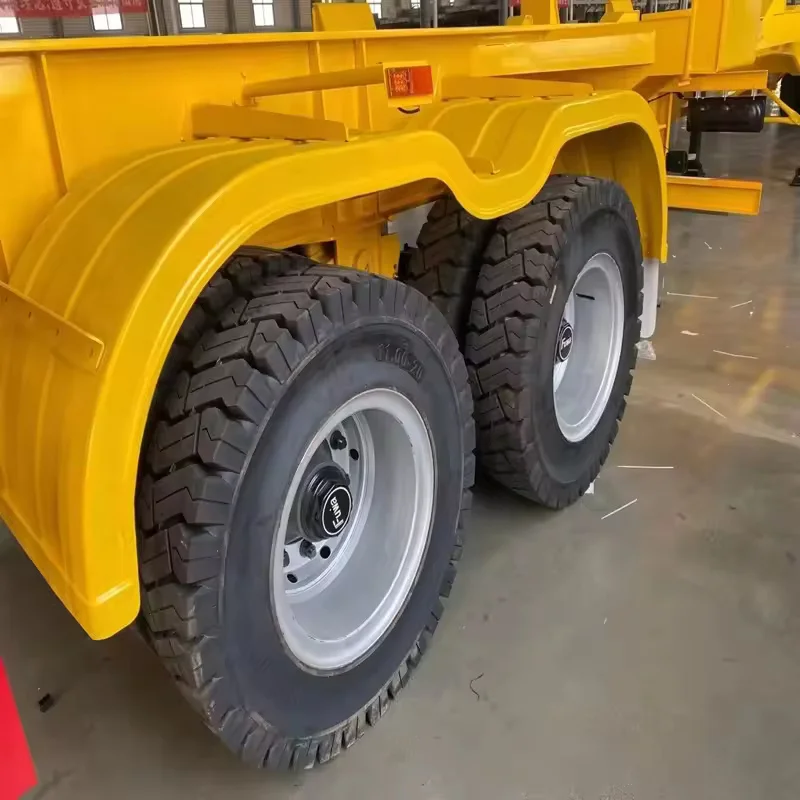

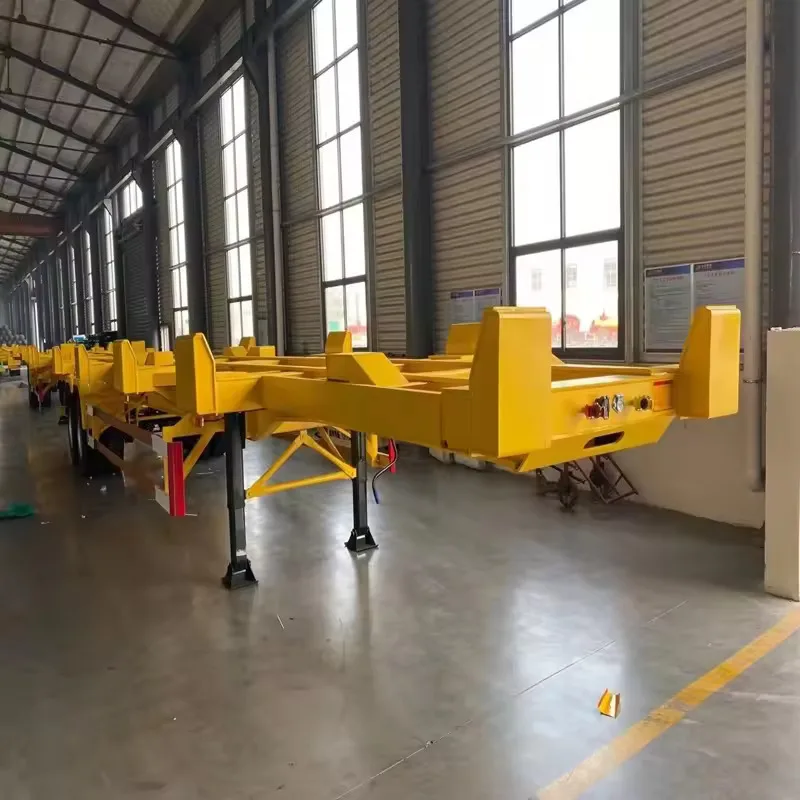

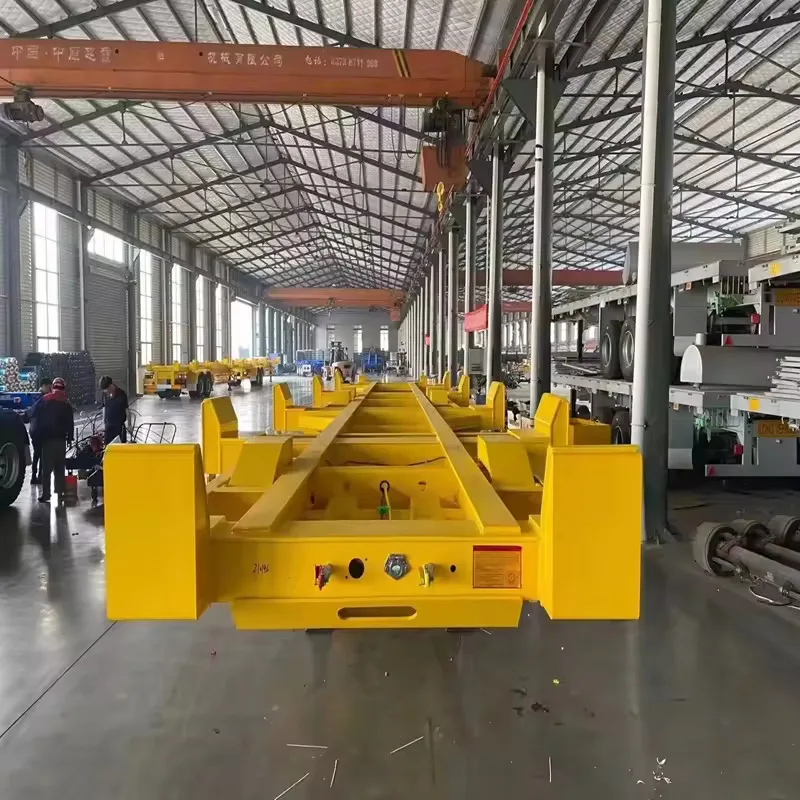

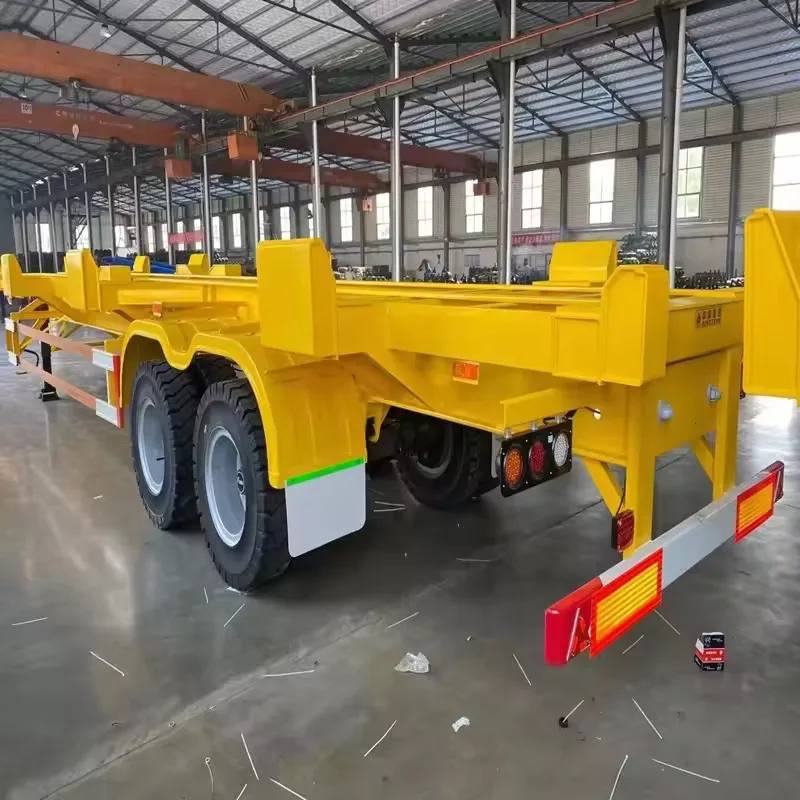

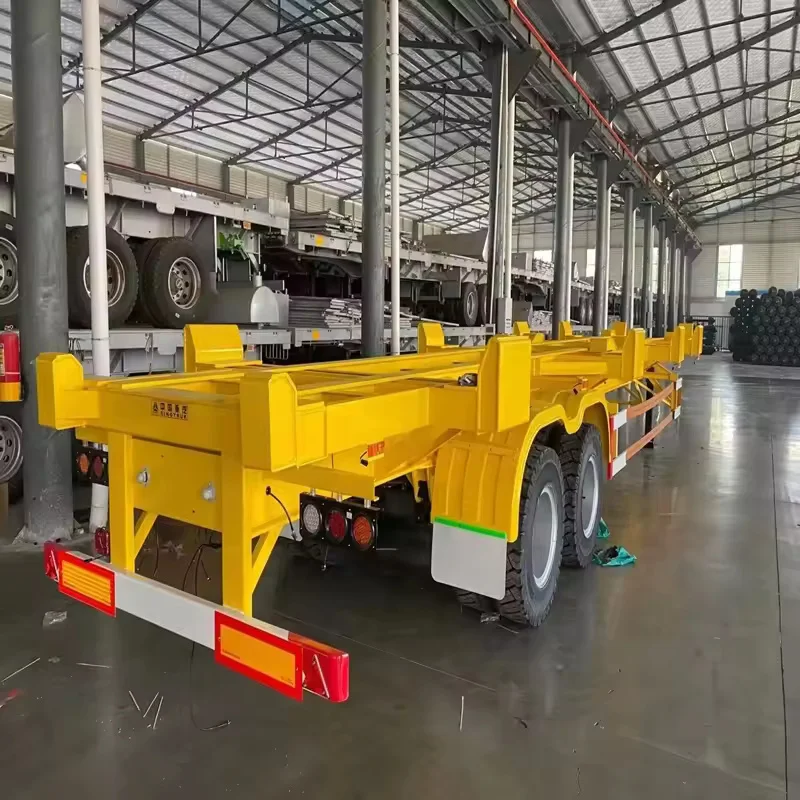

Semi truck trailer 20FT 40FT container chassis trailer truck
- Category: >>>
- Supplier: Hubei Chusheng Vehicle Imp.&Exp. Co. Ltd.Hubei Ltd.
Share on (11000018402270):
Product Overview
Description
Product Description
Skeleton Semi Trailer is used for transporting 20ft, 40ft container.
Axle: FUWA or BPW brand
Spring leaf: 8/10
Suspension: Mechanical
Landing Gear: JOST D200T
Tire: 11.00R20/ 12R22.5/ 12.00R20
Rim: 8.5-20/ 9.0-20
Kingpin: Welded or bolted JOST 50# or 90#
Electrical System: 24V
Brake System: Without ABS (Option)
Spare Tire Carrier: Equipped one set per chassis without spare tire.
Tool Box: Equipped one set.
Painting: Color by customers requirement.
Axle: FUWA or BPW brand
Spring leaf: 8/10
Suspension: Mechanical
Landing Gear: JOST D200T
Tire: 11.00R20/ 12R22.5/ 12.00R20
Rim: 8.5-20/ 9.0-20
Kingpin: Welded or bolted JOST 50# or 90#
Electrical System: 24V
Brake System: Without ABS (Option)
Spare Tire Carrier: Equipped one set per chassis without spare tire.
Tool Box: Equipped one set.
Painting: Color by customers requirement.
Specification
3 axle skeleton semi trailer | ||||
Payload | 40000kgs | |||
Overall Dimension | 12500*2500*1550mm(L*W*H) | |||
Axle | 3 Axles, BPW or Fuwa brand | |||
Suspension | Mechanical suspension | |||
Tire | 12R22.5 tubeless tire, 12 units | |||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30 air chamber; parking brake | |||
Main Beam | "I" Section 500mm hieght Q345/T700 matirial | |||
Cross Beam | 10#channel steel | |||
King Pin | Welded kingpin, size 50#(2 inches) or 90#(3.5 inches) | |||
Landing Gear | JOST brand two-speed,manual operating, heavy duty landing gear | |||
Twist lock | 12/14 set ISO Standard | |||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||
Packing & Delivery
Company Profile

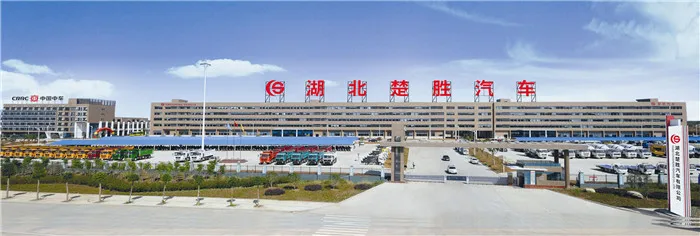

1. Hubei Chusheng Vehicle Manufacturing Co., Ltd. one of the biggest manufacturers of special trucks in China. We have more than 1000 workers, 300 technicians, and factory scale is more than 690,000m2.
2. Our products have been exported to 60 countries, including Middle East, Asia, Africa, Eastern Europe and other countries and regions. Our product have passed the ISO9001 quality system certification, and CCC certificate.
3. Our company has more than 1000 units advanced production equipments, forming production lines for dump trucks, tank trucks, wrecker trucks, garbage trucks, firefighting trucks, concrete mixer trucks, other special trucks and semi-trailer, with an annual output of 50,000 units production capacity.
2. Our products have been exported to 60 countries, including Middle East, Asia, Africa, Eastern Europe and other countries and regions. Our product have passed the ISO9001 quality system certification, and CCC certificate.
3. Our company has more than 1000 units advanced production equipments, forming production lines for dump trucks, tank trucks, wrecker trucks, garbage trucks, firefighting trucks, concrete mixer trucks, other special trucks and semi-trailer, with an annual output of 50,000 units production capacity.
FAQ
1.What is the available trade term ?
Answer: EXW, FOB, CFR, CIF.
2. What is the payment term?
Answer: 30% in advance, 70% balance before shipping, T/T and L/C recommended.
3. How long is the delivery time?
Answer: 20-30 days.
4. How about the warranty time?
Answer: 12 month.
5. What is the shipping?
Answer: bulk ship, ro-ro ship, container ship, flat rack.
Answer: EXW, FOB, CFR, CIF.
2. What is the payment term?
Answer: 30% in advance, 70% balance before shipping, T/T and L/C recommended.
3. How long is the delivery time?
Answer: 20-30 days.
4. How about the warranty time?
Answer: 12 month.
5. What is the shipping?
Answer: bulk ship, ro-ro ship, container ship, flat rack.
