Sandvik Hydraulic Top Hammer Rock Drills Rd314 for Metal and Non Metal Mine Bolting Rigs and Coal Mine Roadheader Rigs
- Category: >>>
- Supplier: Qingdao Elite Hydraulic Co. Ltd.
Share on (11000019086274):
Product Overview
Description
Products Description
The HM14B/D Hydraulic Drifters
High-Frequency 14KW Hyrdaulic Drifter HS14BD Hyrdaulic Drifter Designed for Bolt Support and Surface Drilling Equipment
Product Details
The impact piston has three progressive steps.
Equipped with an active drill tool rebound cushioning system.
The distribution valve is located at the rear end of the thrust piston, capable of recovering rebound energy of the piston.
The impact piston is a composite piston, composed of an impact piston and a thrust piston.
The shank end can be either internally or externally threaded.
The front chamber of the piston is at atmospheric pressure, while the rear chamber handles oil return, with the rear end face alternately replacing oil.
Equipped with an active drill tool rebound cushioning system.
The distribution valve is located at the rear end of the thrust piston, capable of recovering rebound energy of the piston.
The impact piston is a composite piston, composed of an impact piston and a thrust piston.
The shank end can be either internally or externally threaded.
The front chamber of the piston is at atmospheric pressure, while the rear chamber handles oil return, with the rear end face alternately replacing oil.

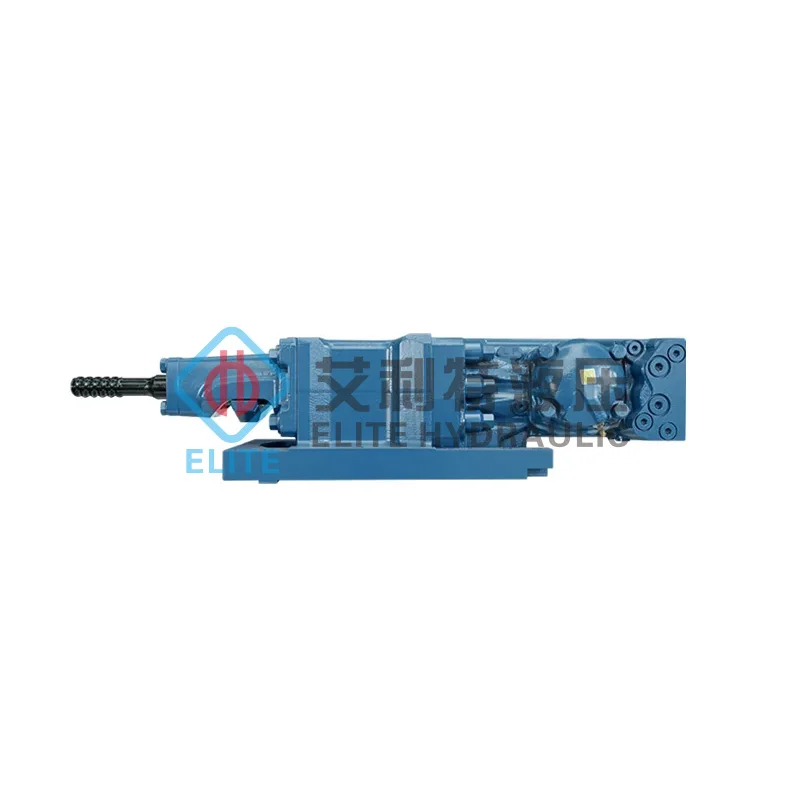

Details Images
Technical Parameters

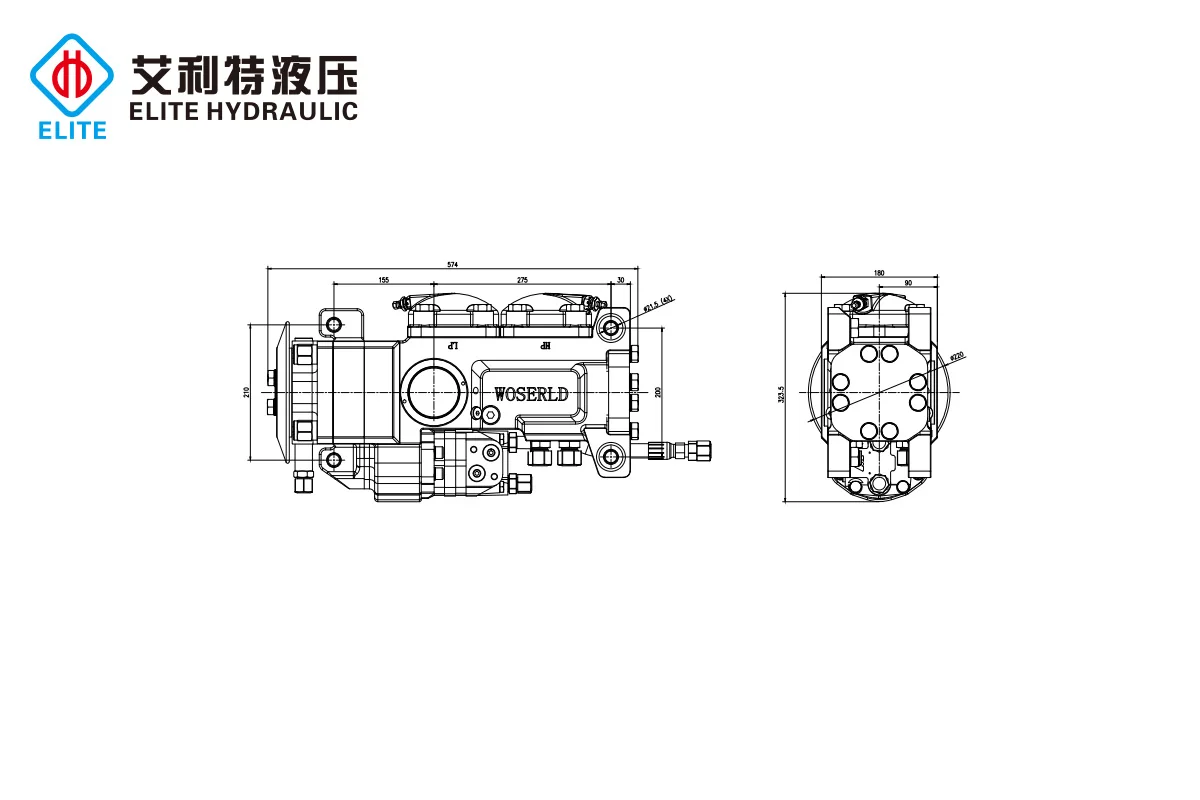

Dimension | mm*mm*mm | 574X323.5X180 | ||
Weight | KG | 127 | ||
Center Height | mm | 90 | ||
Shank | – | R32F/R32/T38 | ||
Hole Diameter | mm | 33-51 | ||
Impact Functions | ||||
Max. Impact Power | KW | 14 | ||
Oil Inlet Pressure | Bar | 180 | ||
Impact Frequency | HZ | 110 | ||
Flow | L/min | 90 | ||
Impact Energy | J | 127 | ||
Rotation Functions | ||||
Displacement | CC | 100/125 | ||
Rotation Speed | Rpm | 550-440 | ||
Max. Torque | Nm | 340-420 | ||
Oil Inlet Pressure | Bar | 175 | ||
Flow | L/min | 75 | ||
Others | ||||
Water Pressure | Bar | 10-15 | ||
Water Flow | L/min | 30-50 | ||
Air Lubrication Pressure | Bar | 4-5 | ||
Lubrication Air Flow | L/S | 15-25 | ||

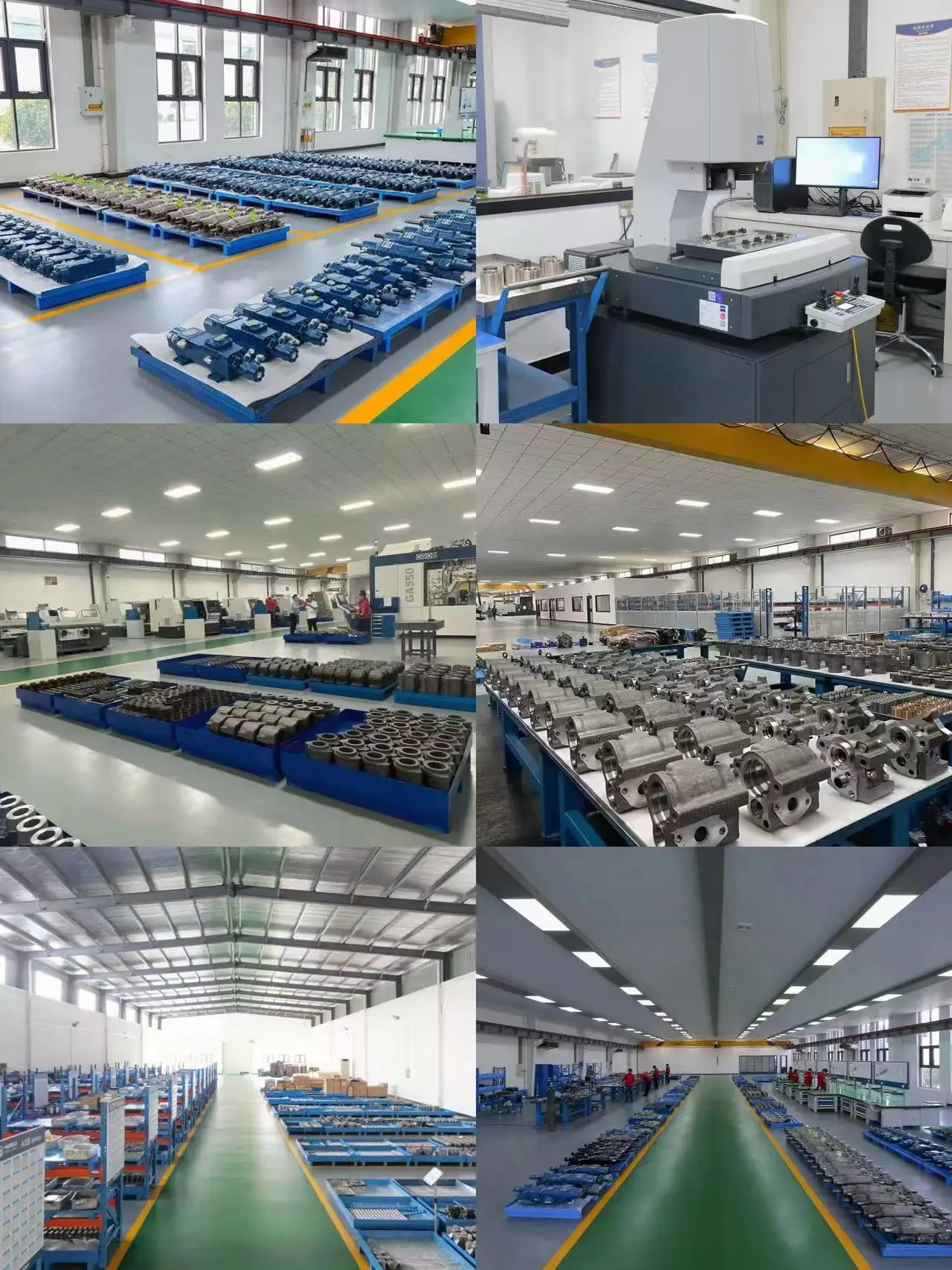

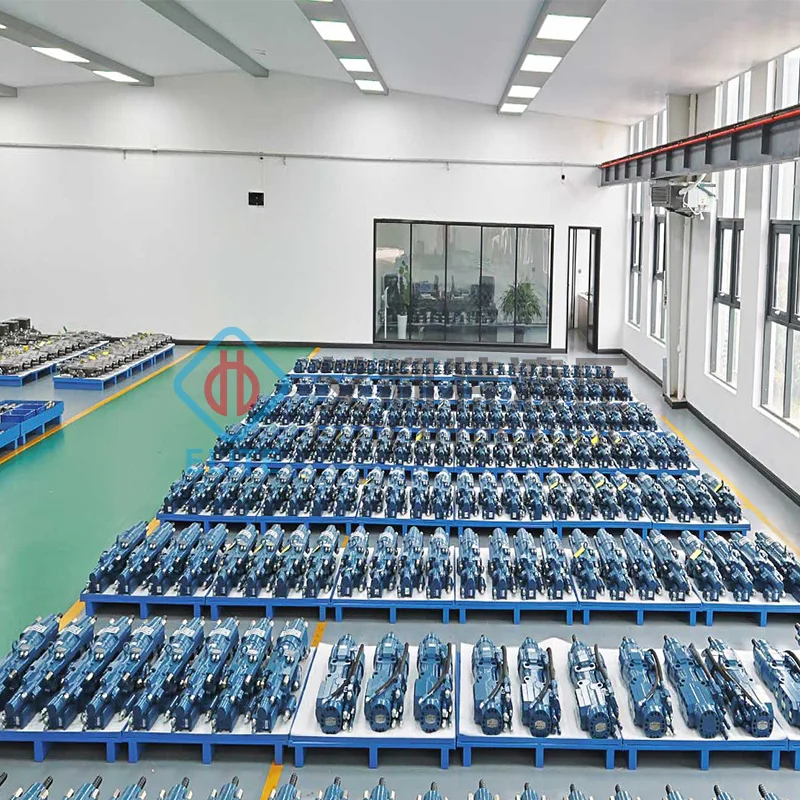

Manufacturing processes

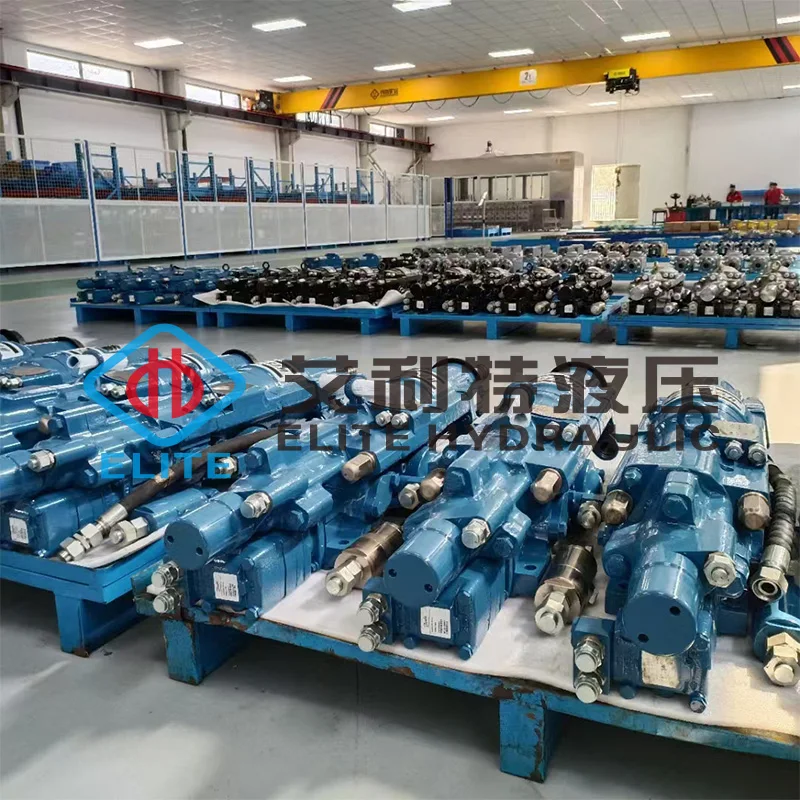

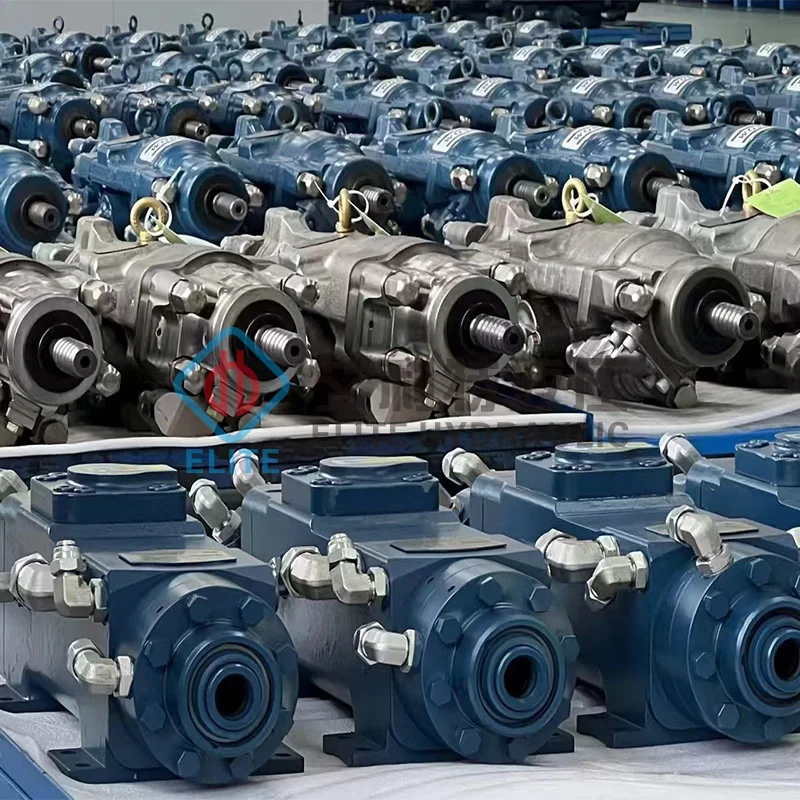

Production

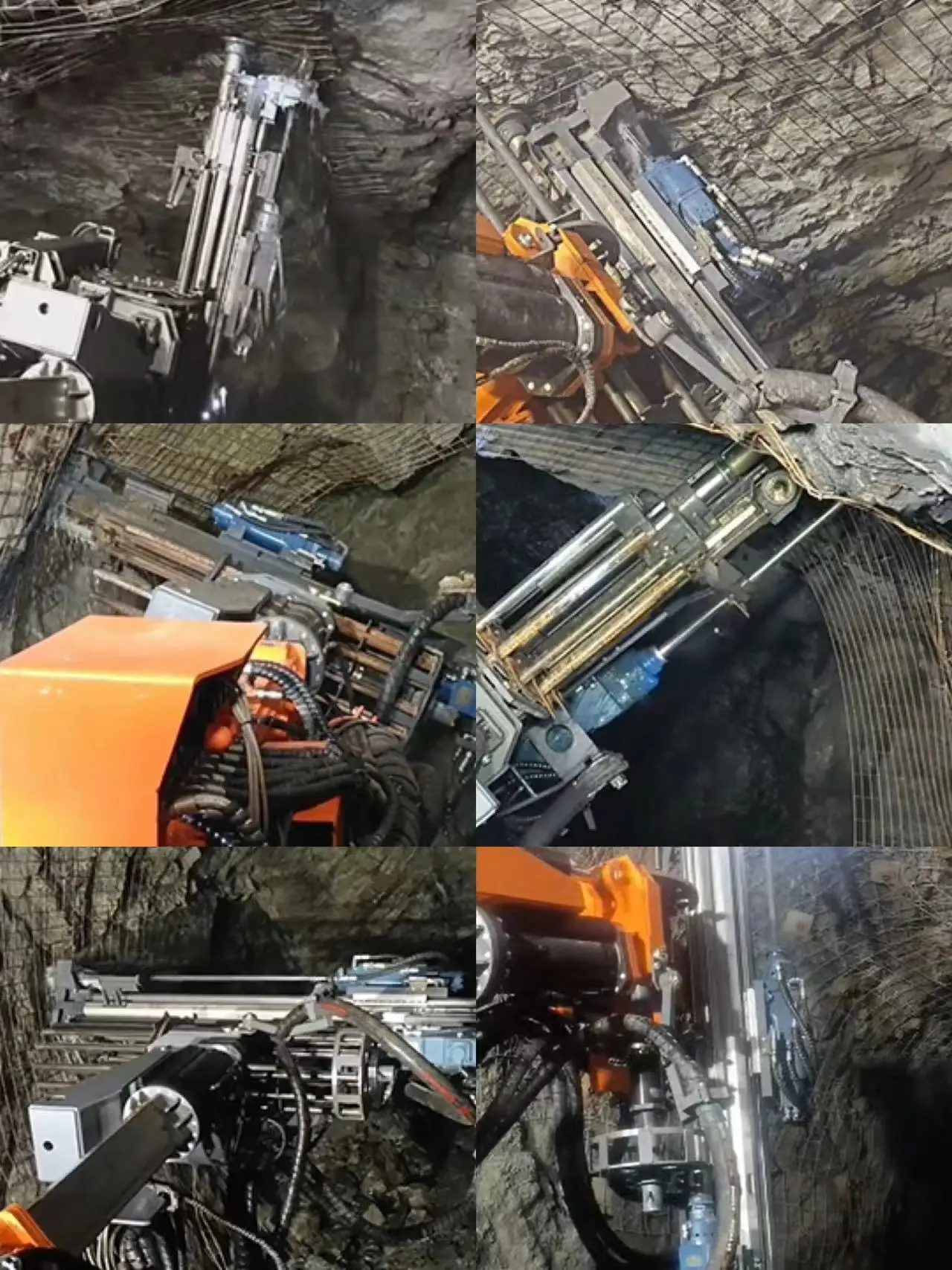

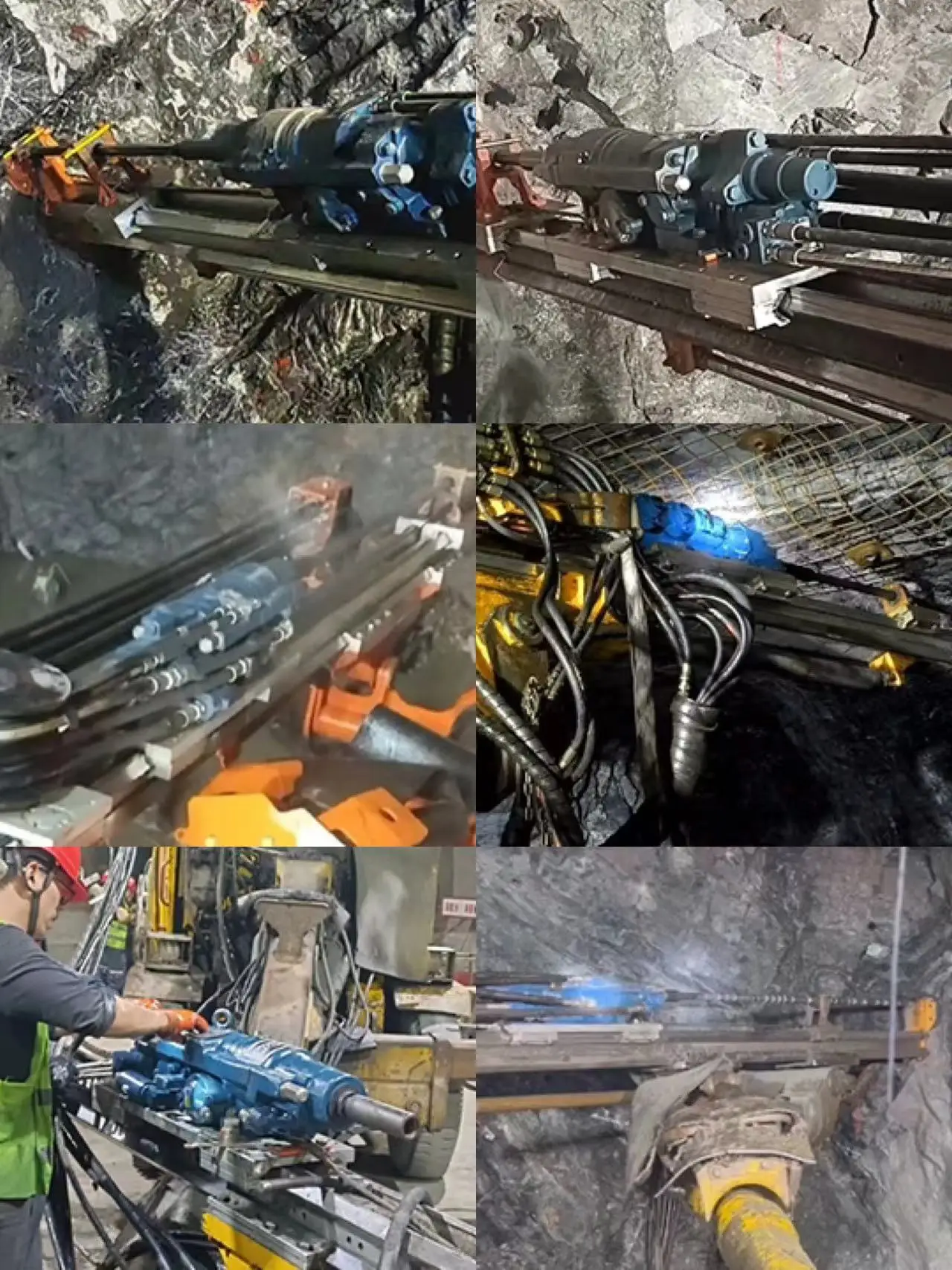

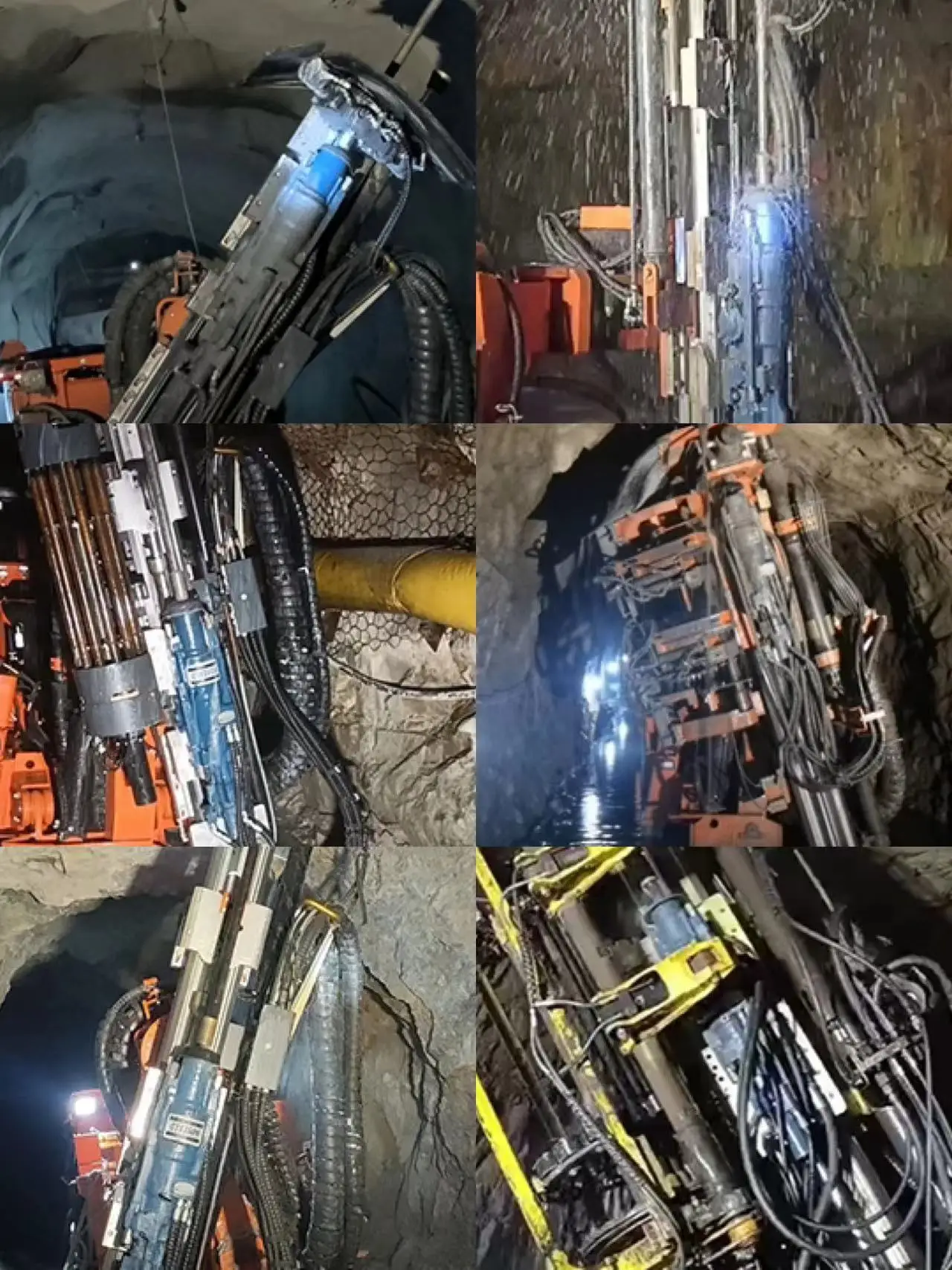

Application
Hydraulic rock drills are essential engineering equipment in fields such as mining,road construction,hydropower, railways, and building construction. They are used directly for quarrying stone by drilling blast holes into rock formations, allowing explosives to be inserted to break apart the rock, thereby facilitating tasks like stone extraction or other rock-related projects.Additionally, rock drills can be repurposed as demolition tools to break apart hard materials such as concrete.
ELITE is a high-end hydraulic rock drill brand in China，our company has four major series and more than twenty specifications. No matter what specifications and models you need, we can provide solutions.
