Product Overview

Description



Products Description




How PDC Cutters are made

PDC Cutters
The invention of the PDC cutter propelled the fixed cutter to the forefront of the drilling industry and the idea instantly took
off. Because the shearing action of PDC cutters are more efficient than the crushing action of a button or tooth bit, fixed
cutters are in high demand.
In 1982, PDC drill bits accounted for only 2% of total footage drilled. In 2010, 65% of total footage drilled was by PDCs.

----------------------------------------------------------------------------------------------------------------------------------

Applications
The diamond drill bit is used in nearly all applications including geothermal energy drilling, mining, water well and natural gas
drilling and oil well drilling. Total depths range from 100′ to 20,000′.
PDC drill bits are used extensively in natural gas drilling.

----------------------------------------------------------------------------------------------------------------------------------

Limitations
Impact damage, heat damage and abrasive wear all inhibit a drill bit’s performance and can occur in even the softest geological
formations. However, the most difficult formation for a PDC bit to drill are extremely abrasive ones.
With PDC popularity on the rise, bit manufacturing companies are seeking new materials and design aspects to make a tougher bit
without compromising ROP.

How PDC Cutters are made
Cutters are made using a combination of high heat and high pressure. Man made diamonds can be grown in 5-10 minutes. Because of
this diamond content, a fixed cutter bit may also be known as a diamond drill bit.
High heat plus pressure creates a PDC (polycrystalline diamond compact) cutter.
Cutters are made from a carbide substrate and diamond grit. High heatof around 2800 degrees and high pressure of approximately
1,000,000 psi forms the compact. A cobalt alloy is also present and acts as a catalyst to the sintering process. The cobalt helps
bond the carbide and diamond.
During the cooling process, the tungsten carbide shrinks at a rate of 2.5 times faster than the diamond. Controlling this stress,
as with most aspects of drill bit design, is called Intellectual Property, and manufacturers rarely, if ever, share their secrets.


Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


PRODUCT PARAMETERS
Type
PDC Cutters
size
1004, 1008, 1304, 1308, 1313, 1613, 1616, 1908, 1913,1916 pdc cutter
Material
diamond layer &Hard Alloy
usage
stone processing,geological ,oil/gas drilling
condition
new
PDC cutter
1913,1613,1313 and so on
MOQ
100PCS
advantage
high performance
application
stone processing,geological ,oil/gas drilling
Formation
soft to medium formation

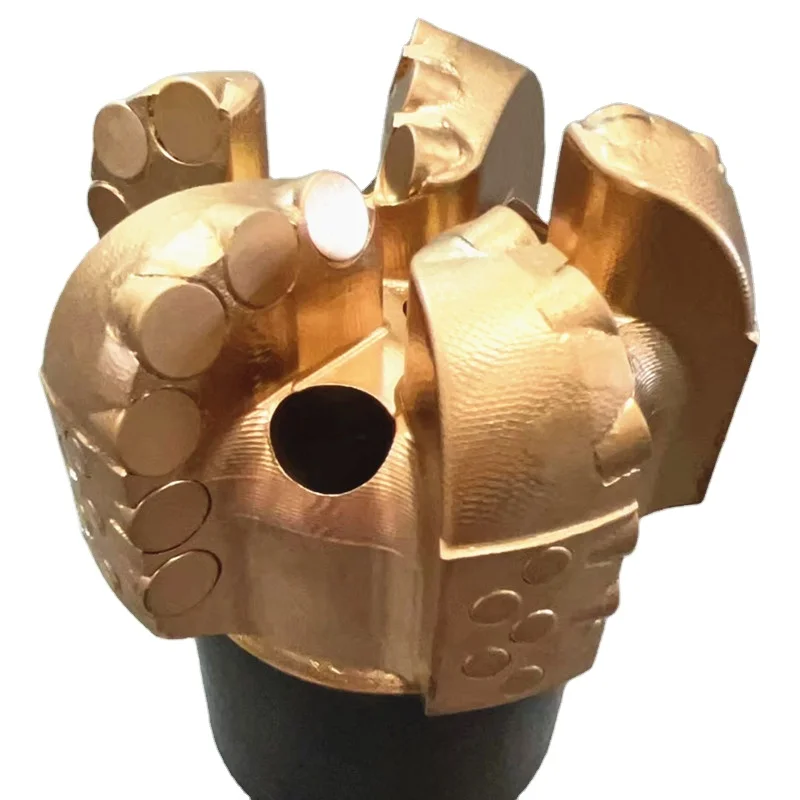

Regular Models of PDC Bits
SIZE(inch)
Cutters
Blades
Flow rate
Rotary speed
5 1/2
21
5
400~600GPM/25~38L/S
60~350RPM
7 7/8
38
5
400~600GPM/25~38L/S
60~350RPM
8 1/2
48
6
400~600GPM/25~38L/S
60~350RPM
9 1/2
67
7
475~700GPM/30~90L/S
60~350RPM
12 1/4
87
7
475~700GPM/30~90L/S
60~350RPM
16
66
6
950~1450GPM/60~90L/S
60~300RPM
17 1/2
65
5
950~1450GPM/41~63L/S
60~300RPM









Fast drill speed
Fast drill speed andmore safety









Formations
Soft to medium formation








Anti-whirl Technology
The advanced simulation technology, enablesthe bit more stable in drilling, it can drillinterbred formations without serious brokenand wear as conventional PDC design.






Formations
Soft to medium formation.


Company Profile




















Product Packaging




FAQ




1.The Quality of Drill bit?
We have many series of rock bits,quality grades and prices are different.We believe that the proper tools with higher cost-performance is the most impormant.For example,our top quality rock bits is not cost-effective for water well drilling,as the water well drilling machine can not drive the super rock bit to perform their best.but for very deep well drilling high quality grades rock bits is cost effective even its price is much higher.So it is better tell us as more as possible the details of projects,then we provide the proper solutions and offer,usually 2 or 3 solutions wil be provided for options.

2.Trade Assurance
Answers:we have joined the Trade Assurance on Alibaba to protect your payment to make sure that we deliver on time and manufacture quality products as required.

3.How to send inquiry?
It is better send us detailed specificaltions of products,it is better attaching some photos for better understanding.If you are not experienced on drilling fields,for example,many customers don't know IADC code,please feel free,jusst tell us the applications like oil/gas/geothermal/HDD/ware/mining,depth of well,average hardness of rocks,then we will advise suggestions and solutions.You can:-Send us inquiry from Alibaba.com platform.-Send email to us directly or talk on Skype or Whatsapp,salespersons are always waitting for service in working days,and all the inquiries can be replied within 10 hours.
