Silicone sealant mixer making machine production line
US $600.00-$650.00

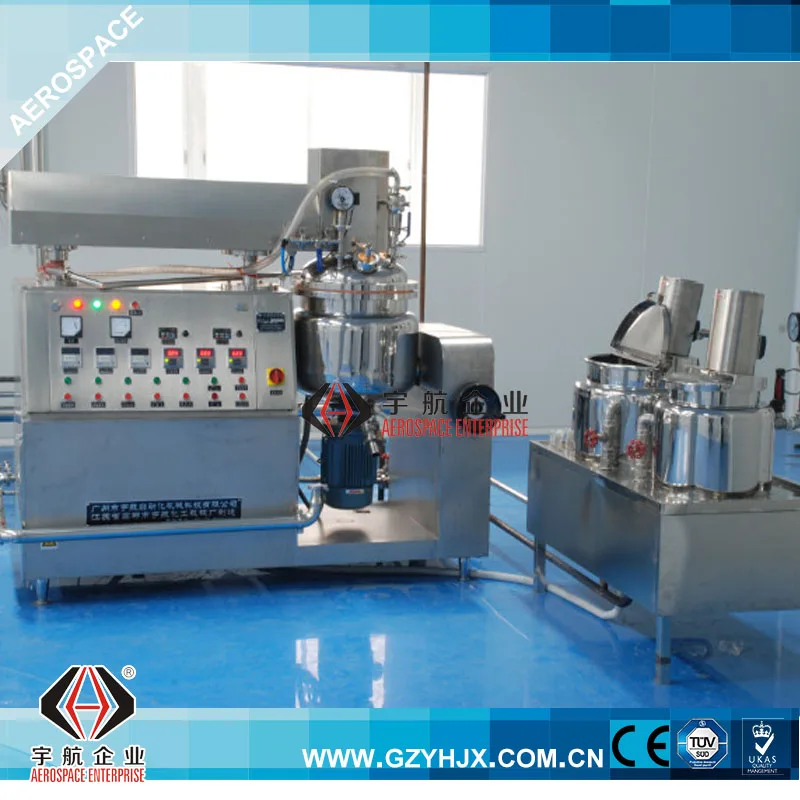

Automatic Vacuum Emulsifier Mixer
- Category: >>>
- Supplier: Gaoyou Yuhang Chemical Machinery Factory
Share on (1100007571014):
Product Overview
Description
Описание продукта
DESCRIPTION
Lift-type machine is designed specially by “Aerospace company for cosmetic and pharmaceutical
industries to produce big batches of different varieties of products. Mixing use triple blender, which is the design that have positive and negative turn of matching a high speed emulsifier head and a slow stirring vane.
STANDARD CONFIGURATION
1. Min boiler, water tank, oil tank
2. Vcuum pump and synchronous solenoid valve
3. Eulsifier and material filter
4. Ol pressure lifting system and blending system
5. Sainless steel operation platform
OPTIONAL CONFIGURATION
1. Vriable-frequency governor and electric control box
2. 10.4 color touch screen
3. Bilt-in PLC
4. Bilt-in printer
TECHNICAL SPECIFIATIONS
Model | YHNW-300L | YHNW-500L | YHNW-1000L | YHNW-2000L |
Main Boiler | 300L | 500L | 1000L | 2000L |
Water Tank Volume | 240L | 400L | 800L | 1600L |
Oil Tank Volume | 120L | 200L | 400L | 800L |
Blender Motor | 5.5KW | 5.5KW | 5.5KW | 7.5KW |
Homogenizer Power | 7.5KW | 11KW | 15KW | 15KW |
Water Tank Power | 1.5KW | 2.2KW | 2.2KW | 2.2KW |
Oil Tank Power | 1.5KW | 2.2KW | 2.2KW | 2.2KW |
Vacuum Pump Power | 4KW | 4KW | 5.5KW | 5.5KW |
Total Heating Pipe Power | 42KW | 51KW | 72KW | 84KW |
Voltage | 50-60Hz 380V±10%-15% | |||
