Led pcb 94V0 алюминий подложки с osp и белый припой маска используется для лампочки
- Category: >>>
- Supplier: Hubei Zhongpei Electronics Technology Co. Ltd.
Share on (1100015194499):
Product Overview
Description
Product Description

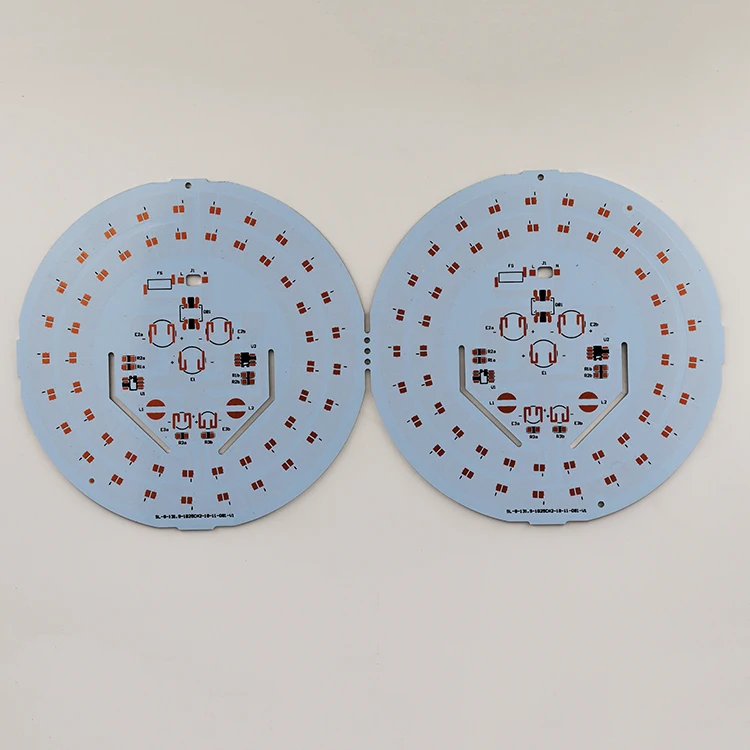

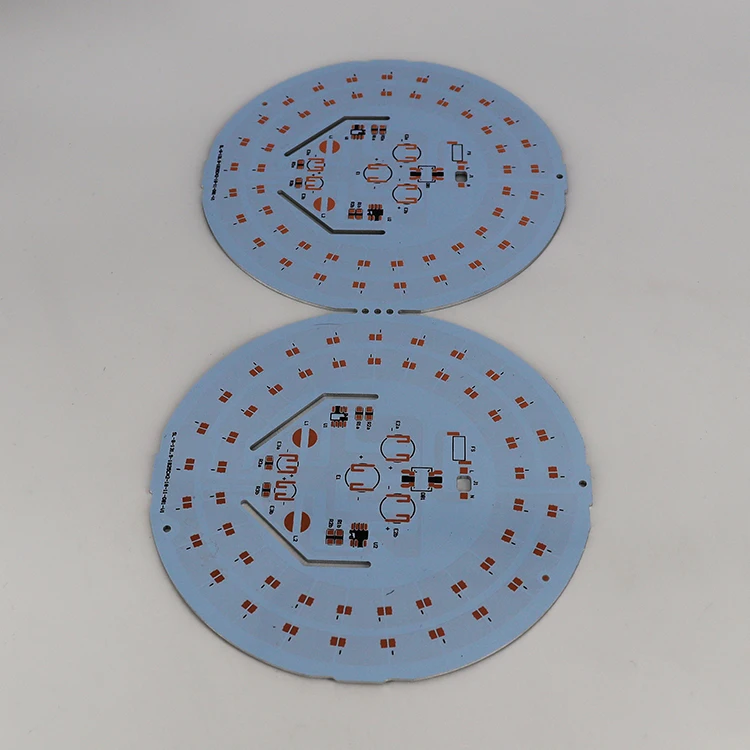

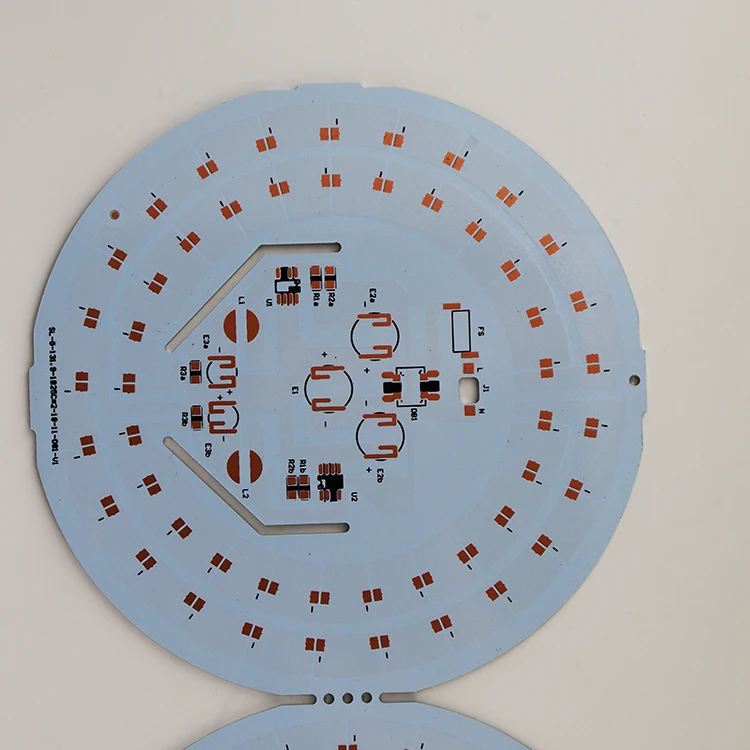

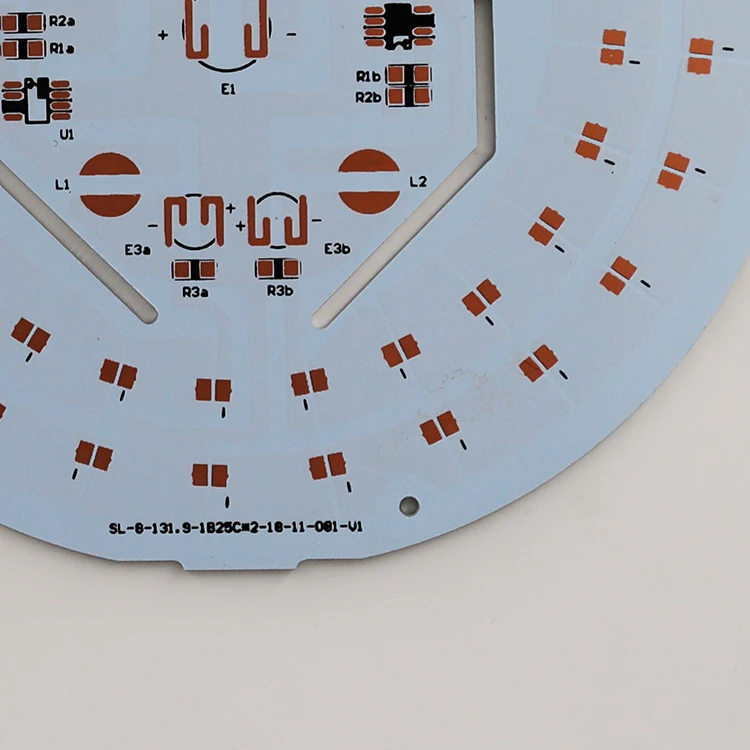

Customized 94v0 Aluminum Based Led Pcb Circuit Board For Led Light
Model Number: A5684-D1OM
Material: U.L. 94-V0 Aluminum base pcb board
Board thickness: 1.0mm
Copper foil thickness:35um
Product Size:100*100mm
Panel Size: 206*210/4
Surface treatment: OSP
number of layers: Single layer
Soldermask color: Blue white
Legend: Silkprinting black
Used for circuit: Led and driver circuit,led chip board
Application: Led lighting
Benefit of Aluminum base Pcb:
* Faster heat removal from high power density devices
* Lower peak temperature compared with standard PCB substrates
* Superior heat dissipation beyond the capability of standard PCB substrates
* 2 W/mK thermal conductivity, 6-8 times higher than FR4
* Uniform conductivity in vertical and horizontal axes as dielectric contains no glass layer
* Extends life expectancy of power devices by reducing device temperature
* Lower peak temperature compared with standard PCB substrates
* Superior heat dissipation beyond the capability of standard PCB substrates
* 2 W/mK thermal conductivity, 6-8 times higher than FR4
* Uniform conductivity in vertical and horizontal axes as dielectric contains no glass layer
* Extends life expectancy of power devices by reducing device temperature
Recommend Products
Company Profile
ZhongPei Capacity | ||
Layers | FPC, Single layer PCB, Double Layers PCB, PCBA | |
Daily production | 2000-4000sqm per day, 60,000sqm to 80,000sqm per month. | |
Material can process | FR4, 94V0, Aluminum substrates , CEM-1,CEM-3,FR1,22F,FPC,etc | |
Surface treatment | OSP, HASL Lead Free, Soldermask | |
Board thickness | 0.5-3.0mm | |
Cooper foil thickness | 18-105um, 0.5-3oz | |
Finished Size | Rigid Board:Min 3*3mm, max 500*1500mm FPC: max width245mm, max coverlay length 600mm | |
Min line width for rigid board | 0.2mm for single rigid board, 0.4mm for single fpc, 0.3 mm for double fpc, 8mil for multi-layer rigid board. | |
Quality Controlling | IQC, IPQC,FQC to ensure quality meet IPC 610J, IPS calss 2. | |
Certification | UL, ISO9001,ROHS,CQC | |
Application | Power supplies, Relays (automotive and industrial),Timing circuits,Sensor products,LED light, linear Light, Pool Light, Garden Light, Street Light, Floor Light, spot light, indoor light , outdoor light, Radio and stereo equipment,· Packaging equipment,· Surveillance,· Calculators,· Printers,· Coffee makers,· Vending machines,· Solid state drives,· Camera systems. | |
Exhibition
Certifications
Product packaging
FAQ
Q:How can I get a price?
A: As long as you can offer gerber file or detail requirement (Layer count, board thickness, cooper foil thickness, product size, surface treatment way,packing requirement,etc) we can offer price in 24 hours.
A: As long as you can offer gerber file or detail requirement (Layer count, board thickness, cooper foil thickness, product size, surface treatment way,packing requirement,etc) we can offer price in 24 hours.
A: We are a PCB factory with 13 years experience in this area,We have self desinging team and sales team, we have both auto pcb production ling and traditional line available in our factory.
Q:What is your minimum order quantity?
A: For mass production, our min order amount is USD300.If less than this, it will be considered as a sample order. Sample order cost will depends on the pcb or pcba.
Q:What is your advandage than other supplier ?
A: 1.Located in Mid-China causing low labor cost.
2.We have IPC, IPQC, FQC controlling quality in the factory, ensuring our products meet IPC Class 2.
3. We can process both rigid board and fpc, also copper base board.
Q:How about your supply capacity?
A: Our supply capacity is around 2000sqm to 6000sqm each day. For rigid board(Aluminum base, copper base, FR-4 base),The min size we can process is 3*3mm, and the max size is 500*1500mm. For the FPC, due to film limit,max length is 600mm.
Q:What 's the lead time for an order?
A:Normally,it will take 3 to 15 days depends on the order volume.If you need urgent, please contact our sales people.
For other details, Please Contact Alice!
For other details, Please Contact Alice!
