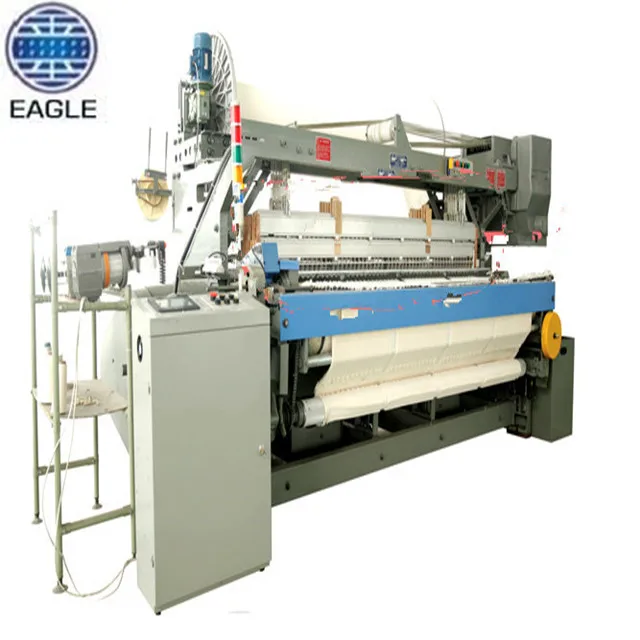

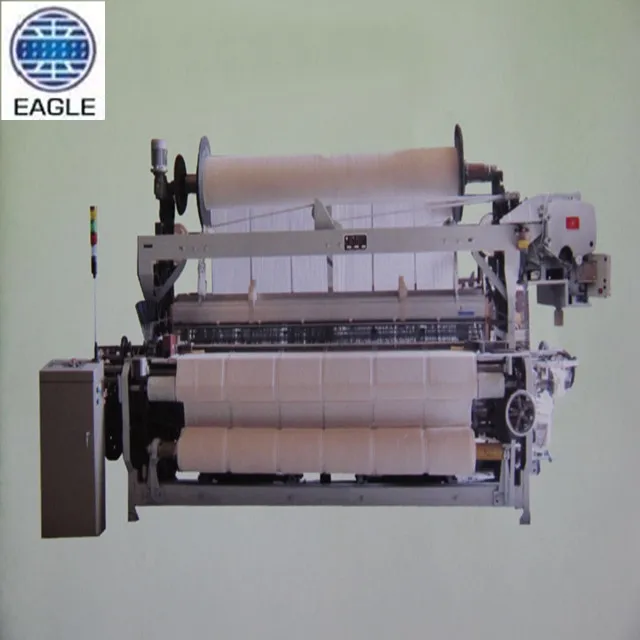

EAGLE GA798B-Ⅱ Terry Towel Rapier Loom

Features     Humanized control and operation system

Eagle GA798B-Ⅱ Terry Towel Rapier Loom is mainly used to weave all kinds of satin or jacquard satin towels for face, tea, bath and floor etc. at weight 20-1000g/sqm with the material of cotton, wool, bamboo fibre and blended yarns.

We adopt advanced CNC servo system and realize electronic control servomotor cam looping. Based on convenient and easy digitalized and standardized button operation we can control the pile height by setting the height of each weft. Wavy loop, saw tooth loop, high-low loop, stereoscopic loop etc. all patterns can be woven freely.

In addition, we achieved SYNC variable weft-density weaving, that weft-density is controllable at 5~46 picks/cm. Compare with old mechanical looping, we solve and avoid problems of speed inching and the machine halt resulted high-low loop.

With the weft fixing and automatic stop function, the broken weft will stop on the 2nd weft all times, which reduce spinner’s 70% working capacity.

Main Specification

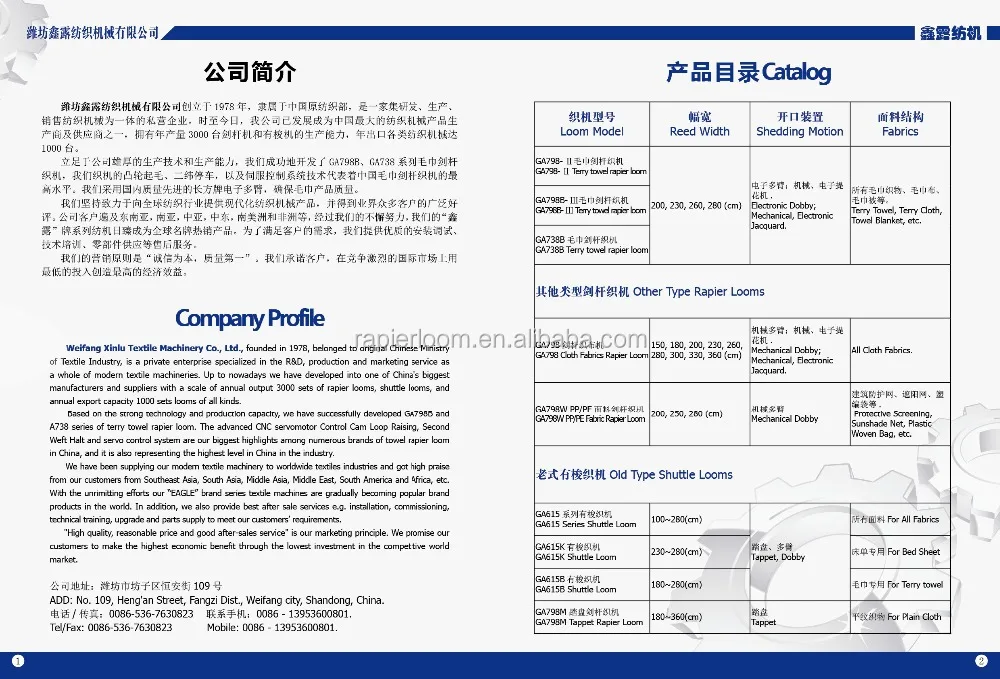

Weifang  Xinlu Textile Machinery Co., Ltd.,founded in 1978, belonged to original Chinese Ministry of Textile Industry, is a private enterprise specialized  in the R&D, production and marketing service as a whole of modern textile machineries. Up to   nowadays we have developed into one of china’s biggest manufacturers and suppliers. with a scale of annual output 3000 set of rapier looms ,shuttle looms, and annual export capacity 1000 sets looms of all kinds.

Based on the strong technology and production capacity, we have successfully developed GA798B and A738 series of terry towel rapier loom. the advanced CNC servomotor Control Cam Loop Raising, Second Weft Halt and servo control system are our biggest highlights among numerous brands of towel rapier loom in China, and it also representing the highest level in China in the industry..

We have been supplying our modern textile machinery to worldwide textiles industries and got high praise from our customers from South Asia, Middle Asia, Middle East, South America and Africa, etc. With the unremitting efforts our “EAGLE” brand series textiles machines are gradually becoming popular brand products in the world. In addition, we also provide best after sale services e.g. installation, commissioning, technical training, upgrade and parts supply to meet our customers’ requirements.

“High quality, reasonable price and good after-sales service” is our marketing principle. We promise our customers to make the highest economic benefit through the lowest investment in the competitive world market.
