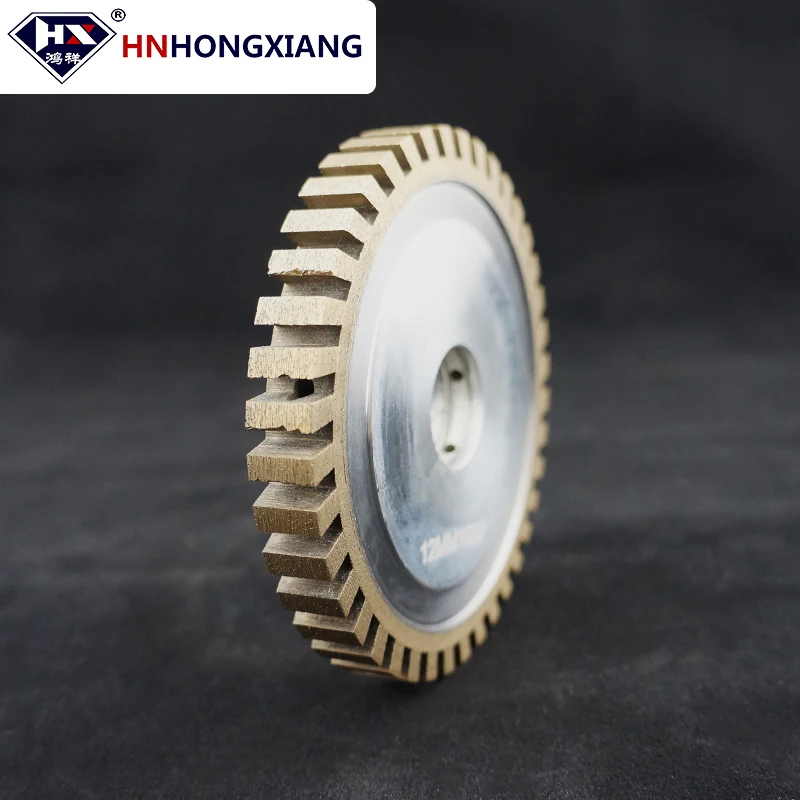

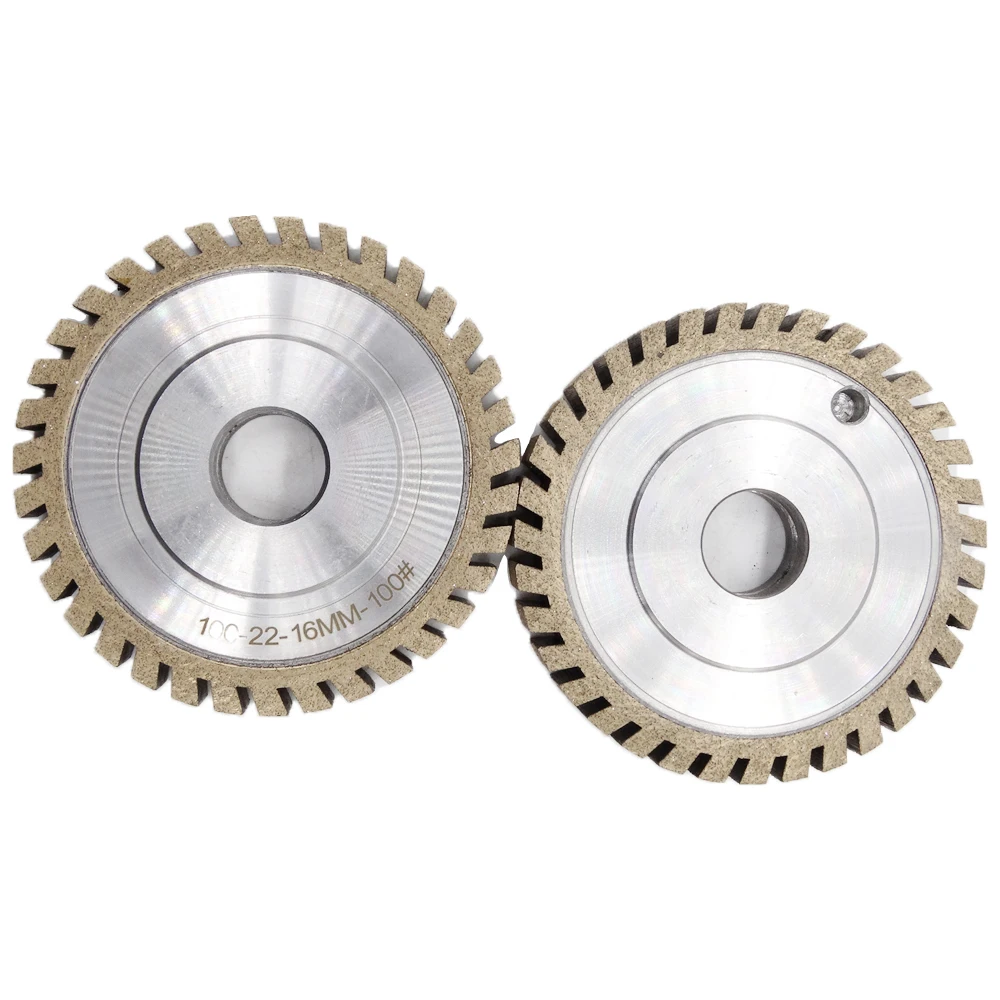

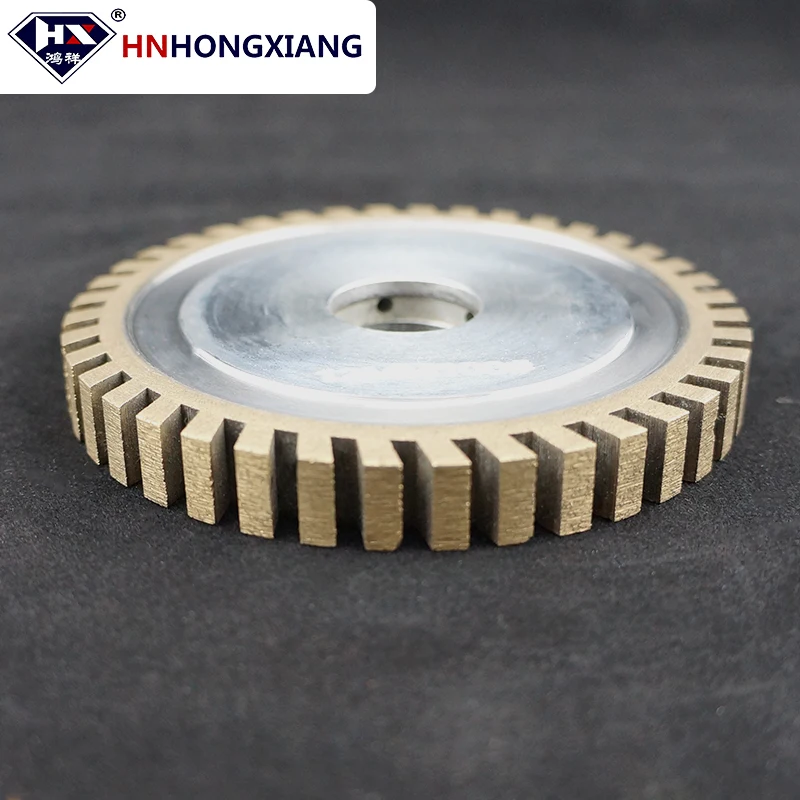

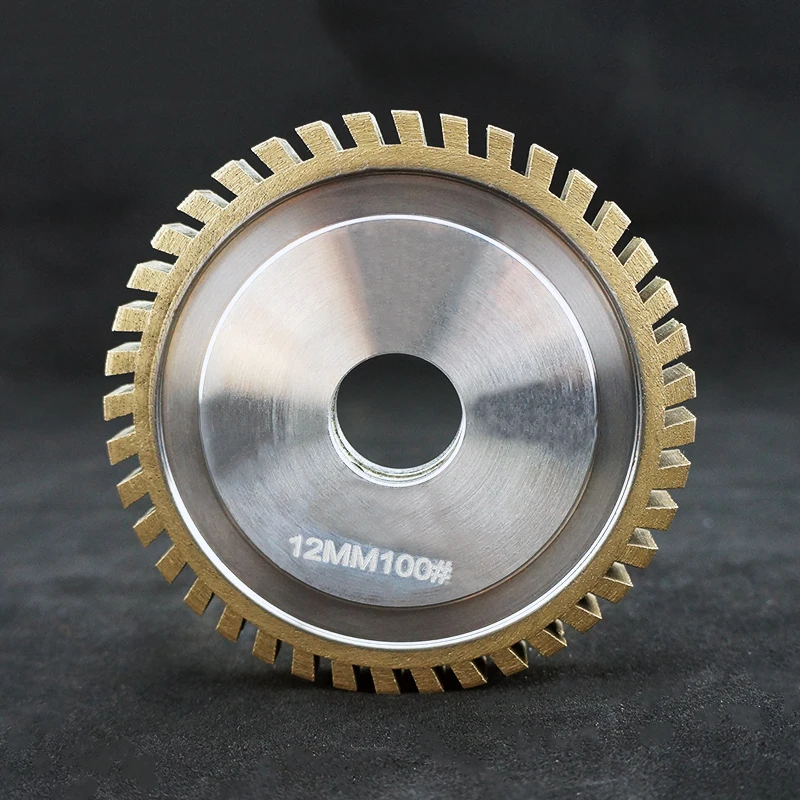

Customized Product Diamond Outer Segmented Milling Grinding Wheel 4 Inch Glass Polishing Disc Segmented Diamond Grinding Wheel
- Category: Grinding Wheels >>>
- Supplier: Zhecheng Hongxiang Superhard Material Co. Ltd.
Share on (1118444203):
Product Overview
Description
HNHONGXIANG glass diamond grinding wheels are manufactured by using high-quality diamond powder as the raw material. Precise dimensions, good sharpness, high efficiency, and long working life.

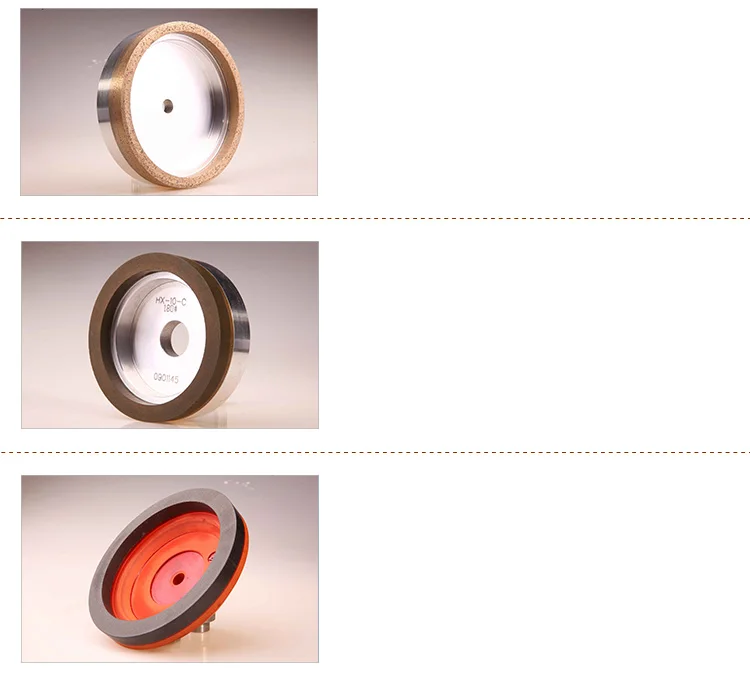

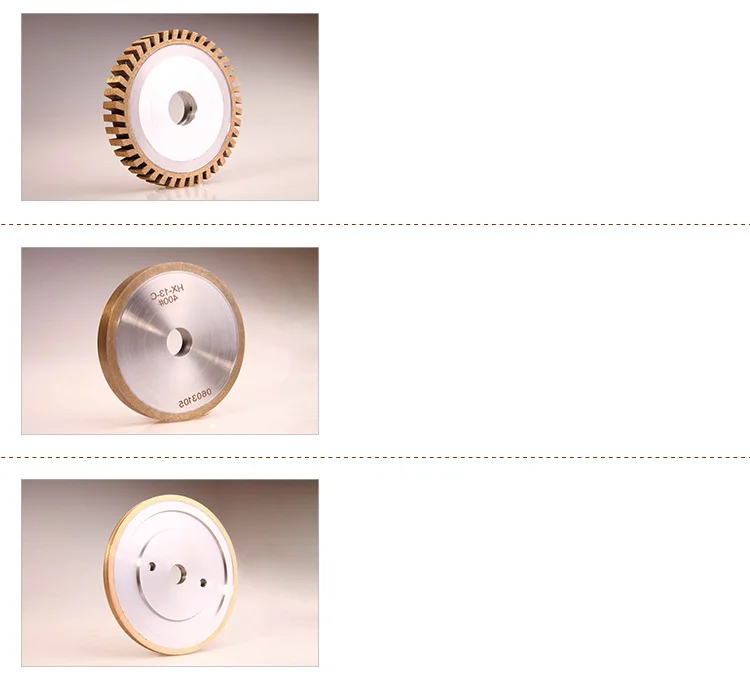

Our glass wheels include full segmented, internal and external segmented, continuous grinding wheels, trapezoidal grinding wheel, 45°degree shape grinding wheel, bowl shape and OG shape grinding wheels, also various other customized shapes and sizes. Normally used for grinding architectural glass, bathroom glass, car glass, etc.

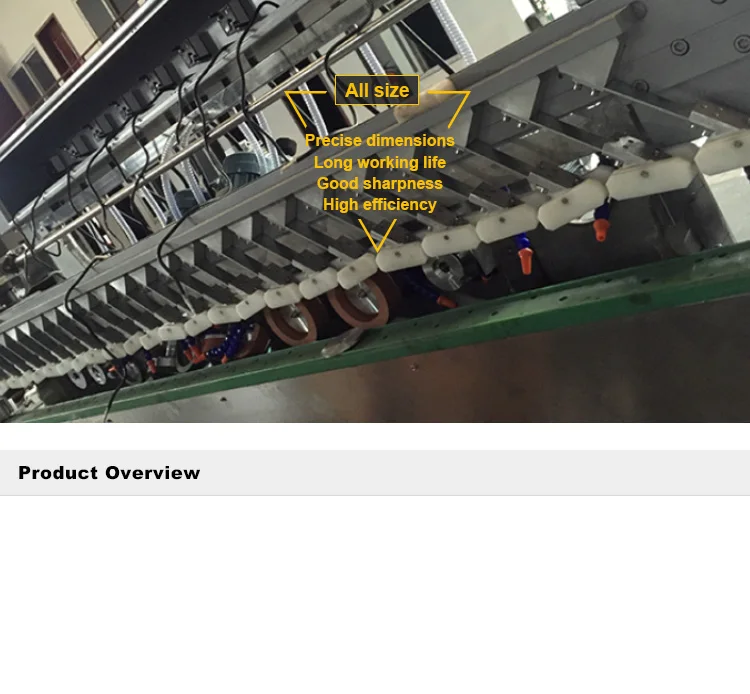

According to the straight line machine, double edging machine, shape edging machine different glass grinding machines, the grinding wheels series is different.
| FULL SEGMENTED DIAMOND WHEELS | ||||
| D(mm) | W(mm) | T(mm) | H(mm) | Grits(#) |
| 150 | 10 | 10 | 12/22/50 | 80/100/140/ 180/240 |
| 150 | 15 | 10 | 12/22/50 | 80/100/140/ 180/240 |
| 175 | 15 | 10 | 12/22/50 | 80/100/140/ 180/240 |

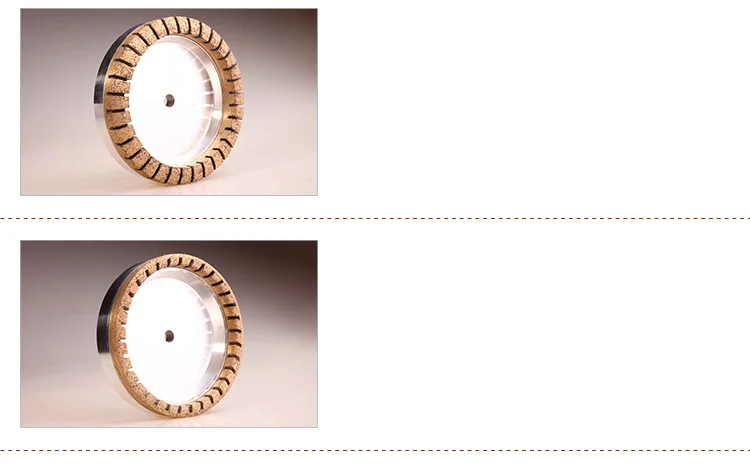

| INTERNAL SEGMENTED DIAMOND WHEELS | ||||
| D (mm) | W (mm) | T (mm) | H (mm) | Grits(#) |
| 175 | 8 | 10 | 12/22/50 | 100/140/180/240 |
| 150 | 10 | 10 | 12/22/50 | 100/140/180/240 |
| CONTINUOUS DIAMOND GRINDING WHEEL | ||||
| D(mm) | W(mm) | T(mm) | H(mm) | Grits(#) |
| 130 | 8 | 8 | 12/22/50 | 80/100/140/180/240 |
| 130 | 10 | 10 | 12/22/50 | 80/100/140/180/240 |
| 150 | 8 | 8 | 12/22/50 | 80/100/140/180/240 |
| 150 | 10 | 10 | 12/22/50 | 80/100/140/180/240 |
| RESIN BOND DIAMOND GRINDING WHEEL(CUP SHAPE) | ||||
| D(mm) | W(mm) | T(mm) | H(mm) | Grits(#) |
| 100 | 10 | 10 | 12/22/50 | 180/240/320 |
| 130 | 10 | 10 | 12/22/50 | 180/240/320 |
| 130 | 15 | 10 | 12/22/50 | 180/240/320 |
| 150 | 10 | 10 | 12/22/50 | 180/240/320 |
| 150 | 15 | 10 | 12/22/50 | 180/240/320 |
| RESIN BOND DIAMOND GRINDING WHEEL(BOWL WHEEL) | ||||
| D (mm) | W (mm) | T (mm) | H (mm) | Grits(#) |
| 150 | 15 | 10 | 12/22/50 | 240/320/400/500/700 |
| CONTINUOUS DIAMOND WHEELS BOWL SHAPE | ||||
| D (mm) | W (mm) | T (mm) | H (mm) | Grits(#) |
| 150 | 15 | 10 | 12/22/50 | 180/240/320 |
| RESIN WHEEL INTERNAL SEGMENTED (CUP SHAPE) | ||||
| D (mm) | W (mm) | T (mm) | H (mm) | Grits(#) |
| 150 | 10/15 | 10/12 | 12/22/50 | 240/320/400/500/700 |

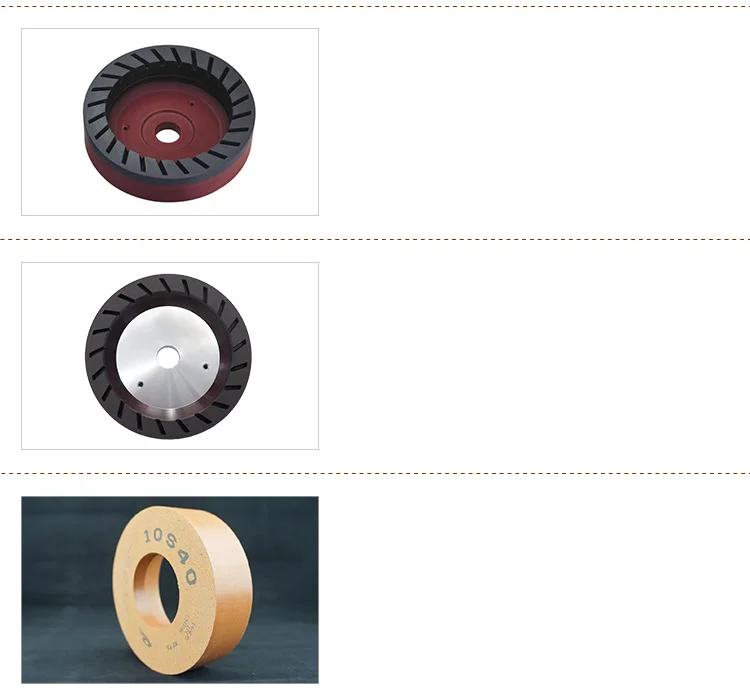

| 10S POLISHING WHEEL | ||||
| D (mm) | H (mm) | Grits(#) | ||
| 130 | 12/22/60 | 40/60/80/120 | ||
| 150 | 12/22/70 | 40/60/80/120 | ||

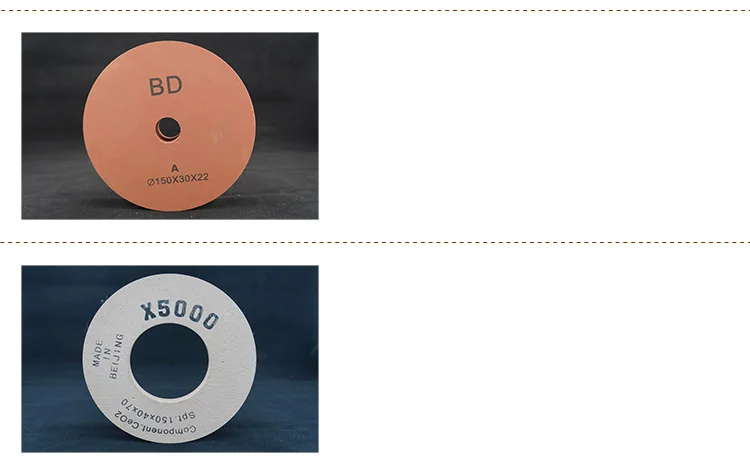

| BD POLISHING WHEEL | ||||
| D (mm) | H (mm) | T (mm) | ||
| 100 | 22 | 15/20/25/30 | ||
| 150 | 22 | 15/20/25/30 | ||
| 200 | 90 | 15/20/25/30 | ||
| CE3/X5000/X3000 POLISHING WHEEL | ||||
| D (mm) | H (mm) | T (mm) | H (mm) | |
| 150 | 50 | 30 | 12/22/50 | |
| 150 | 70 | 40 | 12/22/50 | |

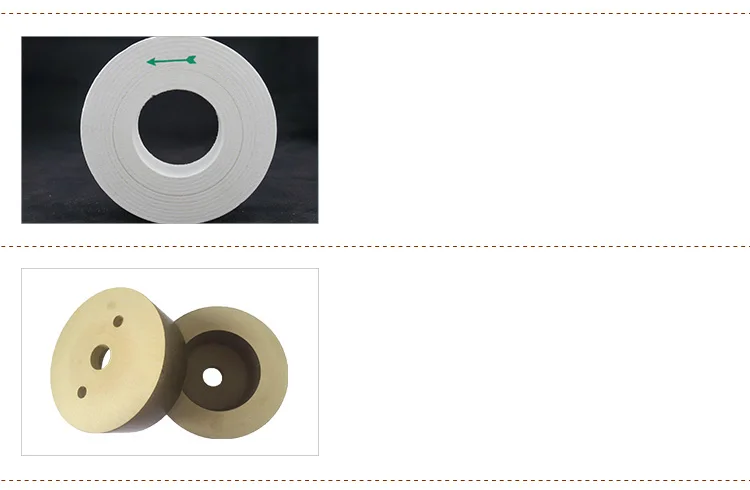

| WOOL FELT WHEEL | ||||
| D (mm) | H (mm) | T (mm) | ||
| 150 | 70 | 40 | ||
| 150 | 105 | 40 | ||
| 175 | 105 | 40 | ||
| STONE WHEEL | ||||
| D (mm) | T (mm) | H (mm) | ||
| 100 | 40 | 12/50 | ||
| 130 | 40 | 12/50 | ||
| 130 | 40 | 12/50 | ||

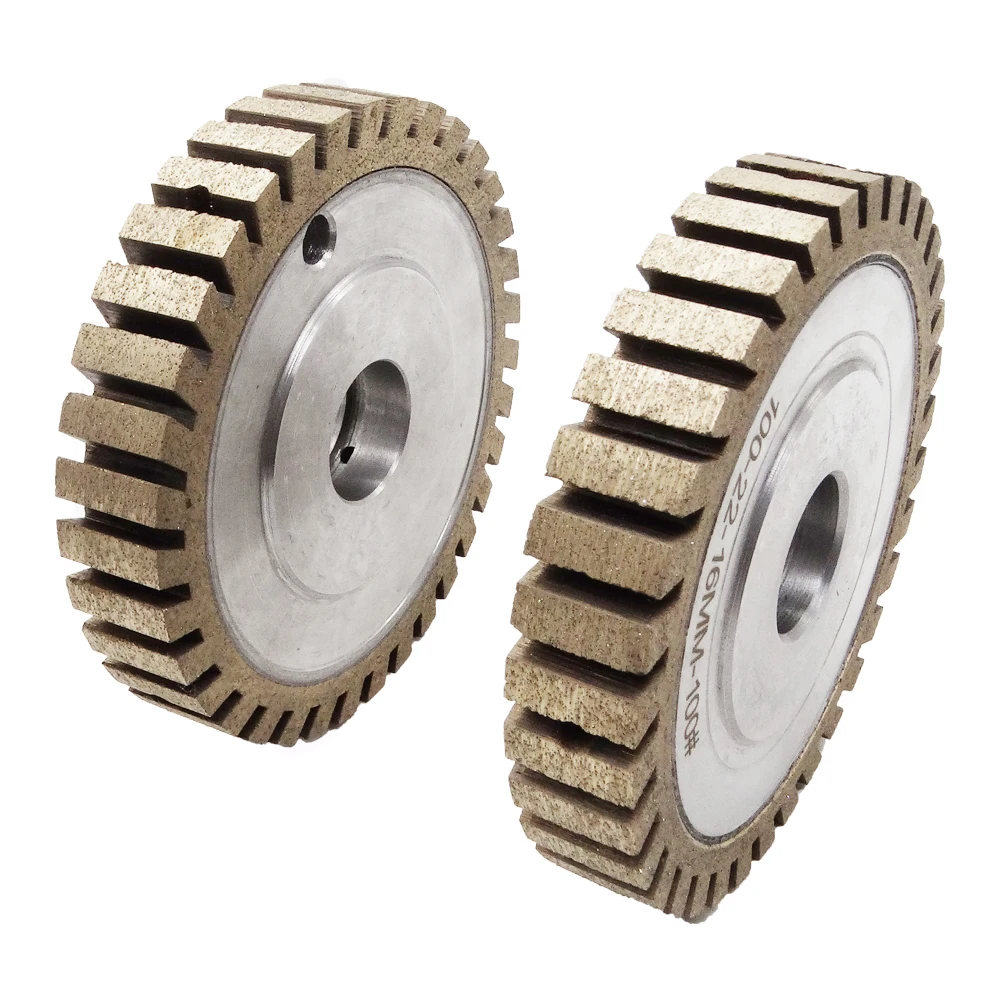

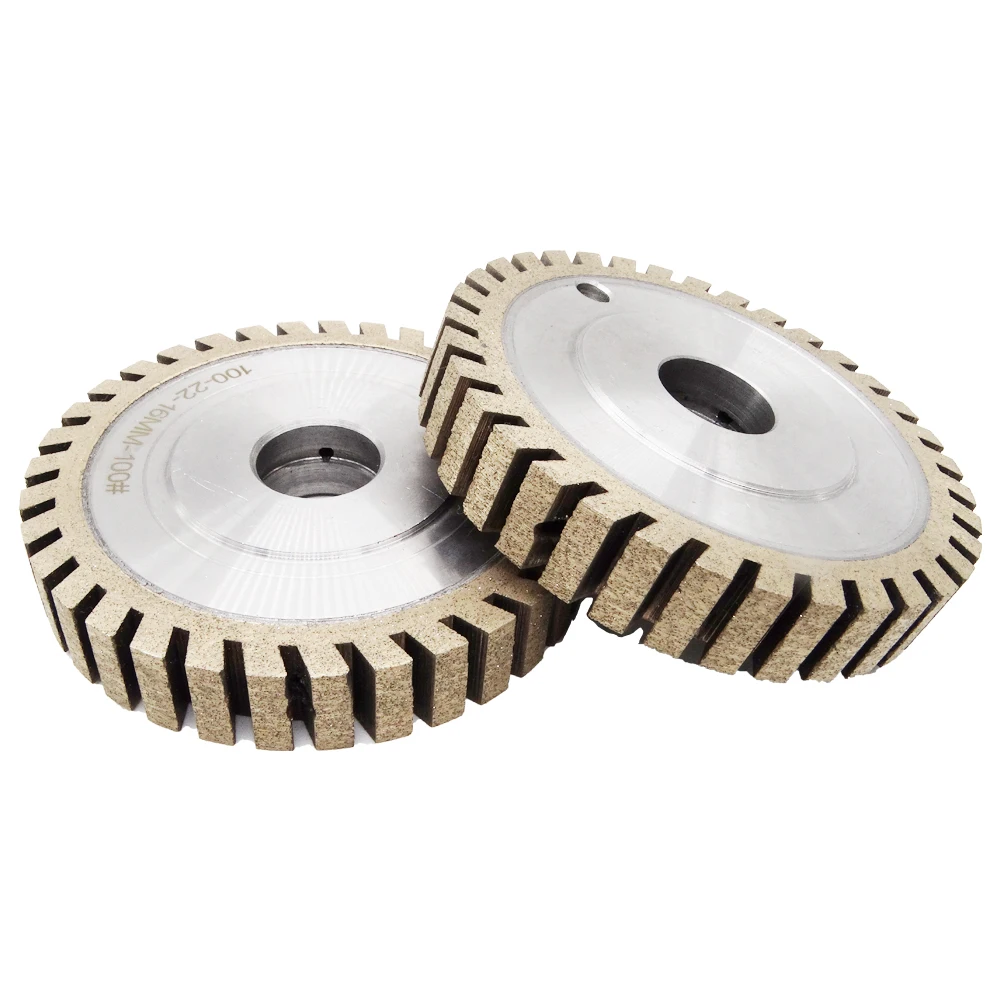

| PERIPHERAL SEGMENTED DIAMOND WHEELS | ||||
| D (mm) | H (mm) | T (mm) | ||
| 100 | 22/50 | 6/8/10/12/15/19 | ||
| 150 | 22/50 | 6/8/10/12/15/19 | ||
| Diamond Grinding Wheel -Flat | ||||
| D(mm) | T(mm) | H(mm) | Grits(#) | |
| 100 | 3-20 | 22/50 | 80/140/180/240 | |
| 150 | 3-20 | 22/50 | 80/140/180/240 | |
| 175 | 3-20 | 22/50 | 80/140/180/240 | |
| 200 | 3-20 | 22/50 | 80/140/180/240 | |
| Diamond Grinding Wheel -Pencil | ||||
| D(mm) | T(mm) | H(mm) | Grits(#) | |
| 35 | 3-20 | 22/50 | 80/140/180/240 | |
| 50 | 3-20 | 22/50 | 80/140/180/240 | |
| 80 | 3-20 | 22/50 | 80/140/180/240 | |
| 100 | 3-20 | 22/50 | 80/140/180/240 | |
| 150 | 3-20 | 22/50 | 80/140/180/240 | |
| 175 | 3-20 | 22/50 | 80/140/180/240 | |
| 200 | 3-20 | 22/50 | 80/140/180/240 | |
