Glass flat and bent glass tempering machine
- Category: Glass Production Machinery >>>
- Supplier: Liaoda (LAD) Glass Machinery Co. Ltd.
Share on (1131089581):
Product Overview
Description
Glass bending tempering machine / CE
Applications:
This mahcine is used to temper flat/bent glass.

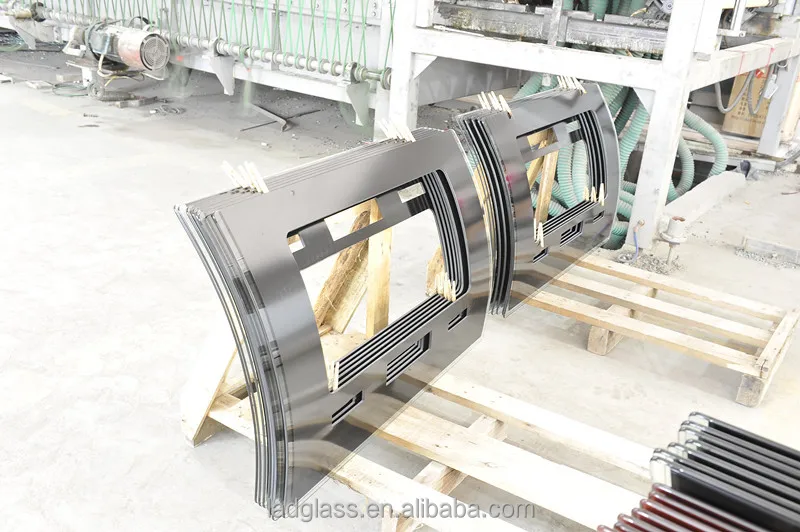

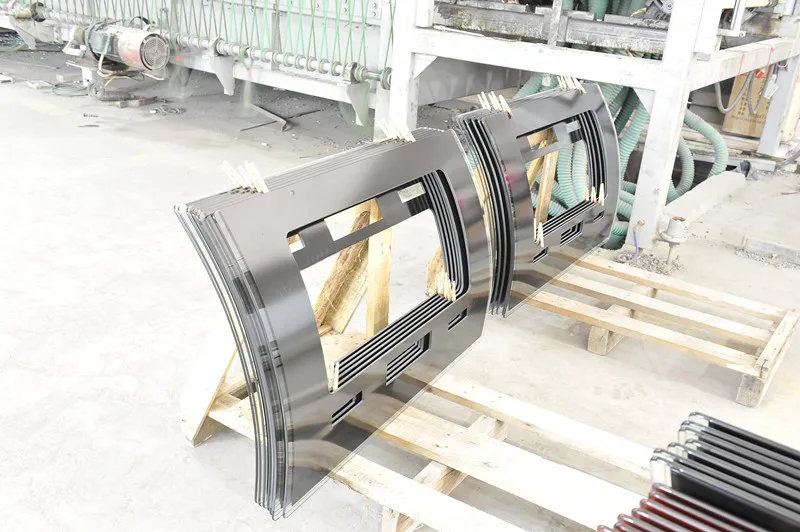

Sample glass: Flat
Bent
Advantage:
- High product quality
Opposite roll pressing, mechanical position location and accurate forming smooth without press mark.
- Easy operation
Glass curve is automatically controlled by computer without any mould.
- Low Energy consumption
The energy consumption of this machine is very low with good thermal insulation and reasonable energy saving.
Machine specification
Machine dimension: Length: 15m Width: 2.4 m Air collection room: 40m2
Glass size: Max. glass size: 1200 x800(Bent) (cross bending)
Quality standard:GB9963
Finished parts qualification rate: ≥96%
Output: 15 lots per hour, assuming 5mm glass
Total power: 680KW,
Power Consumption: ≤6 degrees (use10mm glass calculate)
Machine main components:
The tempering furnace is consisted by loading table, heating furnace, tempering cooling device ,unloading table, wind motor, wind blowing system ,electric control cabinet and computer control terminals. For bending and tempering furnace, an additional bending and cooling cabinet is assembled for glass bending.
Machine types:
Machine shipped
Certification: CE
Warranty & Services
Warranty: Warranty period of the whole machine: one year
Machine commissioning and training: Send engineers to set up and commissioning at buyer’s factory if necessary
Aftersales service:
Life time techical and parts support.
On port techcial training or problem solving when necessary
