CGSY1220 12 мотор, горячая Распродажа, двигатели, стекло, круглый фланец, скошенный карандаш, машина для шлифовки и полировки окантовки
- Category: Glass Production Machinery >>>
- Supplier: Cgtech Glass Machinery Co. Ltd.
Share on (1600278246768):
Product Overview
Description
Products Description

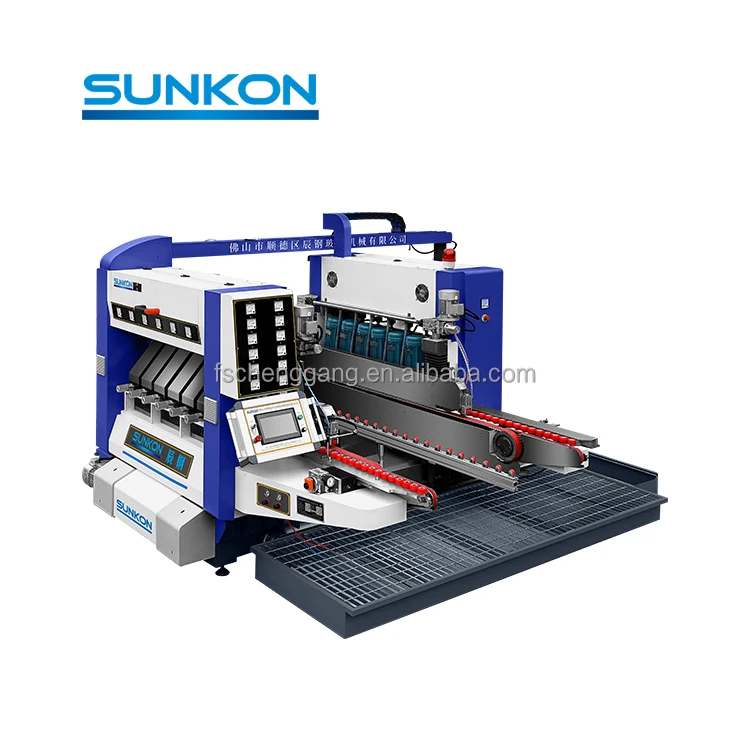

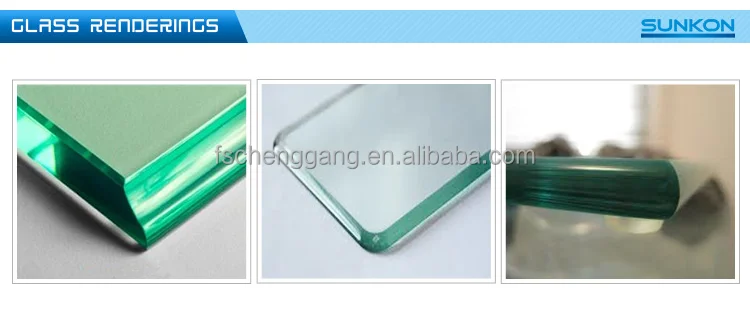

CGSY1220 Glass Double Pencil Edging Machine is suitable for grinding and polishing the glass straight line with rounded or duckbilled edge, it is an economic, efficient, practical and reliable machine, which is researched & developed independently by SUNKON company. Suitable for furniture, Home appliance and other type of flat glass processing.
1.The double edging can be processed at one time by rough, fine grinding and polishing.
2.Installed with excellent linear guide and screw mandrels which ensures the processing precision.
3.All-in-one structure for machine and circuit box is good for waterproof, space saving and convenient for operation.
4.Position corrected device has been added on the machine, which solves the deviate problem of small glass, and truly realize intelligent operation of connected machines when transferring glass.
5.Lifting distance of upper press beam is large for replacing wheels easily.

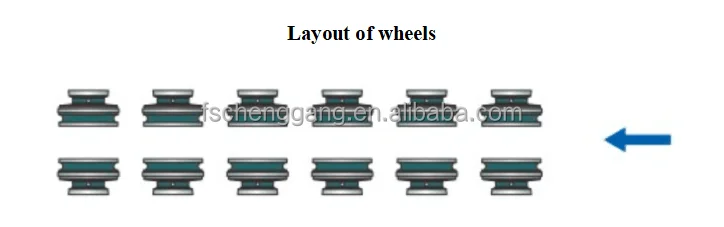

6.PLC control with touch screen, the data setting and the grinding status of glass can be showed on the controlling center. Processing width, thickness are adjusted automatically. Totally 12 spindles, 6 spindles per side.
1.The double edging can be processed at one time by rough, fine grinding and polishing.
2.Installed with excellent linear guide and screw mandrels which ensures the processing precision.
Bracket of movable side system is W frame design, which increases the accuracy of movements and the degree of stability; also it can extend the life time of the linear rack.
3.All-in-one structure for machine and circuit box is good for waterproof, space saving and convenient for operation.
4.Position corrected device has been added on the machine, which solves the deviate problem of small glass, and truly realize intelligent operation of connected machines when transferring glass.
5.Lifting distance of upper press beam is large for replacing wheels easily.
6.PLC control with touch screen, the data setting and the grinding status of glass can be showed on the controlling center. Processing width, thickness are adjusted automatically. Totally 12 spindles, 6 spindles per side.
Glass thickness | 3～15 mm | Machine open/close Speed | 1-5m/min |
Min. processed size | 350*350 mm | Processing speed | 1-12 m/min |
Max. processed size | 2000*2000mm | working height | 920mm±30mm |
Max. hemline grinding | 1.5mm(single line) | compress air | 0.6~0.8Mpa |
Max. arris grinding | 2mm | Total power | 29kw |
Details Images

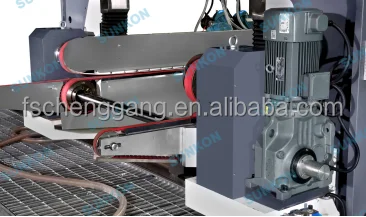

Variable frequency drive system
Frequency inverter with mandrel screw drive system, as well as two big gears to make sure strong conveying. The synchronization of transmission is higher and the accuracy is more accurate, long service life, easy maintenance

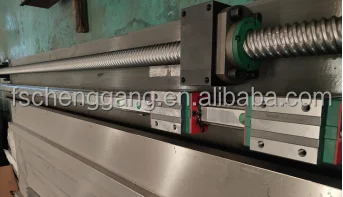

Bracket of movable side system
high-quality large lead ball screw width adjustment system, with brake and holding system, stable opening and closing, small impact; even if it works for a long time, it can still ensure the clamping of large pieces of glass. Produce looseness to ensure the quality and stability of polishing.

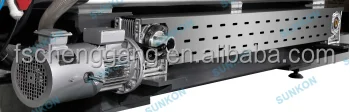

Open-close control for glass processing width
The frequency conversion motor adjusts the opening and closing of the machine, which is accurate and stable, with a safety guard, the machine is more beautiful and safe.

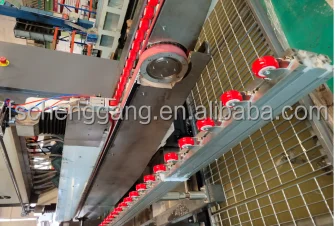

Middle support rack
The automatic support rod can move with the movement of the mobile end of the edge grinding machine, and is always in the middle position to support the glass, preventing the glass from sinking in the middle position due to gravity, and the two ends are tilted, which affects the processing quality.

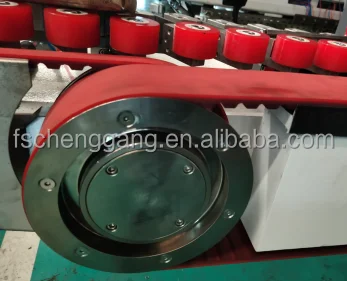

Belt guide rail
The conveyor beam guide groove is an exclusive formula is using ultra-high polymer materials. It has the characteristics of wear resistance, aging resistance, small deformation, etc., and the addition of graphite material makes the friction of the timing belt less when running

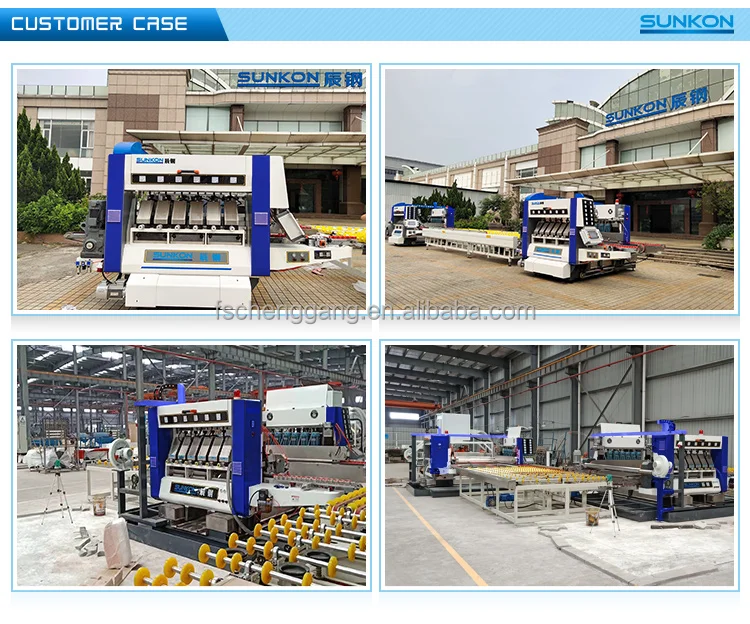

Our Case
