Small CNC Nylon Line Engineering Plastic Cable Drag Chain
Product Description
INTRODUCE
1.Materialof drag chain :PA66
2.Working temperatureof drag chain :-40°c---+80°c

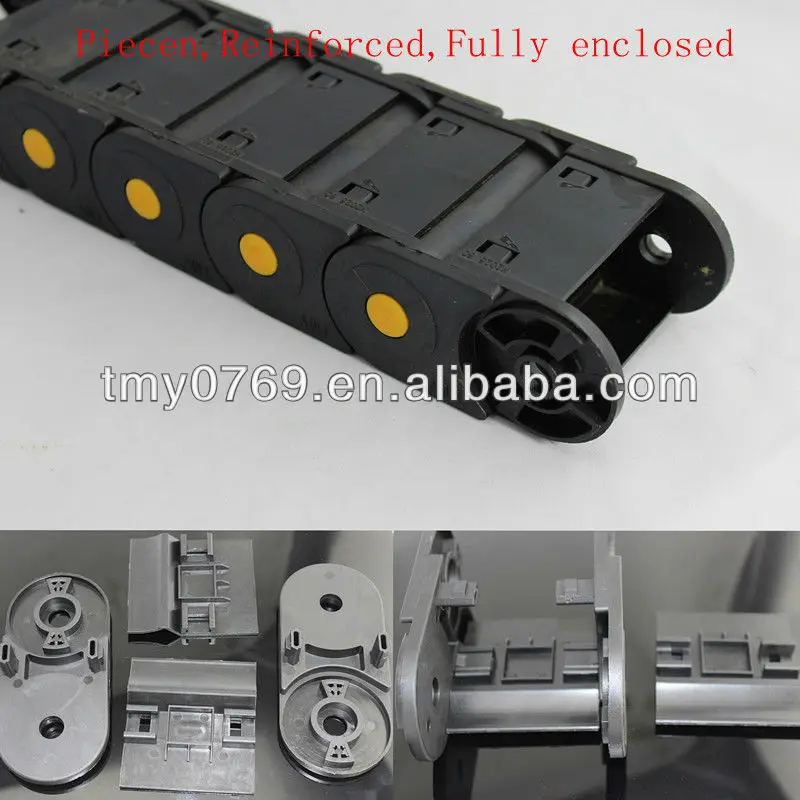

3.Constructionof drag chain : Bridge,Semi-closed,Fully enclosed for choose
a. the apprearance of the drag chain looks like the crawler of a tank consisting of certain number of joint.the joints of crawler are freely turned round.
b. the same series of drag chain same inner height and same pitch but the inner width and bend radius can be made per different specifications.
c. All lid of the TMY20 and above drag chain can be opened for installing wires into conveniently.
d.Reinforced each part of drag chain TMY20 and above.
4.Has long service lifedrag chainand anti-friction. repetitive motion times is more than million times.
5.Great carrying capacity drag chain , bend only one side
6.Small noise,when it is moving,noise is very very small.

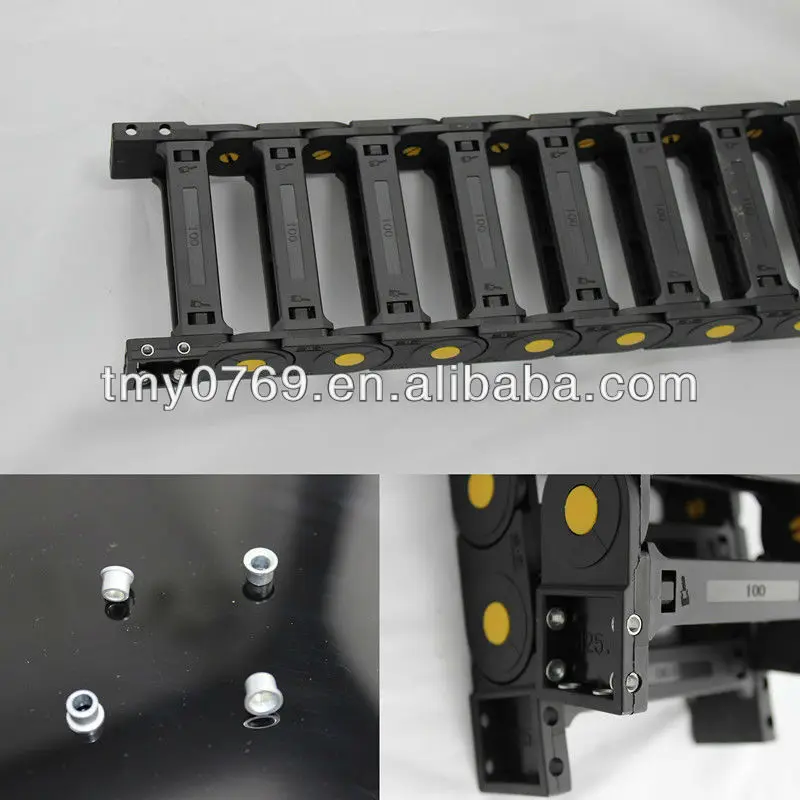

Structure type : three types to meet your needs

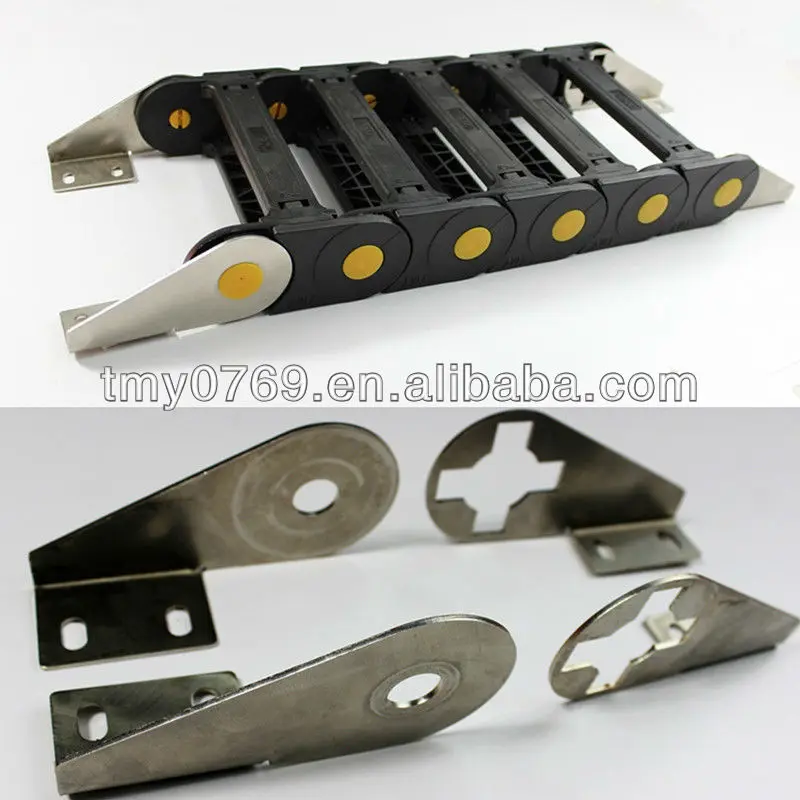

FITTING of drag chain : high quality ensuring the safely use
Specification sheet of drag chain
Model
Inside Diameter (height* width)
Outside Diameter
(height *width)
Bending Radius (R)
Pitch(mm)
Structure
TMY7
7*7
10*13
18/28
Bridge,All-in-One
TMY10
10*10
15*16
18/28/38
Bridge,All-in-One
10*15
16*23
18/28/38
20
10*20
16*28
28/38
TMY15
15*18
23*26
28/38
Bridge,All-in-One
15*20
23*28
28/38
20

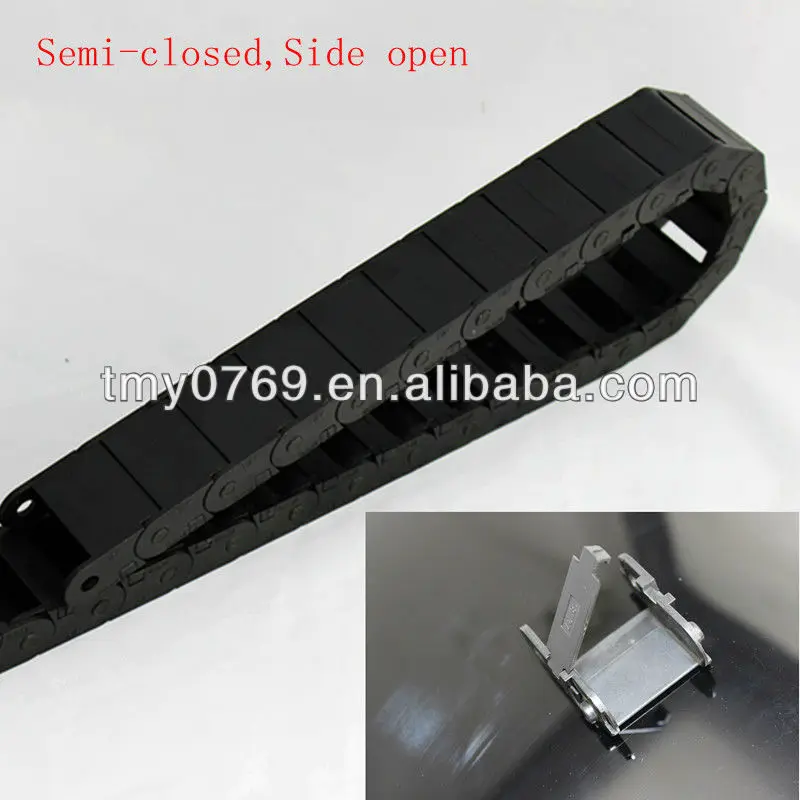

Semi-closed,Side open
TMY18
18*18
24*30
28/38/48

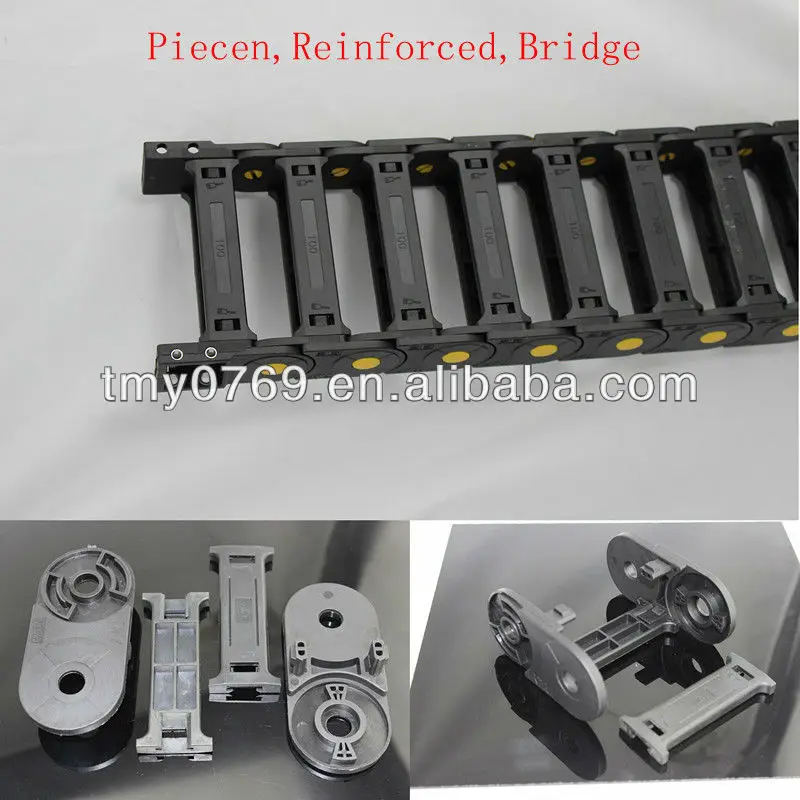

Bridge,Side open
18*25
24*36
18*37
24*43
34
TMY20
20*25
25.5*36.7
28/38/55
Bridge,Side open
20*52
25.5*62.1
20*25
35*40
55/75/100
47
Piecen,Reinforced,Bridge/Fully enclosed
20*38
35*55
20*50
35*65
20*60
35*75
20*75
35*90
20*100
35*115
TMY25
25*25
40*40
55/75/125/150/175/200
47
Piecen,Reinforced,Bridge/Fully enclosed
25*38
40*55
25*50
40*65
25*60
40*75
25*75
40*90
25*100
40*115
TMY30
30*25
40*40
55/75/125/150/175/200
47
Piecen,Reinforced,Bridge/Fully enclosed
30*38
40*55
30*50
40*65
30*60
40*75
30*75
40*90
30*100
40*115
TMY35
35*50
55*75
75/100/125/150/200
66.5
Piecen,Reinforced,Bridge/Fully enclosed
35*60
55*85
35*75
55*100
35*100
55*125
35*125
55*150
35*150
55*175
35*175
55*200
35*200
55*225
TMY45
45*50
65*75
100/125/150/200
81
Piecen,Reinforced,Bridge/Fully enclosed
45*60
65*85
45*75
65*100
45*100
65*125
45*125
65*150
45*150
65*175
45*175
65*200
45*200
65*225
TMY55
55*50
75*80
100/125/150/200/250/300
81
Piecen,Reinforced,Bridge/Fully enclosed
55*60
75*90
55*75
75*105
55*100
75*130
55*125
75*155
55*150
75*180
55*175
75*205
55*200
75*230
TMY65
65*50
85*82
100/125/150/200/250/300
81
Piecen,Reinforced,Bridge/Fully enclosed
65*60
85*92
65*75
85*107
65*100
85*132
65*125
85*157
65*150
85*182
65*175
85*207
65*200
85*232
TMY80
80*75
106*120
150/200/250/300
101
Piecen,Reinforced,Bridge/Fully enclosed
80*100
106*145
80*125
106*170
80*150
106*195
80*175
106*220
80*200
106*245
80*250
106*295
80*300
106*345
Application:

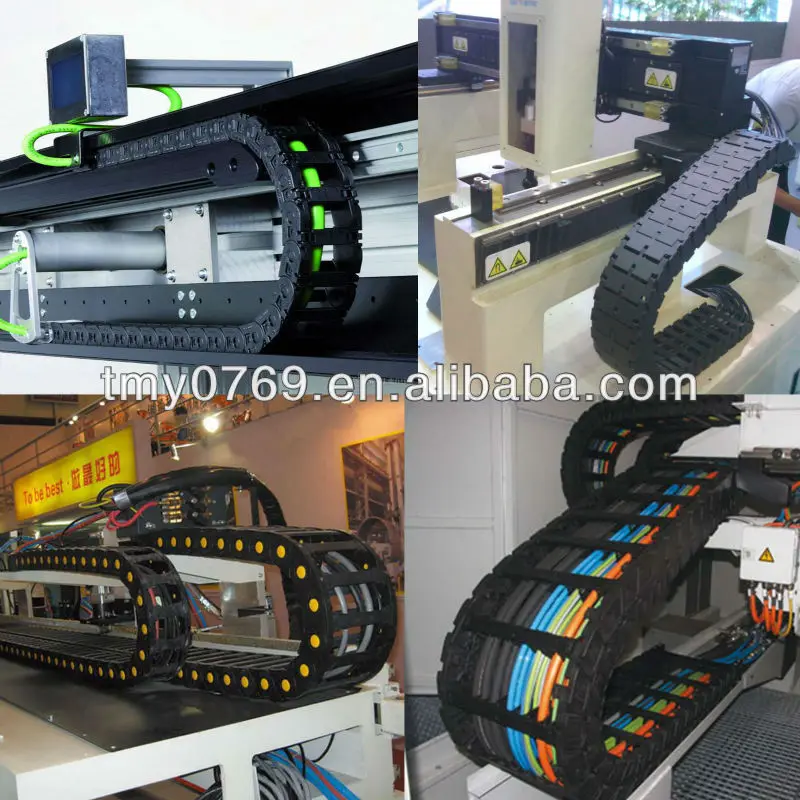

small drag chain has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machines, injection molding machines, mechanical hands, overweight transportation equipment, automated warehouses.
Message in need when place an order:
1.inside diameter
2.outside diameter.
3.bending radius
3.structure type
4.quantity
5.port.
