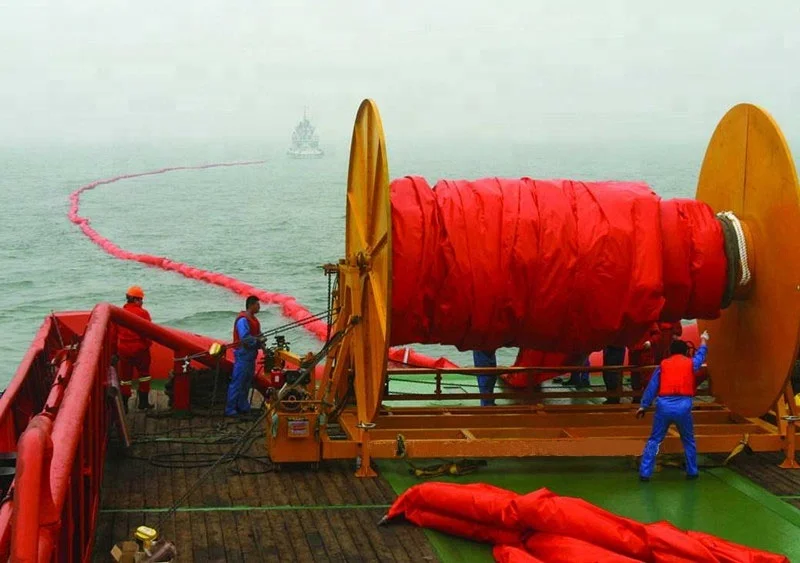

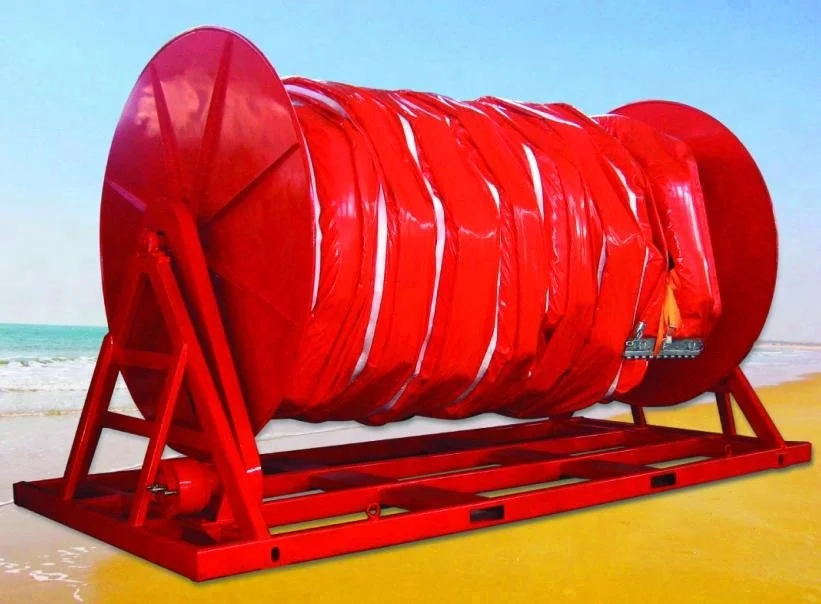

The quick-laying boom is used to contain and control oil spills on water areas such as sea or harbors. It is usually wound on the reel. In operating, it can be laid on waters without the need to inflate it. Therefore, the boom is the new oil spill control equipment that allows for the fastest deployment.
Accessories: relevant boom reel frame and power station
Features
1.With the double-layer casing made of high strength flexible materials, having high resistance to oil and sunlight and long service life
2.Used on water areas such as sea or harbors to contain and control oil spills from spreading. It can be deployed rapidly
3.Only two operators are needed, recovery method, mechanical
Customers can choose different types for different needs, and we can supply customers with technical materials and special support .
Model
Parameter
KW800
KW900
KW1000
KW1200
KW1600
Overall height(mm)
600
800
1000
1200
1400
Water height(mm)
210
280
340
400
460
Underwater depth(mm)
280
260
480
600
700
Standard length per section(m)
200
Total tensile strength(KN)
60
65
70
80
100
Laying speed(m/min)
≥40
≥40
≥40
≥40
≥40
Max, wave height to withstand(m)
0.8
1.2
1.5
1.8
2
Max, wind speed to withstand(m/s)
6
8
10
12
15
Max, current speed to with stand(Kn)
0.8
1.2
1.5
1.5
2
Company Information
Qingdao huahai environmental protection industry Co., Ltd is located in the center of haibin industrial zone in Qingdao, China, which covers a total land of 92,713 square meters and has about 30,000 square meter construction facilities and 500 employees, including 120 technical engineers. In 1990, the company successfully developed series oil spill response equipments, including oil containment booms, oil skimmers etc. In 1994, it was renamed Qingdao Huahai Environmental Protection Industry Co., Ltd, which developed rubber dams in 1996 and took the lead in obtaining the ISO9002 Certificate in 1998. In 2000, Huahai introduced new equipments and advanced technology to improve productivity. In 2008, Huahai invested 3 million RMB in production of oil sorbent mats and took part in the operation to clean enteromorpha prolifera from the water area in Qingdao where the 29th Olympic Regatta and Beijing Paralympic Sailing Event were held. Huahai owns entire production lines of rubber dam and oil spill response equipments, mainly including skimmers, oil booms, storage facilities, oil spill monitoring systems and oil spill recovery boats etc.Huahai has six branches currently and keeps the trend of group development under the circumstance of blue economy.
