Product Overview

Description



MACHINE DESCRIPTION

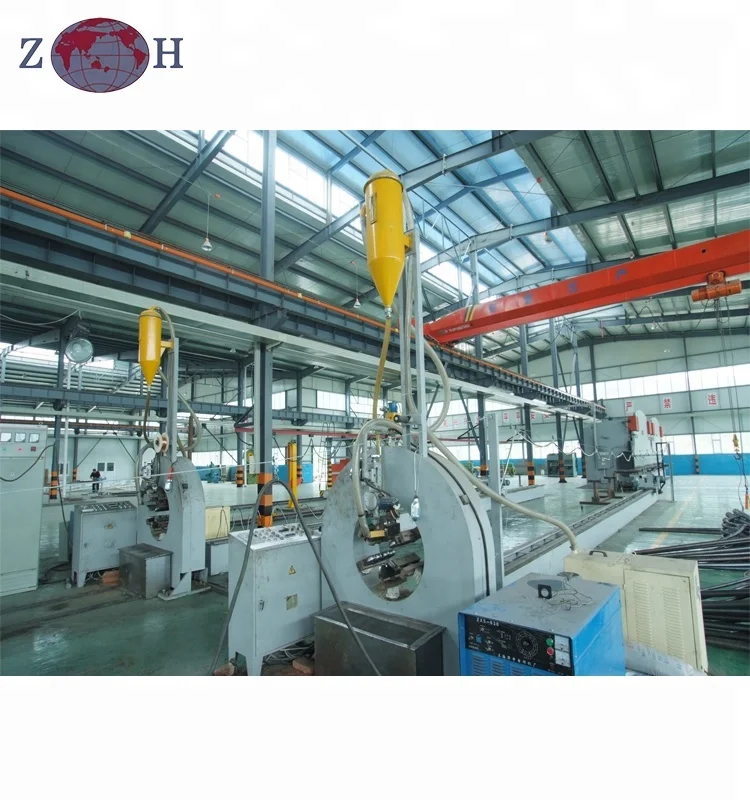

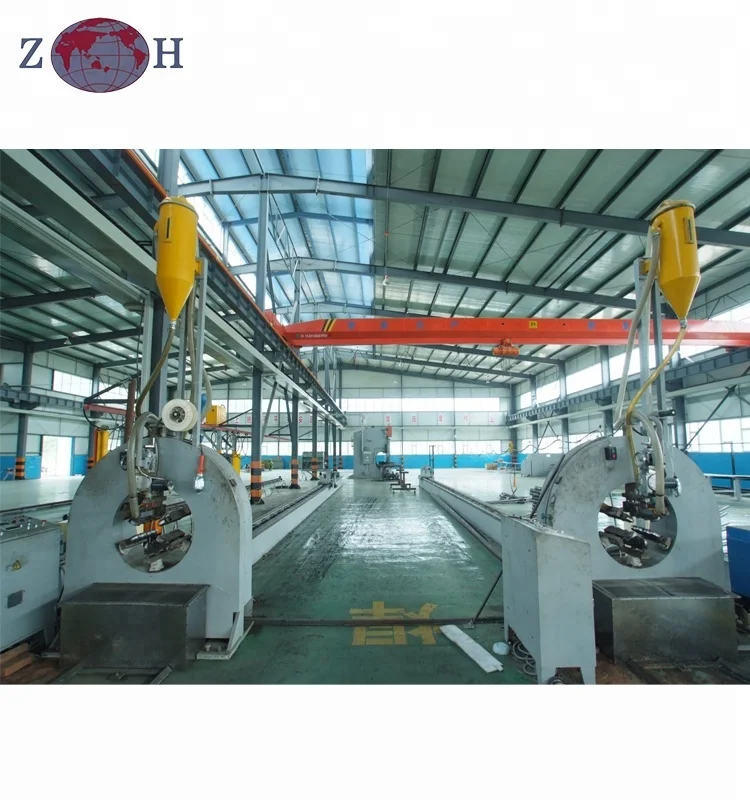

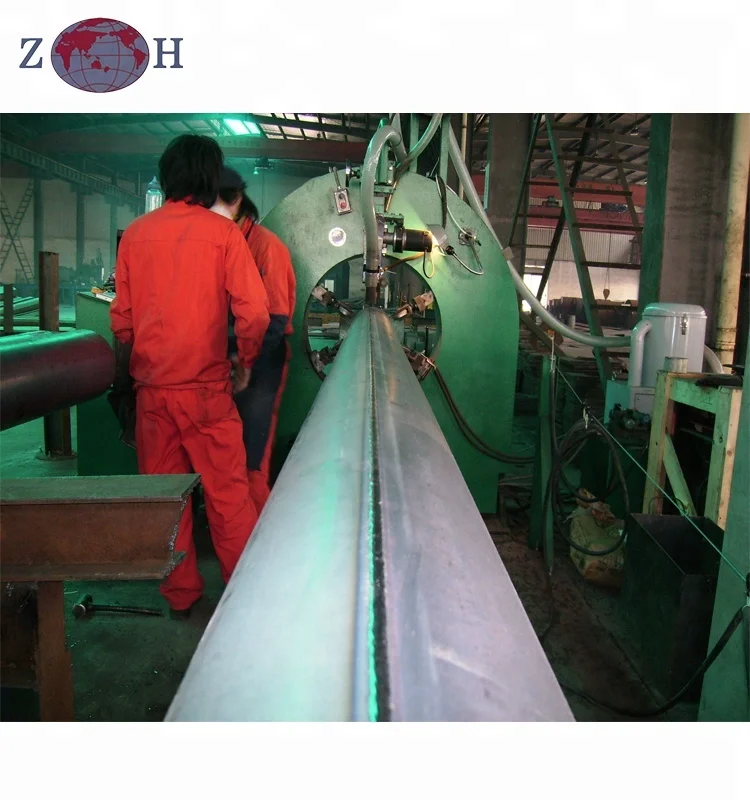

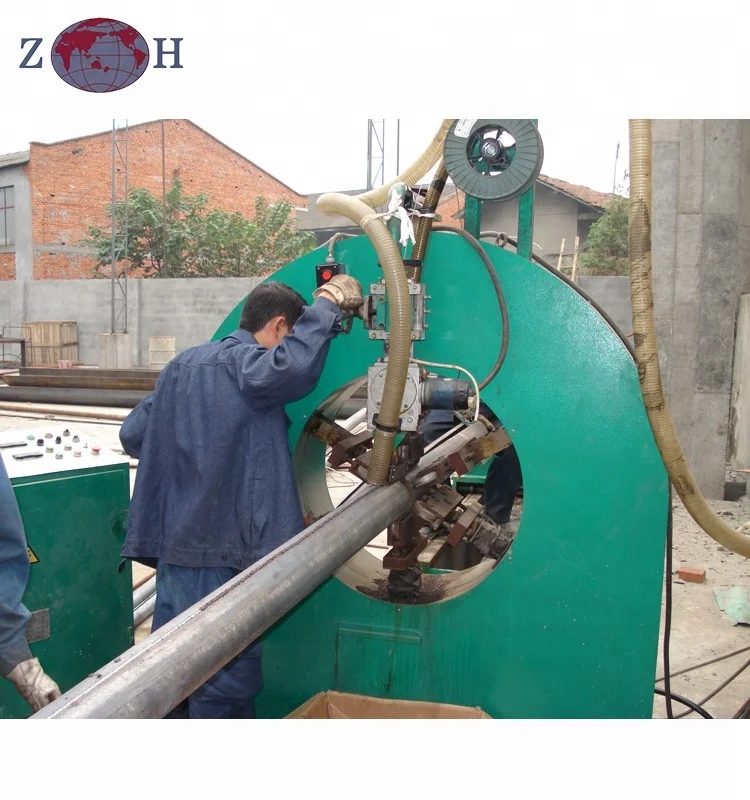

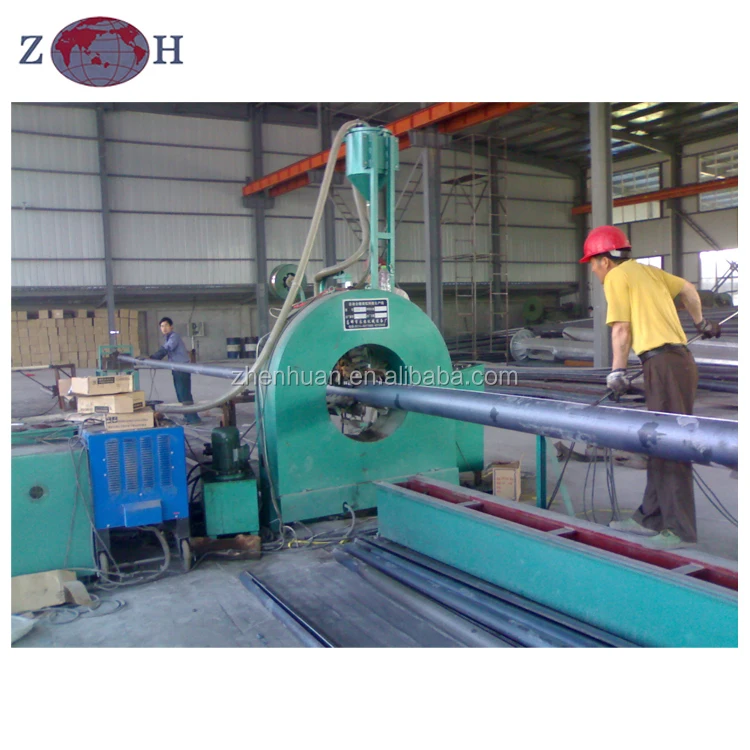

Octagonal lighting pole machine is suitable for producing lamp post, signal post, electric pipe tower and telecom power.

Lamp post production line including cut to length line, beveled cutting line, hydraulic press brake, auto joining & welding
machine, steel post straightening machine and steel pipe bending machine, etc.


MAIN FEATURES



- Semi-automatic
- Various lamp post shape, round, taper, octangular, polygonal, by changing molds
- Diameter ranges from 60-320mm, can be extended according to requirements
- Normal length is 12m or 14m







MACHINE SPECIFICATION


No.
Description
Remark
1
Nominal pressure
2*3000kN
2
Working length
2*6000mm
3
Max. ram stroke
250mm
4
Max. open height of ram
475mm
5
Depth of throat
400mm
6
Main power
2*22kw
7
Dimension of working table and ram
80*2000*7000mm
8
Dimension of machine
12000mm*2300mm*4800mm
9
Weight
72000kg
