Atomatic Infrared BGA Welding Rework Station for Laptop \ Phone Motherboard Repair Machine (60594138224)

Share on (60594138224):


Price:$3,000.00 - $5,200.00

Quantity:


Product Overview

Description

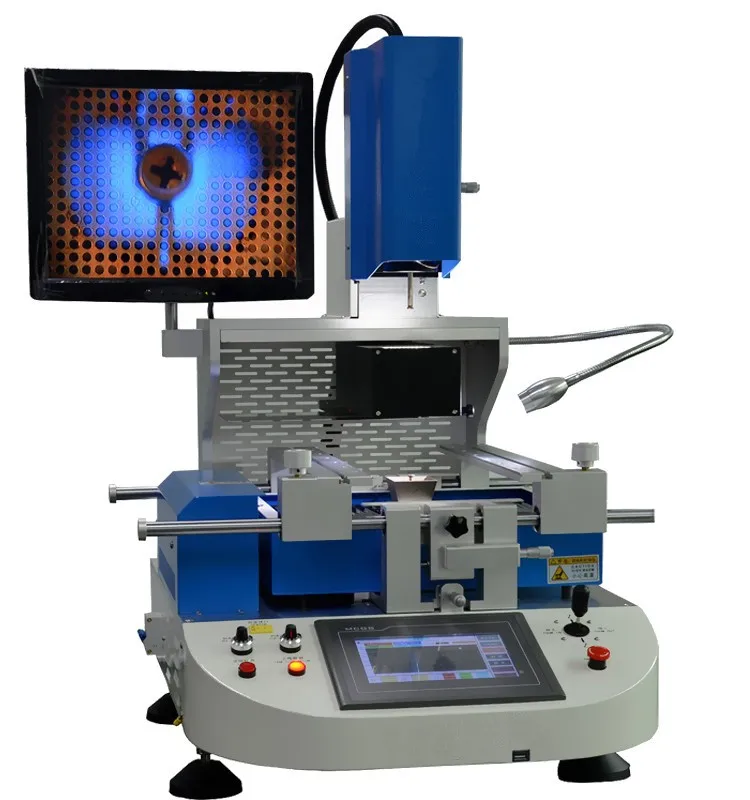

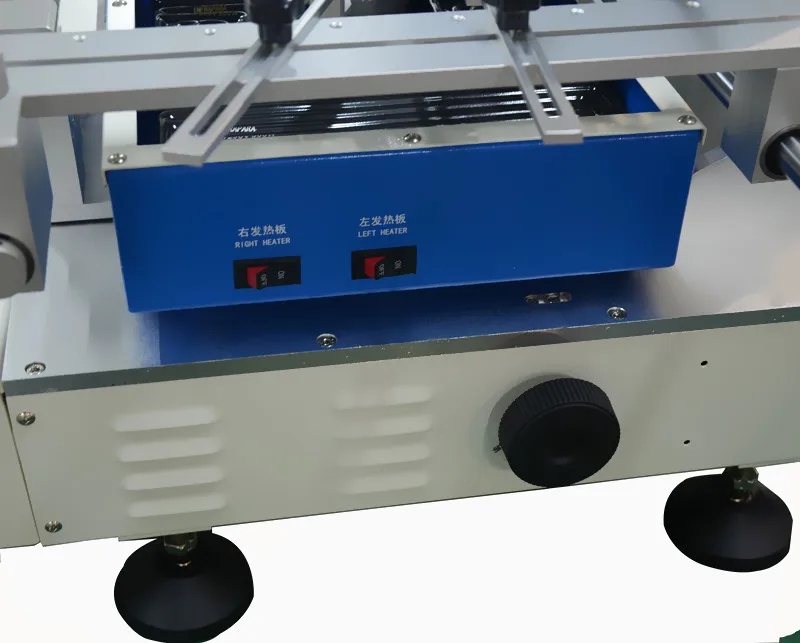

WDS-620 Atomatic Infrared BGA Welding Rework Station for Laptop \\ Phone Motherboard Repair Machine



Product Description




I. Introduction




























































































Total power



4800W



Up heating power



800W



Bottom heating power



1200W

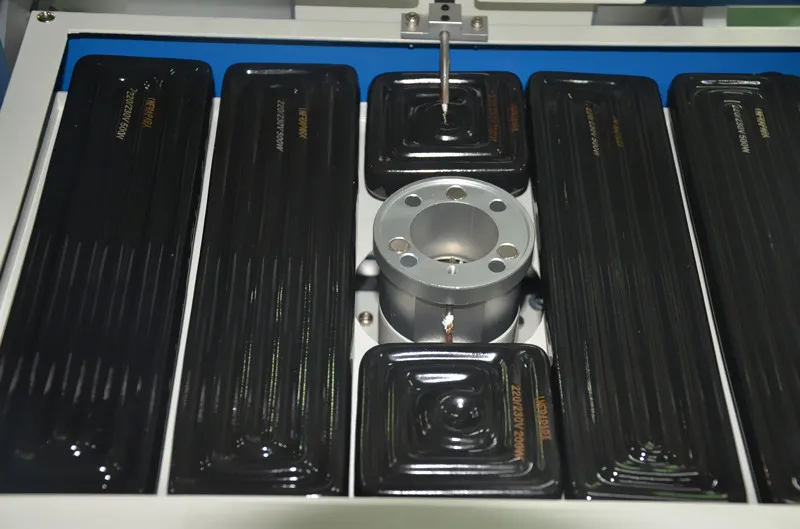

Infrared heating power



2700W(1200W can be controlled)



power supply



Single Phase, AC 220V±10 50Hz



PCB positioning



V-shaped slots fixed PCB,the laser alignment system to quickly locate,manipulate Motors by joystick can move the X&Y axis.

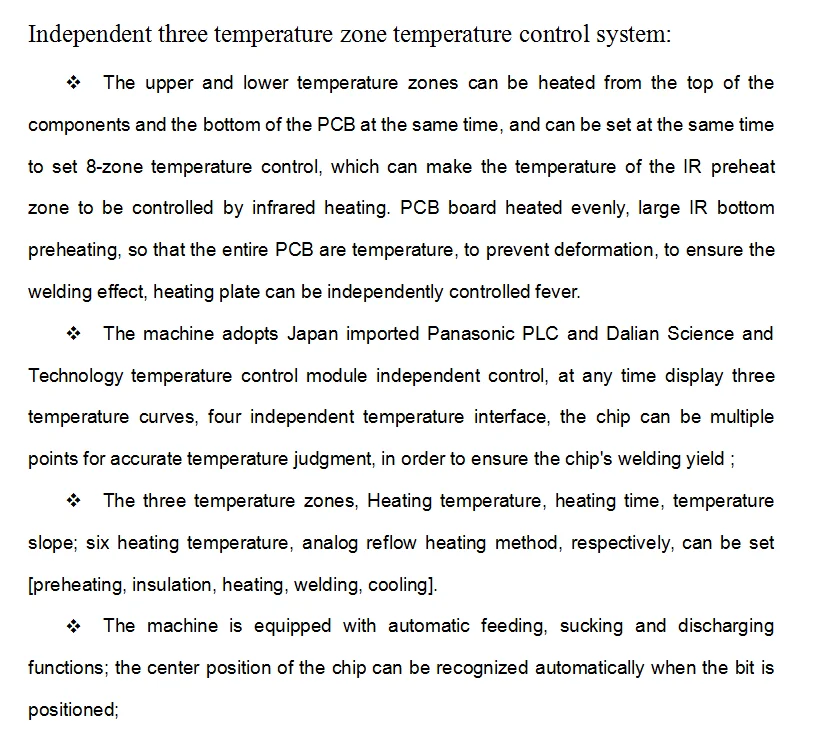

Temperature control



High precision K-type therm couple closed-loop control,independent temperature measurement,temperature


of plus or minus 2 degree



Electronic material



High-sensitive-touchscreen+temperature-control module+PLC+stepper drives



Max PCB size



500*450mm



Min PCB size



10*10mm



Measuring



1pcs



PCB thickness



0.5-8mm



Applicable chip



0.8mm-8cm



Applicable-chip min.spacing



0.15mm



Mount max. load



800G



placement accuracy



±0.01mm



Dimension



 L650*W630*H850mm



Optical-alignment Lens



Electric drive can move around,to prevent the registration dead.



Chip-amplification factor



2-32 times



Net weight



About 60kg









Packaging & Shipping








Packing method

1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;


.jpg











Shipping way


1)By air ,for sample and small package ,worldwide expresses like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car,by train or other ways according to customers'  requirements.


.png





Payment


We accept T/T and Credit Insurance Order.30% Depoist and 70% Balance before shipping.


Also,other payment methods can be negotiated.

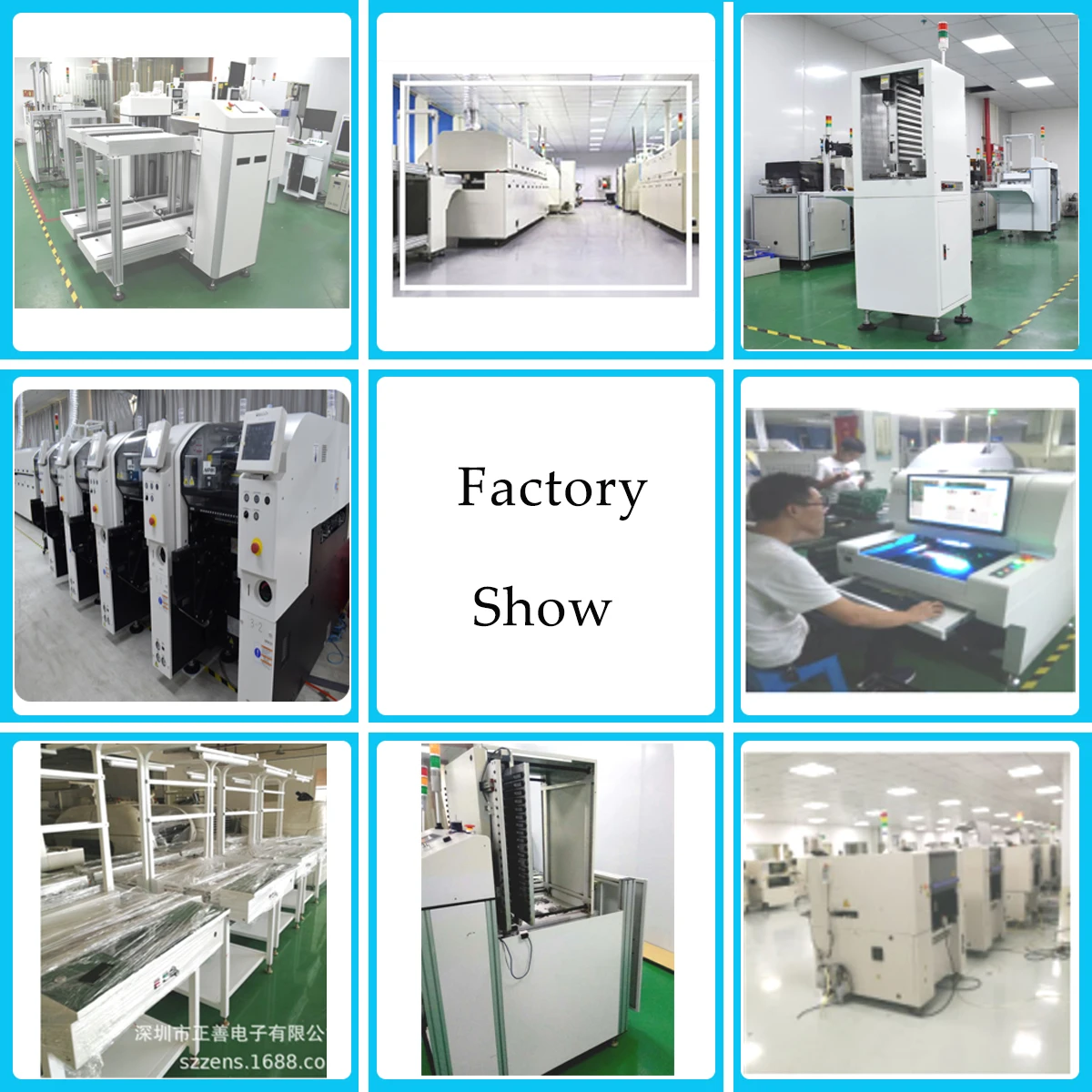

Company Information


Shenzhen ZENS Electronic Co., Ltd. is a company who is aiming to be a leading manufacturer of SMT line manufacturing.It is specializes in :


1,Pick and place machines of Fuji,Juki,Panasonic,Samsung,Yamaha, some Chinese brands, etc;





2,Solder Paste Printers of Yamaha,Dek,GKG,our own brand, etc.





3,AOIs of Saki,our own brand,etc.





4,Reflow ovens of ETC,Heller,some Chinese brand,etc.





5,Other SMT machines and accessories,such as laser marking machine,PCB washing machine,wave soldering machine,SPI,gule dispenser,solder paste mixer,PCB conveyor,PCB magazine loader and unloader,nozzles,feeders,etc.We focus on both production and sales.





Also,we provide technical supports and lifetime online supports after sales.





Overall,choosing us will save your time of searching and improve the efficiency of your production line.


.jpg








contact info







FAQ


1. How can you guarantee your products’ quality?


⇒A: We guarantee that every set of our products is under rigorous test before  delivered to you      and ensure  excellent performance of all products.





2.What kind of payment method your company accept?


⇒A: We accept most of the payment methods,but mainly accept T/T.





3. I would like to ask you is it  possible to have my logo on the product?


⇒A: Our company  support customized logo service perfectly and it's totally free.So just tell       your requirements to us.





4. MOQ ?


⇒A: 1 set machine or mixed order is also welcome.





5. How can I buy this machine from you? ( Very easy and flexible !)


⇒A. You can  consult us about the product on line or by e-mail.
   B. Negotiate and confirm the final price , type of transportation , payment method and other          terms.
   C. Send you the proforma invoice and confirm your order.
   D. Pay the bill  according to the method put on  proforma invoice.
   E. We'll prepare your order according to the proforma invoice after we receive your total               payment.And       we'll give throughout inspection of the product before shipping.
  F. Send your order by air or by sea by your requirements.





Our Services


1. We’ll have a good check and  test before shipping out.


2. We provide you  professional  user's manual in English or  operating videos for free;
3. 24 hours technical support by email ,Skype ,Trade Manager, telephone,etc.
4. Machine parts under one day warranty changed for free without malicious damage
5. Engineer is available to service machinery overseas.Welcome your engineers come to our factory      for professional training.





MainProducts(Sample)

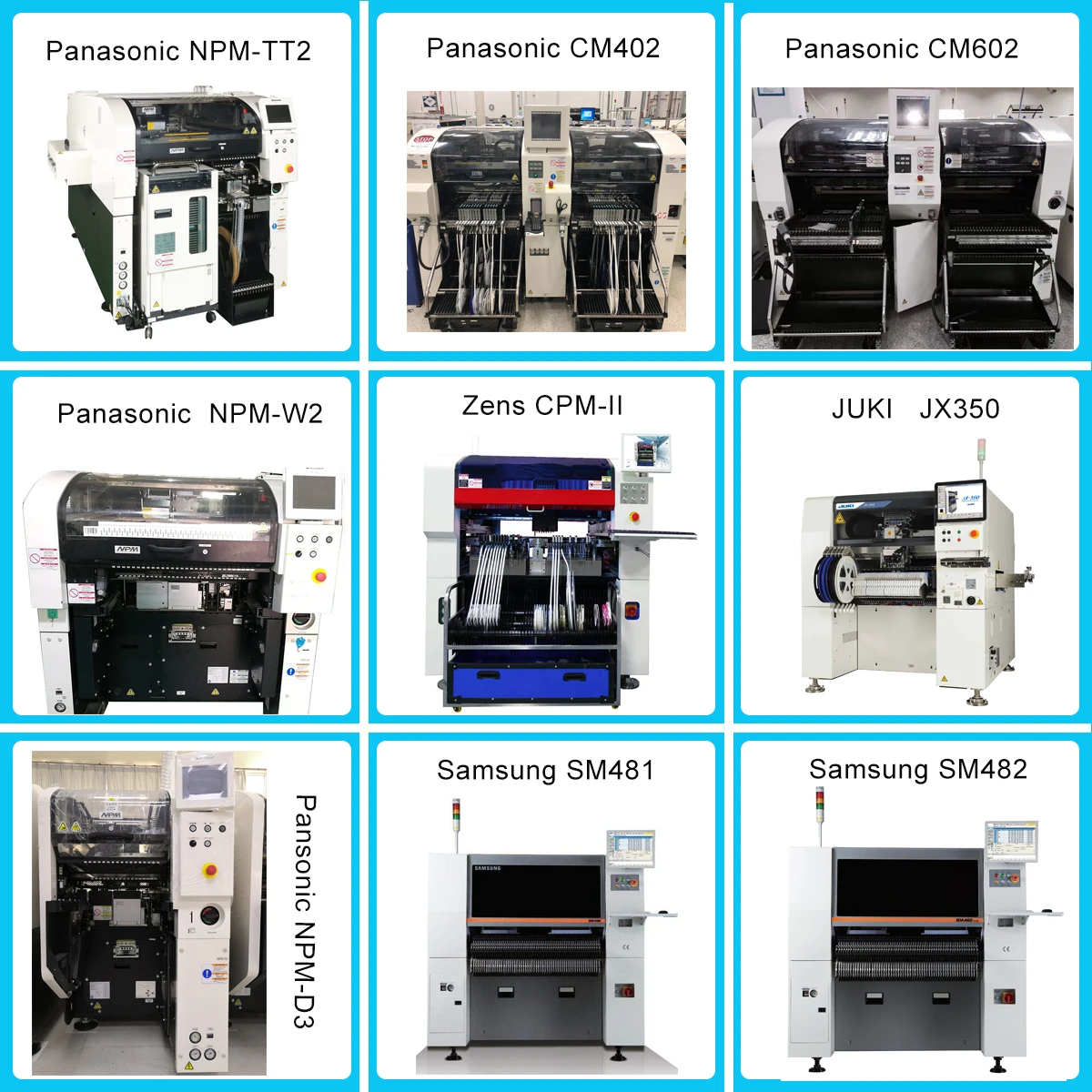

1,Pick and Place Machine


.jpg

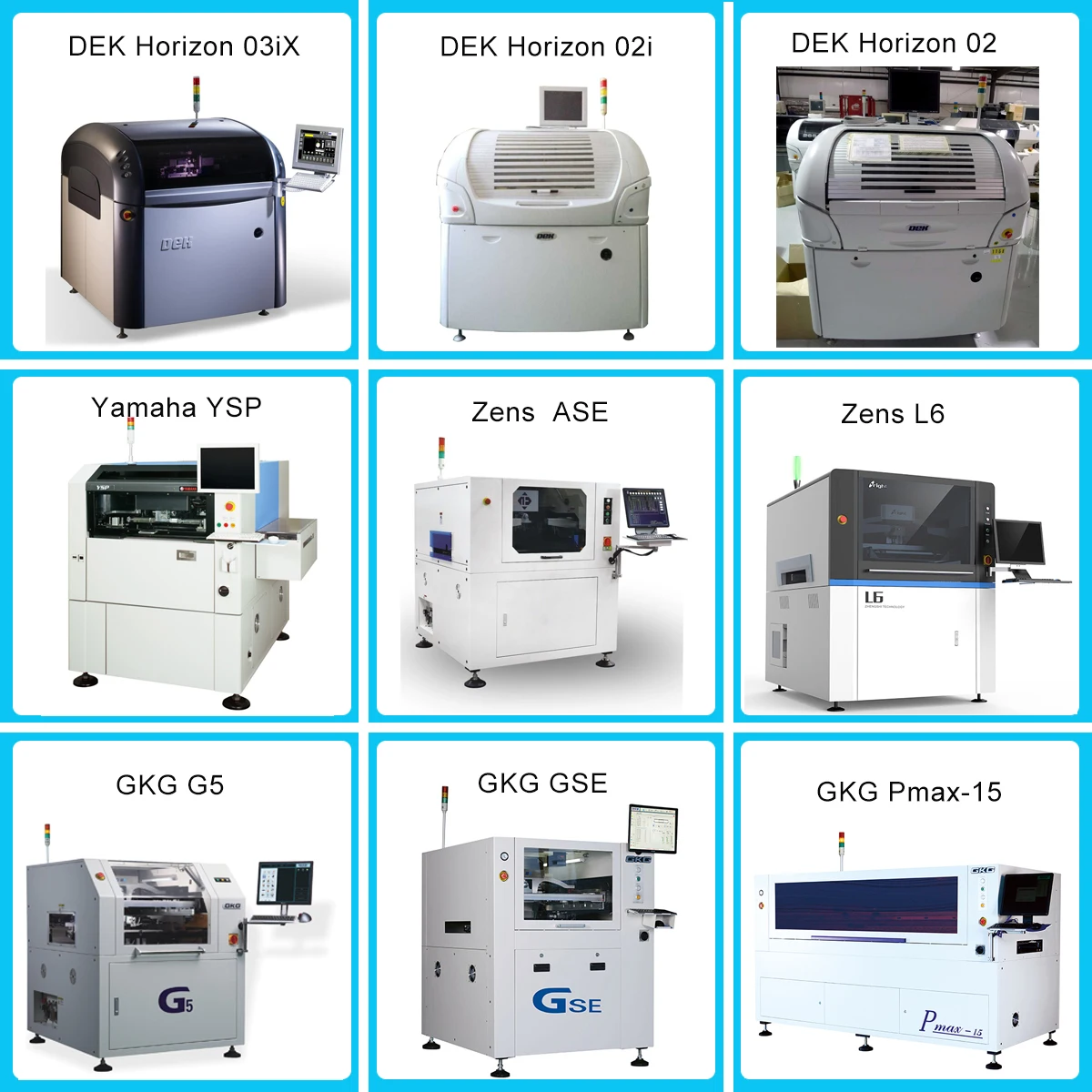

2,  Solder Paste Printer


.jpg

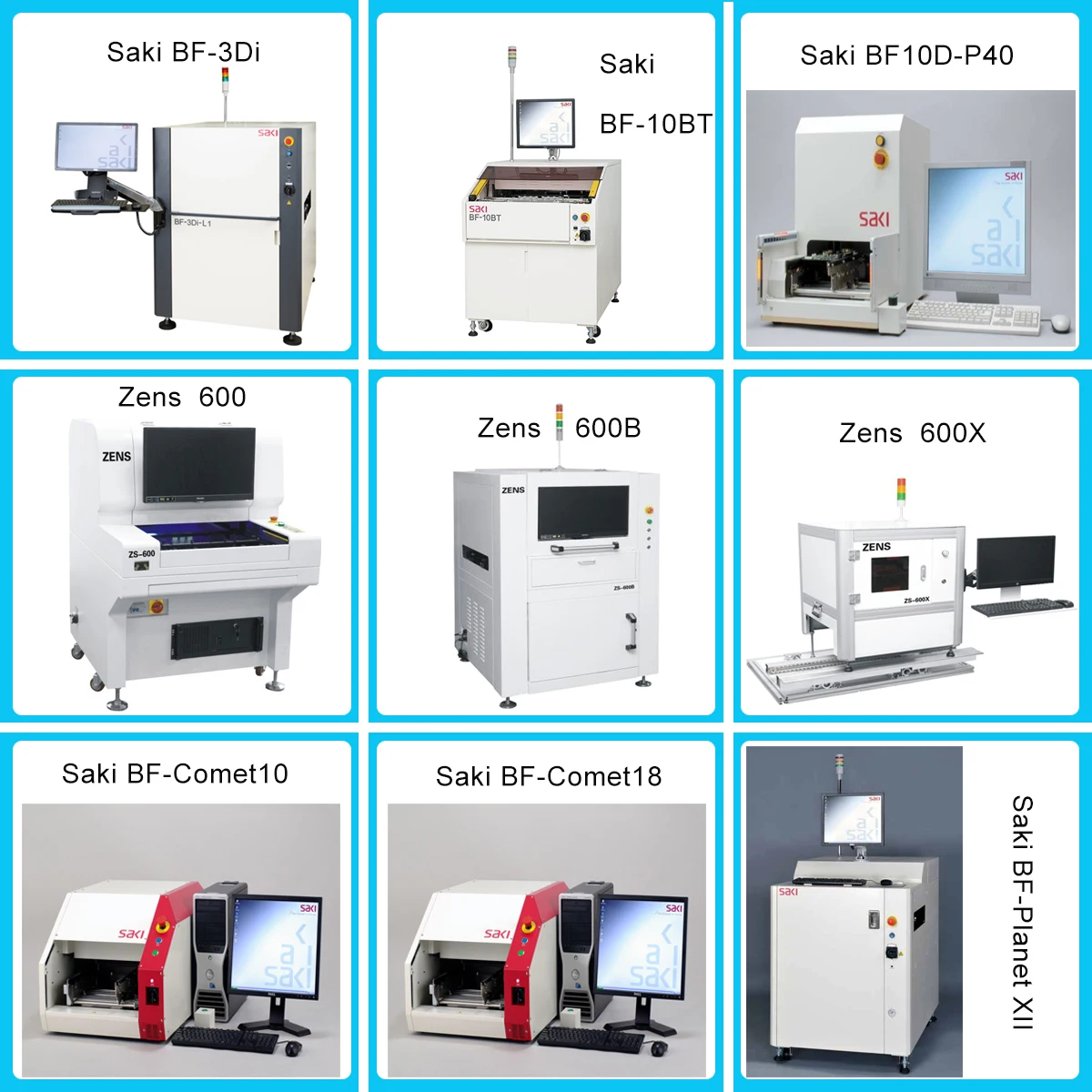

3,  AOI

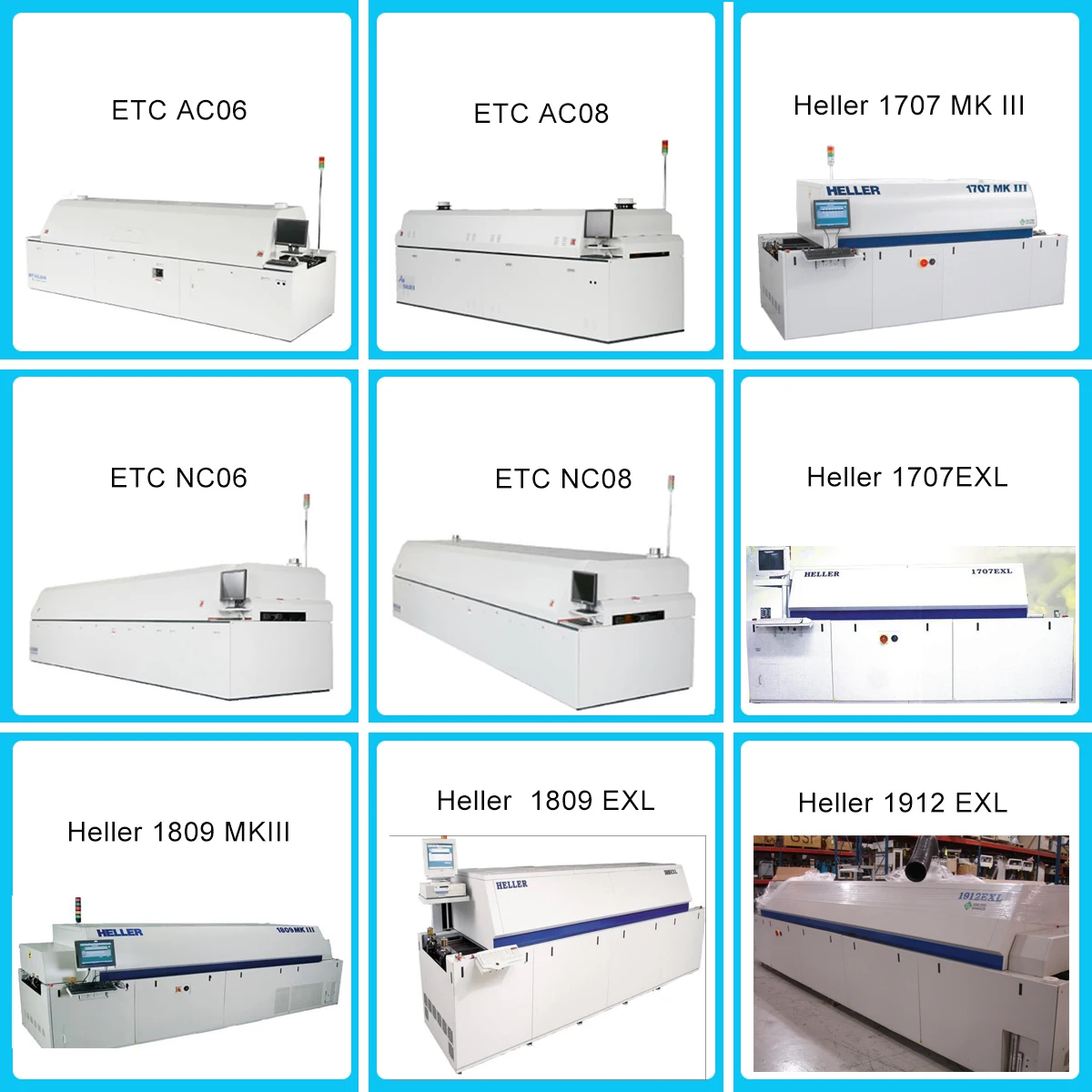

4,  Reflow Oven


.jpg

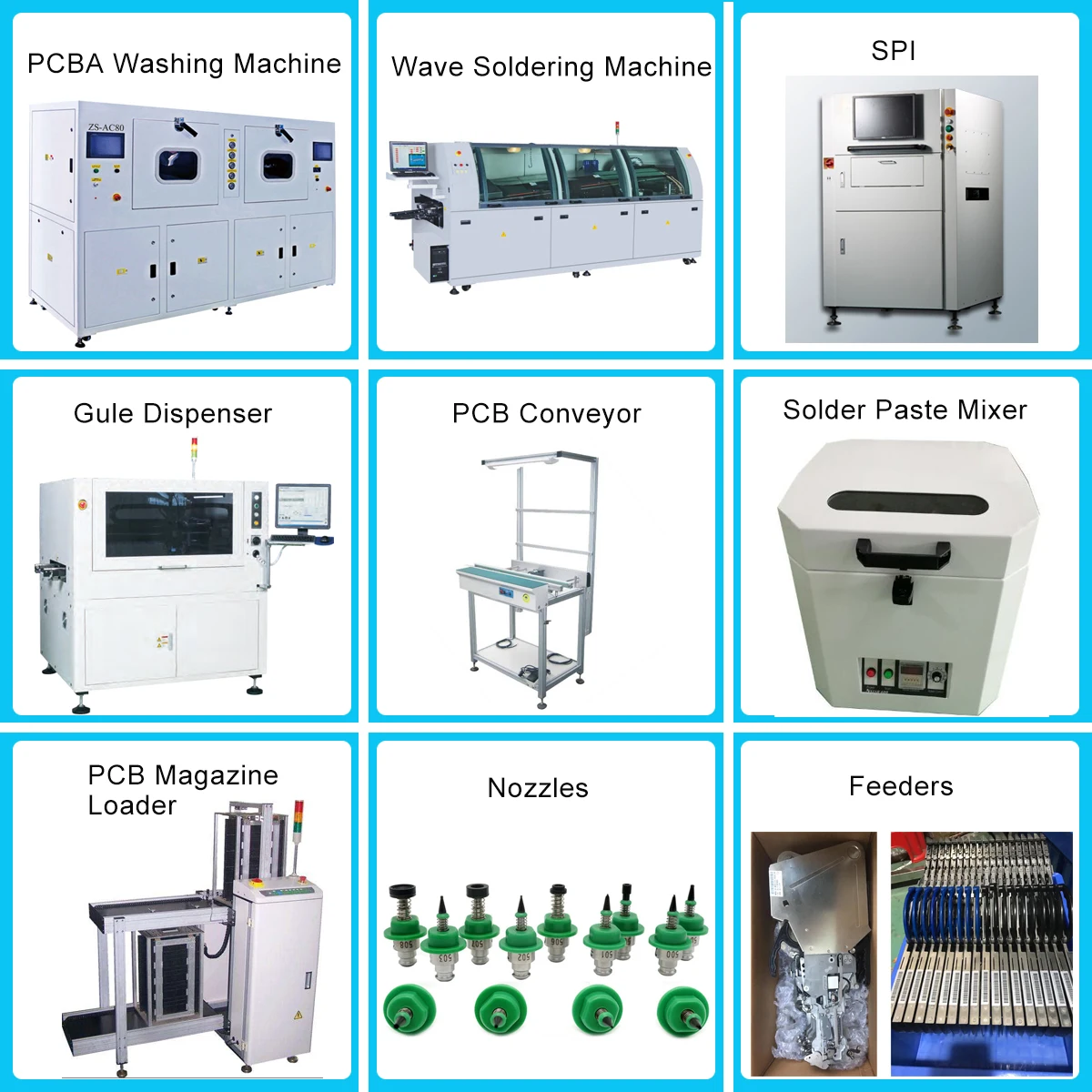

5,  Other Products
