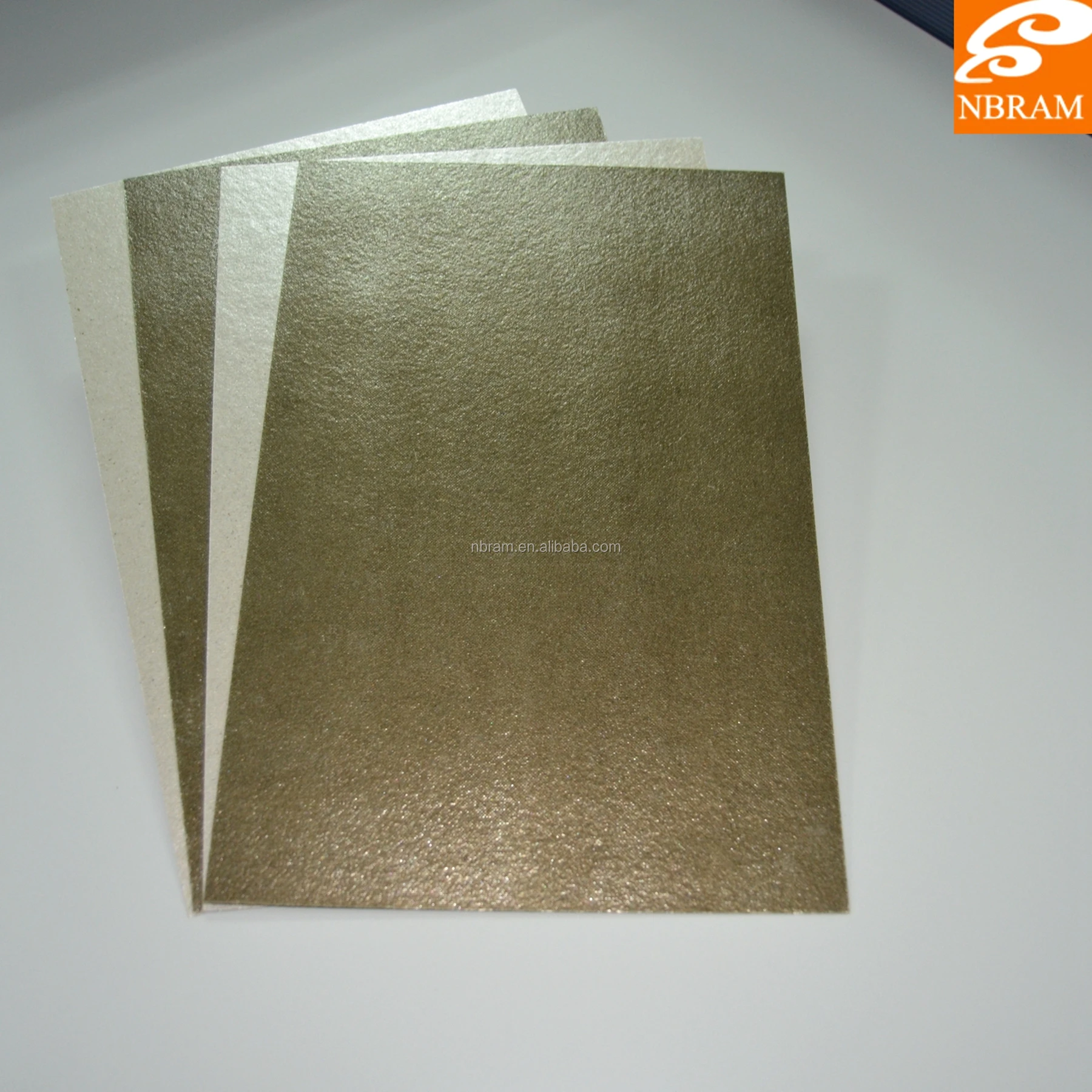

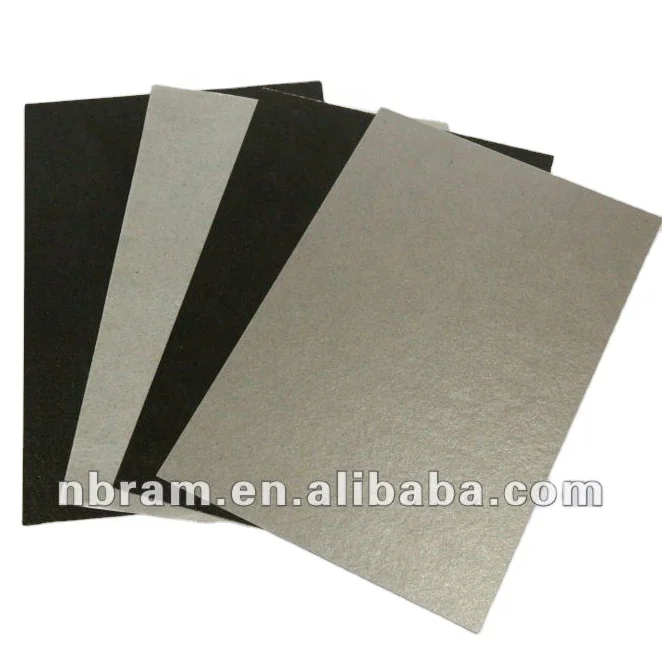

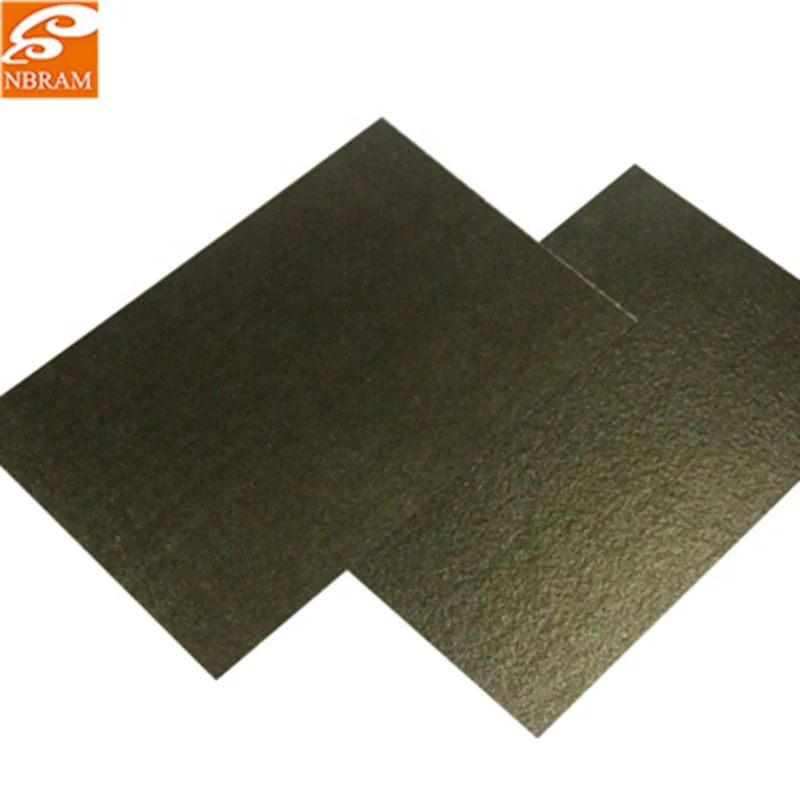

Muscovite жесткий слюдяной лист

Type

  Muscoivte rigid mica sheet

Mica paper

Muscoivte

Binder

Silicon resin

Mica content

≥ 90%

Binder content

≤ 10%

Thickness(mm)

0.10 ~ 2.0

Thickness tolerance(mm)

Average

±0.02 - ±0.05

Individual

±0.05 - ±0.08

Density(g/cm3)

1.6-2.2

Heat loss at 500 °C %

≤0.60

Flexural strength(kgf/mm2)

≥16

Dielectric strength(KV/mm)

>20

Insulation resistance(MΩ)

100 - 600

Work temperature ( °C )

500°C

Standard size(mm)

1000 × 600 1000 × 1200 1000x2400

Standard reference

GB5019 - 85, IEC371
