Product Overview

Description

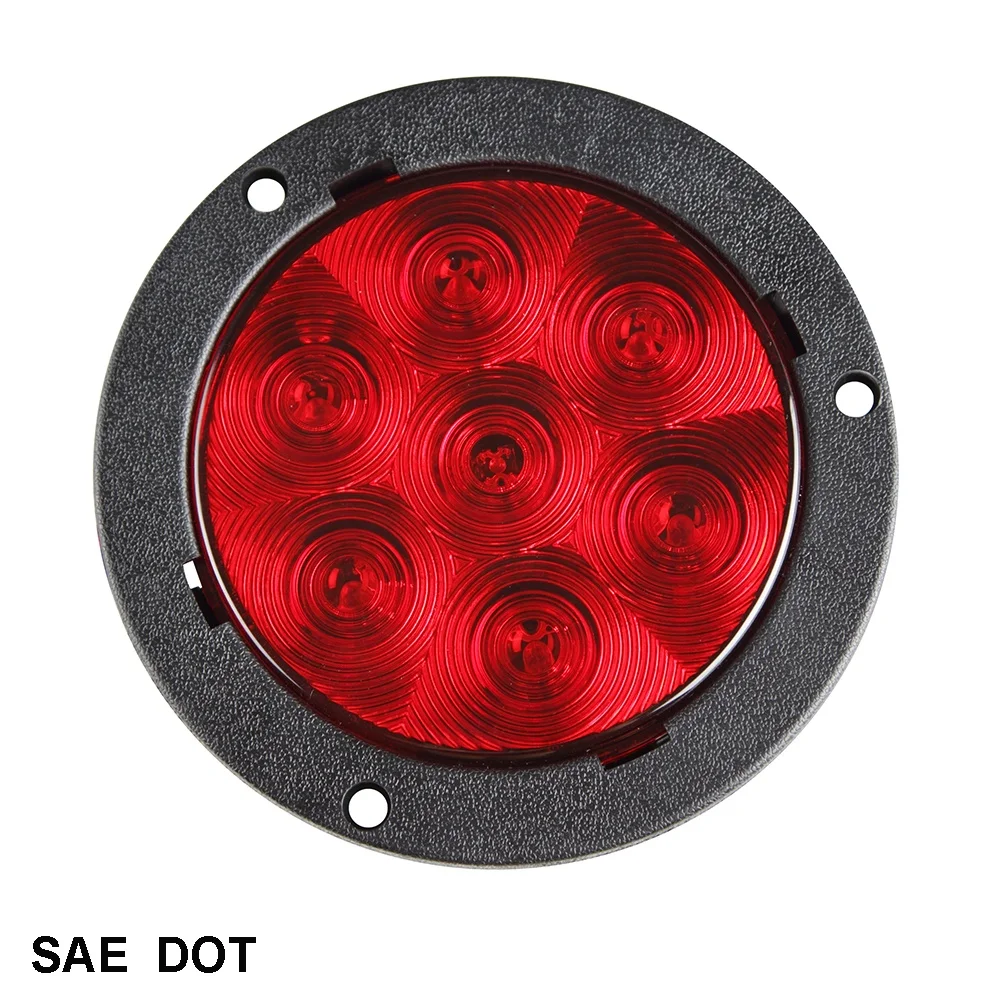

4 inch Round LED Light Stop/Tail/Turn, Flange Mount Plain 12V 24v 4 inch round led trailer tail lights flange mount





FEATURES:

 Flange mount with reflex ring or plain (w/o reflex ring)

 Choice of 12 LEDs or 7 LEDs versions; super bright LEDs

 Stop, Turn, Tail functions combined.

 Enginered lens optics

 PC lens and housing welded together to ensure a permanent and water proof seal.

 LED circuit board coated with conformal coating for excellent moisture and environmental protection

 Right angle 3-prong plug assembly

 Super long life span up to 100,000 hours

 Meets DOT FMVSS 108/SAE requirements except amber and white colors of 7 LED version

 Rated for 12V, tested to 13.8V

 Also available in multi-voltage 10~30V operating range or 24V by special order only



SPECIFICATION:

104607R	Flange Mount Plain	12 V	7	SMD	Red	15/150 mA

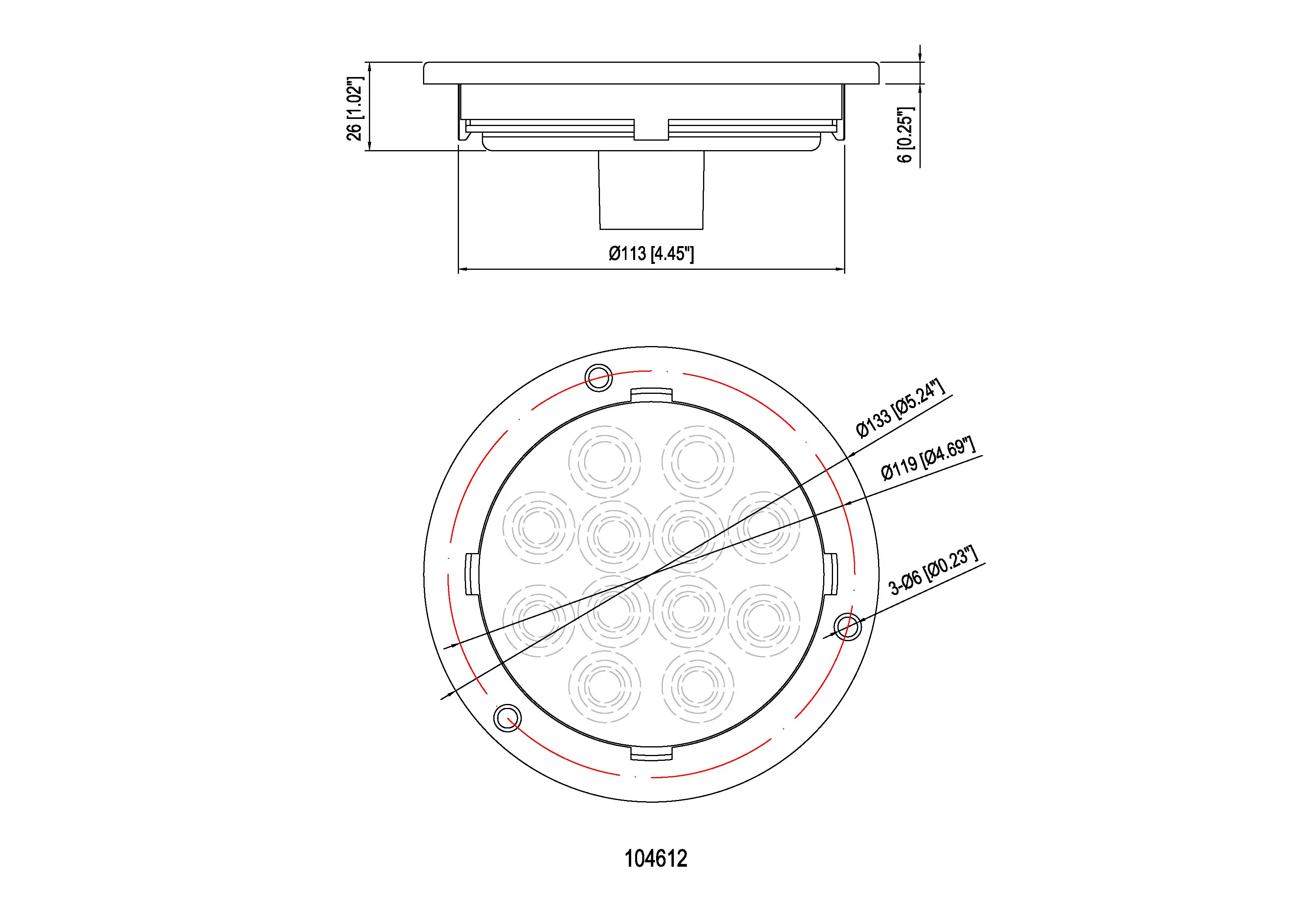

104612R	Flange Mount Plain	12 V	12	SMD	Red	20/200 mA
104612A	Flange Mount Plain	12 V	12	SMD	Amber	200 mA
104612C	Flange Mount Plain	12 V	12	SMD	White	200 mA
104607RM	Flange Mount Plain	12~24 V	7	SMD	Red	10/100 mA
104607AM	Flange Mount Plain	12~24 V	7	SMD	Amber	100 mA
104607CM	Flange Mount Plain	12~24 V	7	SMD	White	100 mA
104612RM	Flange Mount Plain	12~24 V	12	SMD	Red	15/150 mA
104612AM	Flange Mount Plain	12~24 V	12	SMD	Amber	150 mA
104612CM	Flange Mount Plain	12~24 V	12	SMD	White	150 mA
906403P	Right Angle 3 Prong Plug for 4” Round Light
104300FL	Flange Mount Bracket with Refelx Ring only
