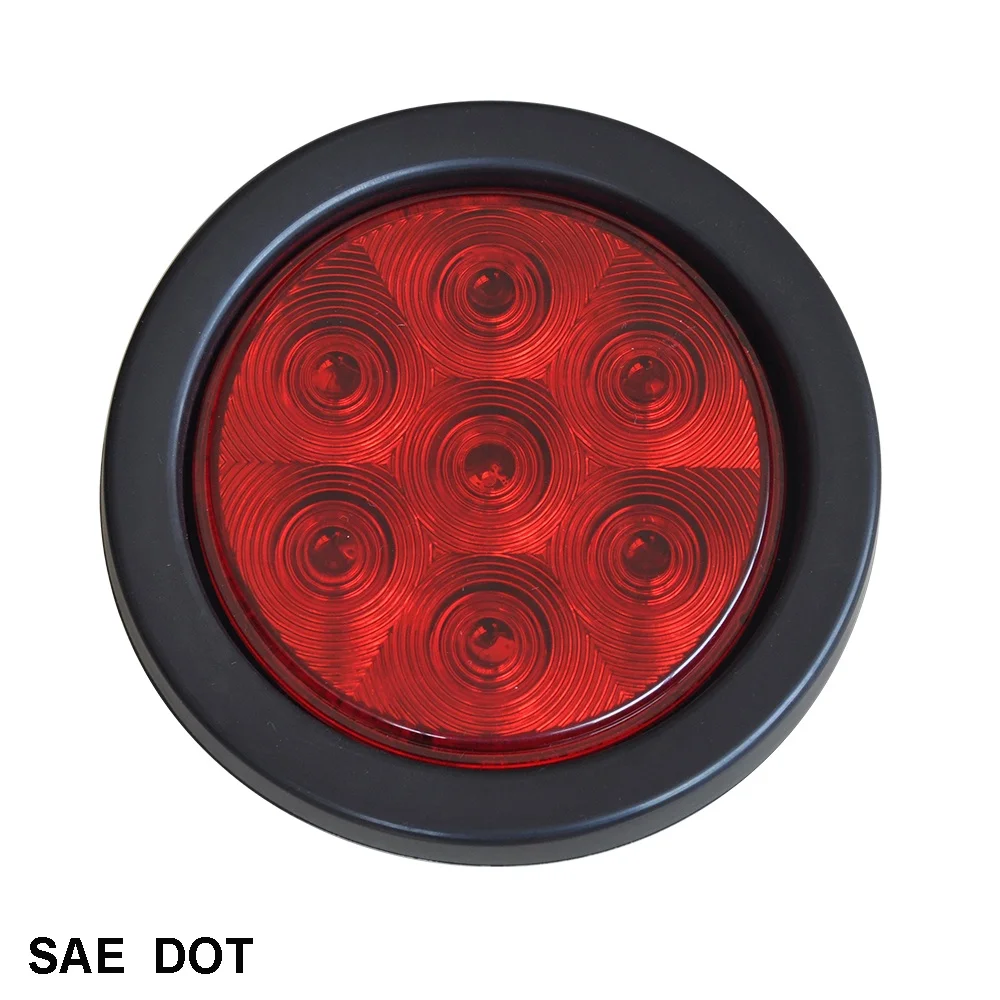

4 inch Round LED STT Light 12V 4 inch round tail lights DOT approved (361026858)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


4 inch Round LED STT Light 12V 4 inch round tail lights DOT approved




Features:



  • Choice of 7 LEDs, 12 LEDs or 32 LEDs versions; super bright  LEDs of SMD type or 5mm

  • Stop, Turn, Tail functions combined.

  • Engineered lens optics

  • PC lens and housing welded together to ensure a permanent and water proof seal.

  • LED circuit board coated with conformal coating for excellent moisture and environmental protection

  • Right angle 3-prong plug assembly, PVC grommet mounting; also available in flange mount version by special order

  • Super long life span up to 100,000 hours

  • Meets DOT FMVSS 108/SAE requirements except Amber versions of 7 LEDs (104207A)
    Rated for 12V, tested to 13.8V

  • Also available in multi-voltage 10~30V operating range, or 24V (special order only – minimum may apply)


Specifications:

















































































Part No.



Description



Input Voltage



Nos. of LEDs



LED Type



Lighting Color



Current Draw


(mA) at 13.8V



104207R



Grommet Kit



12 V



7



SMD



Red



15/150 mA



104207A



Grommet Kit



12 V



7



SMD



Amber



150 mA



104207C



Grommet Kit



12 V



7



SMD



White



150 mA



104207RM



Grommet Kit



12~24 V



7



SMD



Red



10/100 mA



104207AM



Grommet Kit



12~24 V



7



SMD



Amber



100 mA



104207CM



Grommet Kit



12~24 V



7



SMD



White



100 mA



104200G



Grommet only for 4” Round Light



906403P



Right Angle 3 Prong Plug for 4” Round Light

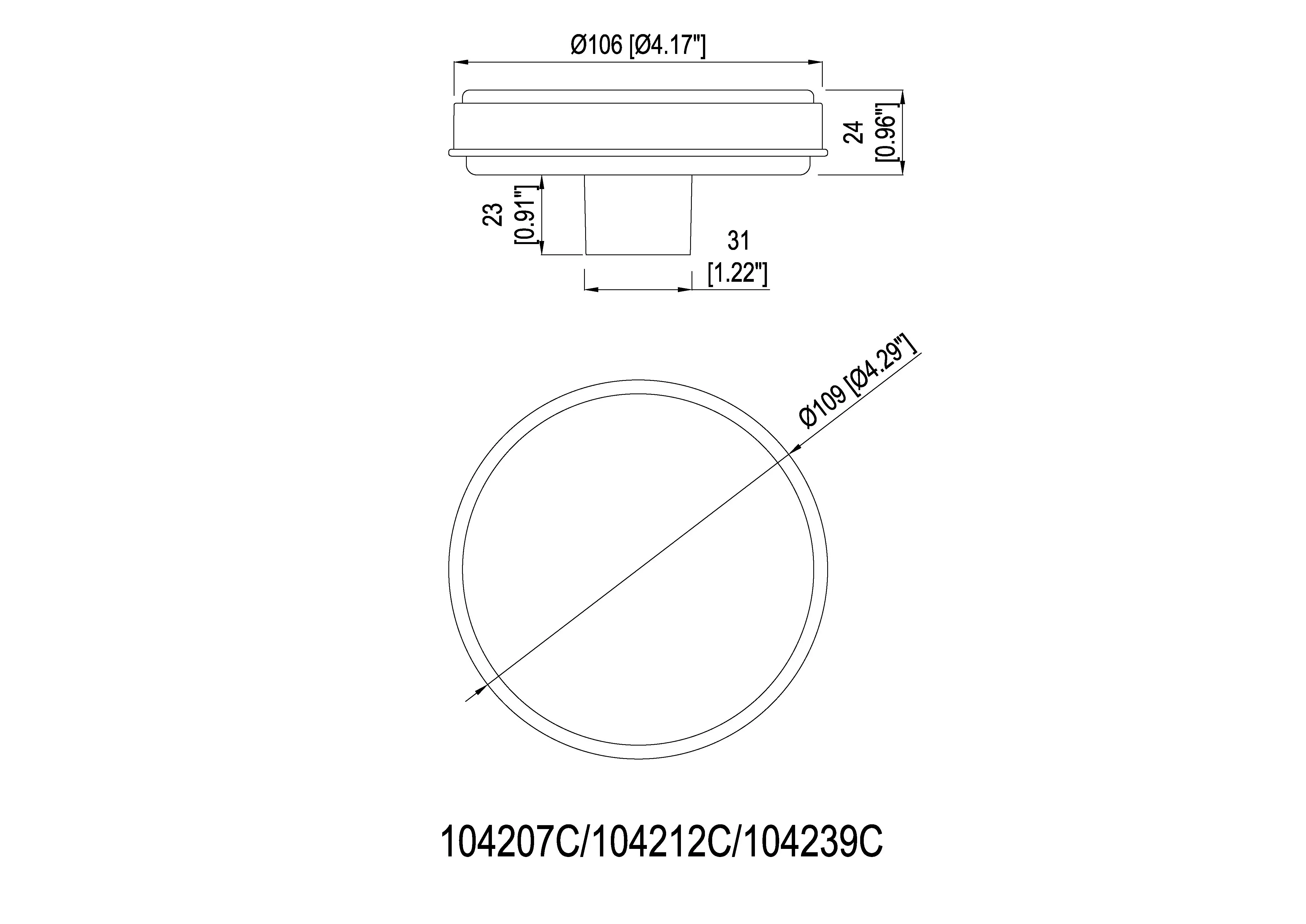

Dimension:




MORE 4" STOP TAIL TURN LIGHTS:


stt 004.jpg








More LED Lights Pleae Click Here.
