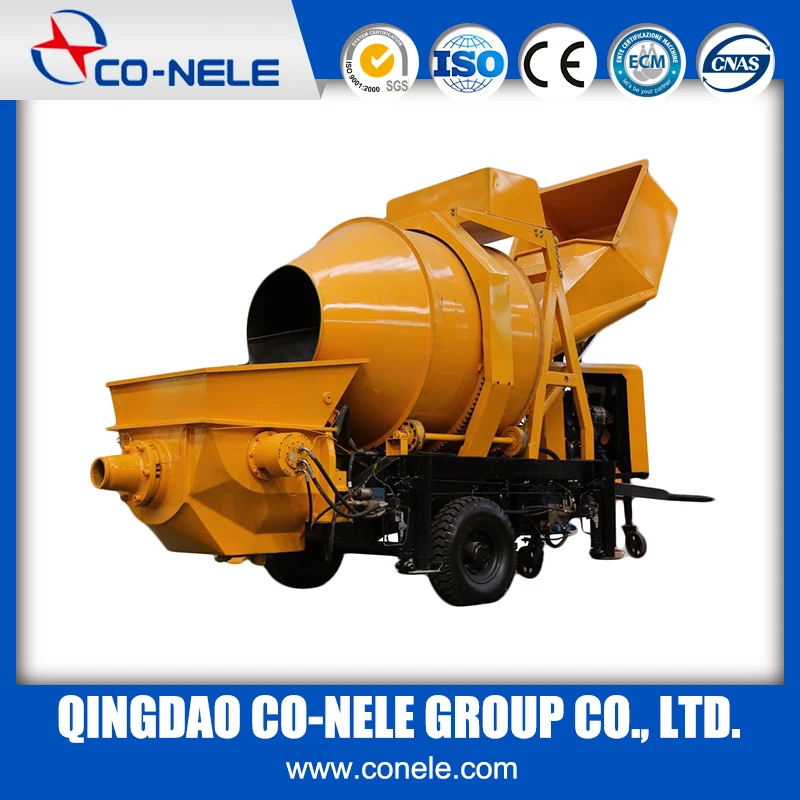

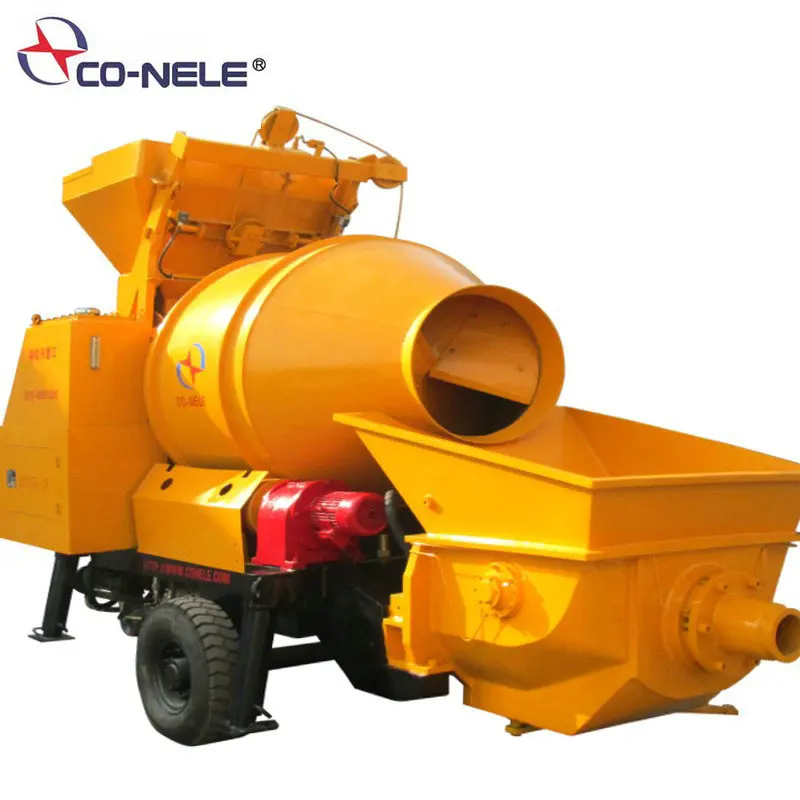

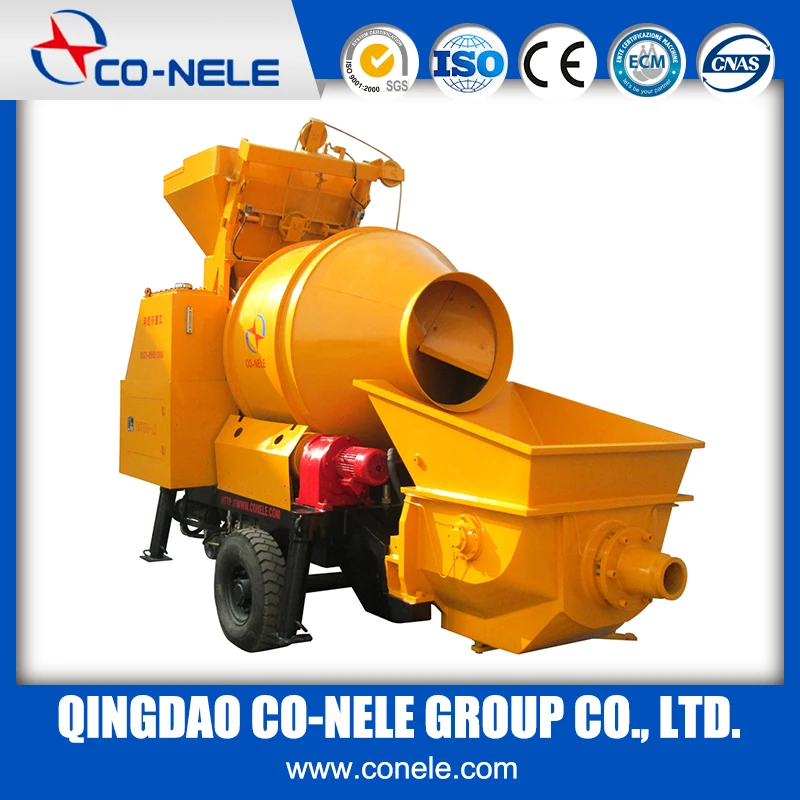

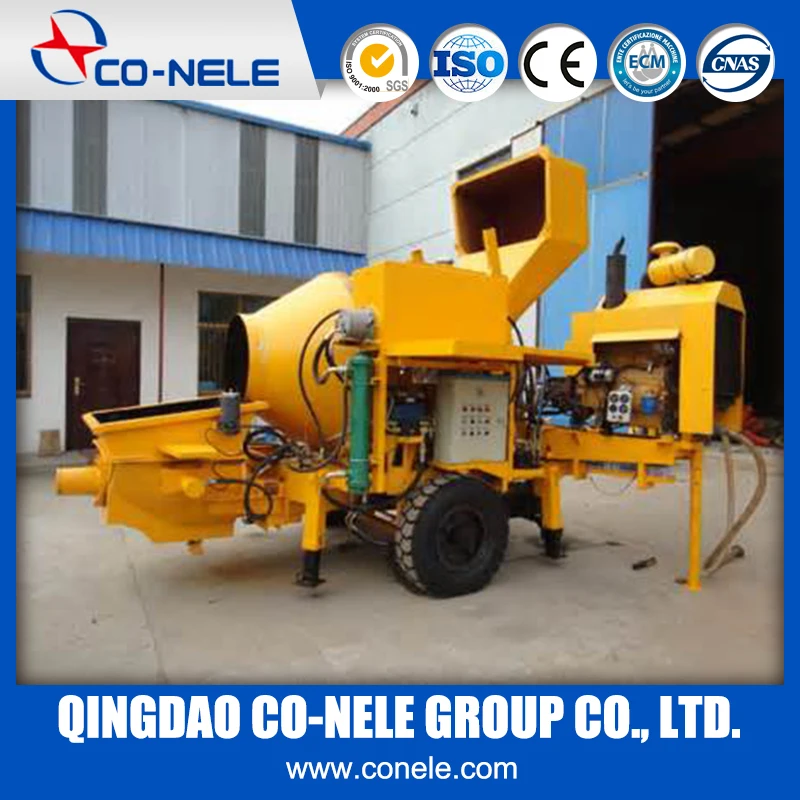

Self Loading Mobile Concrete Mixer/concrete Mixer Pump/concrete Mixer With Pump

Price:RUB 1,866,900.56 - RUB 2,353,236.00

Quantity:

portable mini concrete mixer and pump

concrete pump mixer.jpg

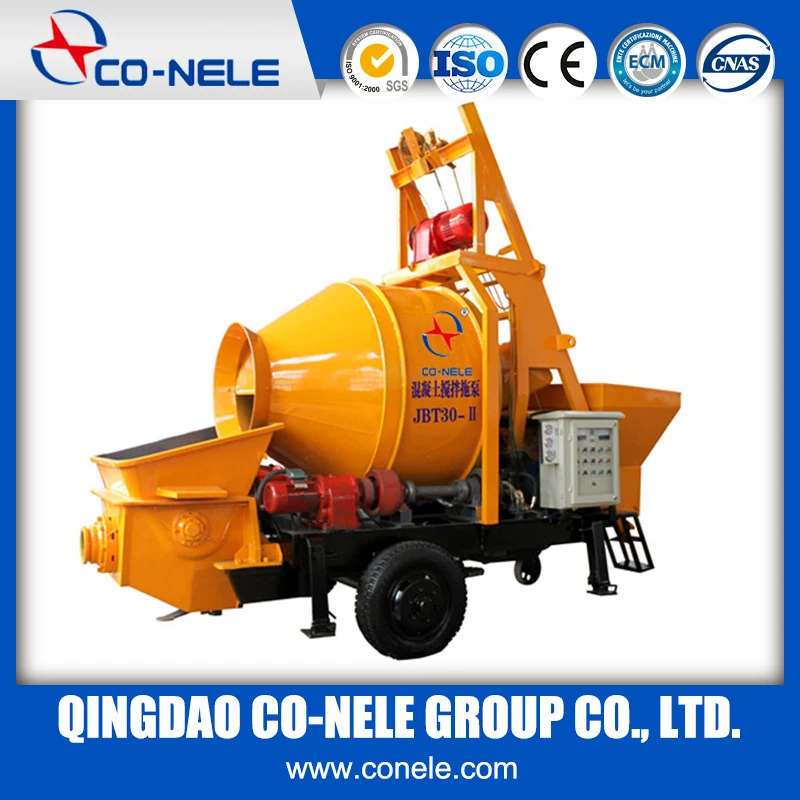

Item	Unit	JBT30-II
Max.Theo. Output	m^3/h	30
Distribution valve	S valve
Hopper capacity x Filling height	L x mm	500*1200
Pumping motor power	kw	55
Winding motor power	kw	4
Hydraulic oil type	Open loop
Rated speed	Rpm	1480
Oil tank cubage	L	170
Weight	kg	3500
Concrete delievery pressure	Mpa	9
Concrete cylinder dia. x stroke	mm	200*1200
Discharging mouth diameter	mm	150
Mixer power	kw	3*2
Water pump power	w	550
Max. Allowed aggregate diameter	mm	Pebble:40 Crush stone:30
Voltage/Frequency	v	380
Dimensions(LWH)	mm	430020603680

Product Advantage:

Concrete mixing drag pump is a new type of engineering equipment which combined

concrete mixer with concrete pump. Using the duplex hydraulic pump system,

have excellent characteristics of with small size, small operating space, owing

the high quantities of concrete, mature and stable performance. Products are

suitable for all kinds of 2 to 12 floors of small and medium-sized housing construction,

as well as a variety of mine, water conservancy and hydropower engineering, highway,

rail tunnel, slope geological disaster control engineering, etc.

Science and technology is the first productive force, this puts forward a new era of

power by Dong Xiaoping. A new type of concrete mixing pump is the demand of new era,

substantially increased the efficiency and saved the labor, and then benefited all of us.
