SHD630 гидравлический сварочный аппарат для стыковой сварки полиэтиленовых труб
- Category: Other Welding Equipment >>>
- Supplier: Rothenberger (wuxi) Pipe Technologies Co. Ltd.
Share on (1184441173):
Product Overview
Description

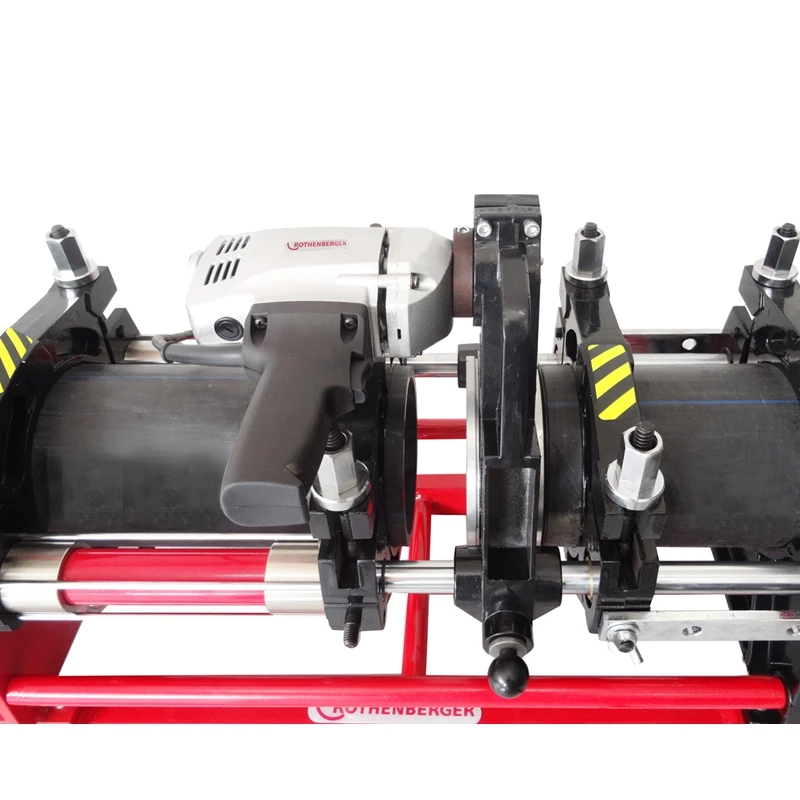

SHD630 polyethylene pipe hydraulic butt fusion welding machine
Product Description
Application and features:

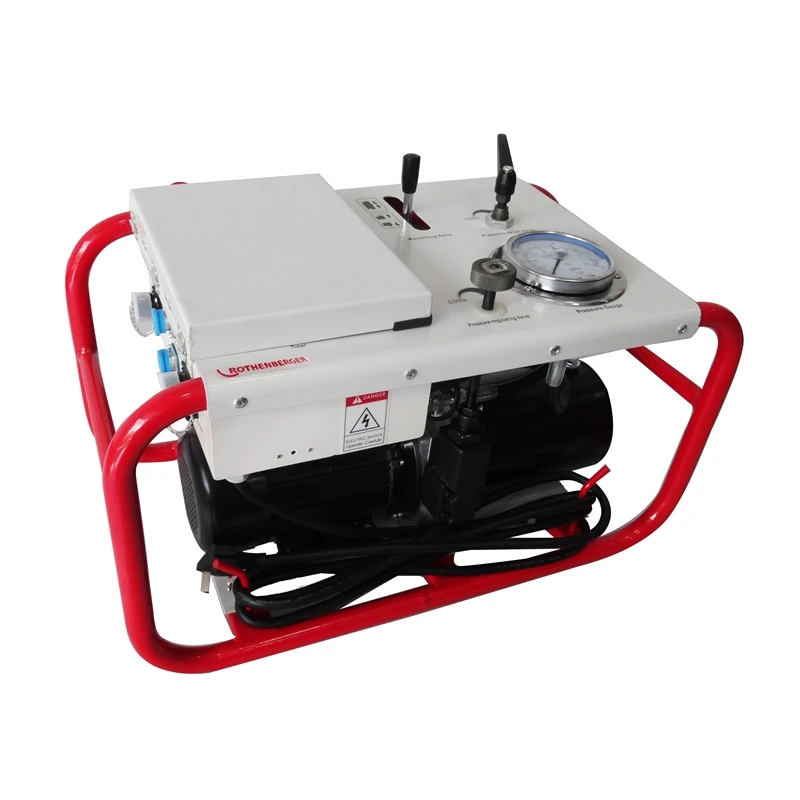

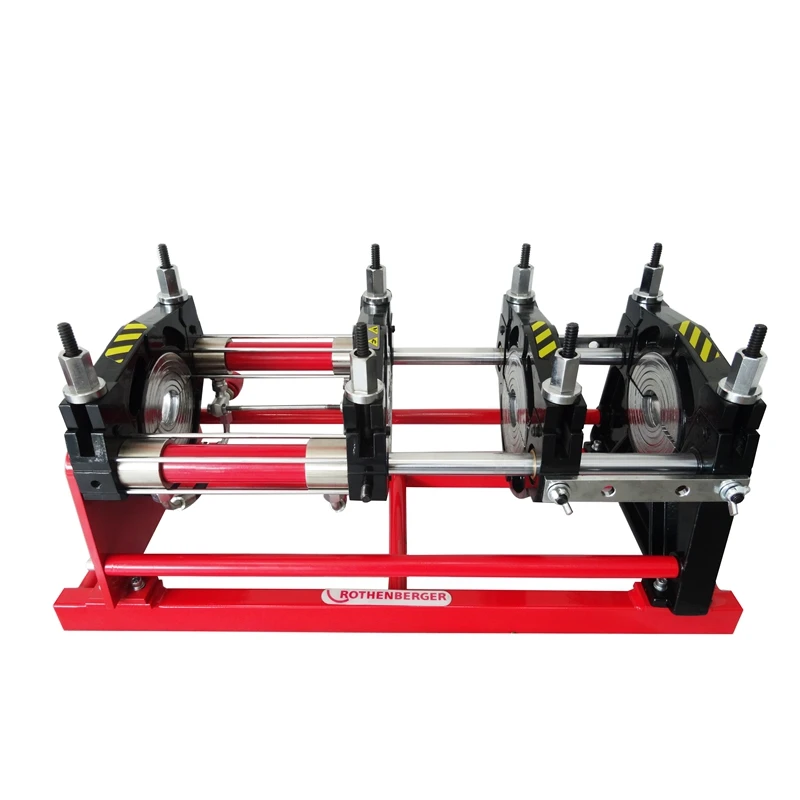

1. Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts
2. Removable PTFE coated heating plate with high accurate temperature control system

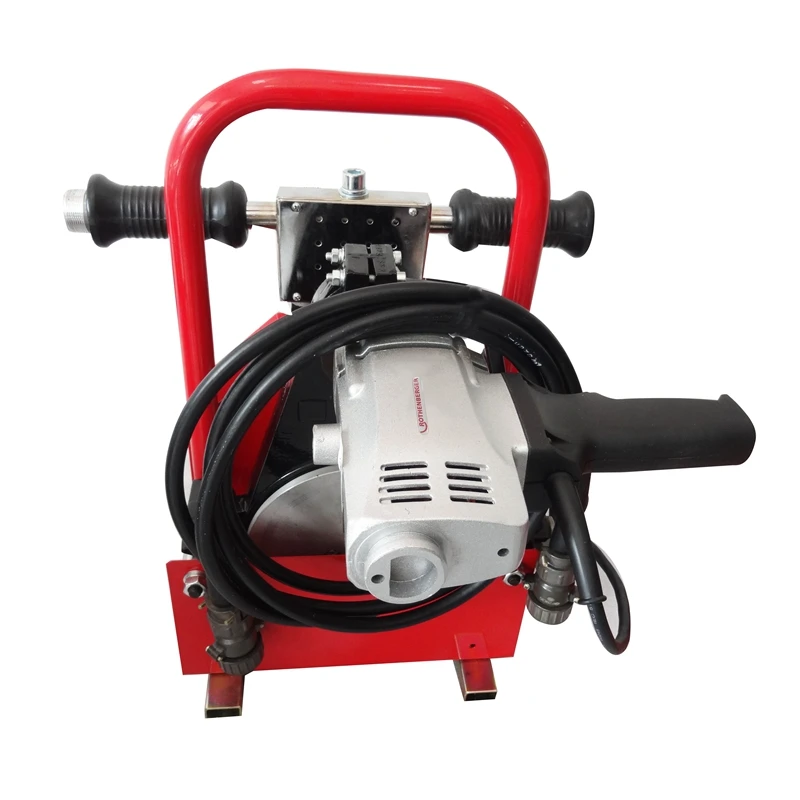

3. Electrical planing tool with safety limit switch
4. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
5. Low starting pressure ensures reliable welding quality of small pipes
6. Changeable welding position enables to weld various fittings more easily

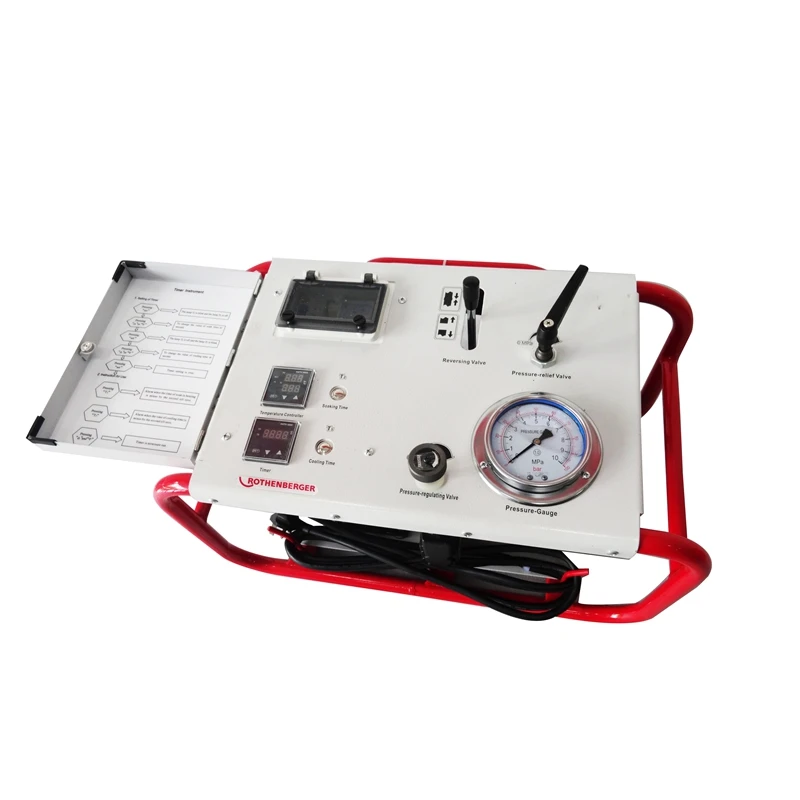

7. High accurate and shockproof pressure meter indicates clearer readings
8. Separate two-channel timer records time in soaking and cooling phases
9. Suitable for butt welding of plastic pipes and fittings made of PE,PP and PVDF in worksite or workshop,
cannot be used to weld material without description
The main parameters
Model | SHD630 | |
Pipe Size (mm) | 315,355,400,450,500,560,630 | |
Heating Plate Max. Temp. | 270°c | |
Temp. deviation in surface (170~250 degree) | ±7°c | |
Pressure adjustable ranges | 0˜6.3MPa | |
Working voltage | 380V,50Hz | |
Heating plate power | 9.35KW | |
Planing tool power | 1.5 KW | |
Hydraulic unit power | 1.5 KW | |
Total power | 12.35 KW | |
Weight | 780Kg | |
Packing dimension | Basic frame | 1680×1280×1240mm |
Support | 860×1160×1480mm | |
Hydraulic unit | 740×490×620mm | |
Cases | 4 Plywood Cases | |
Volume | 4.43CBM | |
Company Information
Our company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
More productions
Certificate
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about 15 to 40 days
Q: Can you design and produce special machines according to customer requirement ?
A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Packaging & Shipping
Our Services
Presales technical assistance
When we get a damande from a customer or a potential customer who wants to buy us a product ,it is our standard procedure to supply the best solution to meet their needs.
The processing of production
When we get a order from our customers ,it is our standard procedure to give our loyal customer one prodection processing table including parts name&its lead time ,total assembling time and testing scheme within 1-2 days
Train
Only by having a perfect knowledge of our products ,pur customers are able to use them in the best way.it is our promises to invest in custom training.These courses are aimed to teach our customers how to operate the products in the best way and how to get the"first aid" when necessary.
After sales technical Assistance
Service centre can solve all kinds og technical issues as well as supply various types of spare parts in the shortest time
