Suncenter gas air compressor with max 50 Mpa pressure
US $2000-$15000
Длительный срок службы, низкий уровень шума, щеточный двигатель постоянного тока, микро воздушный компрессор, насос
- Category: General Industrial Equipment >>>
- Supplier: Changsha TOPS Industry And Technology Co. Ltd.
Share on (1215366842):
Product Overview
Description

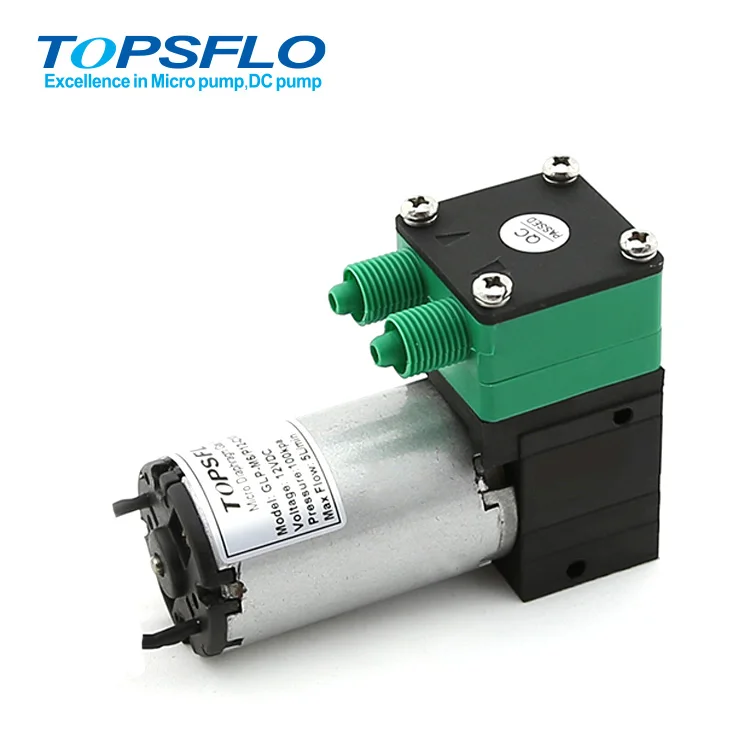

Long lifetime low noise DC brush motor micro air compressor pump
Product Description

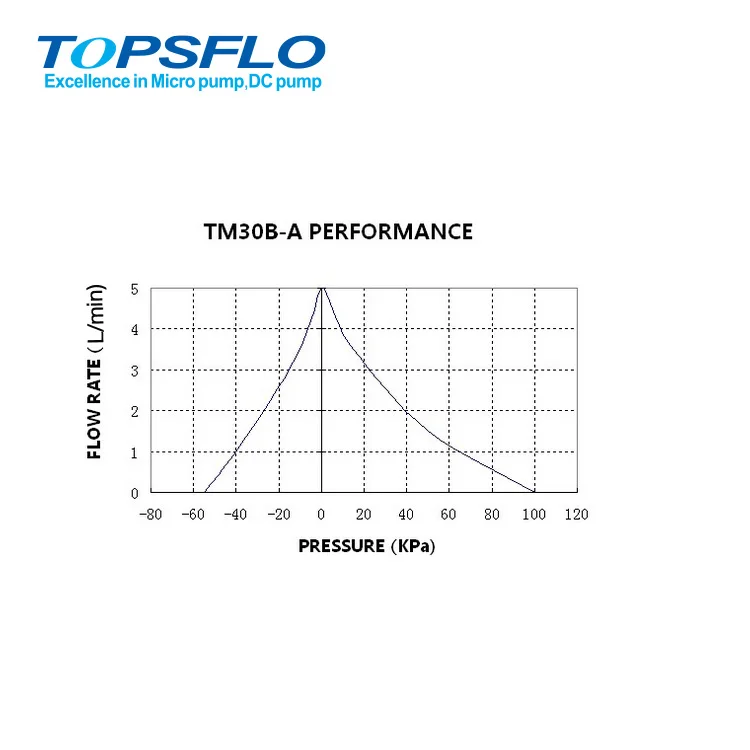

TM30B-A Product Specification
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (KPa) | (KPa) | (L/min) | |
| TM30B-A | TM30B-A12- P10005 | TM30B-A12-V5505 | 6 /12 / 24 | 0.4/0.24/0.15 | 100 | -55 | 5 |
| " P " means pressure pump, " V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||

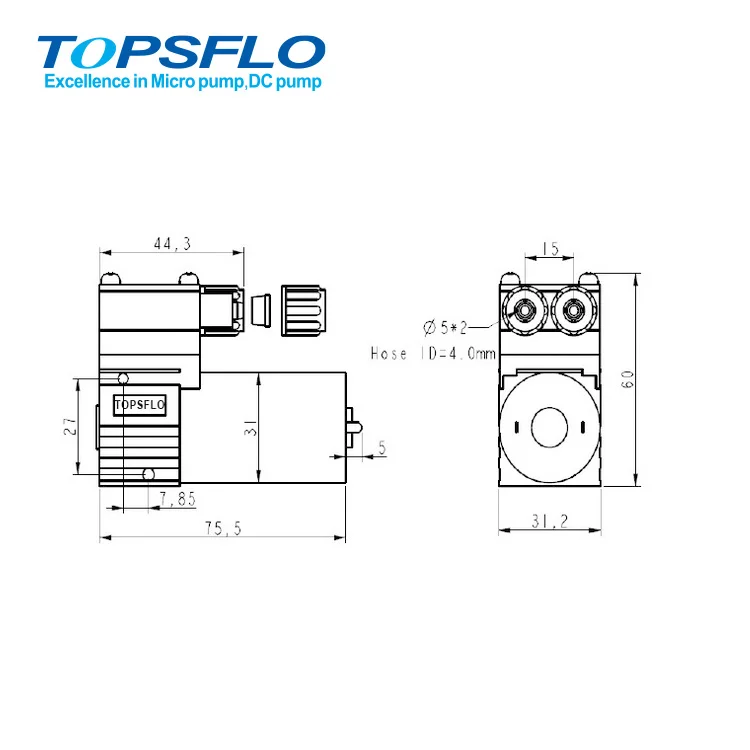

Pump Weight:220g; Pump Size:80mm*31mm*60mm; Inlet&Outlet with locknut:OD 4.9mm/ID 2.8mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM | |||||||
Motor type and code:“A”:premium duty brush DC motor (reference lifetime 3,000hours),longer endurance lifetime than other normal DC membrane pump Comparing with the TZ economic series, pump with general more stable and higher performance for it's importing bearing, higher endurance membrane. | |||||||
• Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.
• Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
• Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
• Uncontaminated flow
No contamination of the media due to oil-free operation
• Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
• High level of gas tightness
Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
• Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other material combinations for the parts which allows the corrosive gas to be pumped.
• Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected
1. Industrial pressure and vacuum applications 2. Portable Analytical Instruments 3. Medical Diagnostic Equipment
4. Air Quality Sampling Monitors 5. Respiration Monitors 6. Gas or Odor Leak Detectors etc..
4. Air Quality Sampling Monitors 5. Respiration Monitors 6. Gas or Odor Leak Detectors etc..
