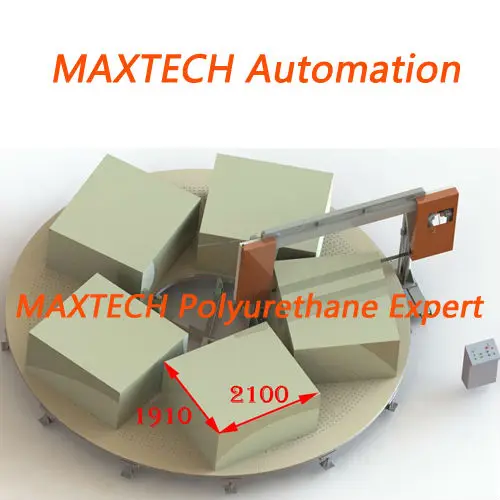

MAX-CRM Computerized Foam Circle Cutting Machine
This foam cutting machine is mainly used for multi foam blocks’ horizontal constantly cutting. The worktable runs automatically which speed is adjustable. This carrousel foam cutting machine is equipped with automatic grinding, which can start the self-sharpening device while the machine is in process which security will be higher and make the cutting efficiency much higher. Vacuum equipment is optional for this circular cutting machine, which can make the cutting more steady and cutting effect better.
Worktable size | Φ7200mm |
Max cutting height | ≤1200mm |
Cutting sponge size | 2m*2m*1.2m |
Length of knife belt | 9900mm |
Table turning speed | ≤ 3.26rpm |
Cutting thickness | ≥ 2mm |
Precision | ≤ 1mm |
Speed | 5 circles/min |
Voltage | 3phase , AC 380V |
Suction Power | 4KW |
Total Power | 10.5KW |
Control system | PLC control&Human-computer interface |
