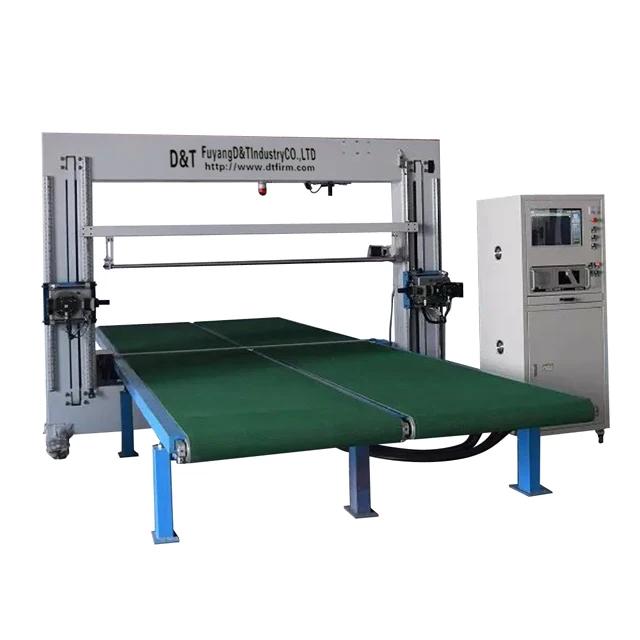

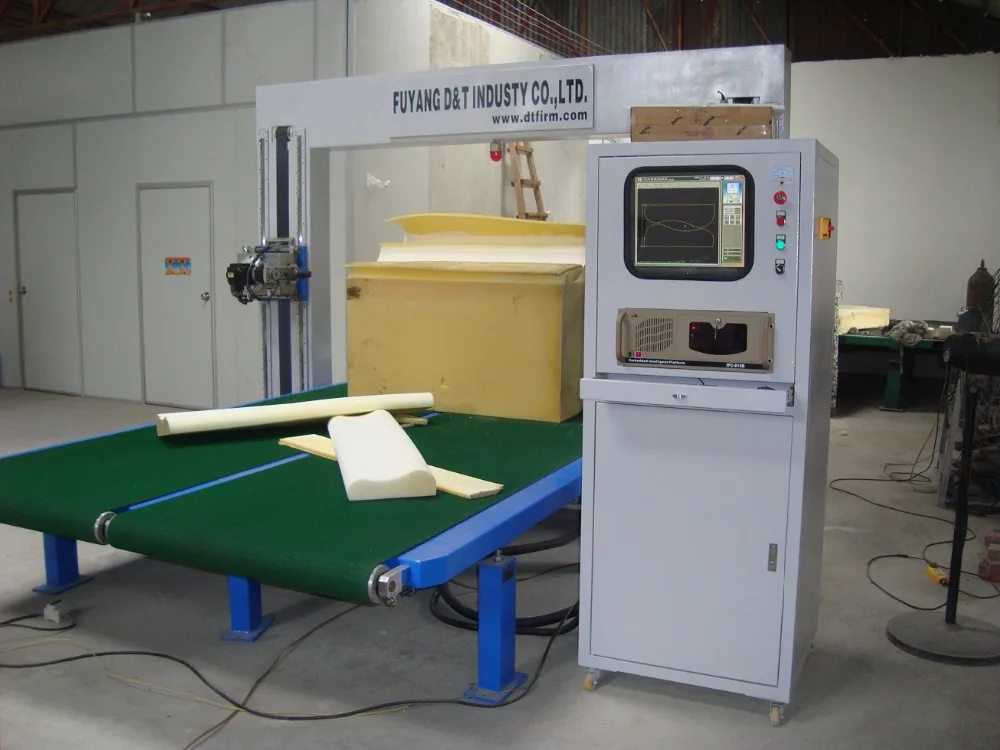

CNC Latex sponge cutting machine Oscillating Blade Contour foam Cutter

Product Overview

Description



CNC Foam cutting machine/ sponge cutter/ oscillating blade cutting machine for foam









1.Description Of  CNC latex sponge cutting machine

Detail:

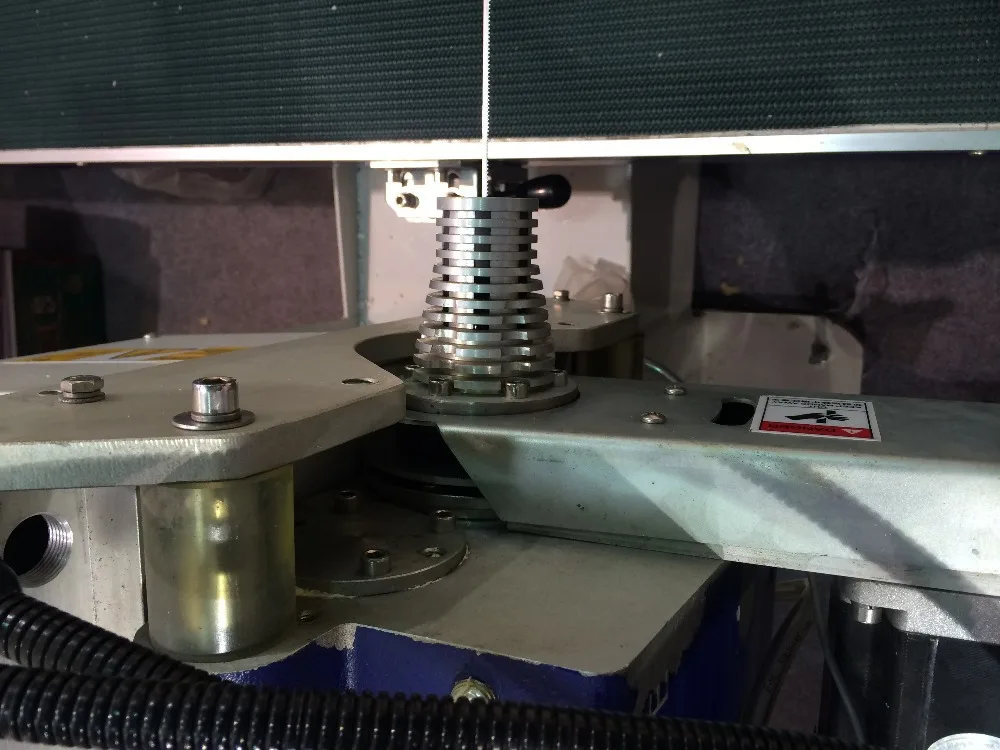

Computer control horizontal blade
Unlimited &automatic rotation of blade
No dust in cutting
Fully automate system

 Application: Upholstery, mattress, furniture, packaging and automotive industry

Cutting material : Flexible foam,sponges, latex

The oscillating blade contour cutter is a kind of complex shape cutter,which is suitable for flexible foam,sponges and latex. The blades cut in high-speed vibrating, so it will work faster and the surface of foam will be very smooth,and also there is no dust during cutting work.

All the machines are driven by the remarkable profiler software ,which speeds up the design process and enables the operator to obtain the best yield from the foam block.

Oscillating blade contour cutter have perfect safety system to prevent accidents .



 3.Technical DaTa of   CNC latex sponge cutting machine



TECHNICAL DATA
Type	DTC-S1212	DTC-S2012	DTC-S2512
Max. Product Size	2500*1200*1000(mm)	2500*2000*1200(mm)	2500*2500*1200(mm)
Cutting    Line	1.3~1.5mm
Control    System	Industrial    Computer
Software	D&T    Profiler	D&T    Profiler	D&T    Profiler
Cutting    Speed	0~6m/min	0~6m/min	0~6m/min
Person	±1mm
Power	<5.5kw	<6.5kw	<8.5kw
Vacuum    De-dust	Included	Included	Included
Overall    Weight	1200kg	1500kg	2200kg
Overall    Dimension	6200*2400*2380mm	6200*3200*2800mm	6200*3800*2800mm

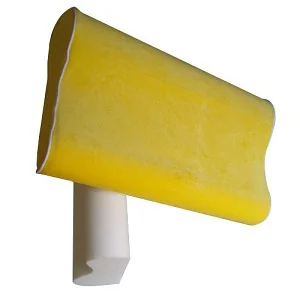

3. Sample for Cutting Product
