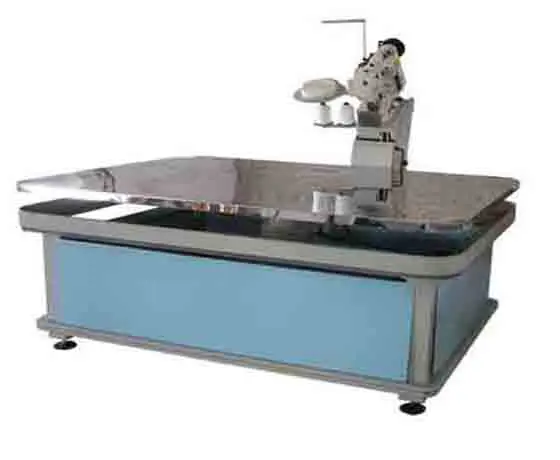

This tape edge machine is mainly used for tape-edging of mattress panel.
Advanced chainstitch sewing head (Singer 300U).
Auto-lifting table, hand-controlled tilting of sewing head.
Variable speed for moving of carriage and sewing, auto-slowdown at corners.
Straight, even and attractive seam.
Stainless steel table top.
Equipped with level-adjusting device.
Low noise, small vibration, stable performance.
Main technical specifications:
Thickness of mattress
60-330mm
Table lifting range
190mm
Adjust angle
15°
Table size
1420X1950mm
Overall dimension
1950X1420X1650mm
Moving motor power
0.75KW
Motor upper&down motor
0.75KW
Weight
520kg
Power supply
Single phase 220v 50Hz
Speed of corner
1~12m/min(adjustable)
Max.Speed of sewing
12m/min(adjustable)
Packaging & Shipping
Packing: the standard is film packing.

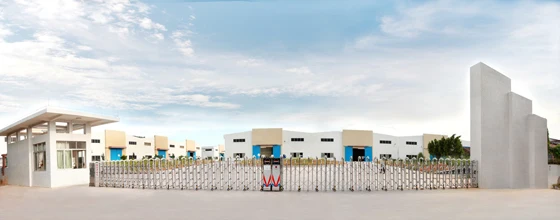

Company Information
MAXTECH Automation Machinery Co., Ltd is a high-tech automation company which is specialized in technological development and machine manufacturing. We have our professional technical development team and experienced technicians, always implements advanced technology, strict quality controls on products and systems, we do our best to make our products reach industry-leading level to keep the final customers always satisfied.
At present, we mainly produce Mattress Packing Machine, Pillow Machine, and Foaming Machine, three series. Each series’ core products are reached the leading level in the industry, no matter in the manufacturing or automation level. Our products are mainly exported to Asia, Africa, Europe, Australia, and South America, Southeast Asia, the Middle-East etc. all over the world.
“Honesty, Quality & Service first”, supplying high & stable quality goods and best services for all of our customers, keep developing our products and innovate in technology. Hand in hand with customers to create a better future!
